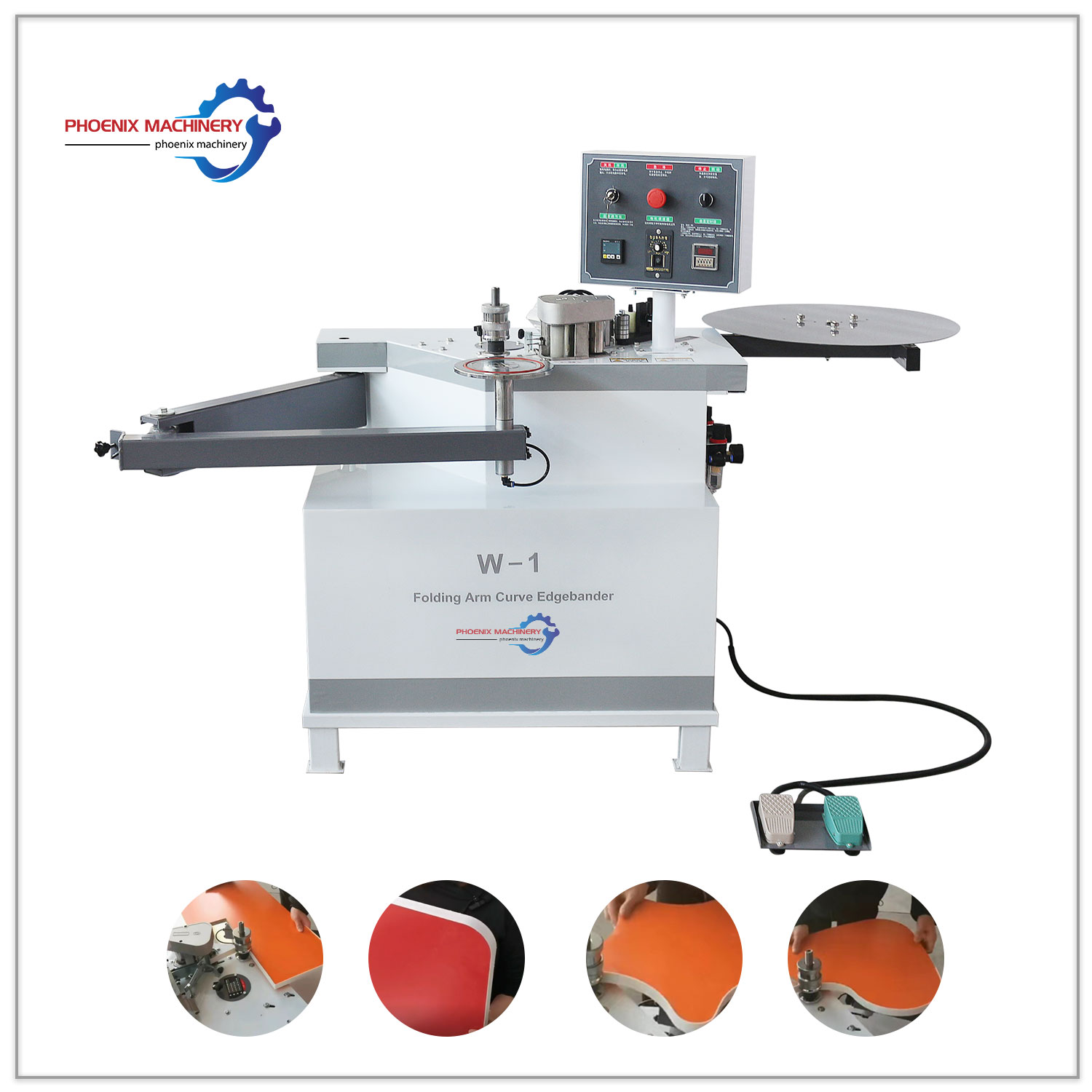

pvc curved small portable woodworking automatic edge banding machine manual mini wood motor 220v trimming gluing machine 1000ml

W1

Excellent properties:
1.Over the history of the long curved edge trimming manual operation, greatly improving the quality and yield, saves the labor costs.
2.Welding machine, and after special heat treatment process, the body and durable is not easy to deformation.
3.PLC control system, a touch screen, easy programming operation.
4.Strict fine assembly process to ensure that the index of equipment standards requirements.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

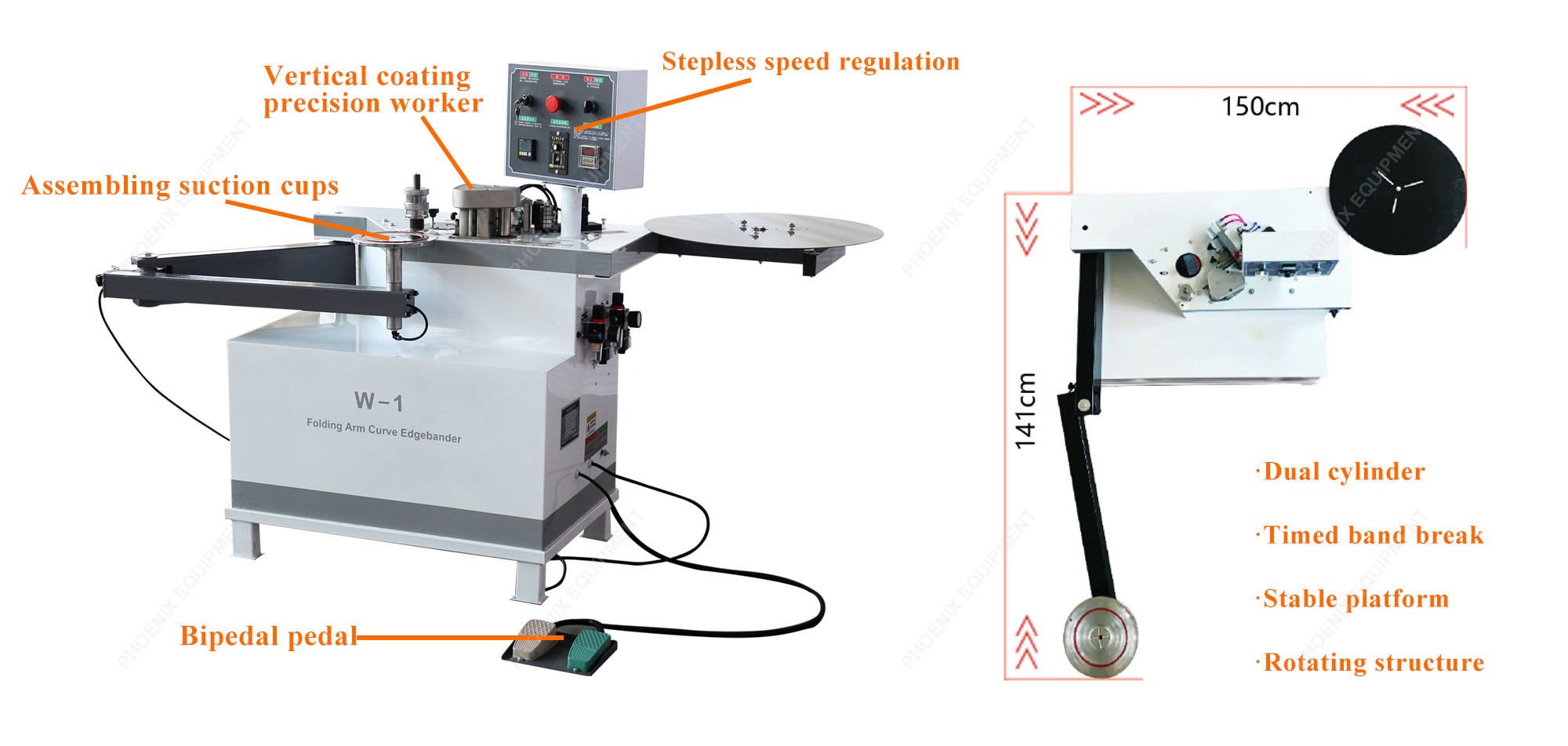

semi-automatic curve edge banding machine w1 woodworking folding arm edge bander for sale

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model Number W1 W2 W3
Board size Diameter 1.5m(round) 1.2-2.4m 1.2-2.4m
diameter of
suction cup		 200 mm 300 mm 300 mm
Auxiliary
pressure roller		 — — √
Automatic cleaning — — √
Hot air device — — √
Total power 1400w 1400w 3400w
Edge banding speed 0-26cm/s 0-18cm/s 0-18cm/s
Glue pot capacity 1200ml 1200ml 1200ml
Length of
stacking arm		 1320
(with 200mm suction cup)		 1860
(with 300mm suction cup)		 1860
(with 300mm suction cup)
net weight 88KG 152KG 157KG
Machine size 1420*1400*1210 1960*1700*1220 1960*1700*1250
Remarks:”√” means that this function is available,and “—” means that there is no such function
