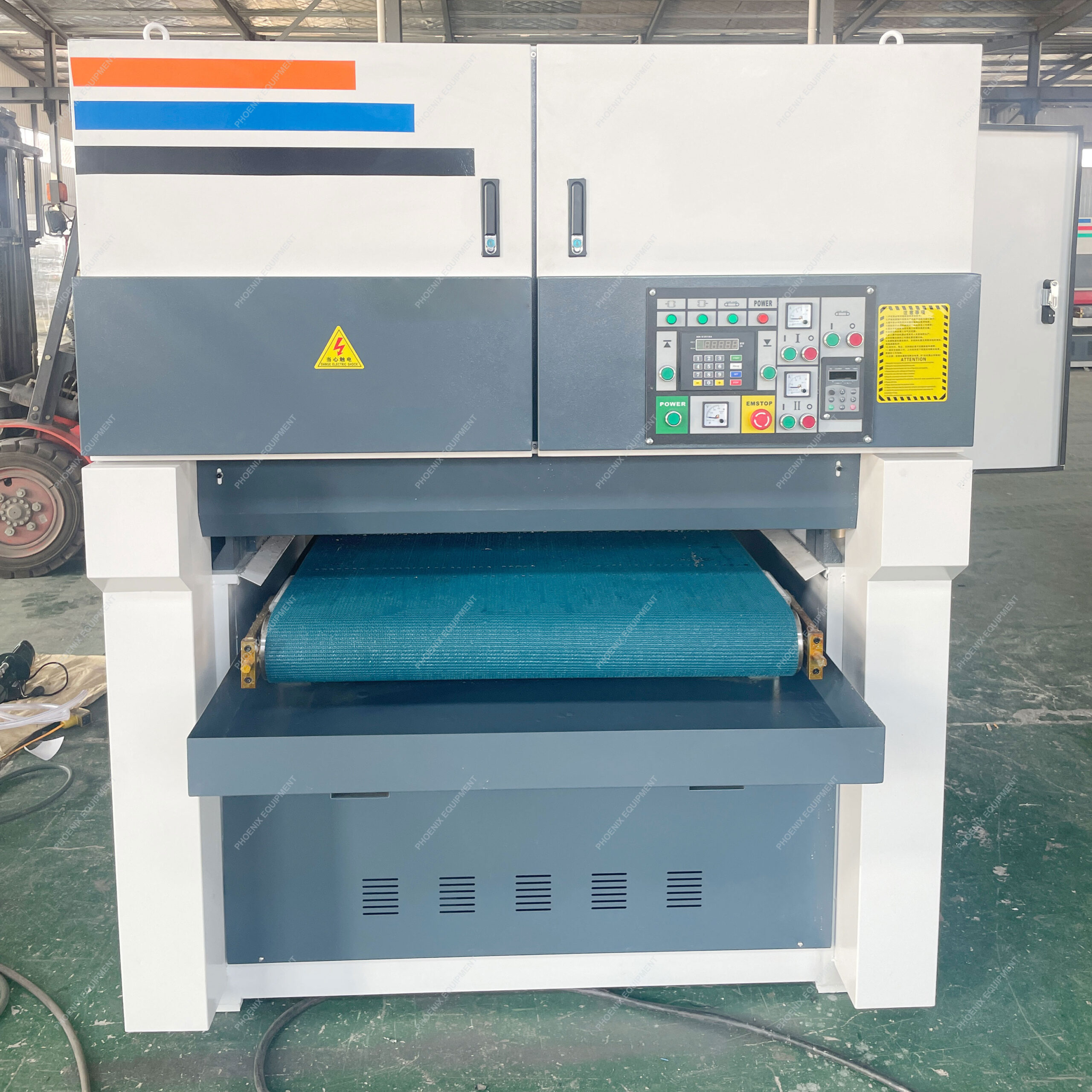

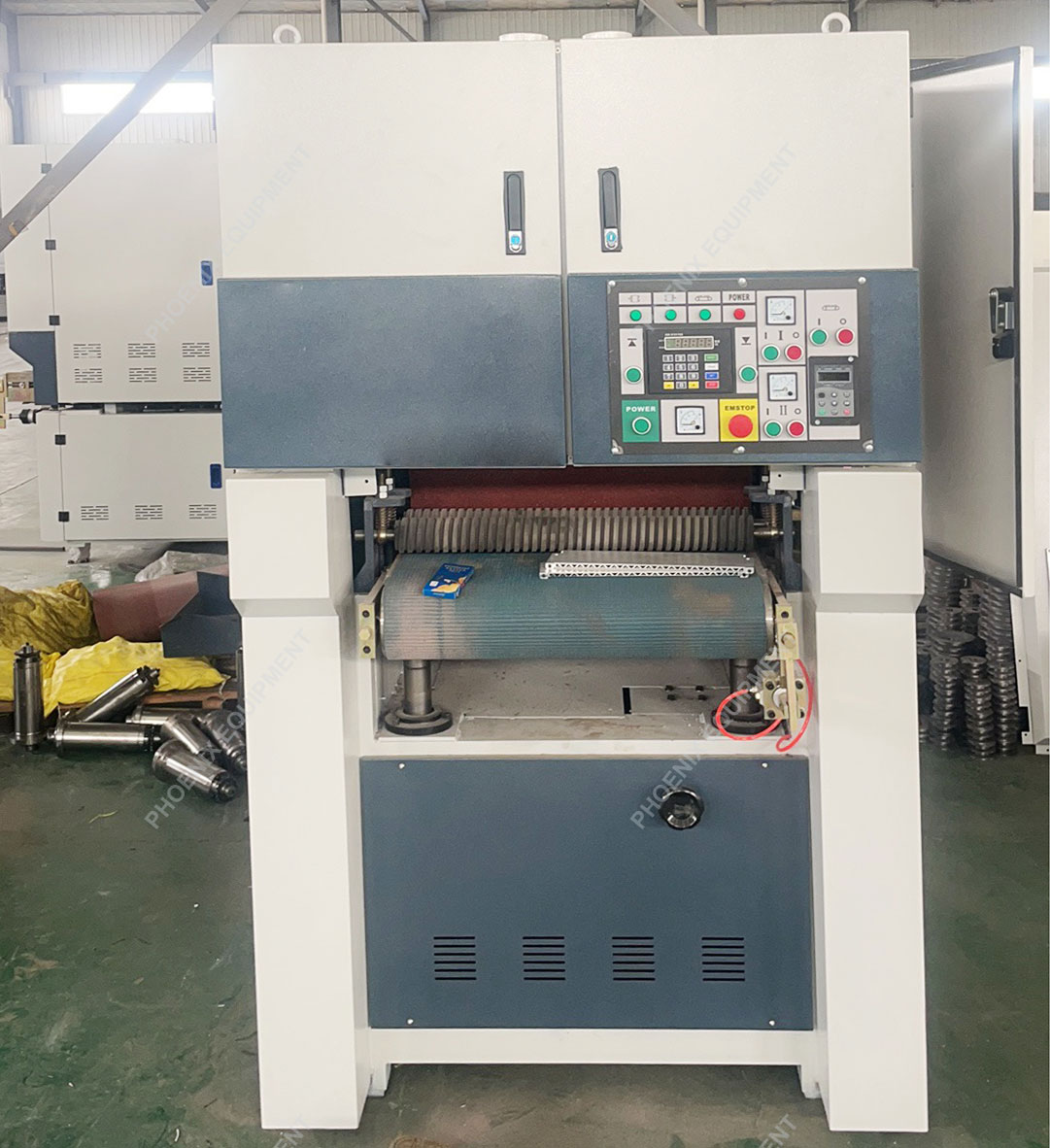

The machine tool adopts advanced photo-lelctricity technology andinformation manage technology combined with specially make thick roller for confirming thickness and electric machine with high-power which can improve the working accuracy and panel quality.The machine tool has thehumanistic control function.lt can confirm thethickness automatically and control with program that may make the operation more convenient.
| Model | R-R 630 | R-R 1000 | R-R 1300 |
| Max. working width | 630 mm | 1300 mm | 1300 mm |
| Working thickness | 2-120 mm | 2-120 mm | 2-120 mm |
| Feeding speed | 5-25 m/min | 5-25m/min | 5-25m/min |
| Sanding belt size | 650*1920 | 1020*2000 | 1320*2200 |
| General Motor Power | 21.47 KW(11, 7.5) | 28.97 KW (15,11) | 40.85 KW (18.5,18.5) |
| Overall dimension(L*W*H) | 1780*1150*2000 | 2060*1690*2000 | 2350*2450*2000 |
| Net weight | 1600 kg | 2300kg | 3000kg |
