precise manual double motor 45 degree angle cutting sliding table circular panel saw machine 90 degrees angle cutting device

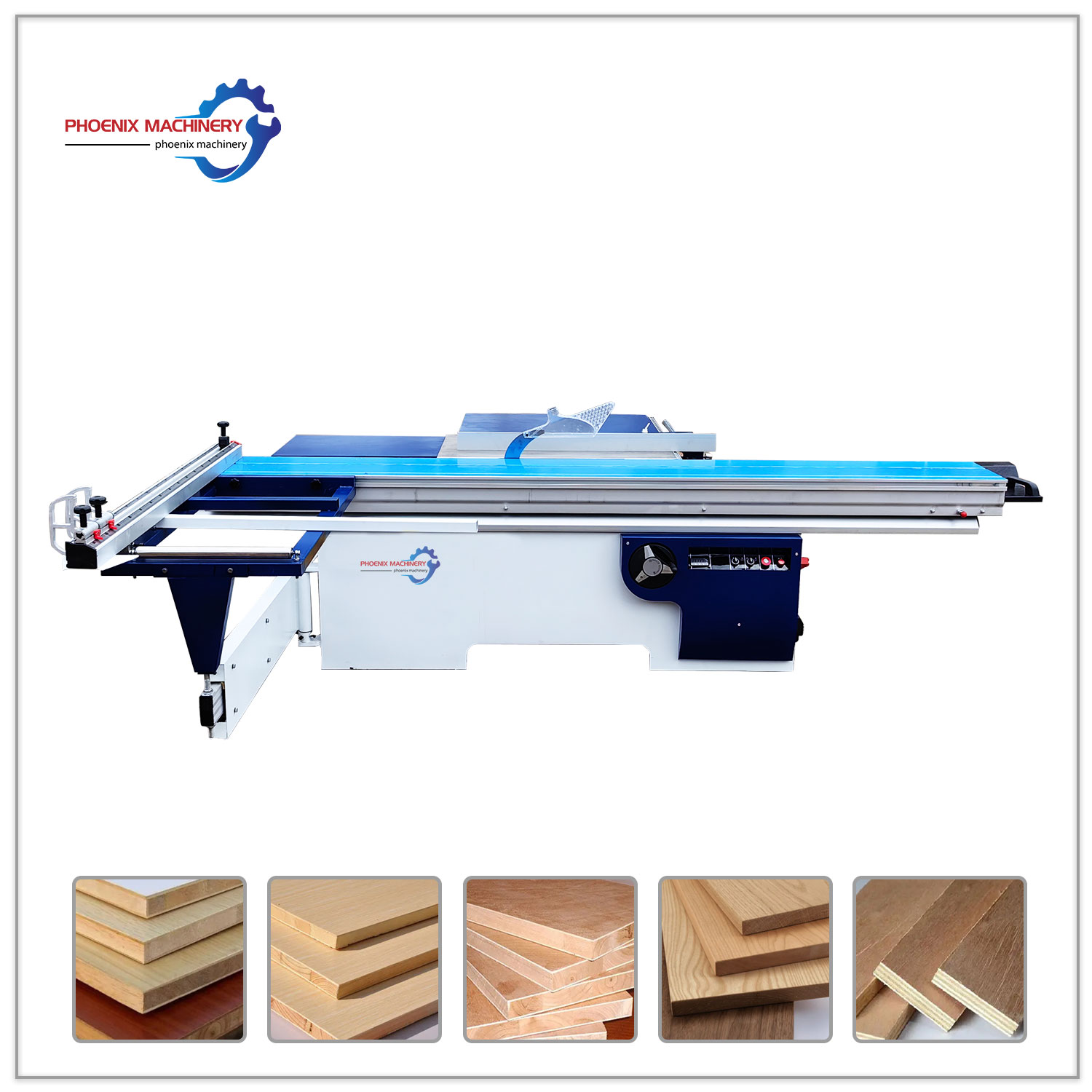

MJ6132

Precision panel saws are also called sliding table saws, precision sliding table saws, woodworking precision panel saws, and precision saw panel sliding table saws. They are easy to operate, stable and safe. It is an indispensable machine for mass production, standardization, mechanization and specialization of furniture.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

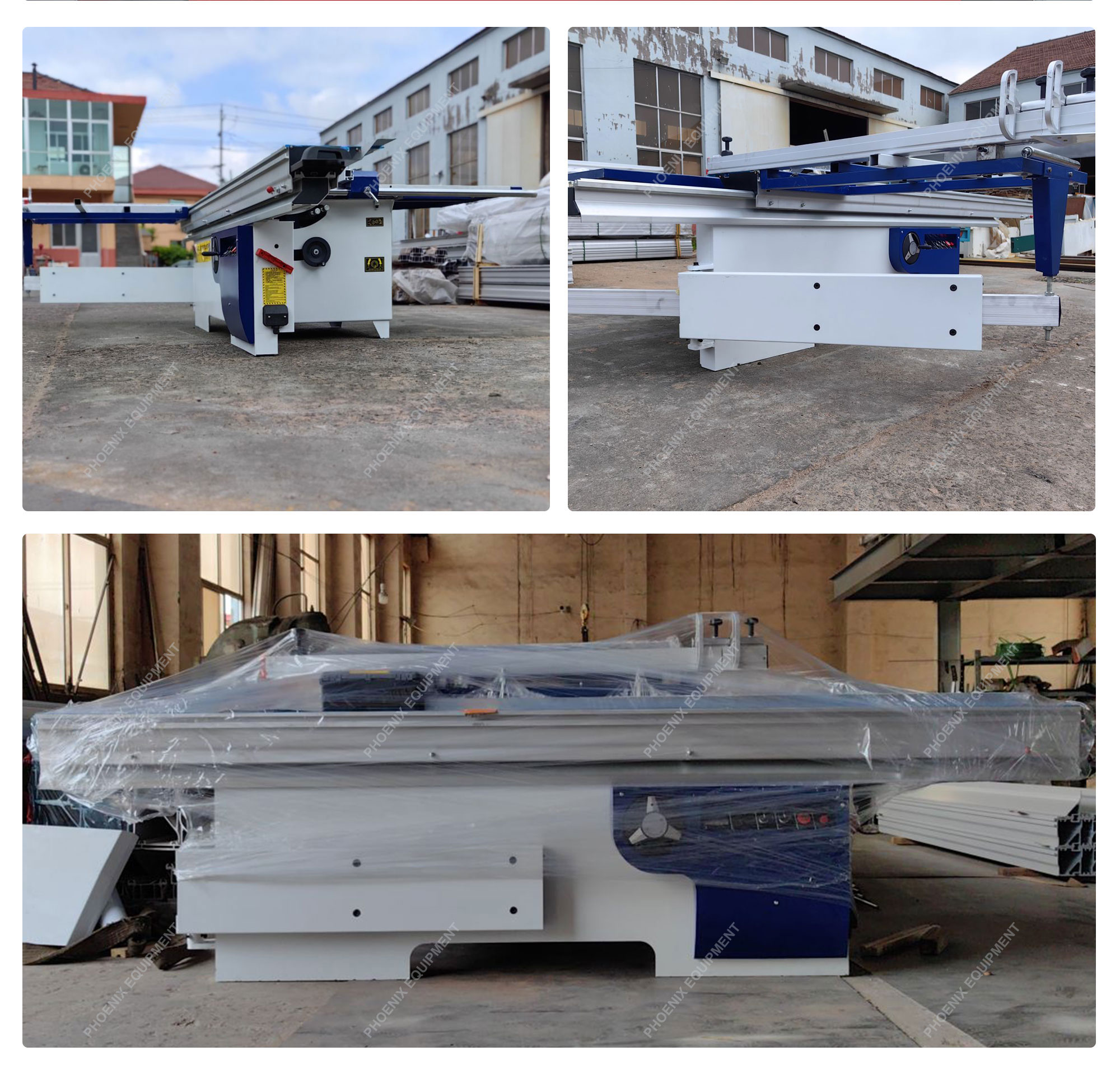

saw table wood cutting table panel saw

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

PANEL SAW MODEL Manual panel saw MJ6132
Max cutting length 3200mm
Max cutting width 3200mm

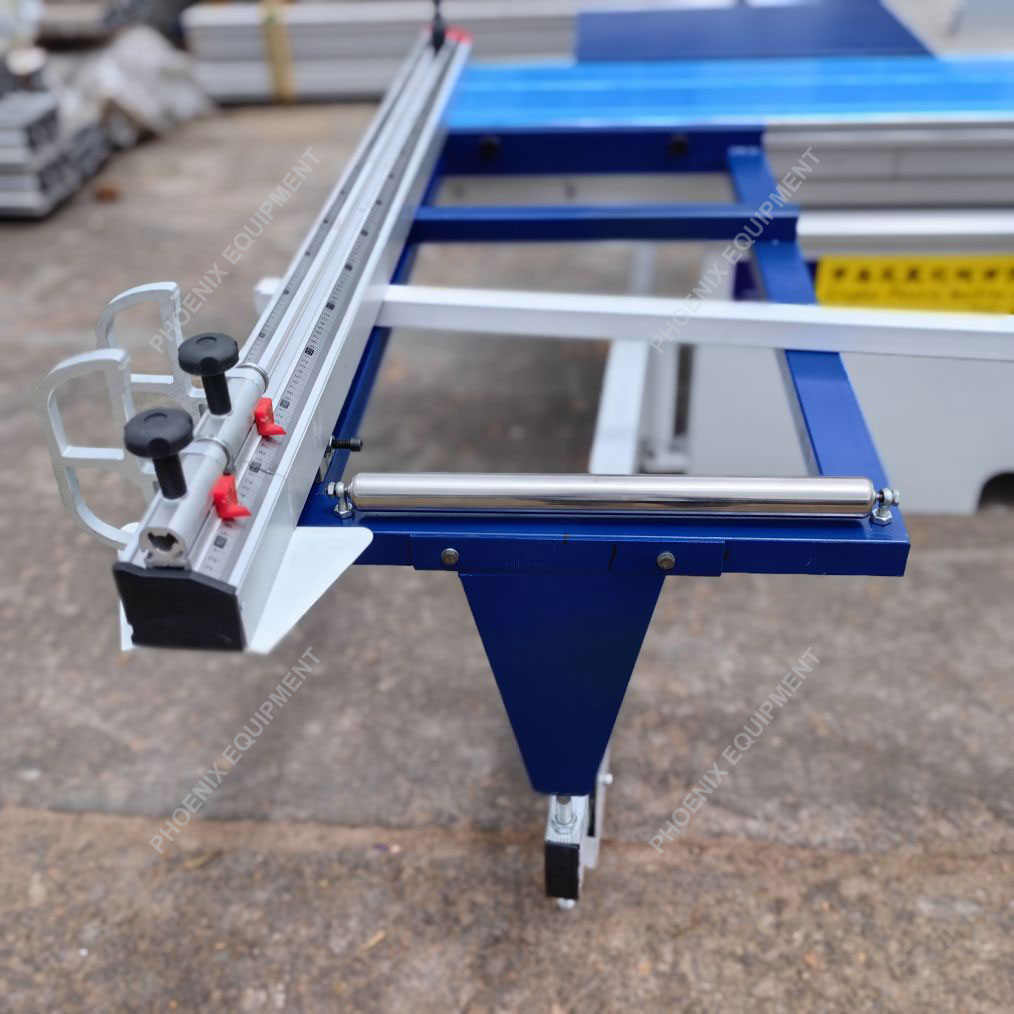

Sliding table length 3200mm
Sliding table width 375mm

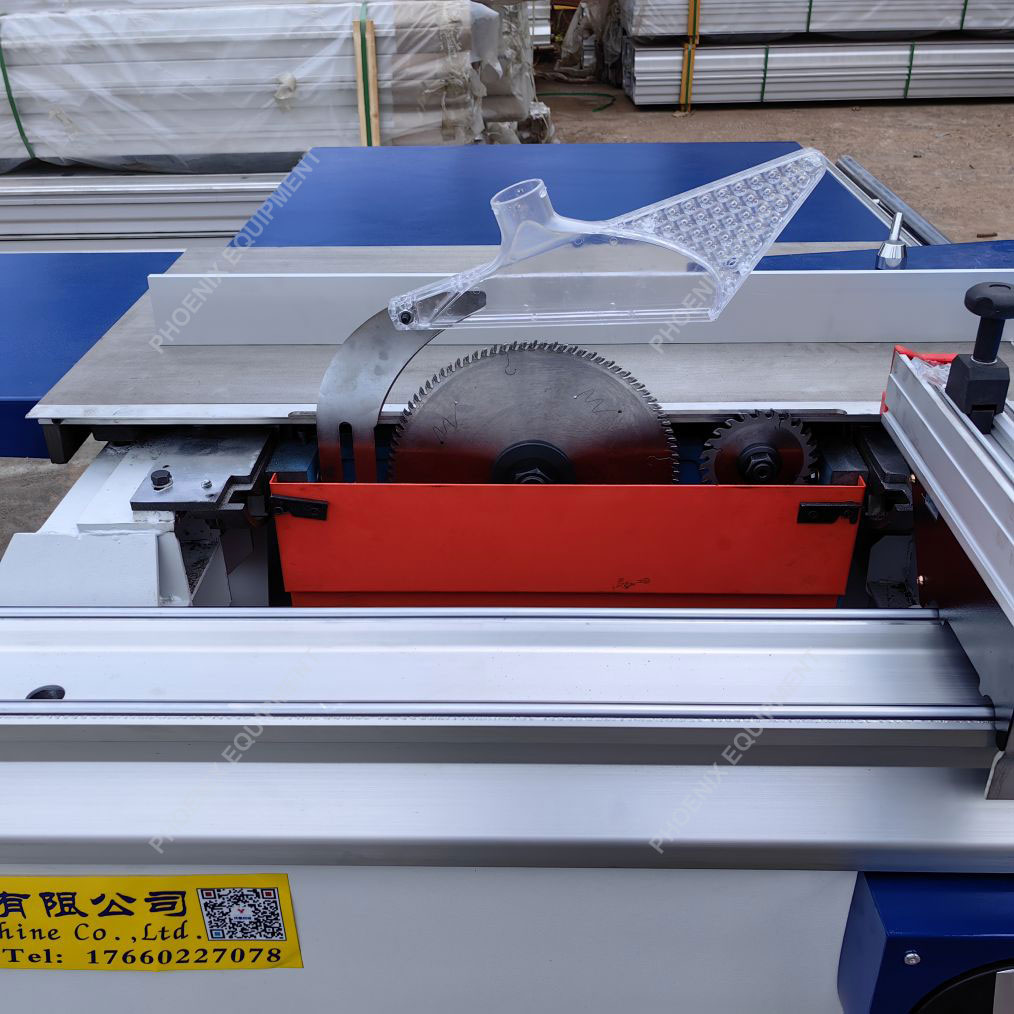

Main saw blade diameter 300mm
Scoring saw blade diameter 120mm
Main saw spindle speed 4500-6000rpm
Scoring saw spindle speed 9000rpm
Main spindle diameter 30mm
Scoring spindel diameter 20mm
Tilting saw blade 45°-90°
Height of cut at 45° 65mm
Height of cut at 90° 100mm
Main motor 5.5KW
Scoring motor 1.1KW
Main saw blade lifting motor Excluding

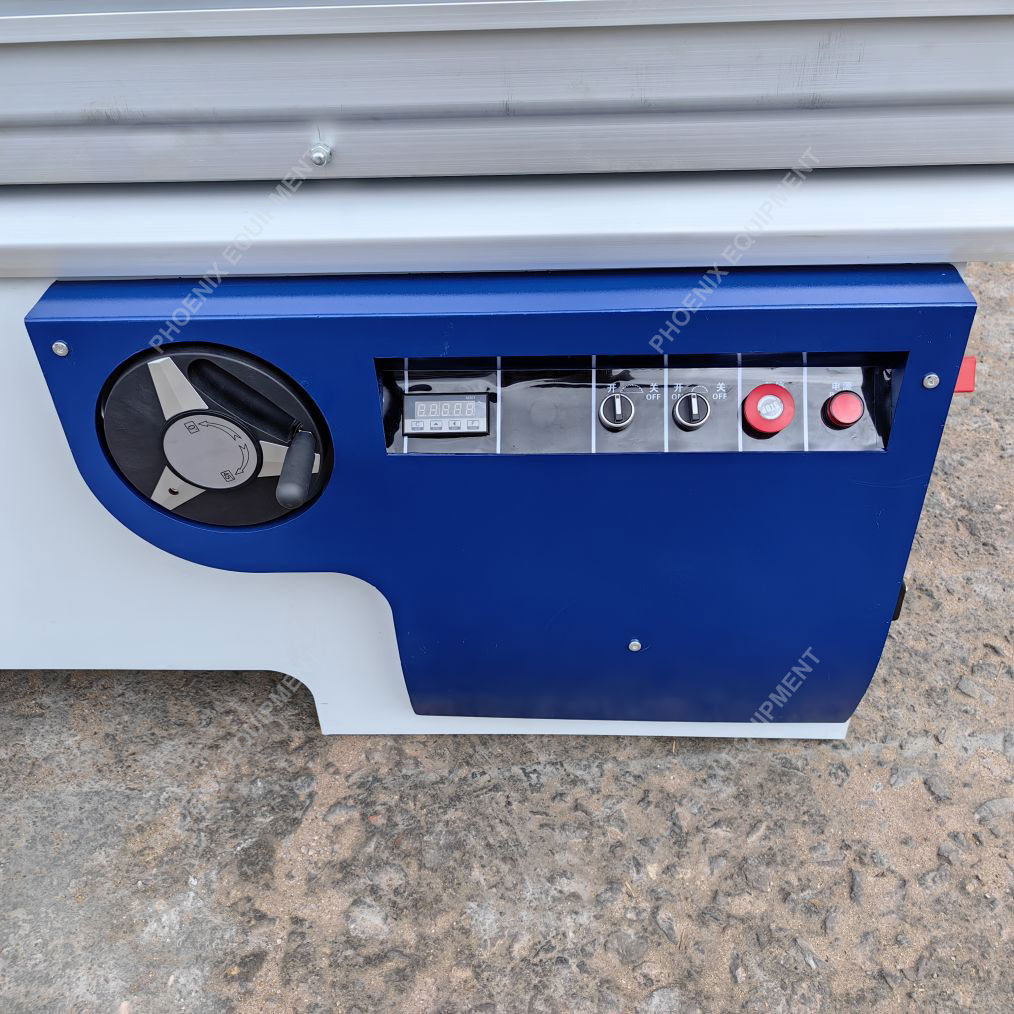

Angle digital display Including
Gross weight 750kg
