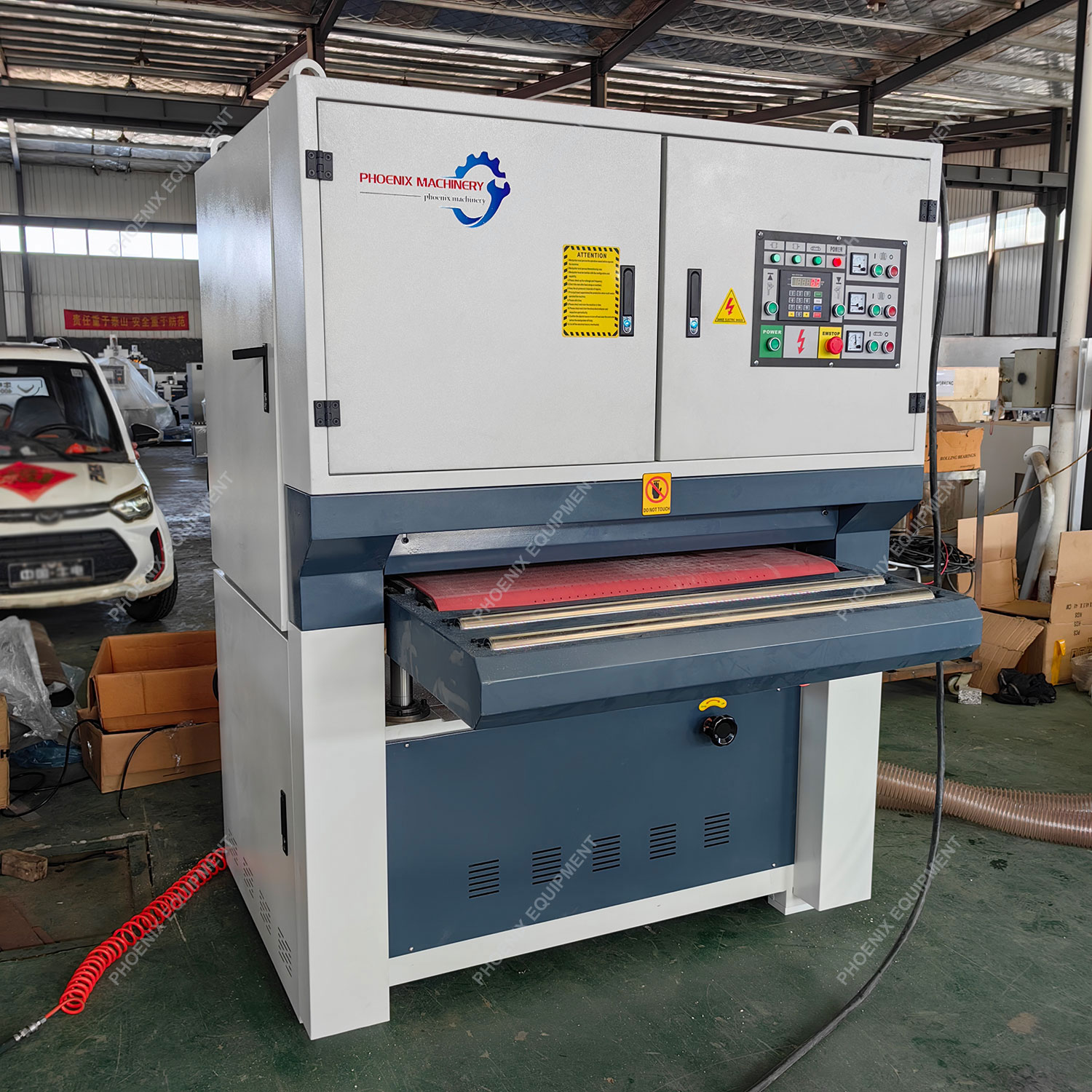

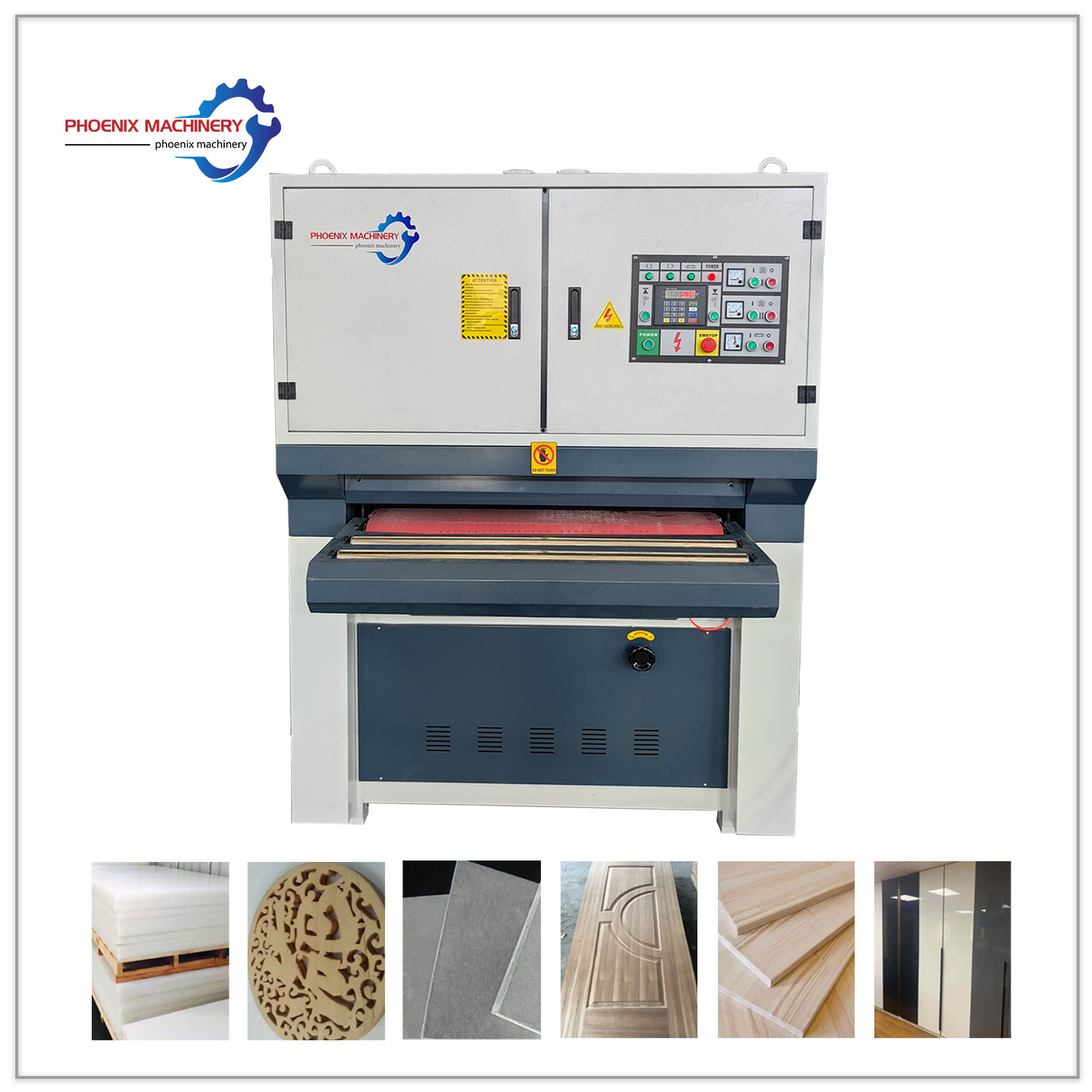

Heavy duty Woodworking Vacuum adsorption Sander solid wood thickness sander

R-R1000

Suitable for flat workpieces such as panel furniture, flat doors, solid wood composite flooring, cabinet side panels, handicrafts, bamboo and wood curtains, calcium silicate boards, glass magnesium boards, cement fiber boards, etc.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

6-14m/min Conveying speed sanding machine wood floor cabinet door sander with vacuumPhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model R-R1000
First sand motor 15kw
Second sand motor 11kw
Conveyor belt motor 1.5kw
Platform lifting motor 0.37kw
total power 27.87kw
Voltage 3-phase 380V 50HZ
Maximum processing board width ≦1000mm
Maximum processed plate thickness 1.5-110mm
Maximum length of processed sheet metal ＞25mm
Working air pressure 0.6-0.8mpa
belt speed 20m/min
Conveying speed 6-14m/min
Sandbag size 1020*2000mm
weight 1800kg
size 1500*1800*2100mm
