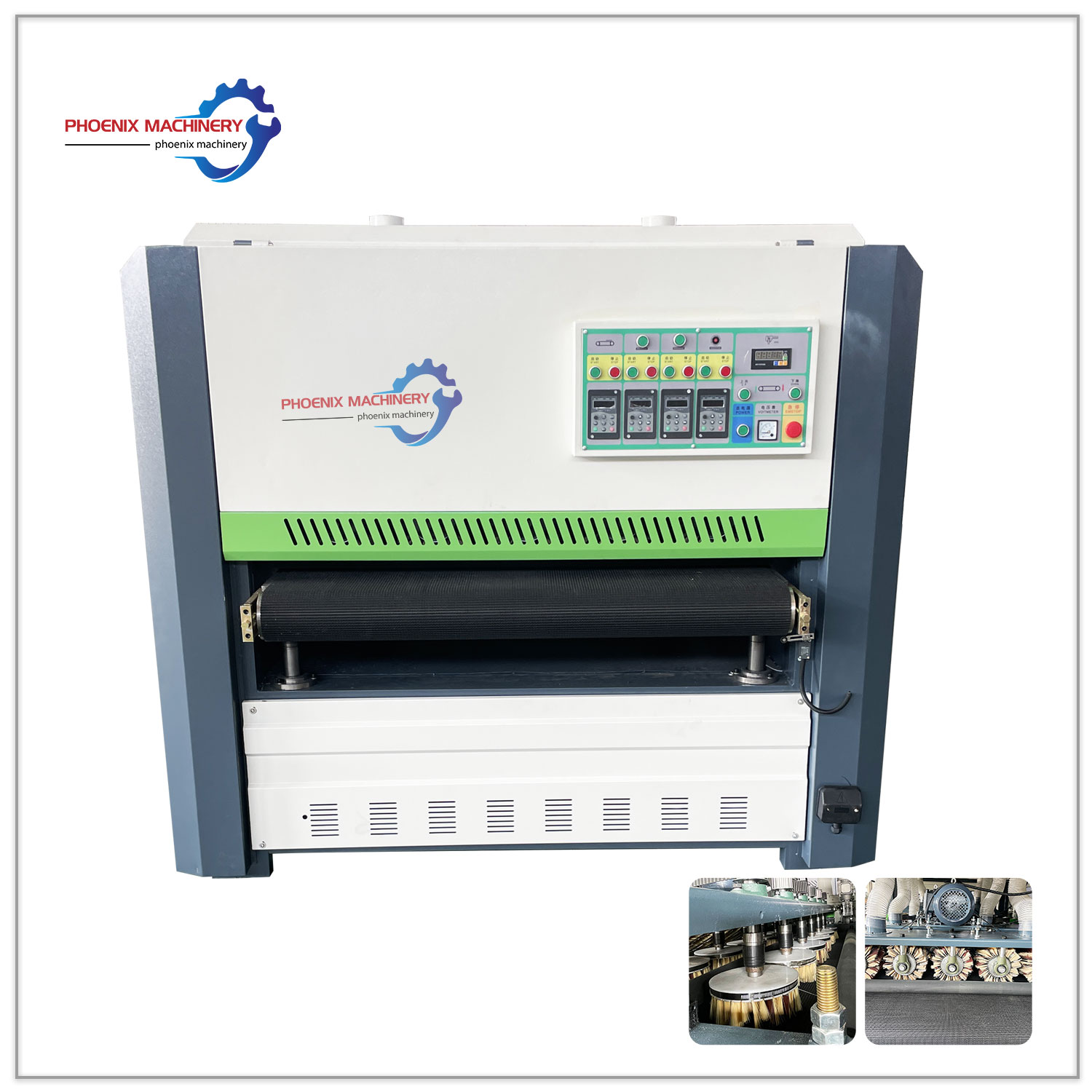

PP630-6S PP1000-6S PP1300-6S

1、This equipment uses sandcloth strips, sisal hemp, and abrasive rollers as abrasives to polish the sharp edges, surface burrs, and painted edges of the workpiece.

2、It is specially designed and exclusive for foreign market by us,which is multifunction but favourable price.

3、It is mainly used for the polishing of door panels and primers, including solid wood doors, composite doors, sticker doors, cabinet doors, wardrobe doors, and other door panels, such as PU, paint panels, primer panels, and white stubble workpieces.

Description

we can provide integrated woodworking machinery solutions for your project.

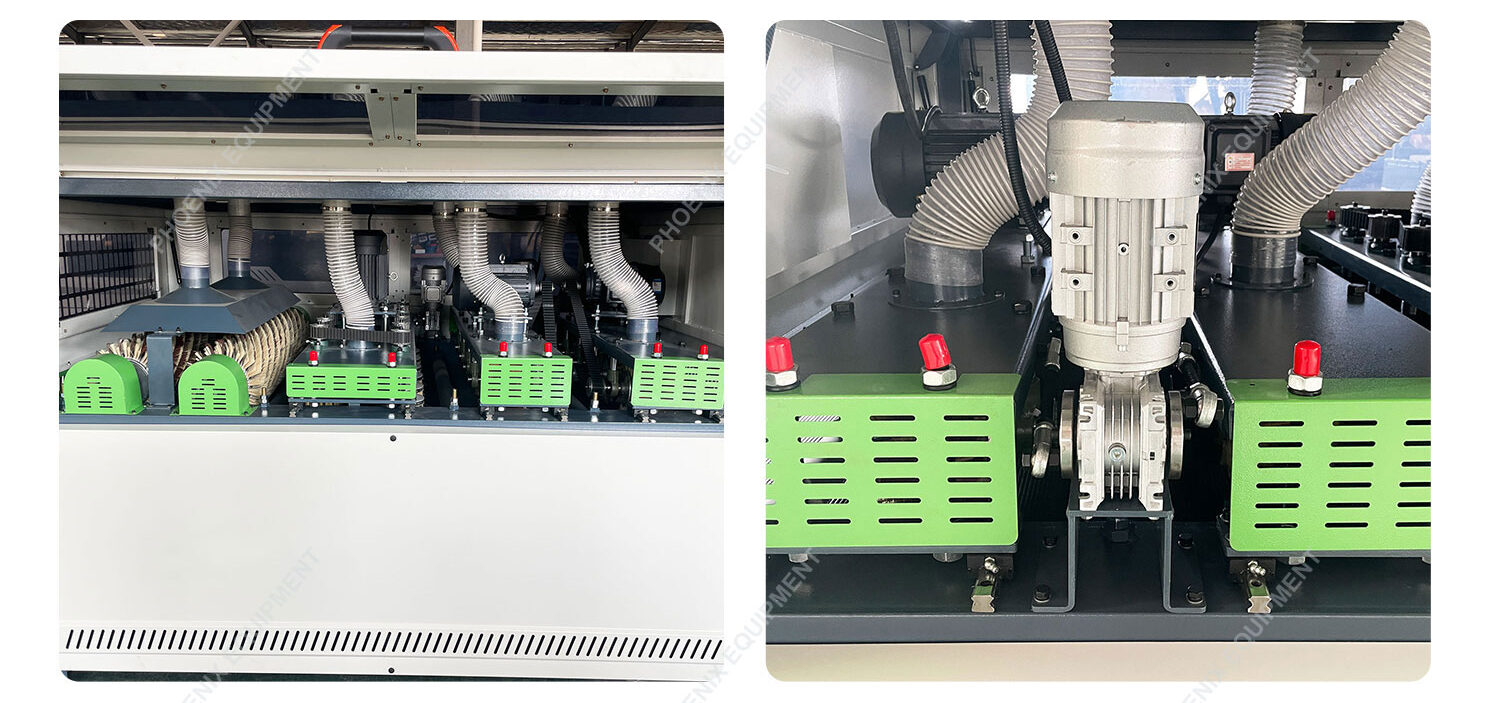

Automatic Polishing Roller Woodworking wood based panels machinery buffing machine for woodPhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

model PP630-6S/PP1000-6S/PP1300-6S
max working width 630mm/1000mm/1300mm

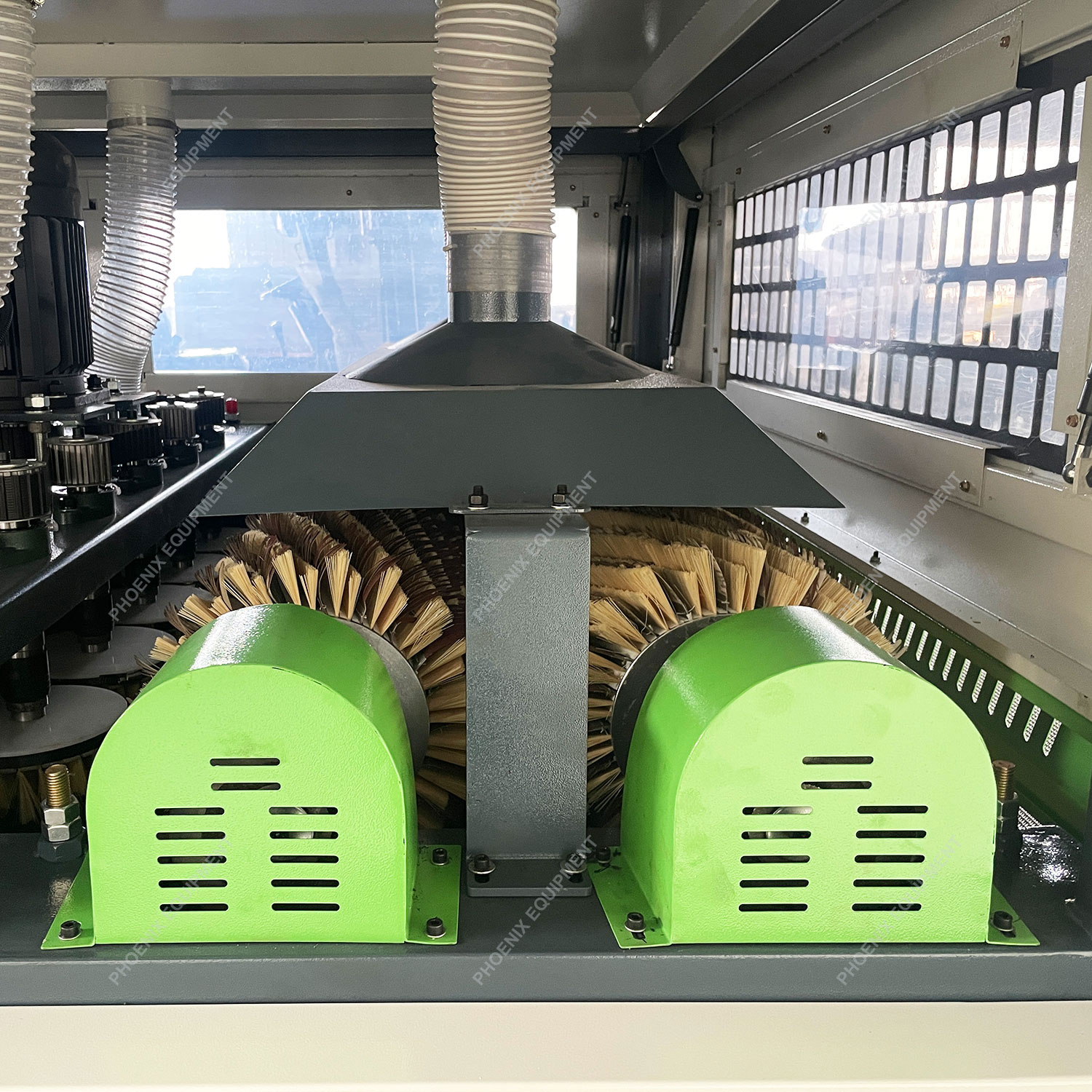

Linear roll brushes 2 piece*2.2KW motor*2pics

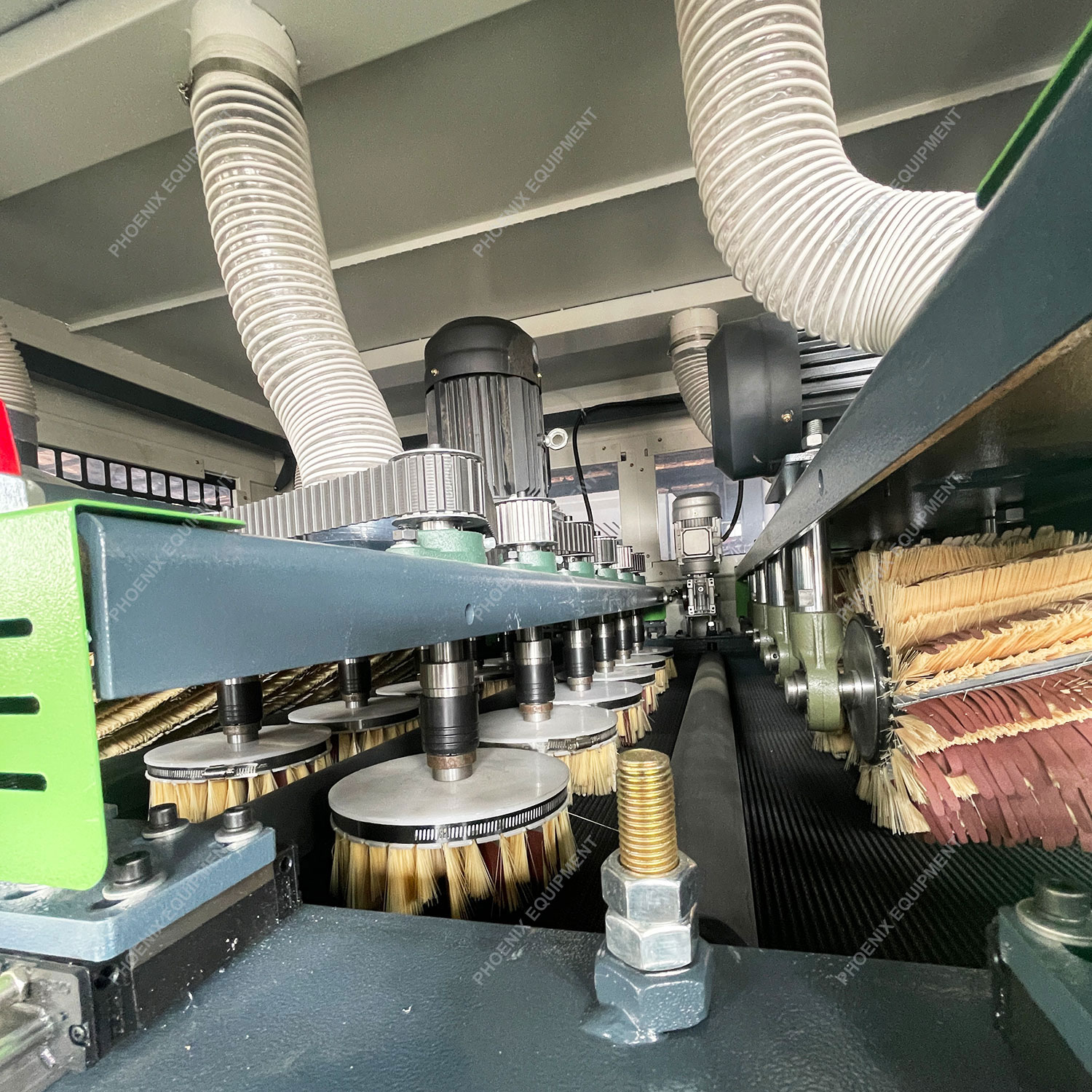

Disk tray brushes 9piece 1.5KW motor

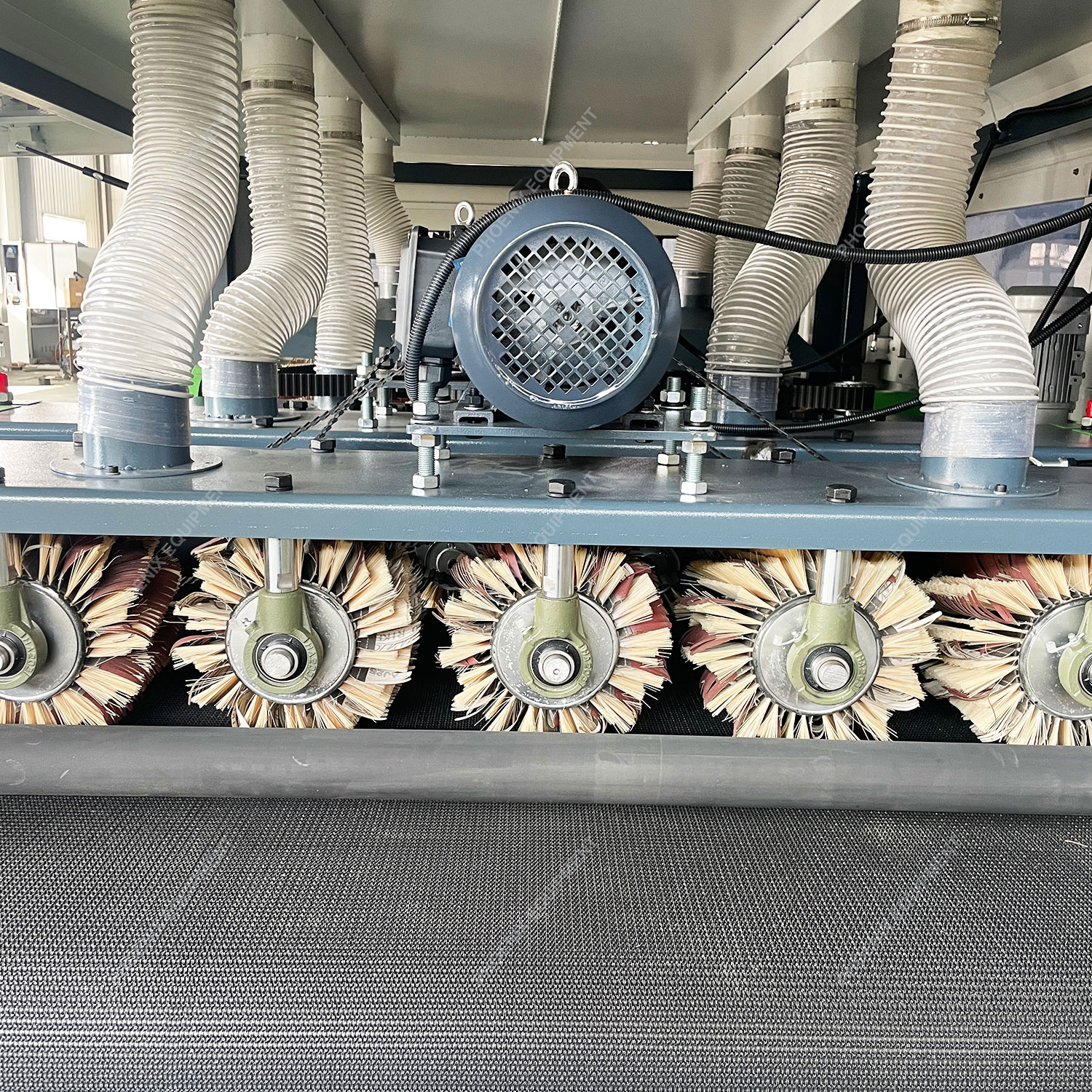

Lengthway brush 7 pics
min working length 500mm
working thickness 3-110mm
feeding speed 6-30m/min
Convery belt motor 1.5KW
Speed 50-60m/min ,with inverter can be adjusted

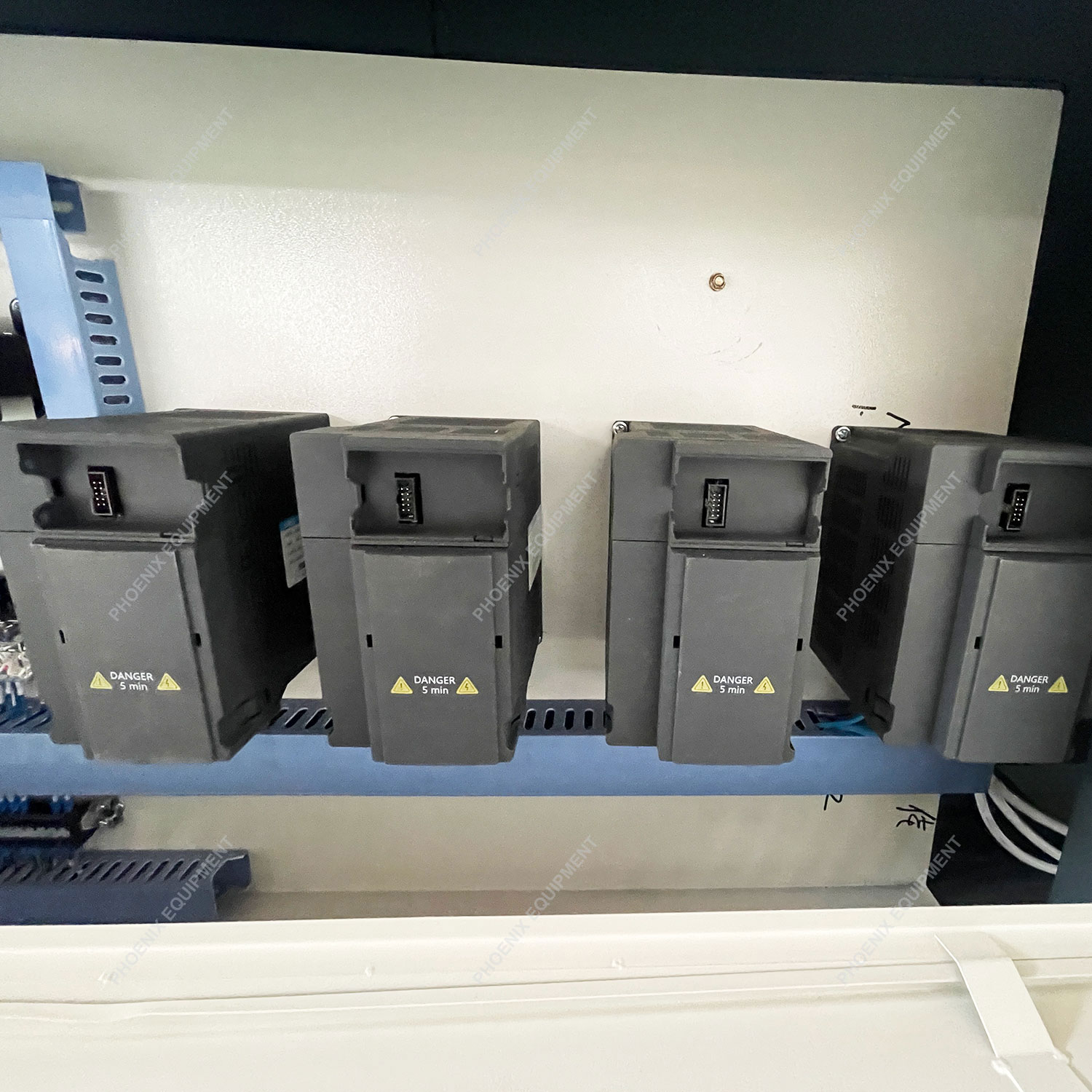

Inverter Yes. Three sets separately control for three rollers
Reducer motor 1.5kw
Table lift&down By button adjust,driving by motor 0.37KW
total power 13.9kw
air pressure 0.6mpa
net weight 1600kg
Voltage 220V/380v,3P.60hz
