PME267

  • Adopt imported motor and high quality electrical component.
  • High precision and work efficiency.
  • Automatic and precise gluing procedure as well as integrated double finish.
  • Glue evenly, conveying stability.
  • All the working area and specifications can be customized according to your requests.
Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.Automatic Woodworking Edge Banding Machine Wood Edge Bander for Plywood MDF Cabinet DoorPhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

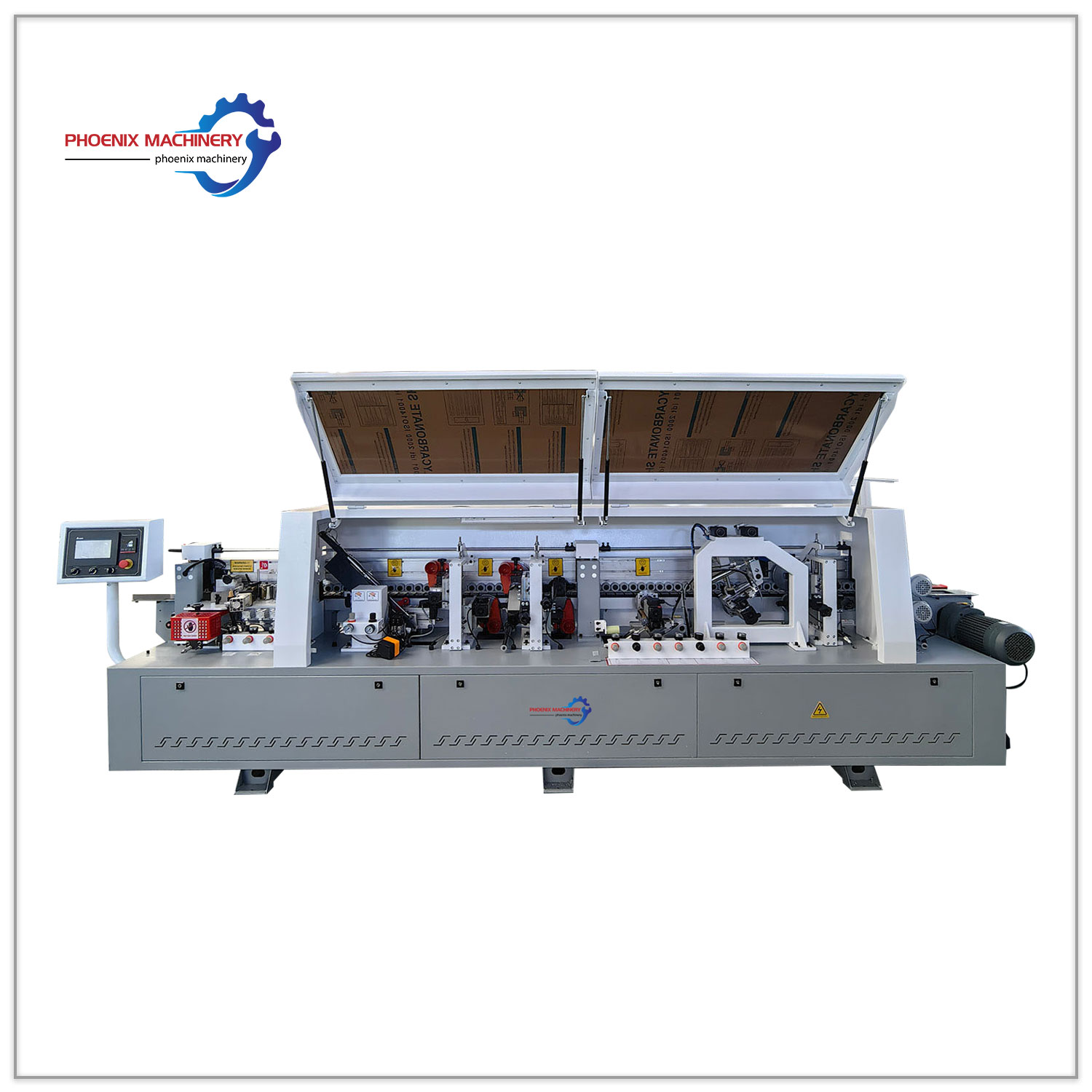

Machine model PME267
Work thickness 10-60mm
Rolling edge-banding belt height 15-65mm
Rolling edge-banding belt thickness 0.4-3mm
Min work piece width 50mm
Min work piece length 150mm
Work piece delivery speed 16-18m/min
Gross power 9.5kw
Rated air pressure 6.5kg/cm³
Voltage 380V/50HZ/3phase
Weight 1350KG
Overall dimensions 5100mm*700mm*1400mm
