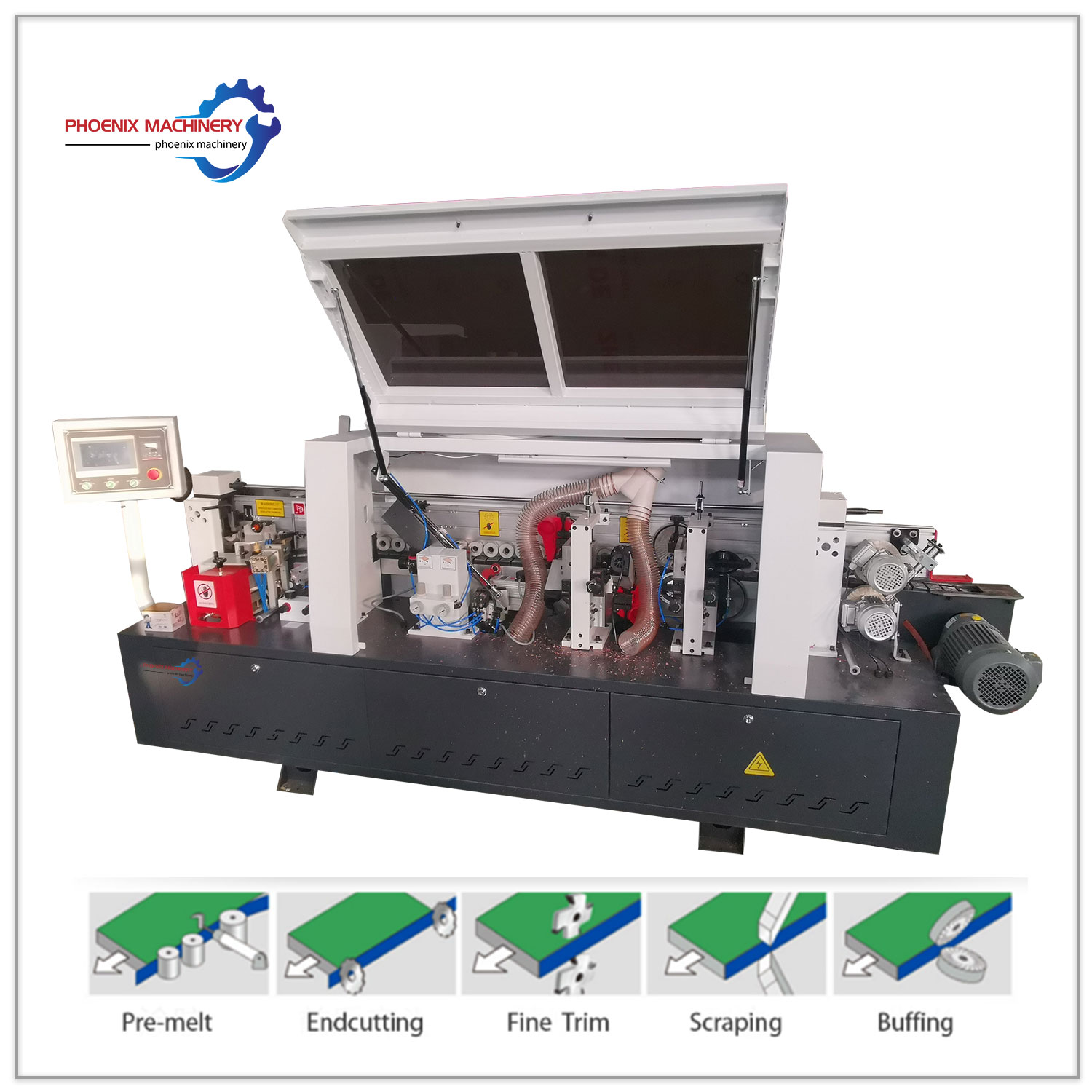

Furniture latest product edge banding machine line automatic 6 functions edge bander machine

PME265

1. Easy adjustment of bevel milling shape and automatic pre-milling of bevel shape.
2. Upper glue pot design, available EVA and PUR, one key automatic debonding.
3. Auxiliary heating device makes the seal bond more firmly.
4. 2L air storage tank, more stable pneumatic pressure.
5. Compact structure, easy to transport.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

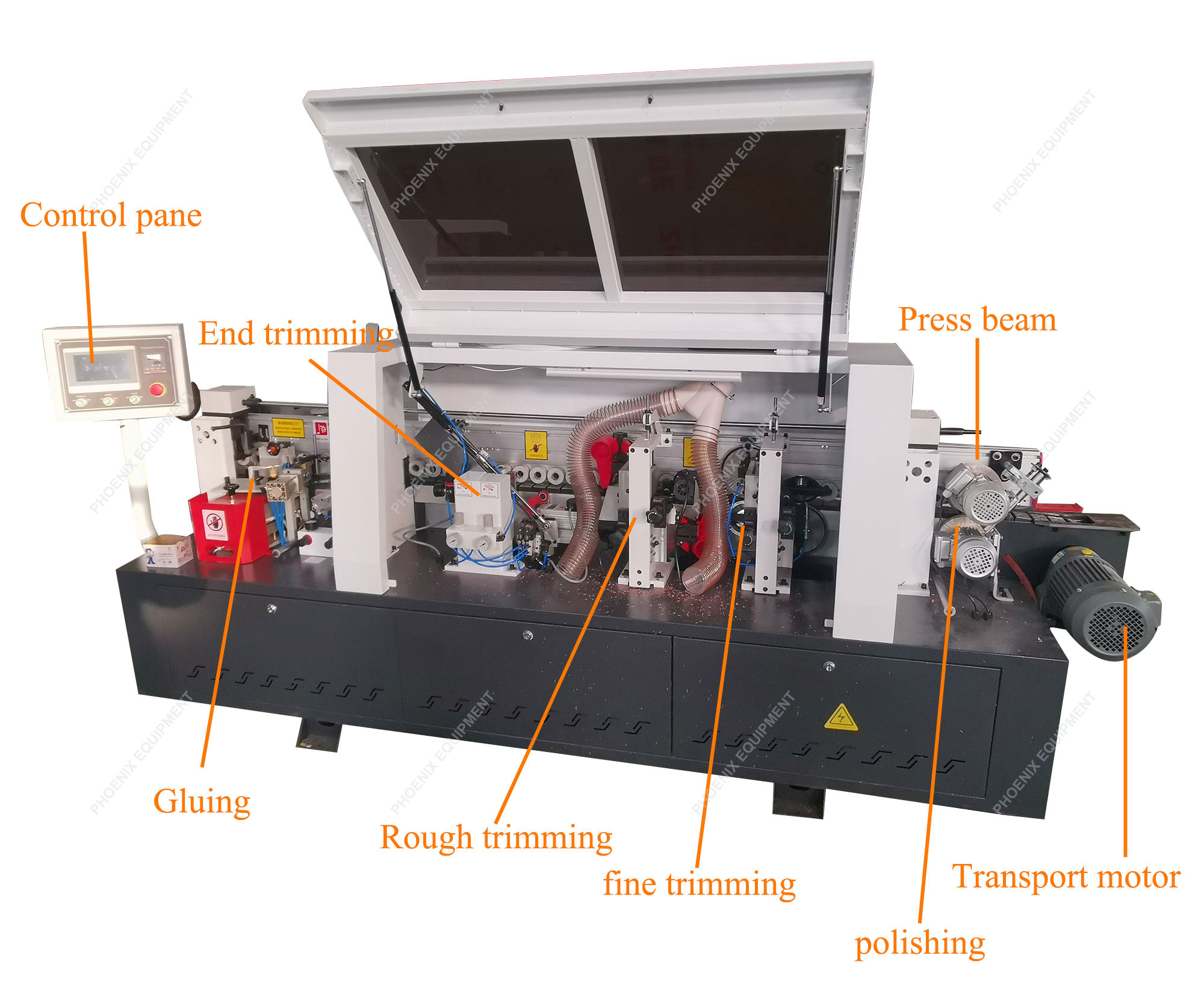

wood mdf pvc full automatic edge bander

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model PME265
Banding tape thickness 0.4-3 mm
Banding tape width 12-65 mm
Work piece thickness 10-60 mm
Work piece length >=100 mm
Work piece width >=50 mm
Heating power 1.8 KW
Feeding motor power 1.1 KW
Glue spreading power 0.75 KW
End trimming power 0.55 KW x 2
Fine trimming power 0.75 KW x 2
Polishing motor power 0.22 KW x 2
Feeding speed 15-22 m/min
Air pressure 0.7 Mpa
Overall dimension 3300x800x1550 mm
Packing size 3400x850x1650 mm
N.W. 800 KGS
G.W. 900 KGS
