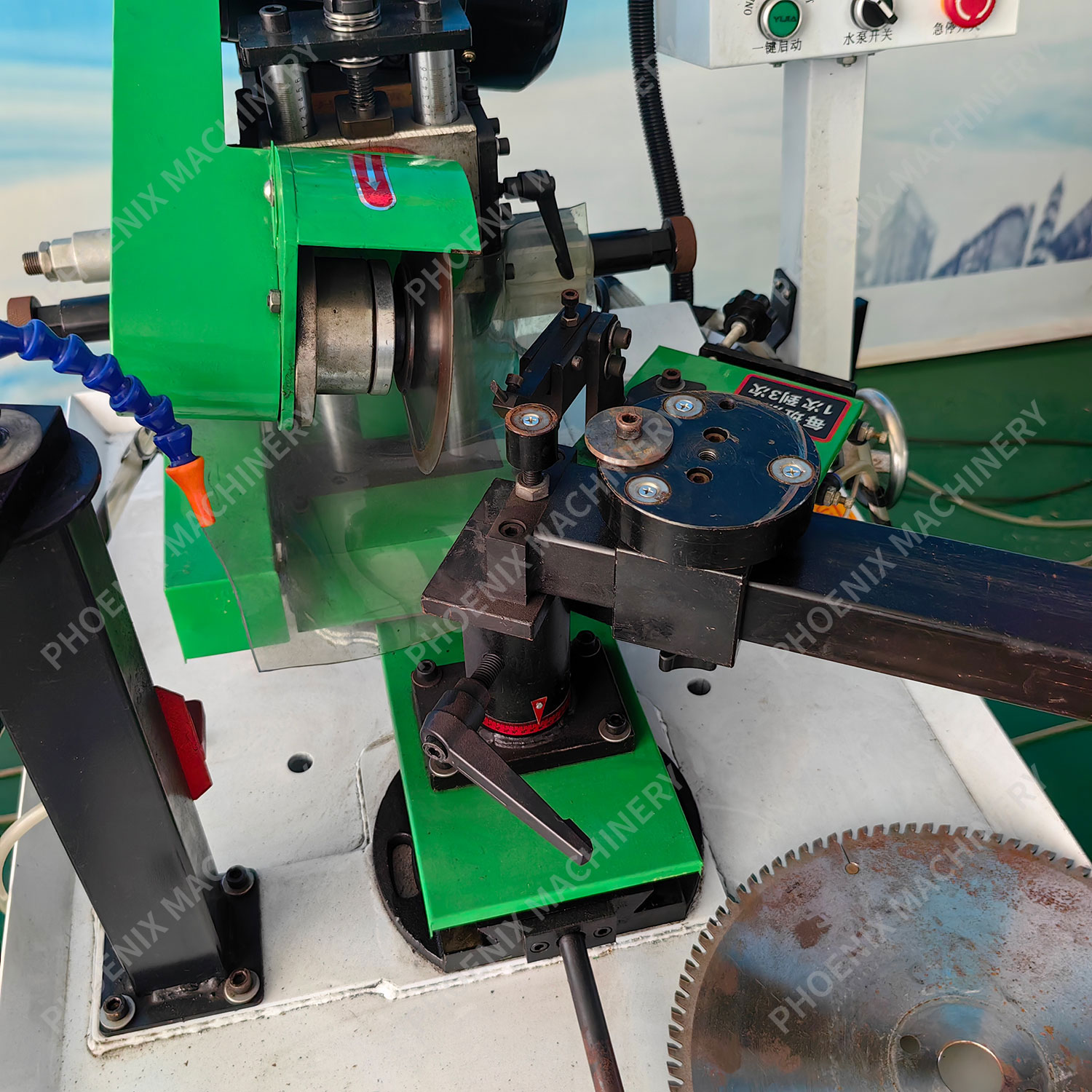

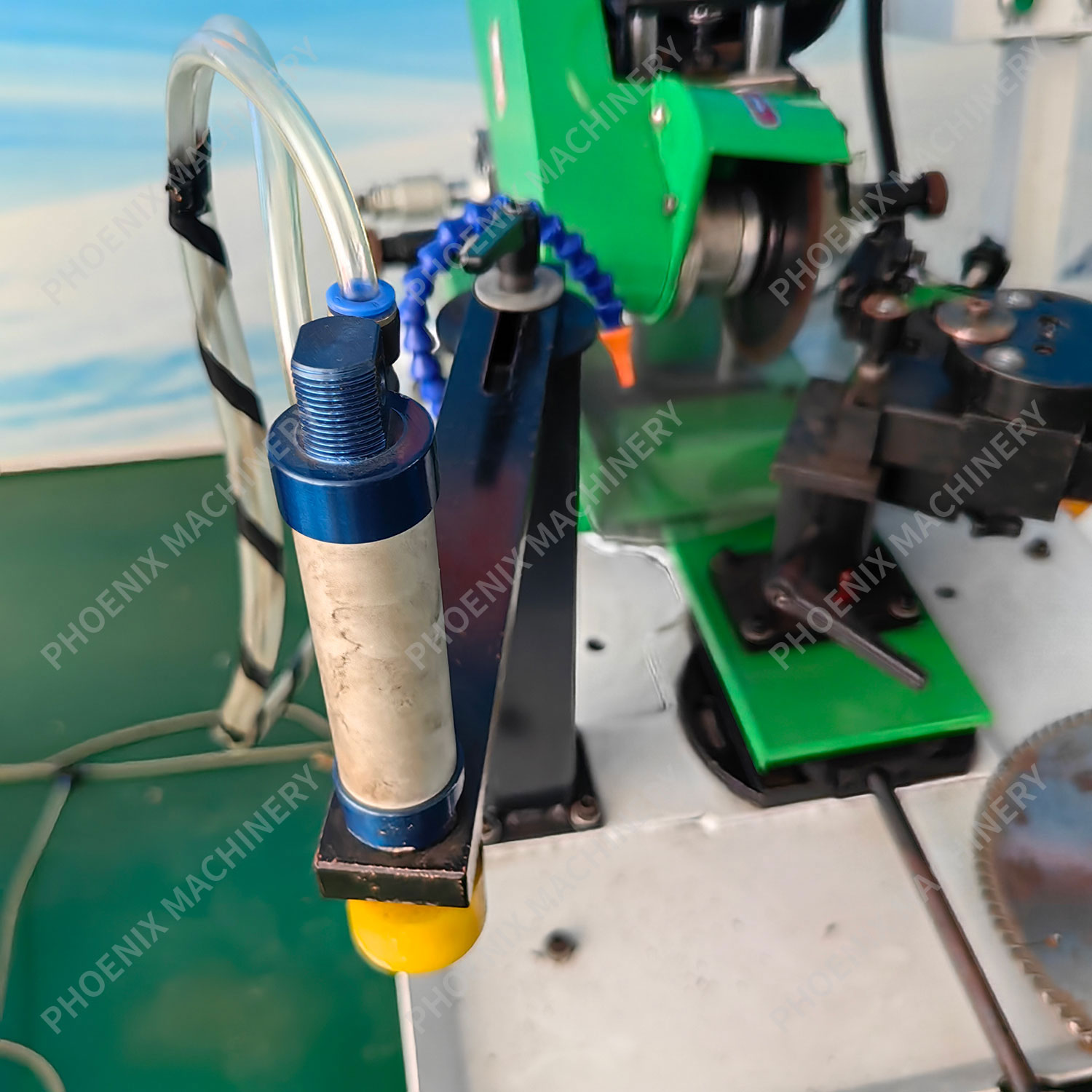

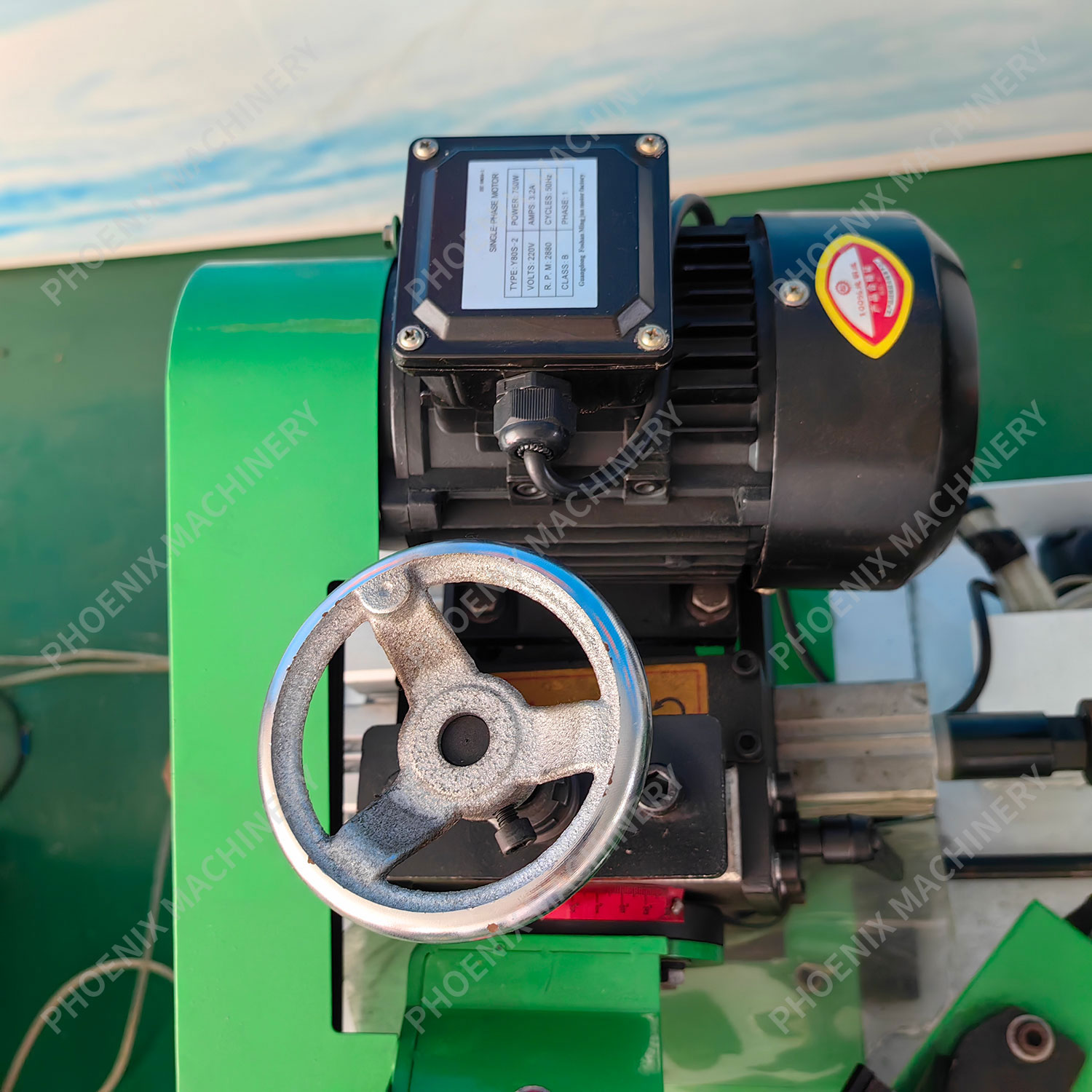

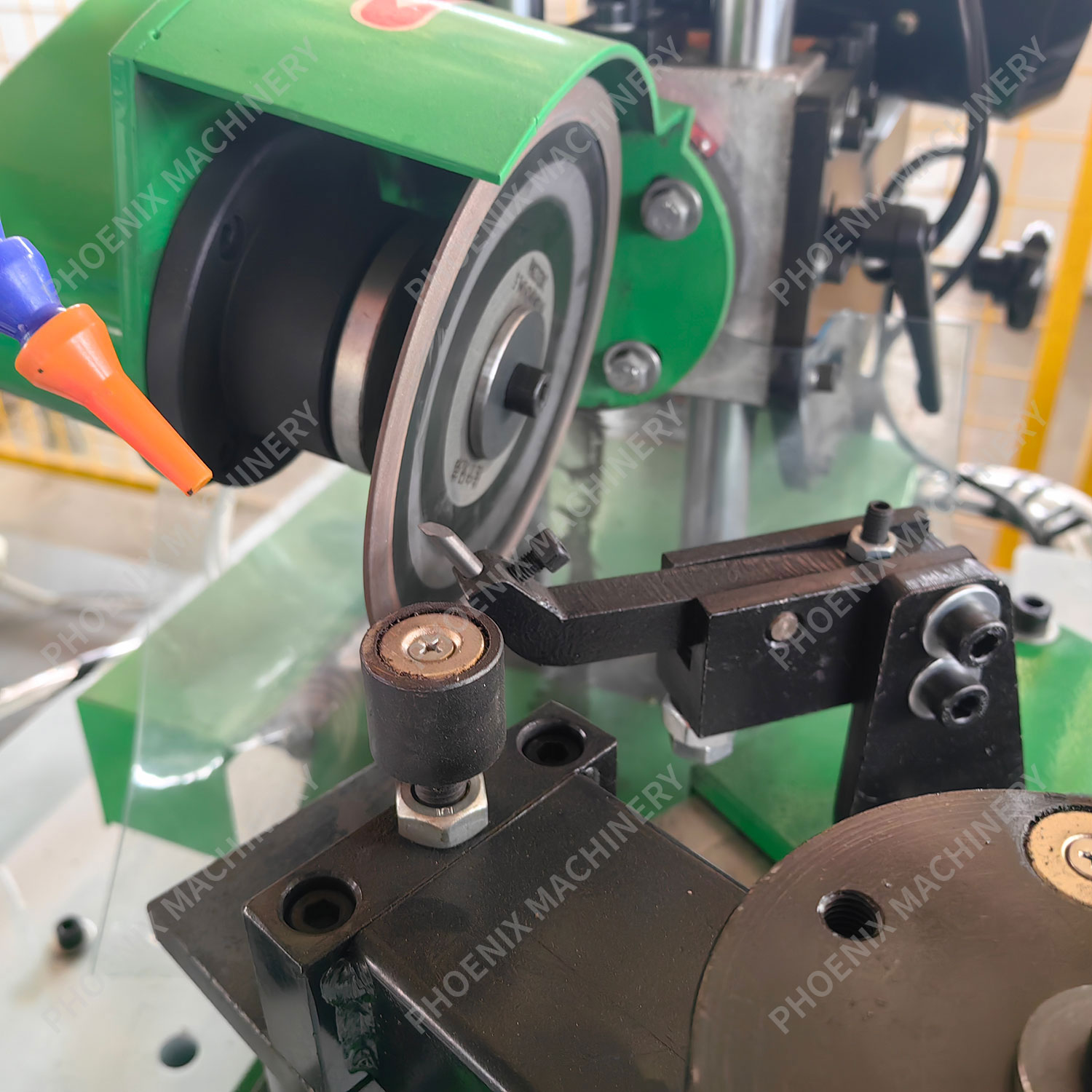

New Automatic swing head high-speed gear grinding machine Woodworking Saw Blade Grinder

PM870D

The circular saw blade sharpening machine can grind sizes in the range of 100 mm to 800 mm.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

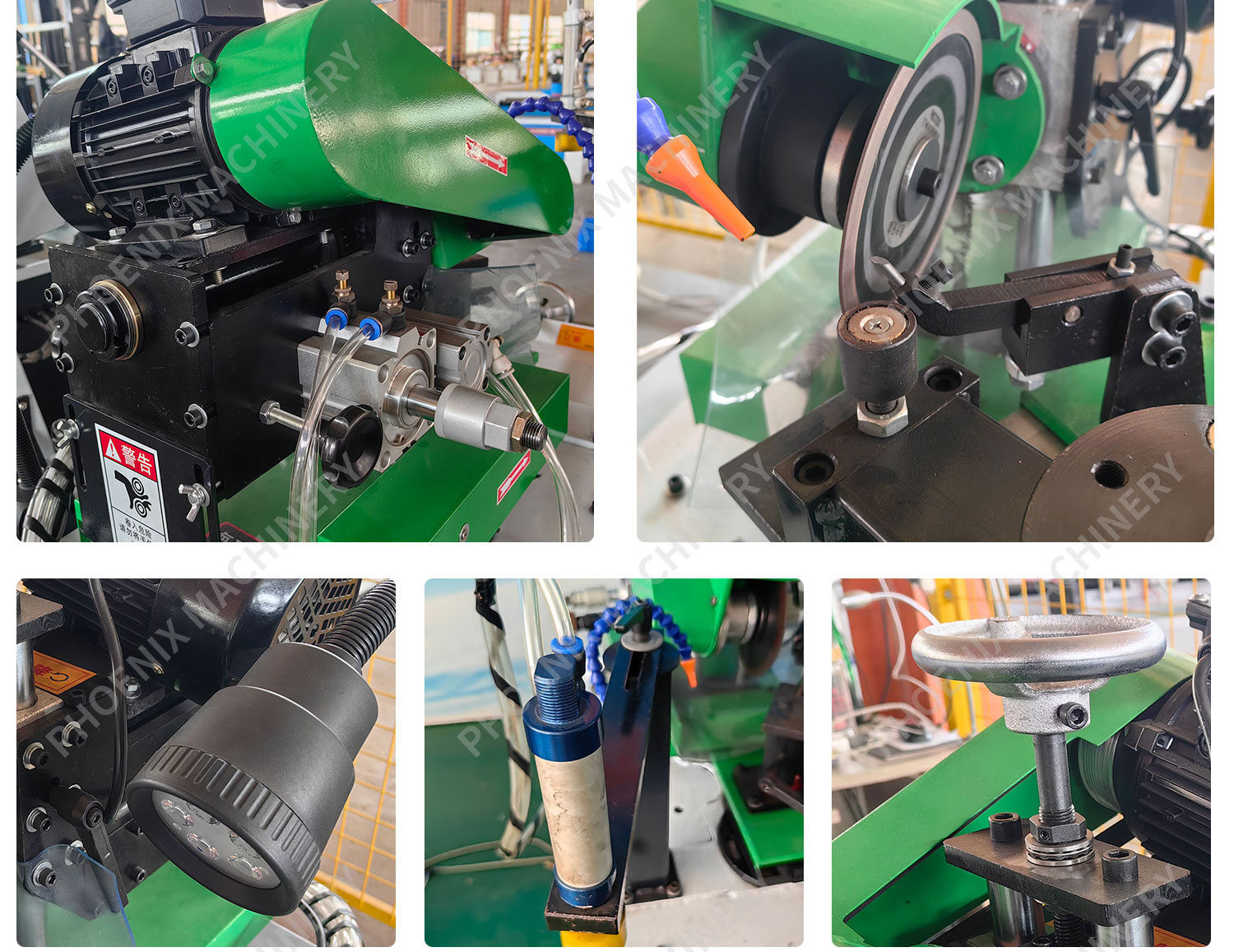

CNC Automatic Saw Blade Sharpening Machine Gear Grinding Machine Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model PM870D
Saw blade Diameter 100-800mm
Tooth pitch 5-45mm
Gear shifting speed 0-55 teeth/min
Tungsten Gringding wheel 150*32*10mm
Speed of grinding wheel 6000 r/min
Grinding wheel power 1100w
A-SHAFT power 1000W
Air pressure 0.6Mpa
Voltage 220V/50HZ
Size 1300X950X800MM
Weight 160KG
Teeth Type available Straight teeth，left-right ,3-left and 1-right teeth,3-right and 1-left teeth,left-rgiht and left-right straight teeth, rgiht-left and right-left straight teeth,Grinding of left-right-straight teeth inner and outer corners
