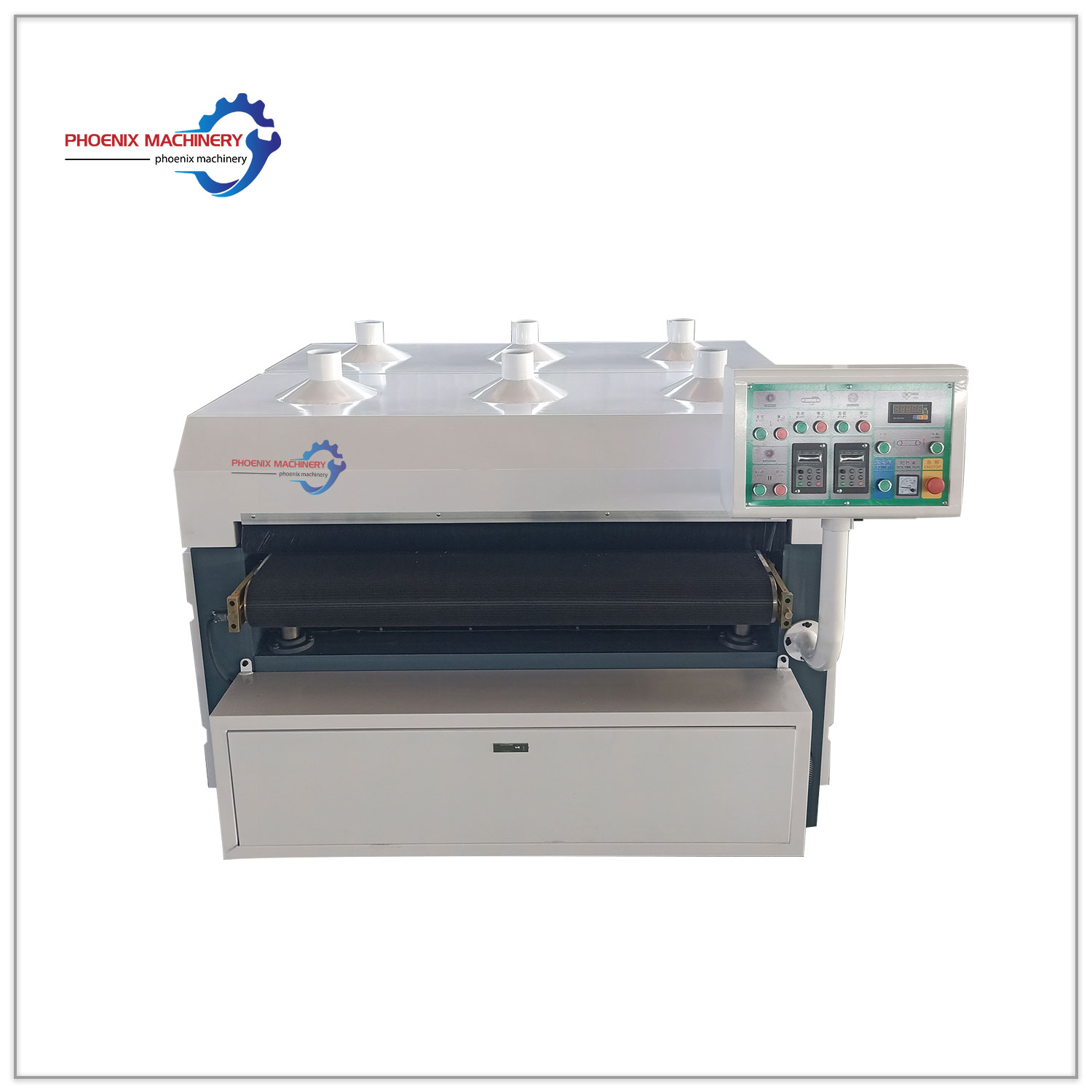

PM630/PM1000/PM1300

Features:

1.Optional specifications 600/1000/1300 three widths (3-axis, 4-axis, 5-axis, 6-axis, 7-axis optional).

2.Each group of rollers can be lifted and lowered electrically and manually, and 4 groups of rollers can be lifted and lowered at the same time.

3.Each group of rollers is frequency conversion speed regulation (excluding the second group). 4.Conveying speed is frequency-controlled.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model PM630 PM1000 PM1300
Max working width 630mm 1000mm 1300mm
Min working length 350mm 350mm 350mm
Working thickness 5-100mm 5-100mm 5-100mm
Feeding speed 2.5-12.5m/min 2.5-12.5m/min 2.5-12.5m/min
Total power 15.07Kw 19.07Kw 26.87Kw
Working air pressure 0.6mpa 0.6mpa 0.6mpa
Consumption of compressed air 12m/min 17m/min 17m/min
Size 2200*1200*1650mm 2200*1500*1650mm 2200*1900*1650mm
Weight 1400Kg 1600Kg 2100Kg
