PM50D

Features:
1. Adopts patent designed appearance, reasonable engineering designed structure, brings you the safe and convenient operation of workers.
2. Adopts imported famous brands of key components.
3. Adopts precisely processed heavy-duty type frame and mechanical parts to ensure the stability and durability of machine.
4. Adopts electric pressure beam for ascending and descending by touch screen control.
5. Optional configurations are available to meet different production requirements.
6. Machine controlled by encoder and limited switch, failures can be highly reduced to ensure a smooth and rapid edge banding process. Remaining edge band can be also accurately controlled.

Description

we can provide integrated woodworking machinery solutions for your project.

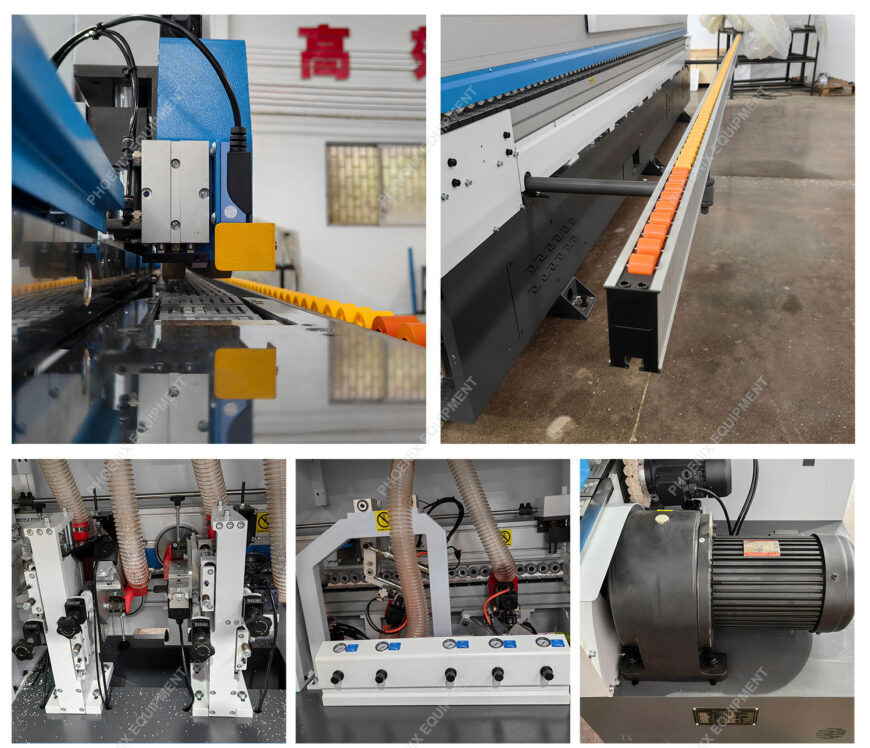

heavy duty customized automatic edge banding machine panels machinery automatic edge bander machine

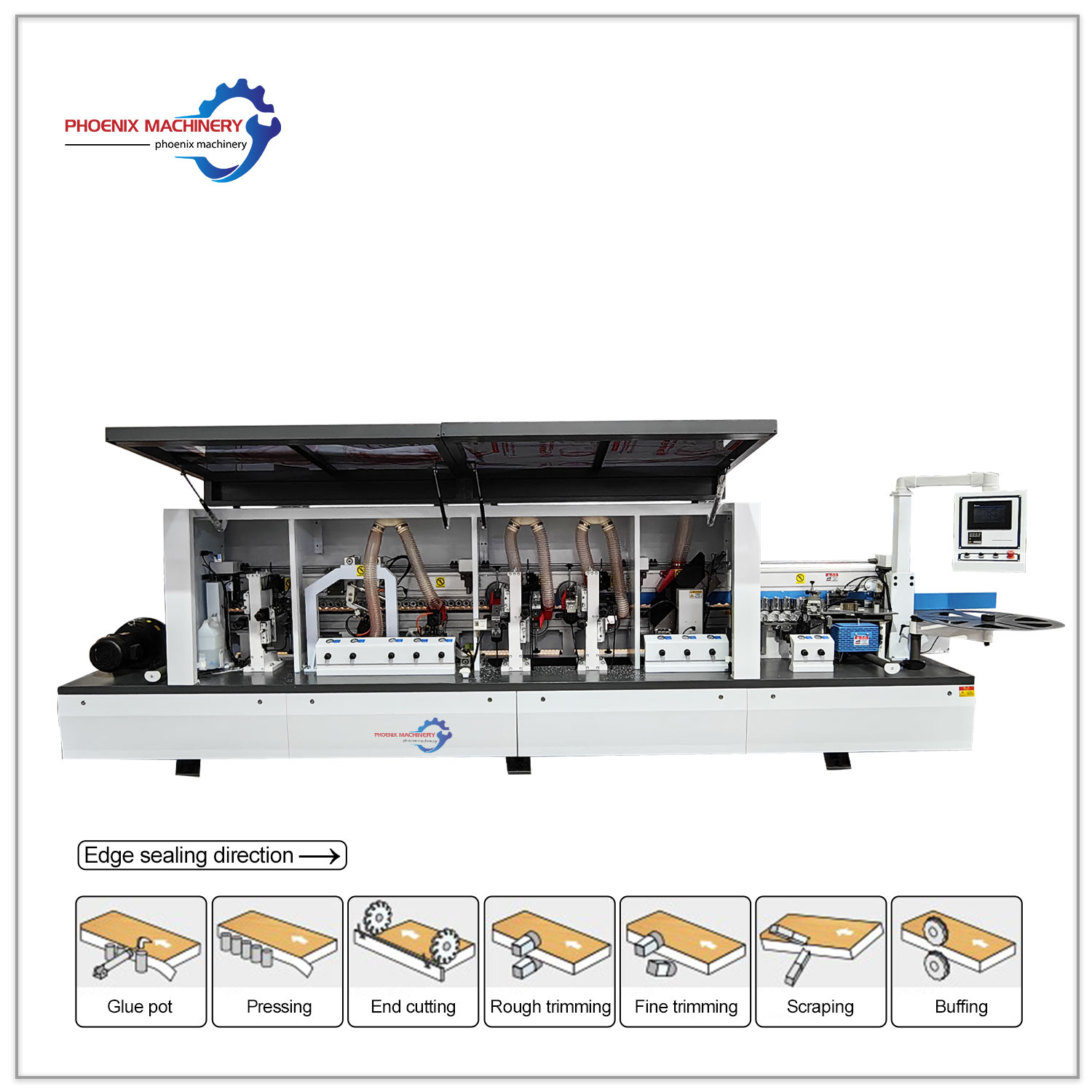

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model PM50D
Panel Length Min.150mm
Panel Width Min. 80mm
Panel Thickness 10-60mm
Edge Thickness 0.4-3mm
Feeding Speed 15~23m/min
Working Pressure 0.6Mpa
Net Weight 1900kg
Total Power 12Kw
Overall Size 5840x970x1650mm
Packing Size 5840x970x1650mm
