PM50A+

* With fully automatic operations, it is easy to operate and has high accuracy.
* Multiple functions of gluing, banding, end cutting, fine trimming, scraping, and polishing.

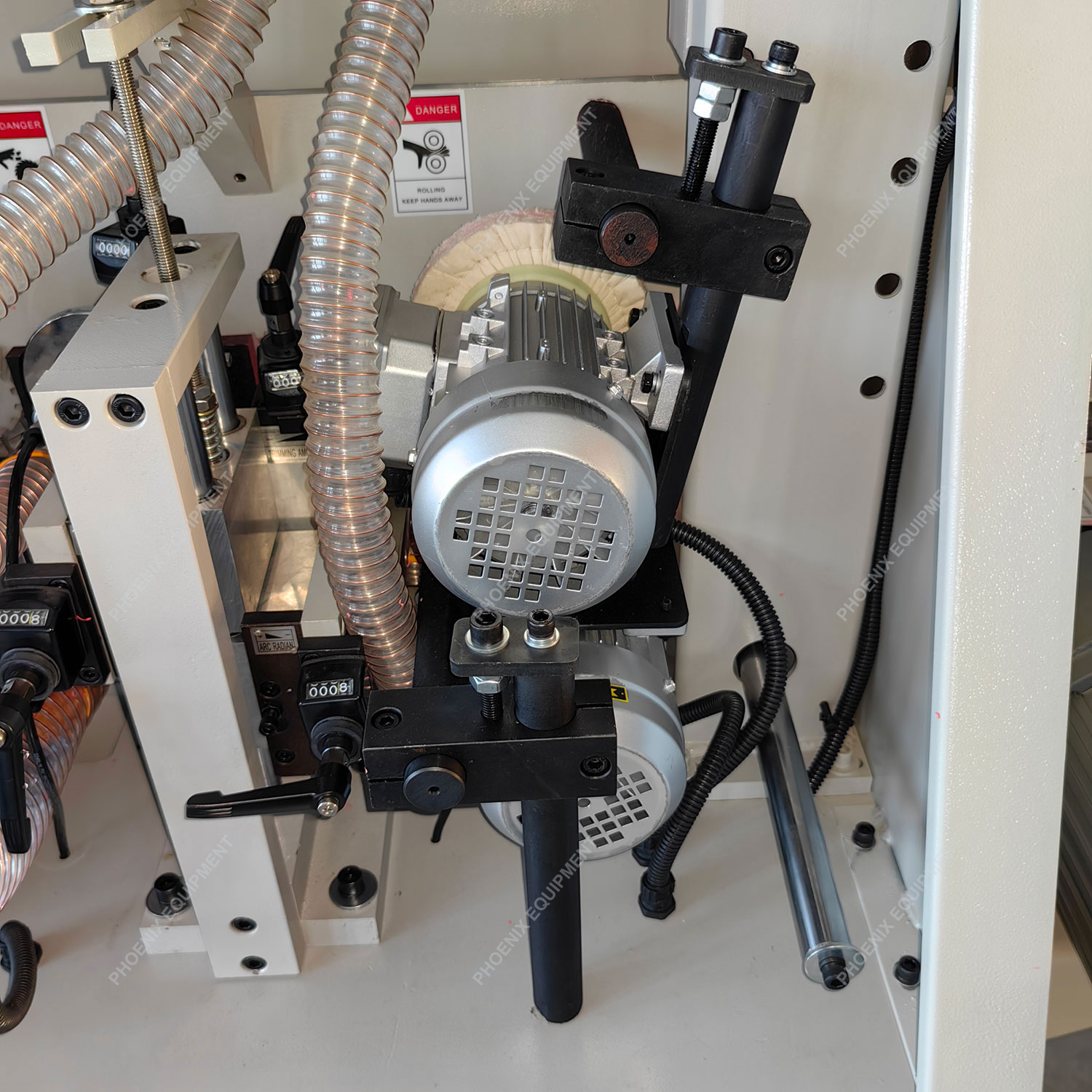

* The fine trimming unit is driven by a high-speed motor, ensuring high-quality trimming.

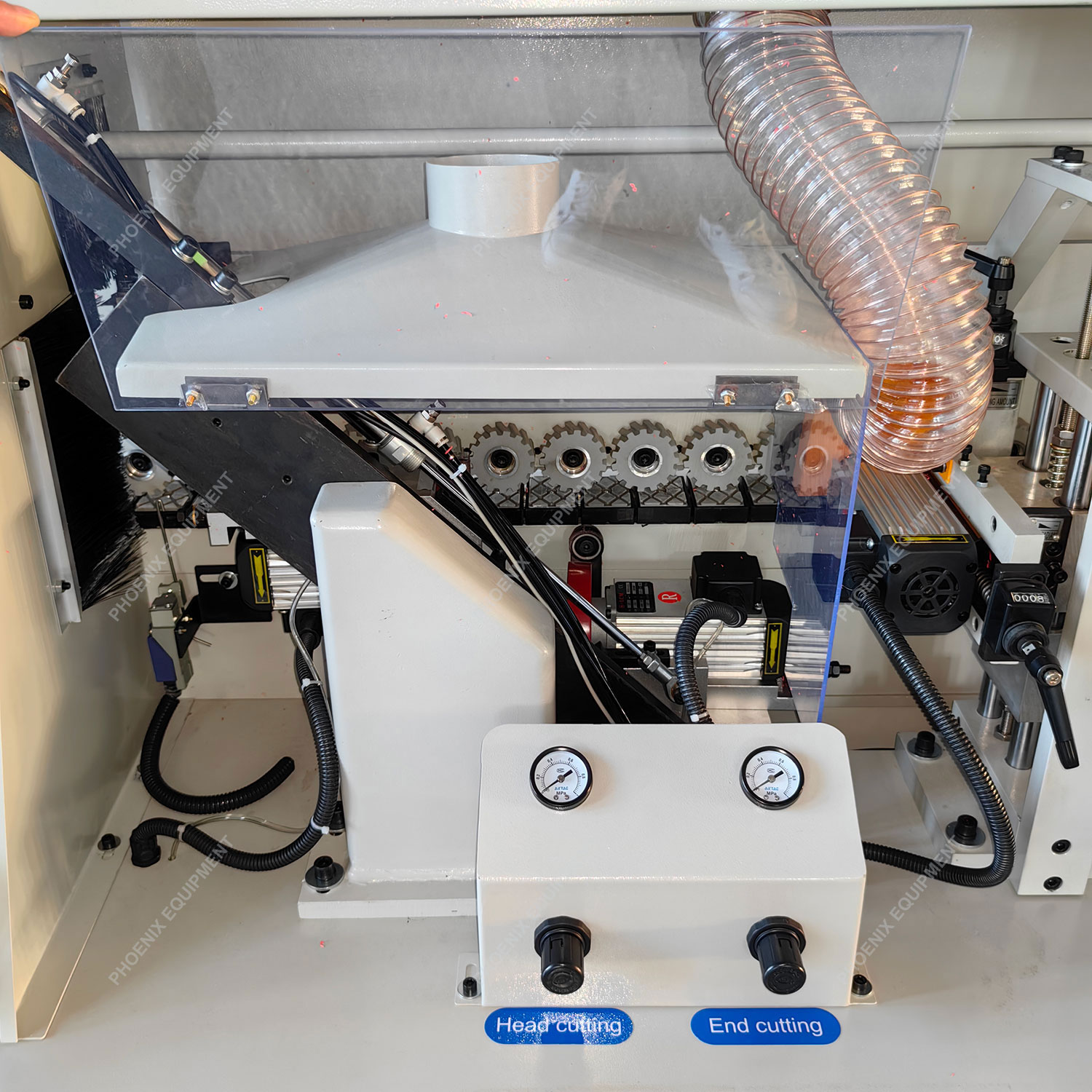

* Its fully enclosed safety shield cover is safer for the operator, and it adopts a transparent acrylic cover, for inspection of working on time.

Description

we can provide integrated woodworking machinery solutions for your project.

full automatic woodworking pvc edge banding machine

Model PM50A+
Working Pressure 0.7Mpa
Total power 7KW
Feed speed 13m/min (customize  speeds)
Panel Thickness 10-50mm
Sheet length ≥140mm
Panel Width ≥60mm
Edge thickness 0.4-3mm
Overall Size(L*W*H) 3000*750*1360mm
Net Weight 860KG
