cnc router machine with oscillation knife

PM1325 ATC

ATC CNC Router Furniture Cutting Machine Features
1. Main Function：Widely used in the furniture industry. Its main functions are cutting, engraving, drilling, and grooving.
2. Application：Wood / MDF / Plywood / Aluminum / Acrylic / Density board / Composite board / Particle board / Aluminum honeycomb panel / Eco board / WPC, etc composite materials.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

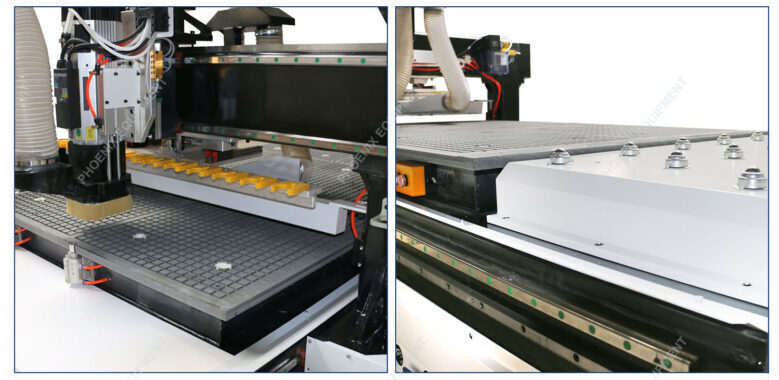

cnc new generation router machine Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model PM1325 ATC
Voltage 380V,3PH 60Hz
Max empty travel speed XY.50000mm/min Z:20000mm/min
Working Speed 15000-30000mm/min
Countertop structure size Vacuum Adsorption  Countertop:1260*2480  24holes
Bed structure Heavy Bed Structure
Transmission Guide ;25 Square rail
Rack: High precision 1.5M Helical gear
Reducer: Japan Shimpo
Screw: Taiwan TBI
Knife Library Straight line 12 follow knife library
Inverter Tetran 11KW
Spindle JST 9KW Air cooling
Motor Leadshine 1500W servo motor
Run command G-code
Control system LNC MW2200
Total weight 2.5T
Vacuum Pump 7.5KW water pump
Dust collection 5.5KW
Delivery time Within15days after getting the payment
Packing Outside wood packing
Payment T/T Alibaba L/C Paypal etc.
