cnc automatic full curve edge banding machine kn-620 high productivity pvc edge bander

PM-620-3

Automatic Curved Edge Banding and Trimming Machine:

  1. Especially suitable for round, oval, rounded rectangle, etc.
  2. Gluing pot design, PUR and EVA dual-use, one key row of glue, easy to replace.
  3. Four limits to prevent the edge sealing strip from running out of position.
  4. Rotatable LCD display, easy to operate.
  5. Raised head, upgraded head, can choose more width of sealing strip.
  6. Edge banding and trimming in one, easy operation for large boards.
Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

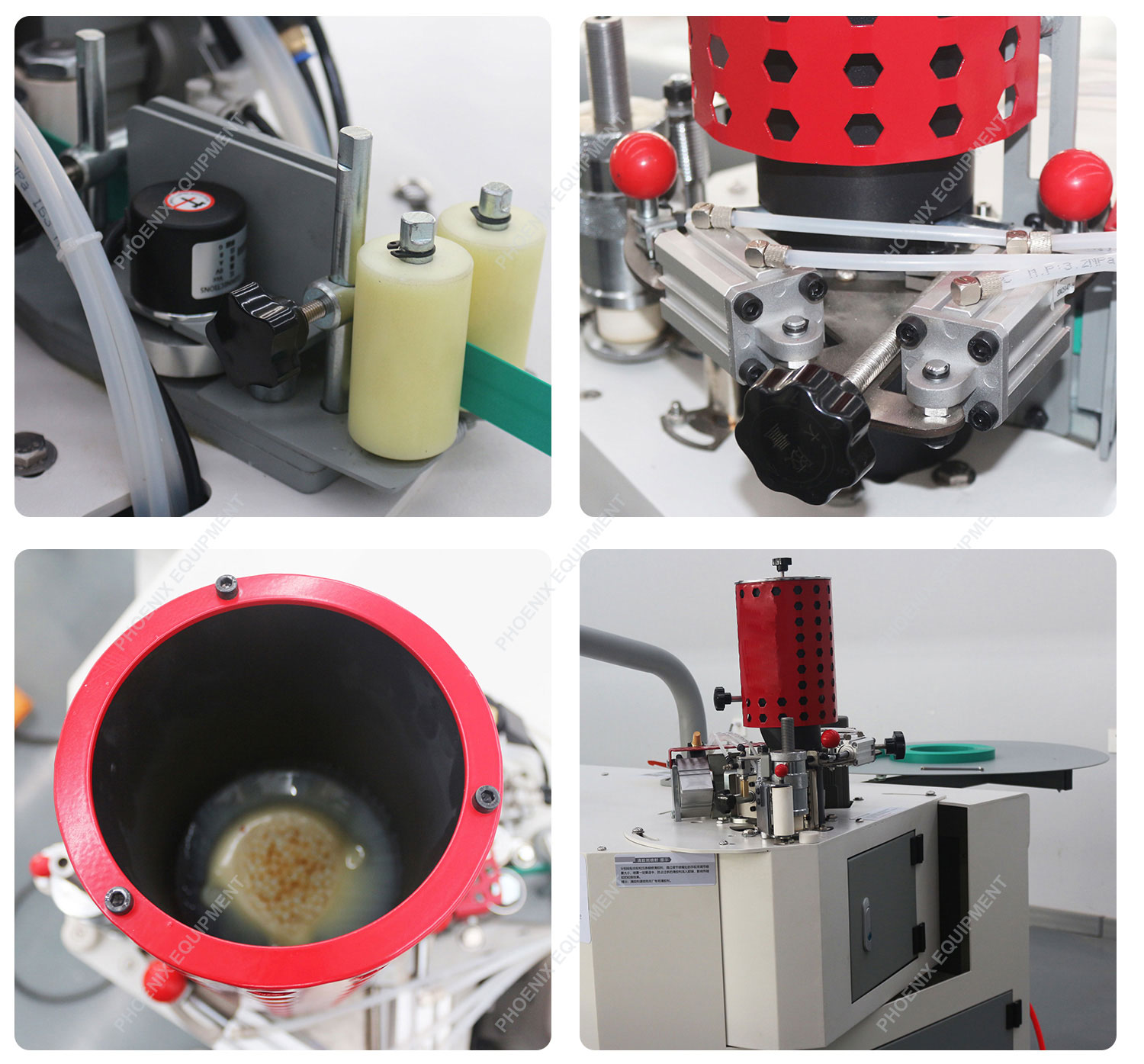

kn- 620-3 curve edge-banding machine rocker arm edge banding machine curved woodworking edge bander

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

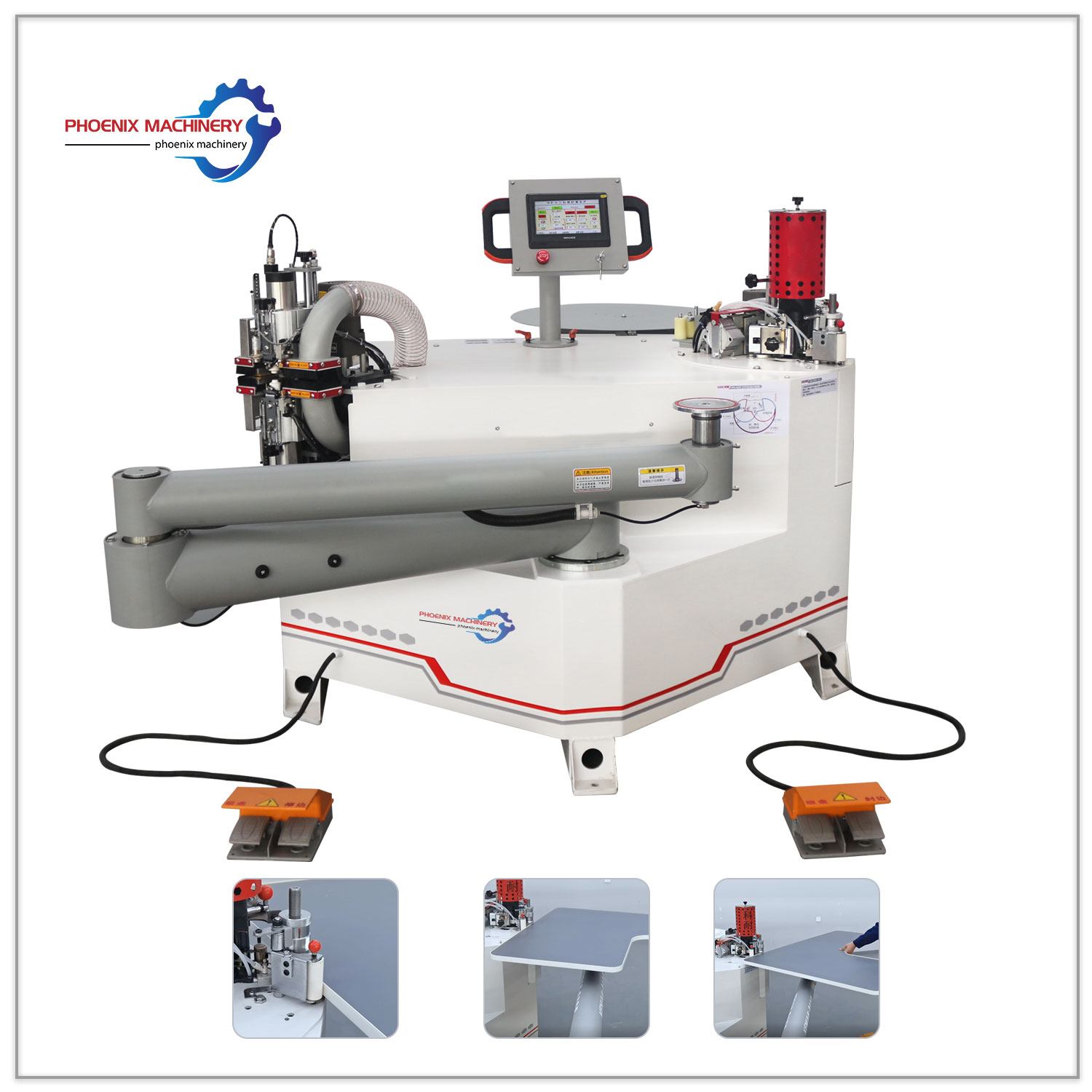

Model PM-620-3
Voltage 380V/50HZ/3phase
Total power 5.7KW
Edge banding speed 0-20cm/s
Air pressure 0.6-0.8Mpa
Vacuuming hole φ150mm
Glue pot temperature 110℃-210℃
Glue material PUR/EVA
Glue pot volume 2600ml
Strip thickness 0.5-3mm
Trimming 14-70mm both sides trimming, ＜14mm single trimming
Strip width 14-70mm
Minimum working radius R=20mm
Size 1870*1400*1340mm
