Automatic feeding wood lathe machine with engraving wood turning lathe machine

PL450

  • Fully automatic multi-function integrated CNC woodworking lathe, fully automatic loading and unloading, with milling, cutting, drilling and other functions;
  • The whole machine adopts high-quality electric control system,PLC program control, high-precision spindle and high-quality bearing.
Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

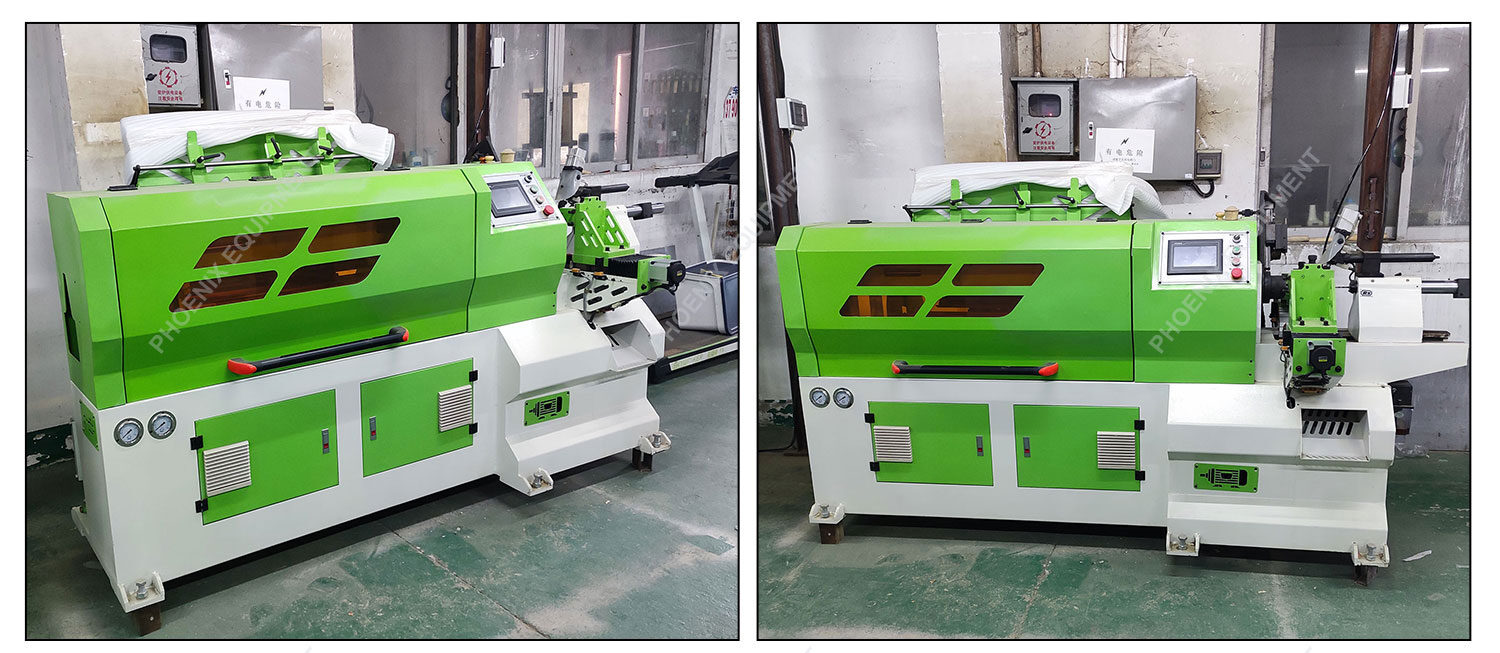

Automatic CNC Back Tool Lathe Wooden Crafts Copying Machine cnc Turning MachinePhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model PL450
Max. processing length 750mm
Machinable diameter 15-50mm
Length of machined parts 100mm
Tool rest travel 150mm
Tailstock stroke 150mm
Power of oil pump 1.5kw
Spindle motor power 4kw
Spindle motor speed 100-3000rpm
Working air pressure 0.6-0.8Mpa
Overall dimensions 2700×1300×1400mm
Net weight 1345kg
