PK1325+

Accurate positioning, delicate effect, easy to achieve ideal results.

The thickened steel pipe of the bed is seamlessly welded to ensure stable accuracy of the entire machine and better achieve high-speed operation.

The vacuum cleaner absorbs most of the dust generated during production and ensures the production environment of the factory.

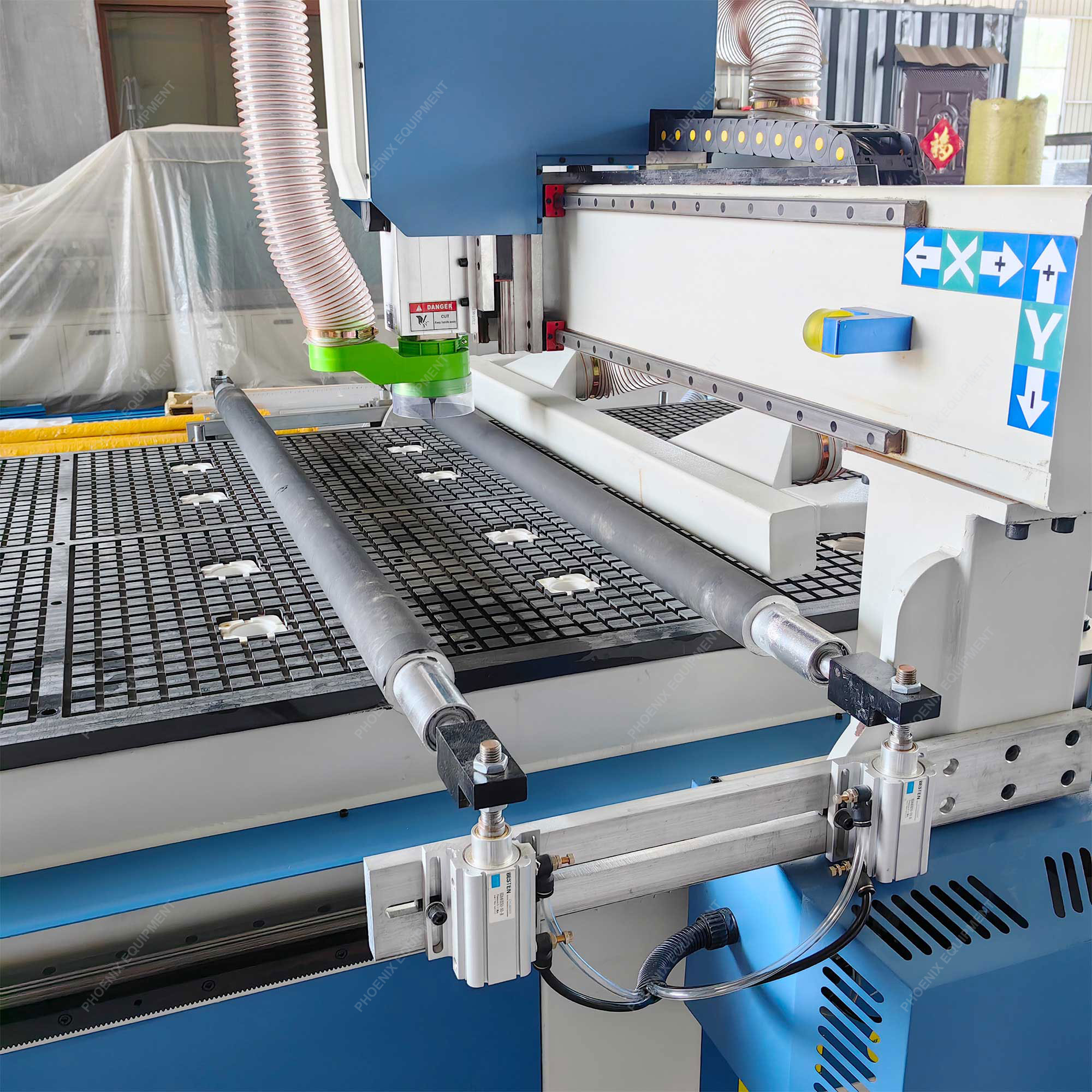

Equipped with a starting pressure roller, the cutting accuracy is higher, and the small plate does not deviate, greatly improving work efficiency.

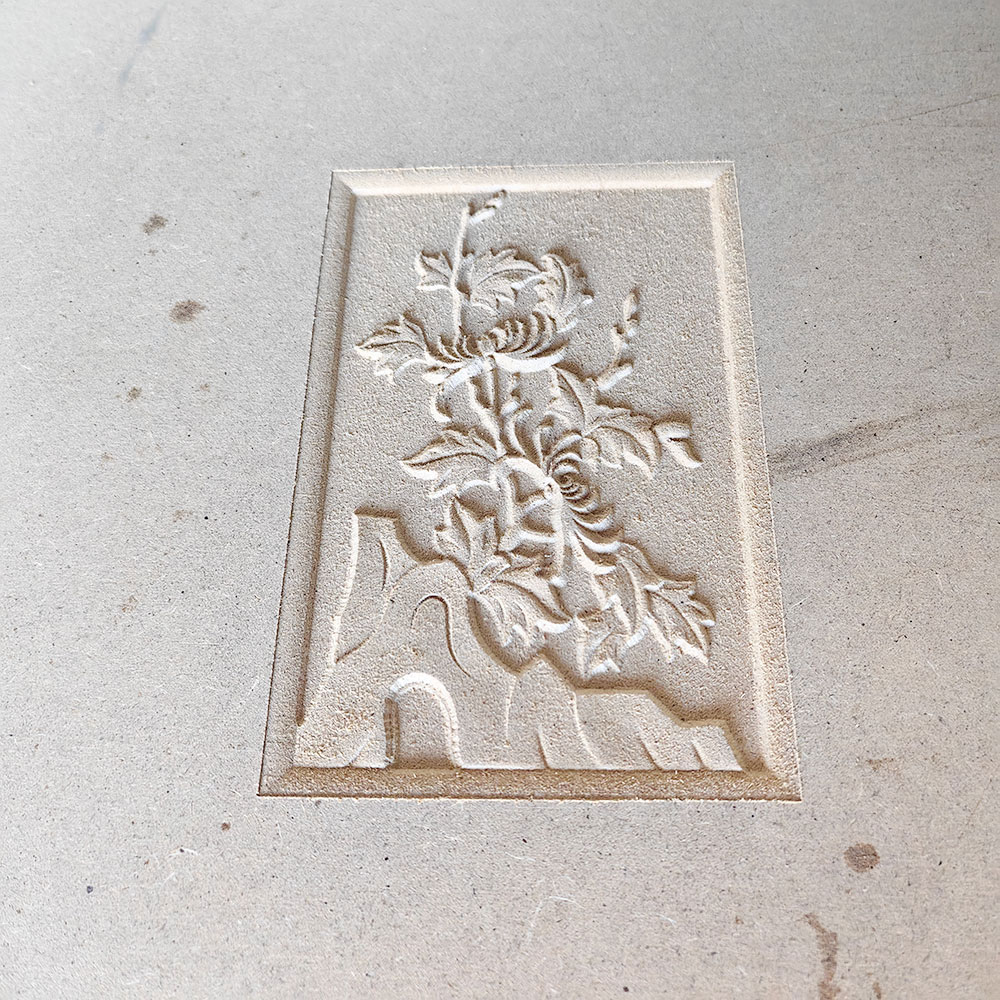

Engraving, cutting, punching, and cutting materials.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

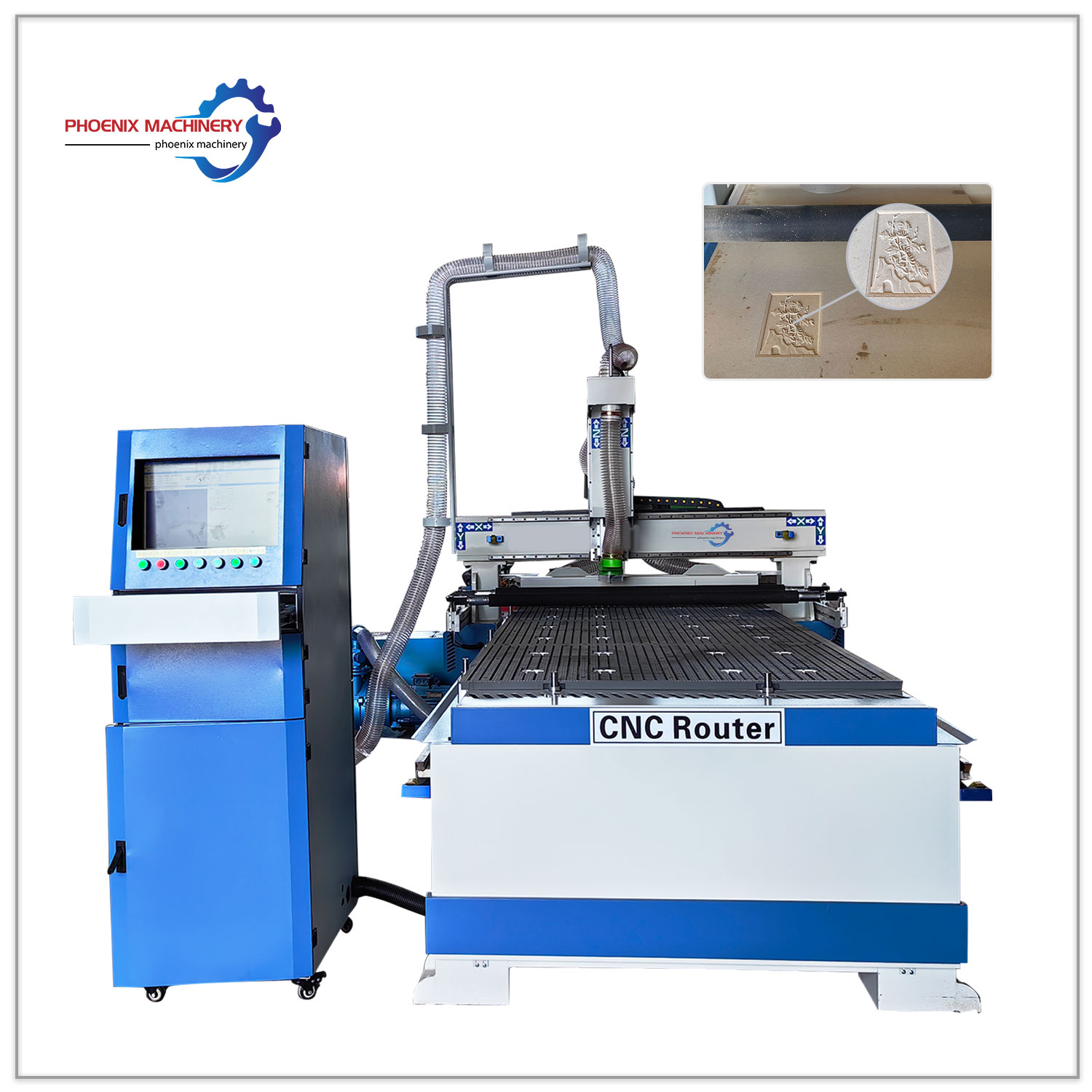

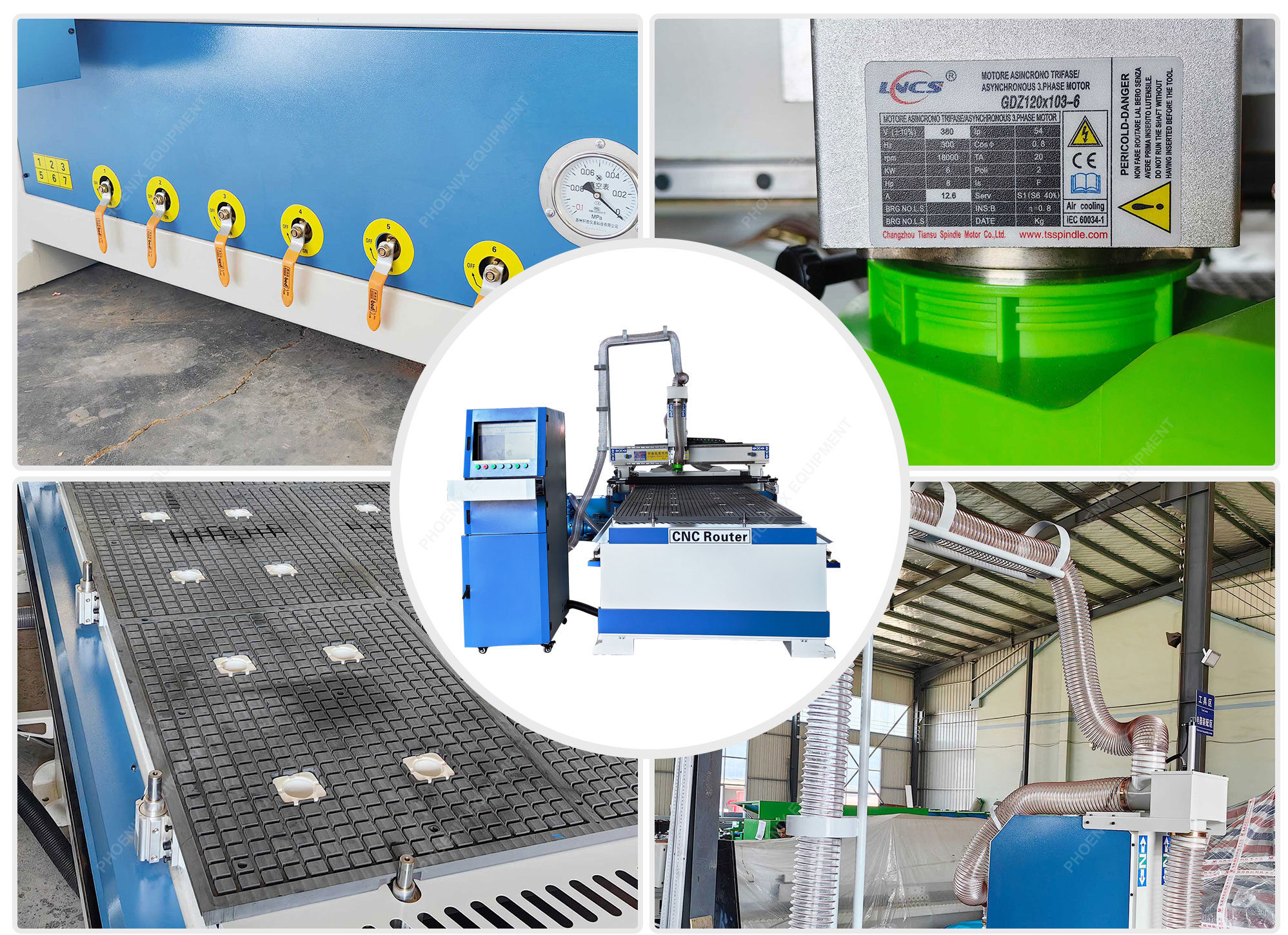

new design cnc router machine

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model PK1325+
Travelling Size 1300*2500*200
Spindle power 6KW
Drive motor Hybrid Servo
Inverter power 7.5KW
Positioning cylinder 3+2 automatic
Air pressure 0.7 Mpa
Double bag dust collector 5.5KW
Spindle Speed 0-18000 rpm
Pushing method Automatic material pushing
X-axis Maximum working speed 10-15m/Min
Y-axis Maximum working speed 10-15m/Min
Z-axis Maximum working speed 8m/Min
X-axis Maximum travel speed 25000mm/min
Y-axis Maximum travel speed 25000mm/min
Z-axis Maximum travel speed 10000mm/min
Vacuum adsorption pump power 7.5 KW
Overall dimension 3200*2100*1800mm
N.W. 1600 KG
