Factory Wholesale 120T 8 cylinders Hydraulic Hot Press Machine Wooden Door Making Machine

PH120-5layer-2600x2200mm

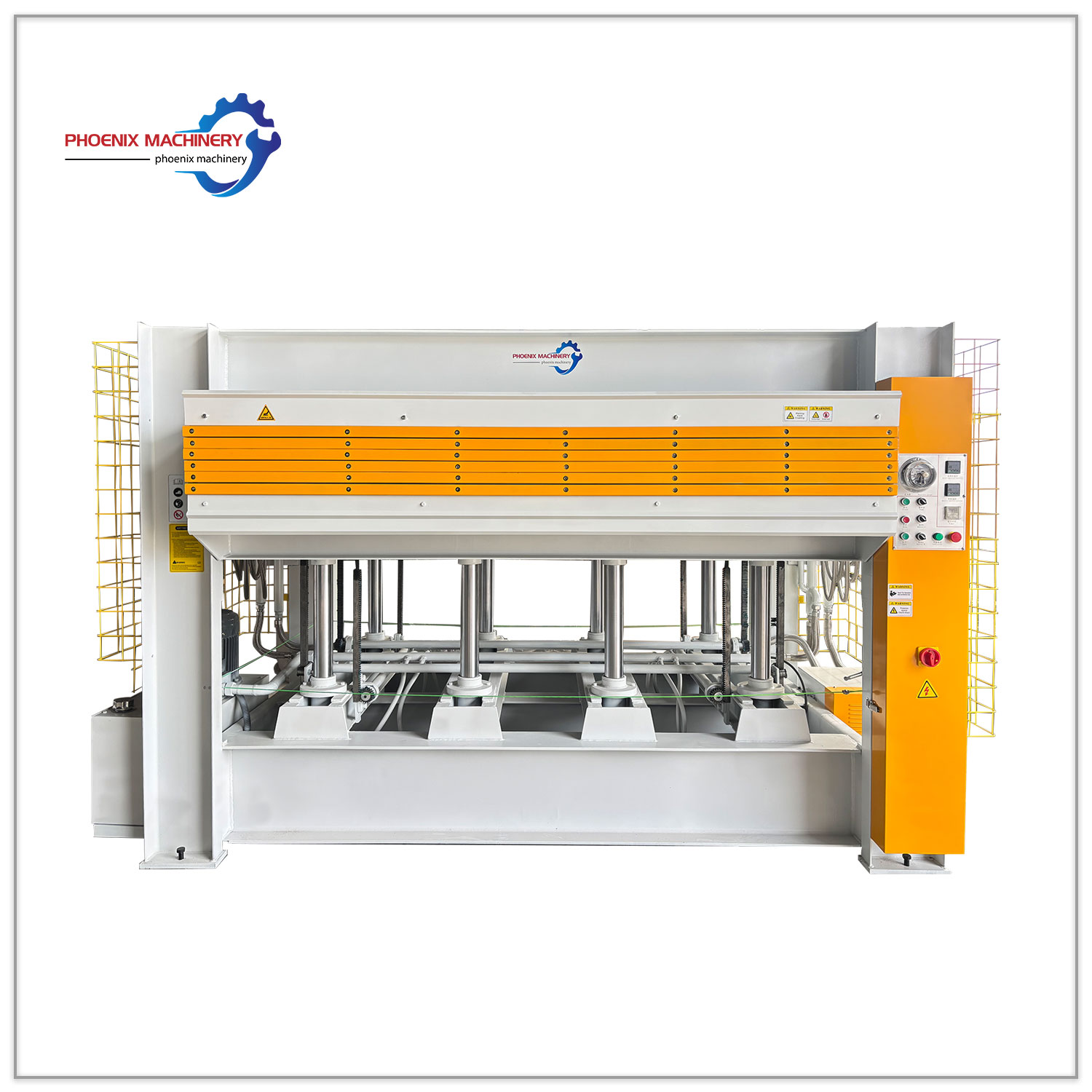

PH120 5layer Factory Wholesale 120T 8 cylinders Hydraulic Hot Press Machine Wooden Door Making Machine

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

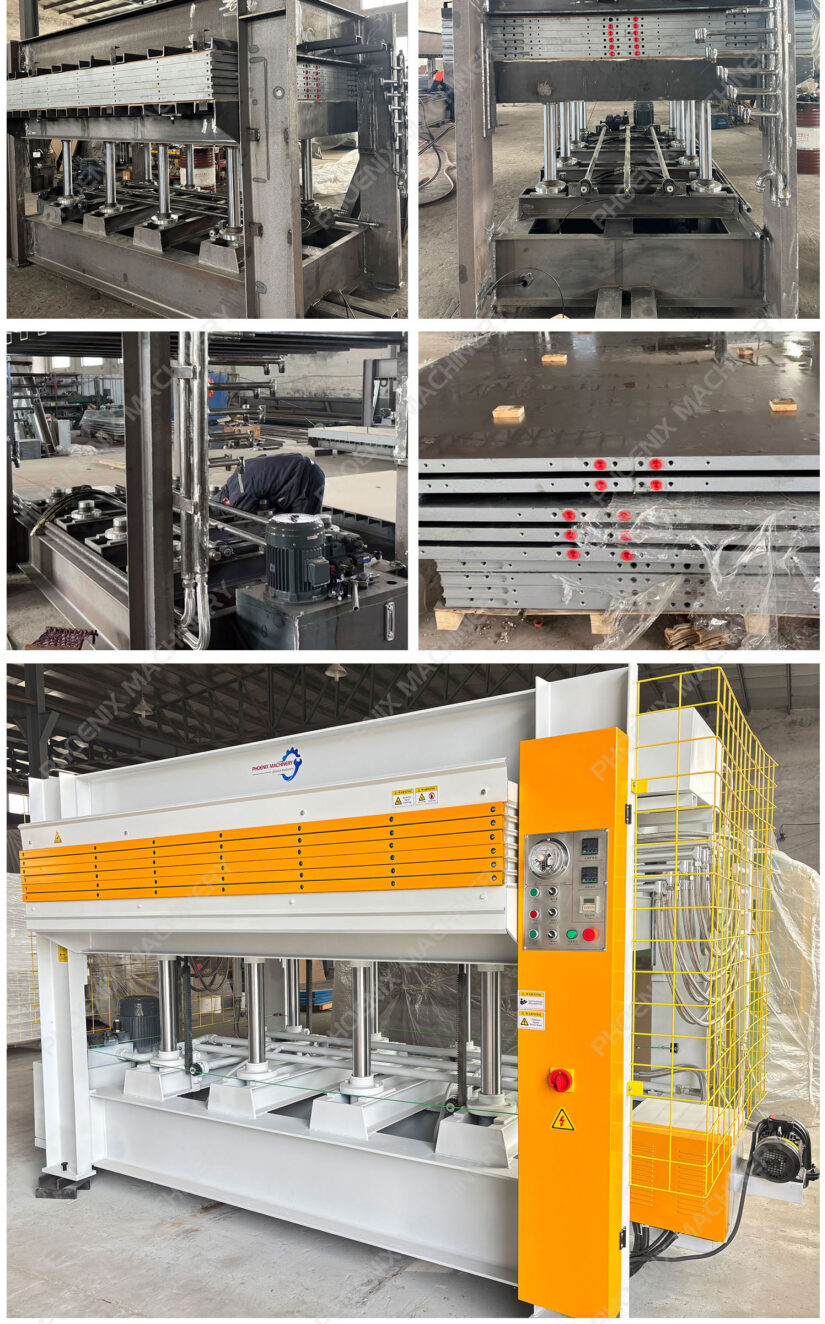

5layer Woodworking 120ton Wood Press Hydraulic Hot Press Machine for Plywood MDF Particle Door

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model PH120 5layer
Panel Width ≥60mm
Total pressure 1200KN / 120 T
Working Layers 5
Cylinder 8*85mm
Heating way Electric heating with thermic oil
Max temperature 120℃
Hydraulic Motor power 5.5kw
Hot Oil Pump power 2.2kw
Thermal Oil funace power 63kw
Platen size 2600*2200*42mm(Covered with mylar)
Overall dimension 4010*2270*2210mm
Weight 13800kg
