Description
| Model | PH120 2layer |
| Panel Width | ≥60mm |
| Total pressure | 1200KN / 120 T |
| Working Layers | 2 |
| Cylinder | 8*85mm |
| Opening size | 400 mm |
| Plate type | Q235 |
| Heating way | Electric heating with thermic oil |
| HYDRAULIC OIL WITH OIL | 46.40 liters |
| Max temperature | 120℃ |
| Hydraulic Motor power | 5.5kw |
| Hot Oil Pump power | 1.5kw |
| Thermal Oil funace power | 36kw |

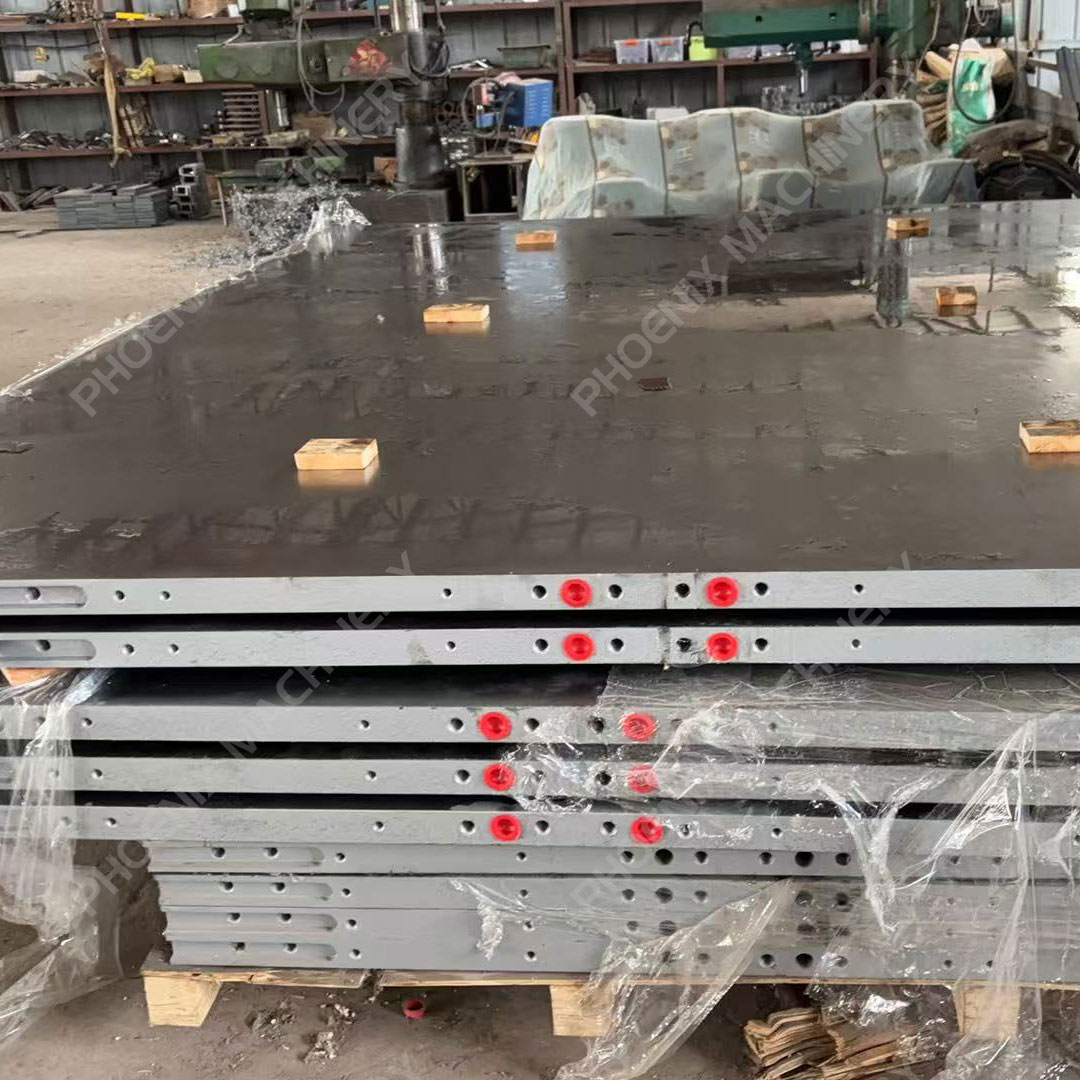

| Platen size | 3000*1300*42mm(Covered with mylar) |
| Overall dimension | 4150*1670*2000mm |
| Weight | 6500kg |
