PH120 2layer

Woodworking hydraulic veneer heat press machine is suitable for the door factory,as well as panel secondary processing plant.Which can make lamination for furniture panel,building partition,wooden door and consequently laminates all kinds of decorative material onto man-made board,such as MDF and plywood.As well it also can be used for drying or leveling veneer in woodworking undustry.

Description

we can provide integrated woodworking machinery solutions for your project.

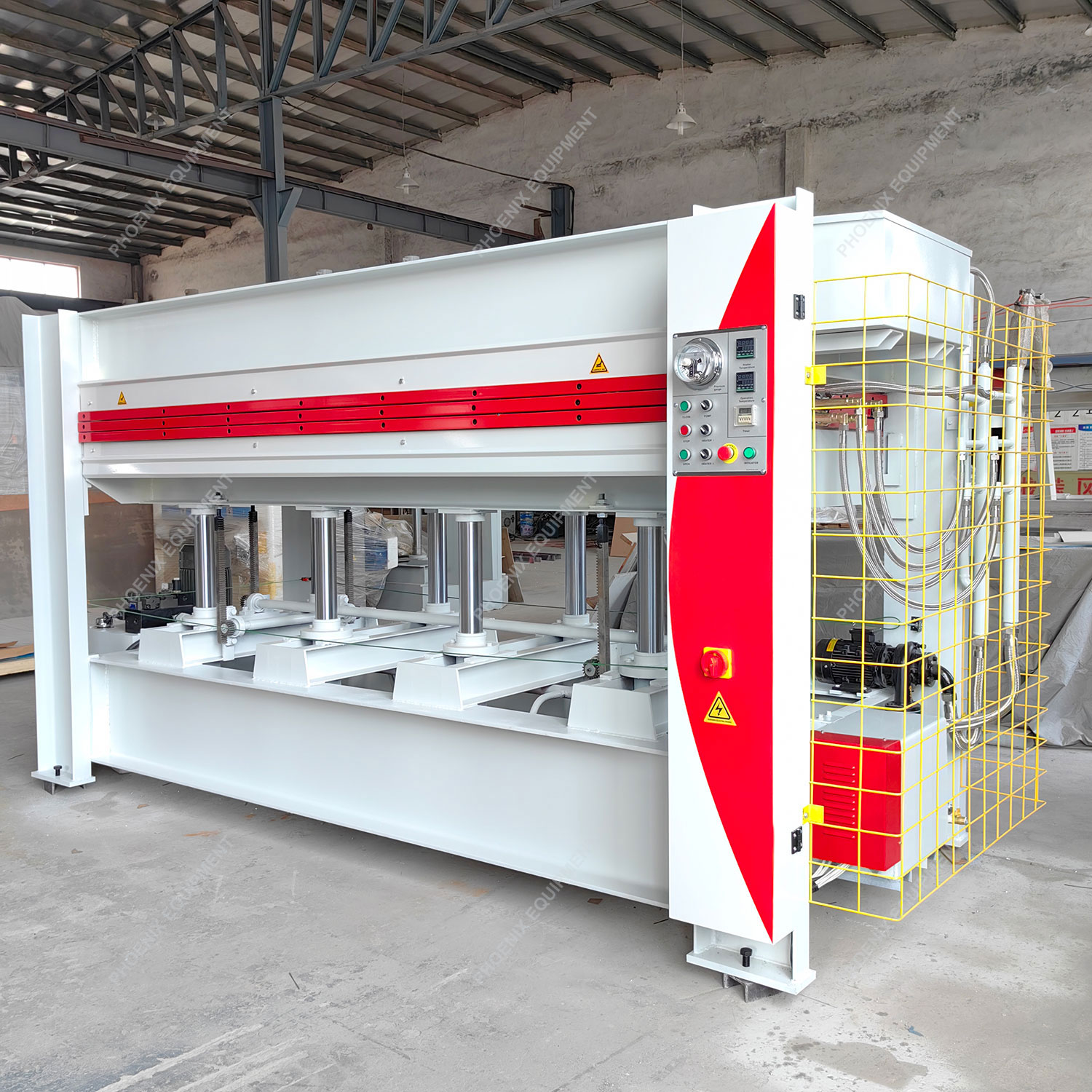

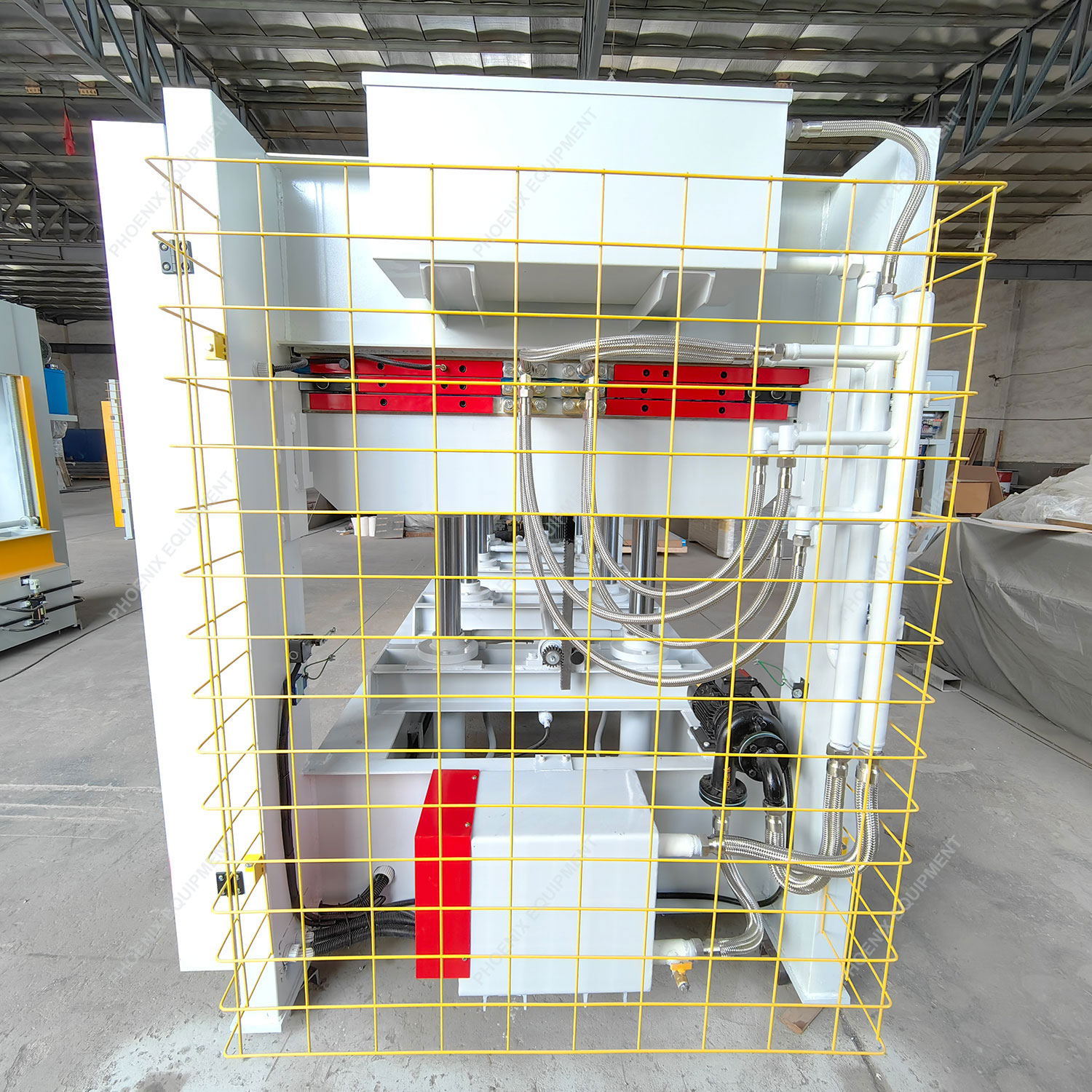

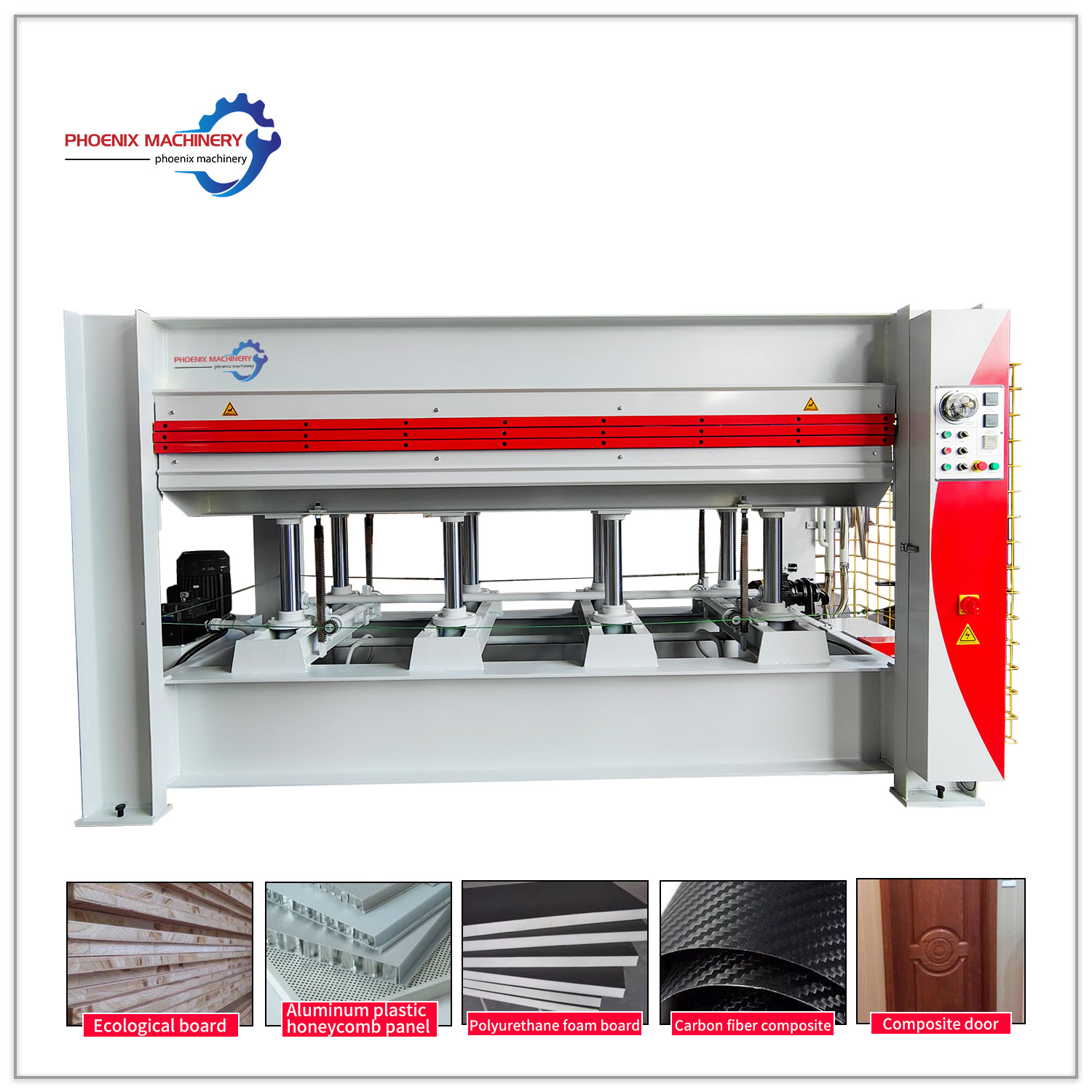

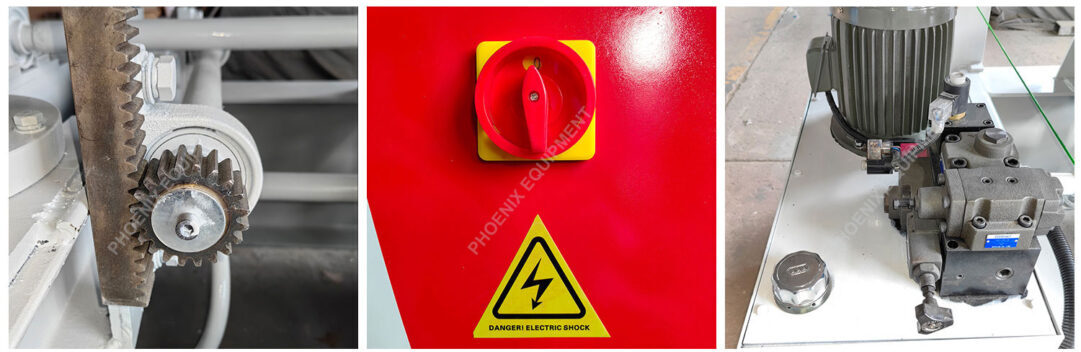

2layer Woodworking Hydraulic hot Press 120 Ton Machine Electric heating with thermic oilPhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model PH120 2layer
Panel Width ≥60mm
Total pressure 1200KN / 120 T
Working Layers 2
Cylinder 6*100mm
Heating way Electric heating with thermic oil
Max temperature 120℃

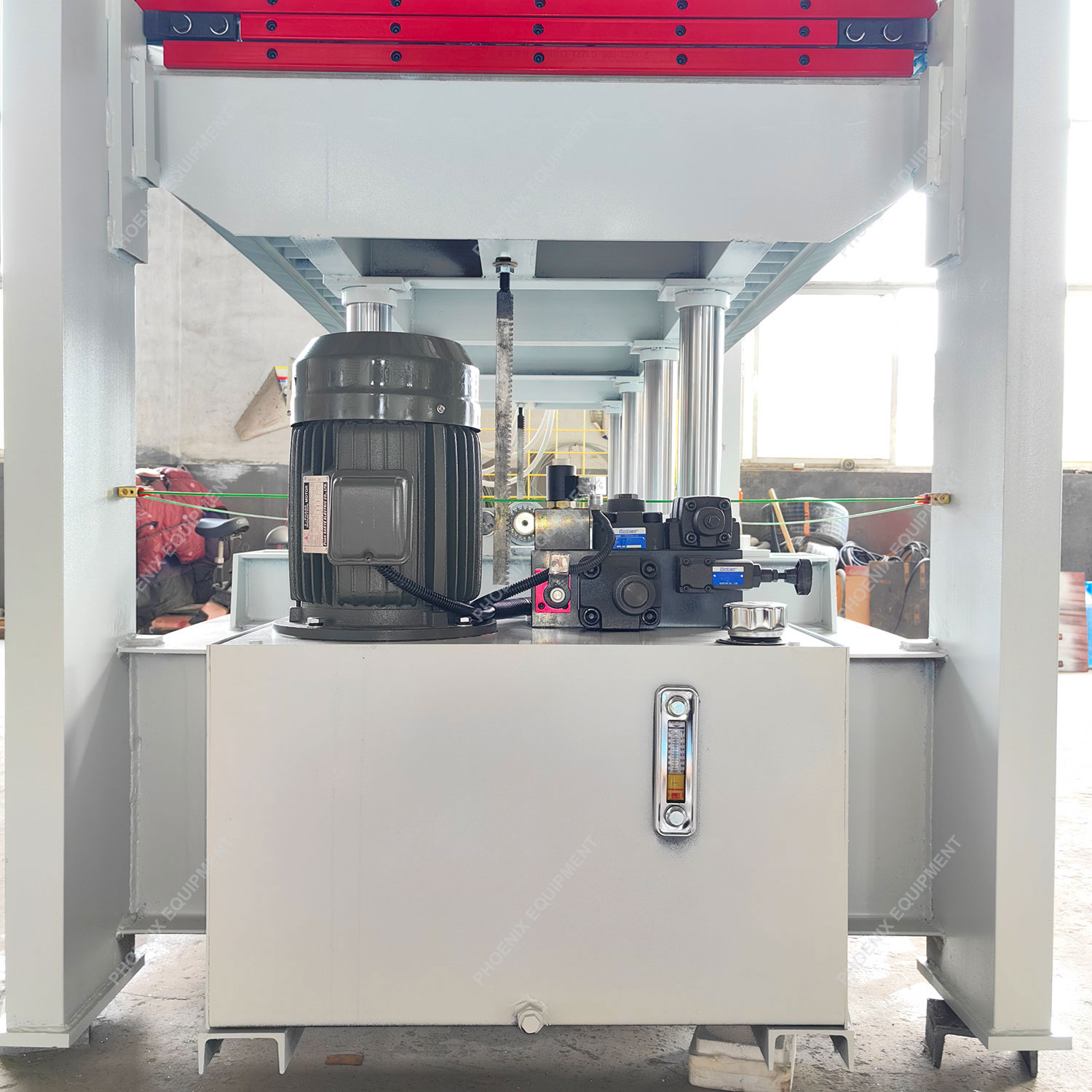

Hydraulic Motor power 5.5kw
Hot Oil Pump power 1.5kw
Thermal Oil funace power 36kw
Platen size 3000*1300*42mm(Covered with mylar)
Overall dimension 4150*1670*2000mm
Weight 8000kg
