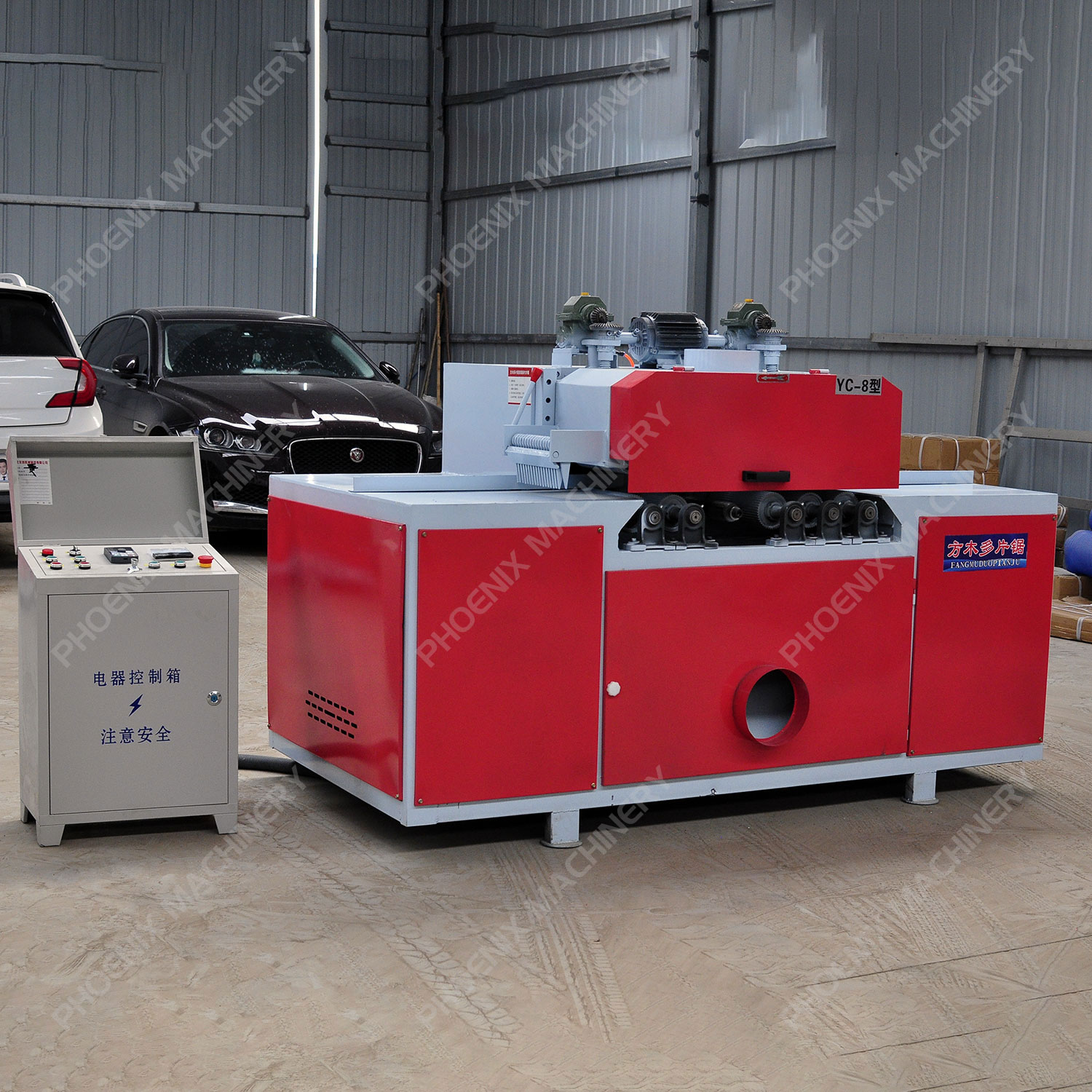

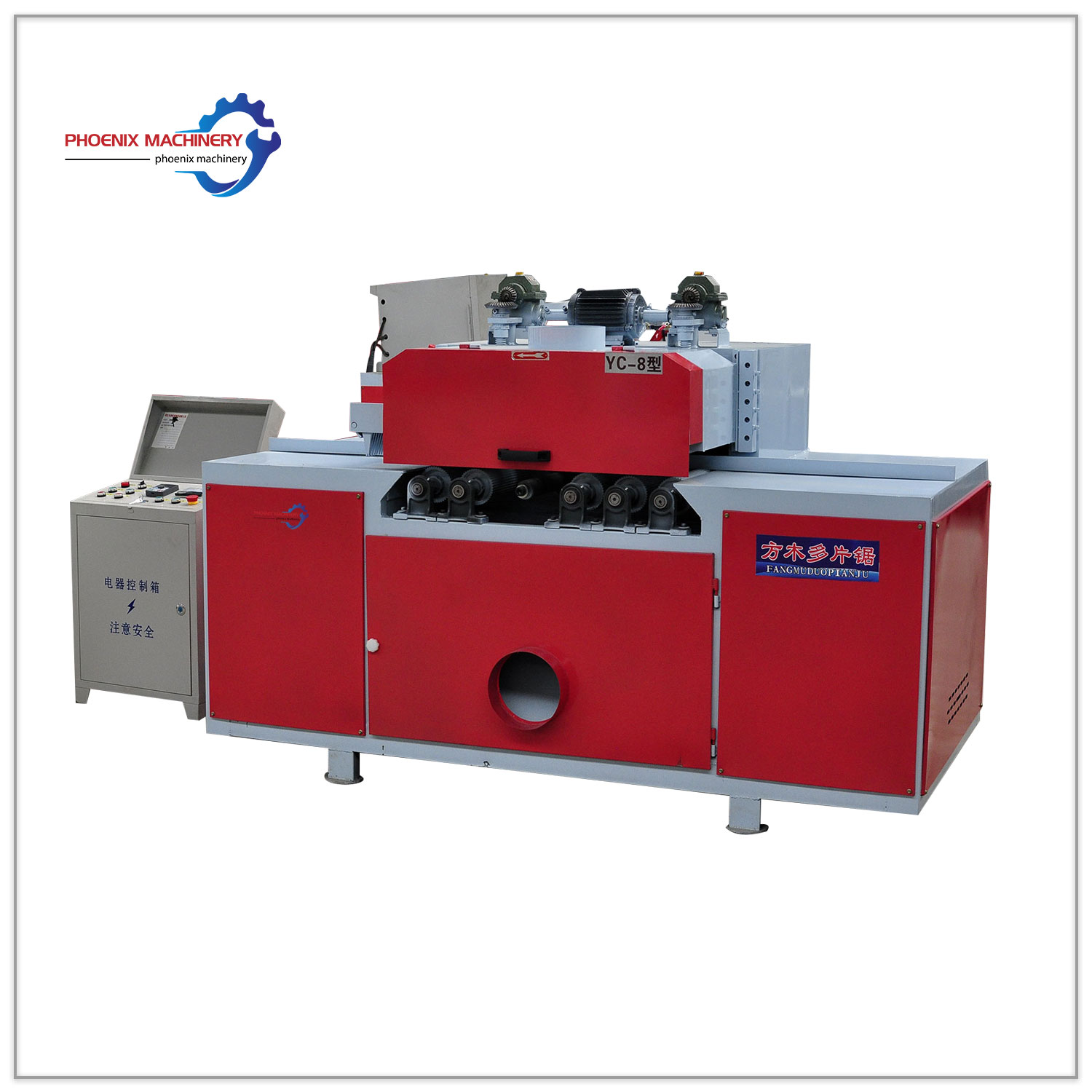

PFM60/PFM80/PFM100/PFM120/PFM150

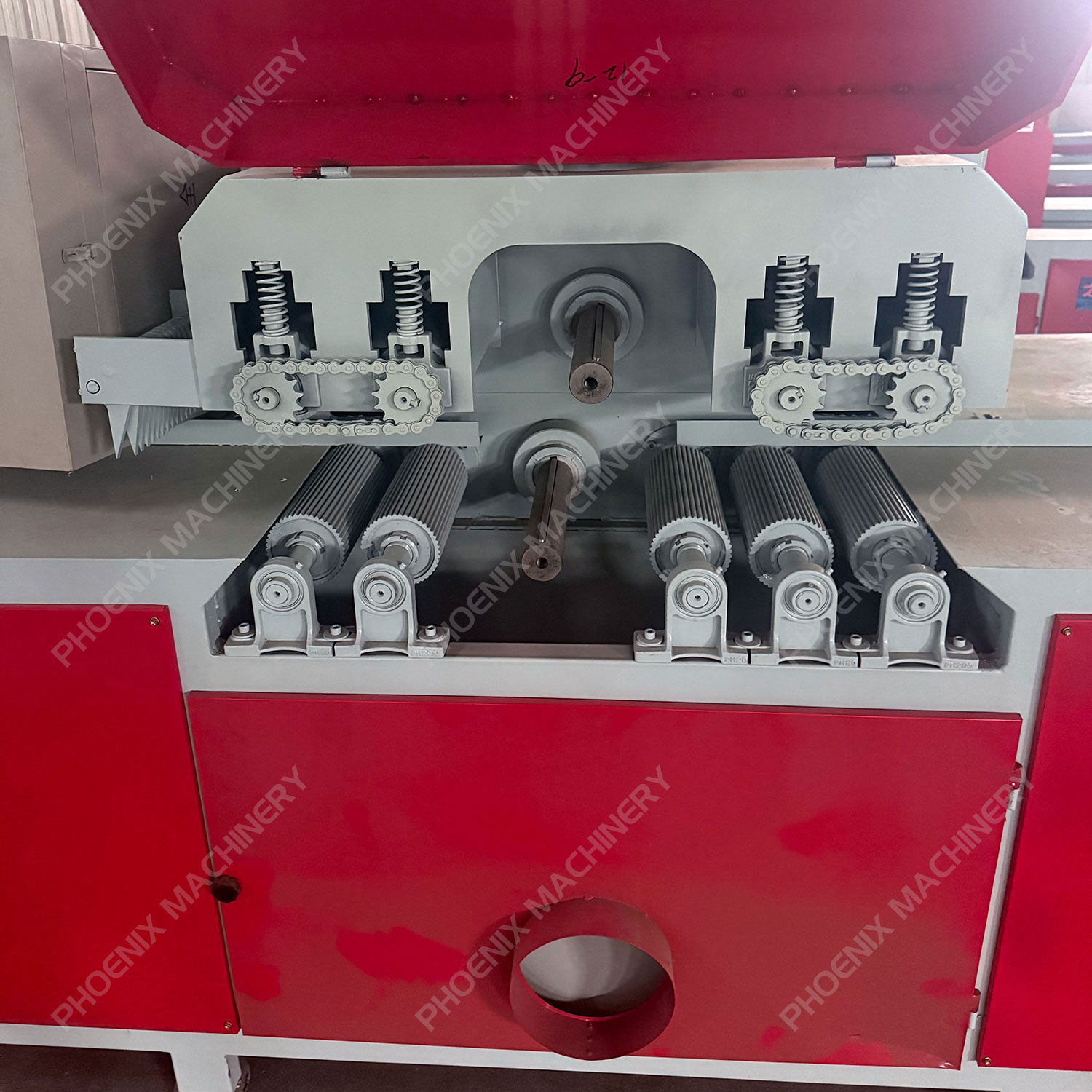

The equipment has the characteristics of high efficiency, high stability, simple operation, safety and reliability, low noise and so on.Multi-blade saw saw cutting process is stable, saw cutting precision is high, the surface is smooth, no need to press planing processing again, reduce wood waste.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model PFM60 PFM80 PFM100 PFM120 PFM150
Feeding Length 350-4000mm 400-4000mm 450-4000mm 500-4000m 550-4000mm
Feeding Thickness 20-60mm 20-80mm 20-100mm 20-120mm 20-150mm
Feeding Width Unlimited Unlimited Unlimited Unlimited Unlimited
Main Power 15kw+15kw 18.5kw+15kw 18.5kw+18.5kw 18.5kw+18.5kw 22kw+22kw
Feeding Power 1.1kw 1.1kw 1.1kw 1.1kw 1.1kw
Feed speed( Frequency Control ) 0-20m/min 0-20m/min 0-20m/min 0-20m/min 0-20m/min
Spindle diameter 50mm 50mm 50mm 50mm 50mm
Saw blade diameter 160mm 180mm 205mm 230mm 255mm
Spindle speed 3400r/min 3400r/min 3200r/min 3200r/min 3200r/min
Cooling mode Spindle water cooling Spindle water cooling Spindle water cooling Spindle water cooling Spindle water cooling
Size 2000*1000*1450mm 2000*1000*1450mm 2000*1000*1550mm 2000*1000*1550mm 2000*1000*1600mm
Weight 1000kg 1050kg 1100kg 1150kg 1200kg
Remarks optional Accept customization
