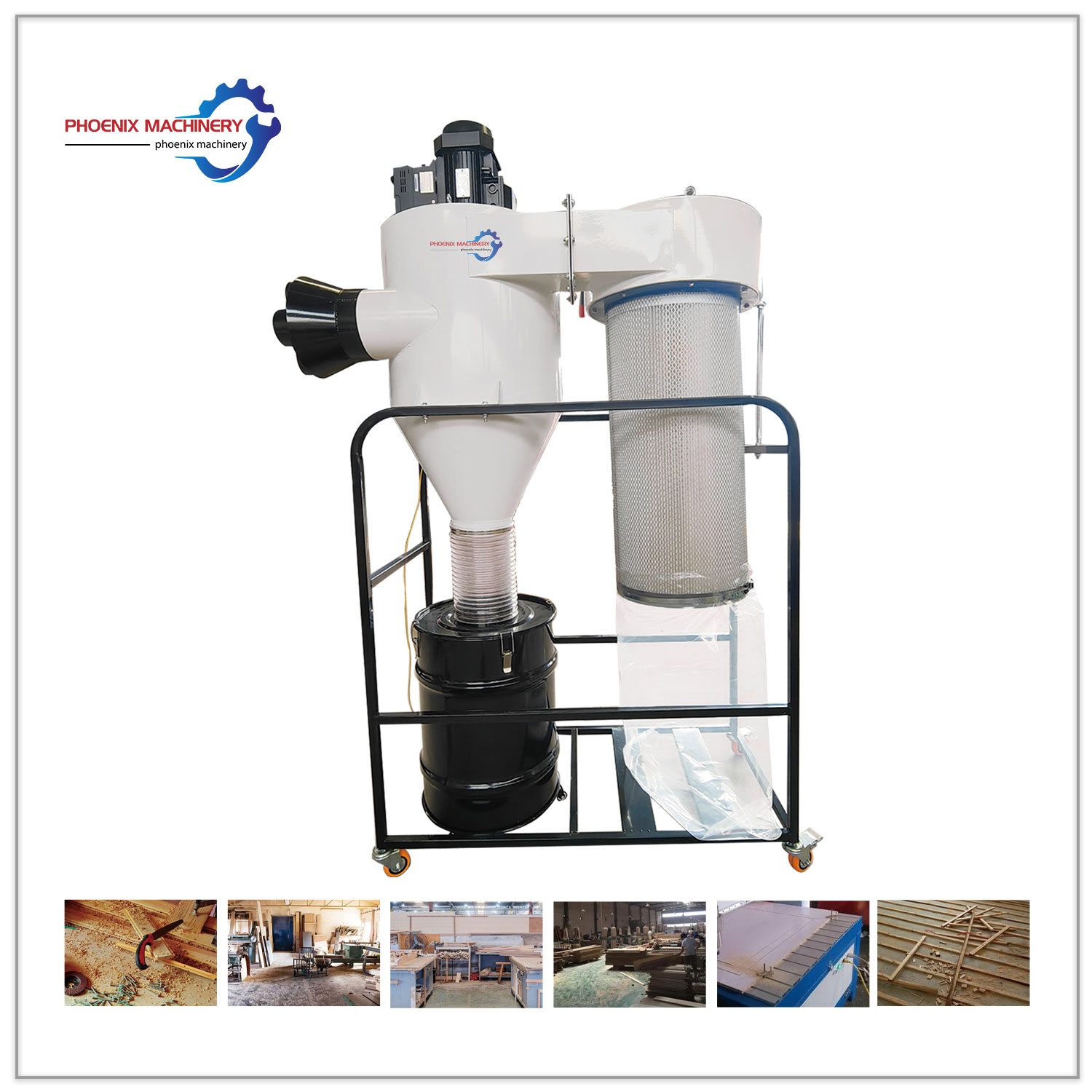

PDC3200F

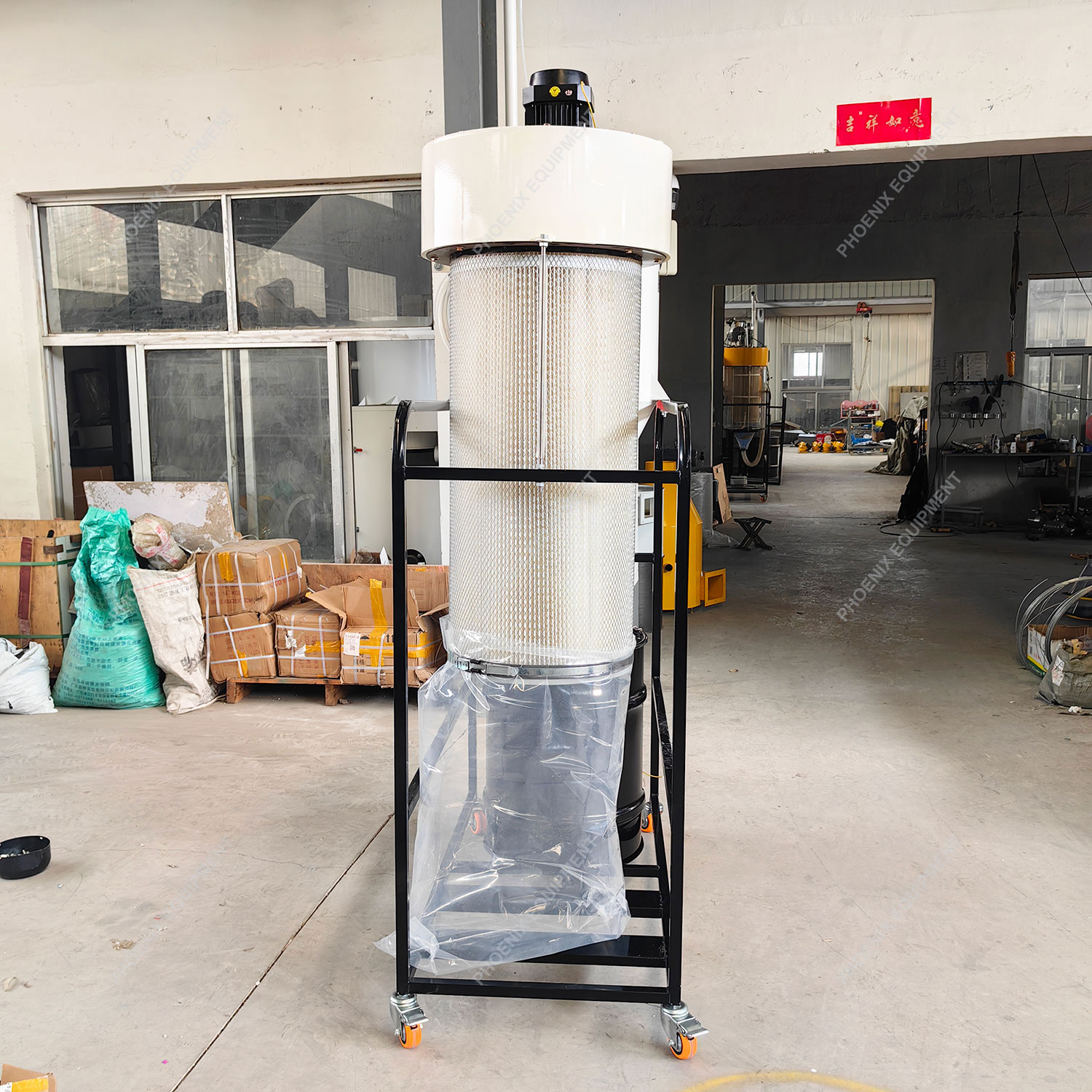

* Mobile cyclone dust extractor suitable for small to medium sized trade workshops.
* Able to connect to two machines using the included 2 x 100mm adaptor.
* Nice and quiet in operation

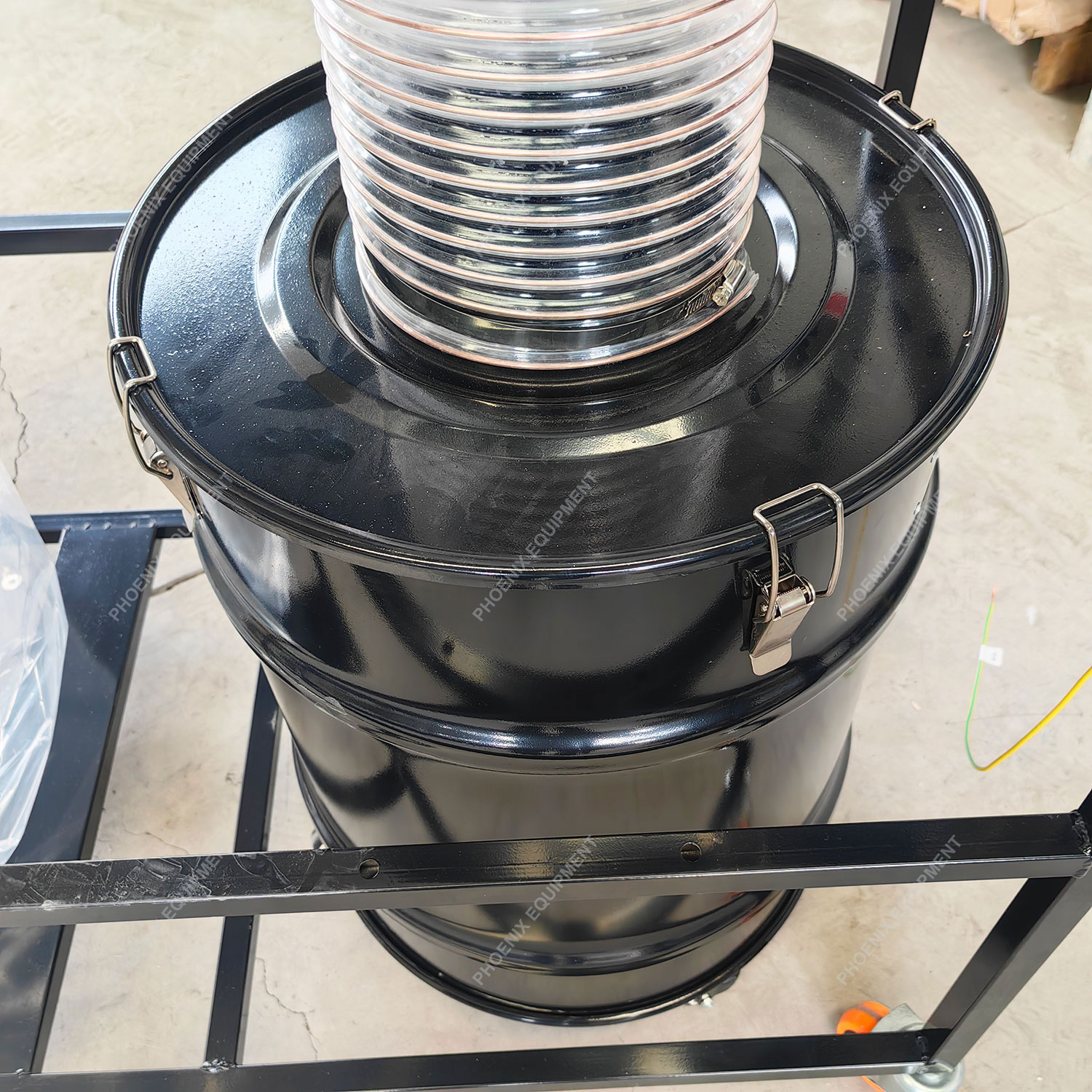

* The wheeled waste bin makes the task of waste disposal easier

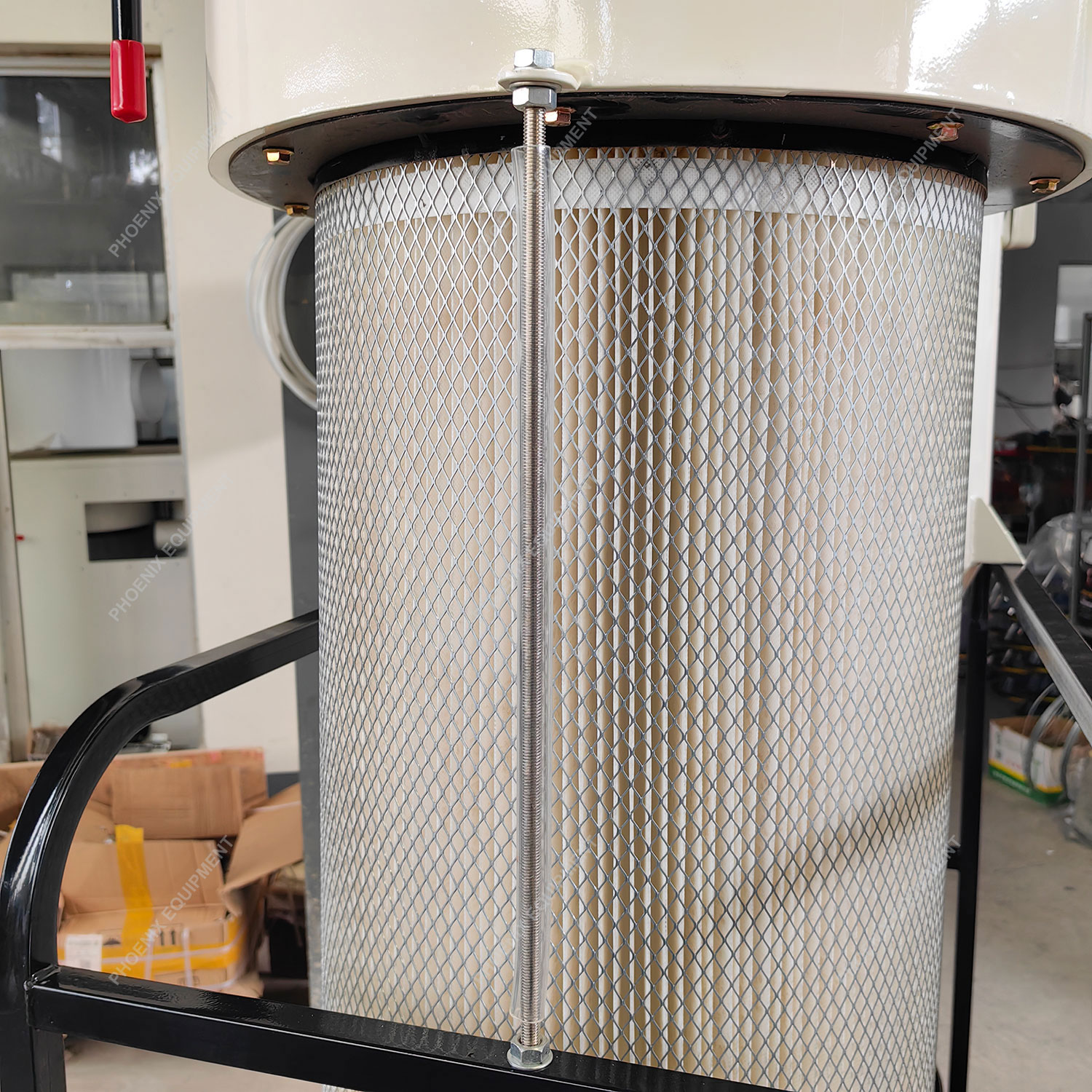

* Supplied with 1 micron polyester cartridge filter, plastic collection bag and steel impeller.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

cyclone dust collector two-stage dust collector woodworking vacuum cleaner fume processor

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model PDC3200F
Motor power 3kw
Speed 2800r/min
inlet diameter 3*100mm
Air flow 3200m³/h
Air flow control Frequency conversion control

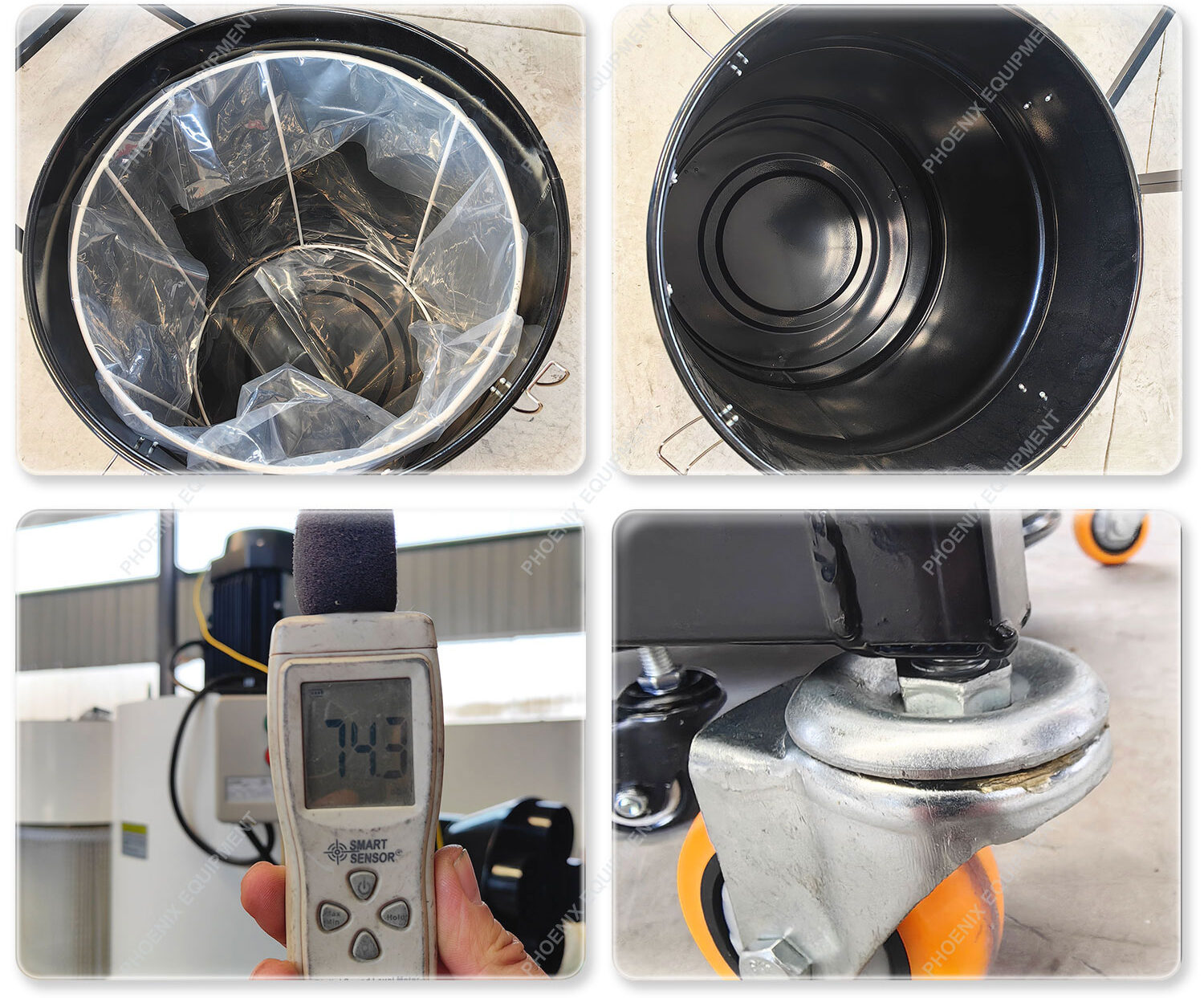

Noise around 74dB
Wind pressure 2200pa
Overall size 1200*600*2100mm
Packing size 1270*670*1380mm
Net weight 135kg
