MZ73212

1.Tablet made of high quality cast iron, to ensure the stability of the machine.
Vertical box,horizontal seat,left and right panels,motor base and other key parts are also made of cast iron.
2.Body framework, solid and beautiful;
3.Horizontal drilling can be 0-90 ° free rotation, and can be hover at any angle to meet the needs of special angle drilling;

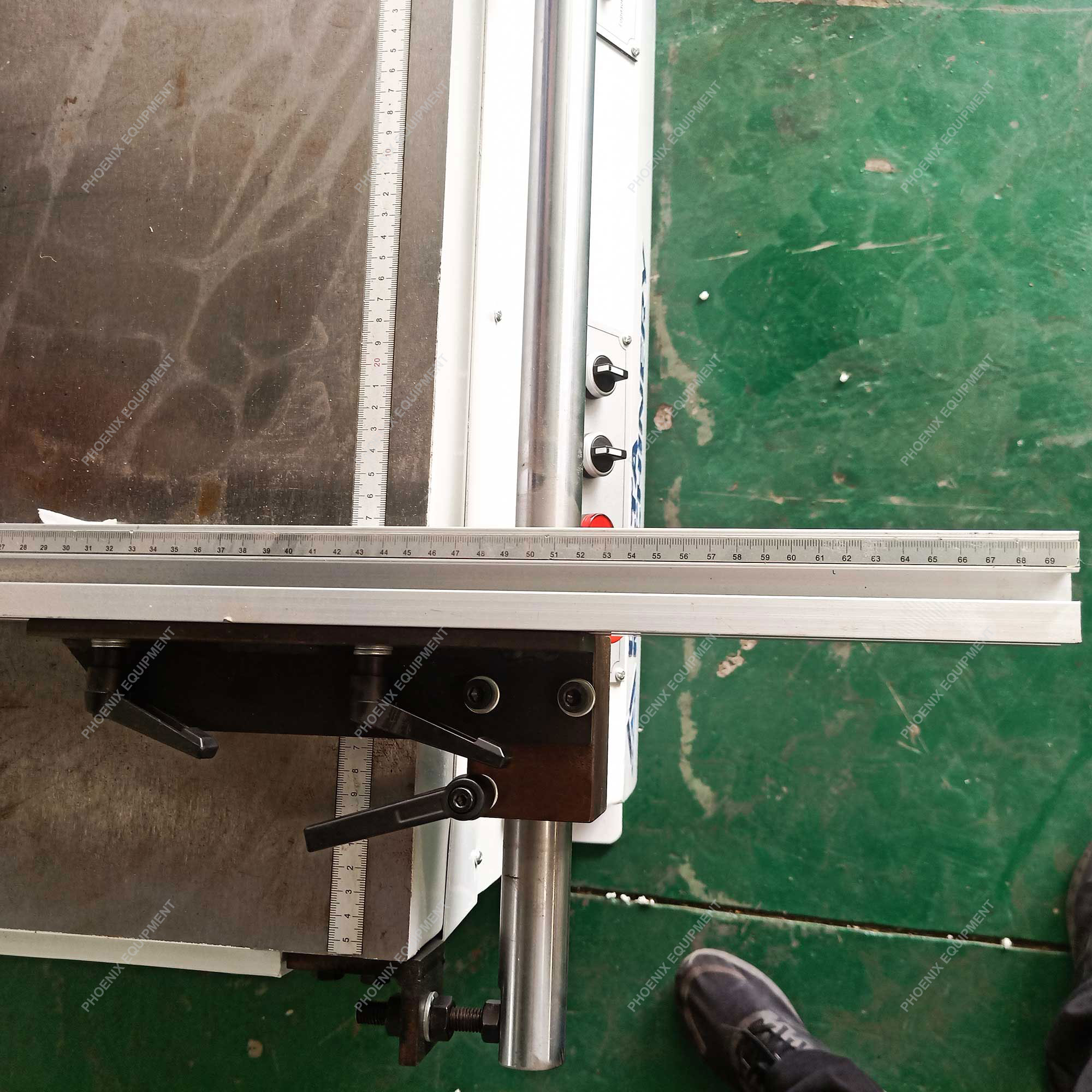

4.Widened machine body, lengthened rip fence, to position the plate horizontally and vertically.

Description

we can provide integrated woodworking machinery solutions for your project.

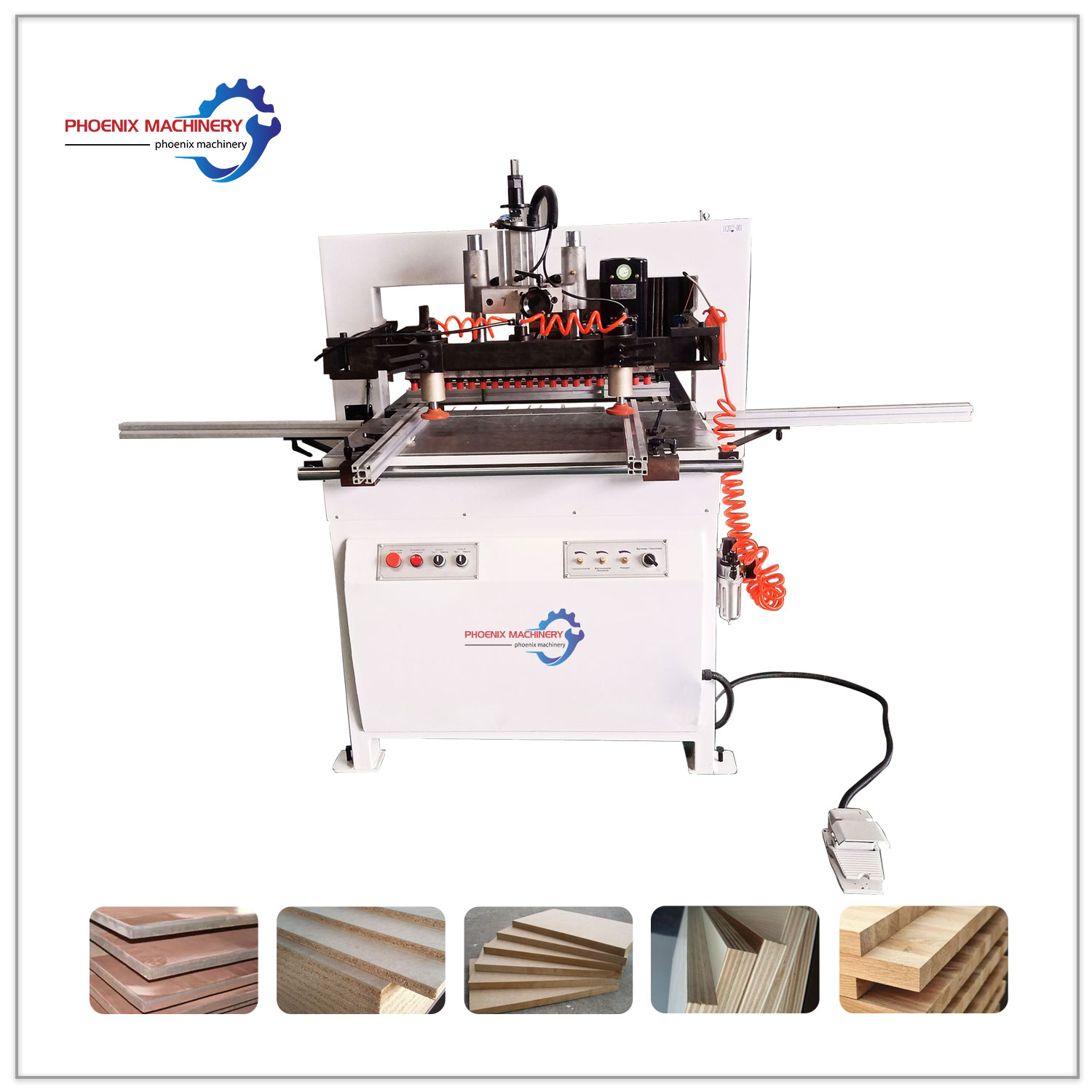

Woodworking Double Rows Wood Drilling Machine for Kitchen CabinetsPhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MZ73211 MZ73212
Manimum drilling diameter 35mm 35mm
Manimum drilling depth 60mm 60mm
Number of auger shaft 21 21
Rotational Speed 2840r/min 2840r/min
Motor Power 1.5kw 1.5*2kw
Air pressure 0.6-0.8MPa 0.6-0.8MPa
Packing Size 1140x1100x1270mm 1340x1150x1630mm
Overall size(LxWxH) 1040*1000*1170mm 1240*1050*1530mm
Weight (KG) 300kg 380kg
Voltage 220V/380V/Customed 220V/380V/Customed
