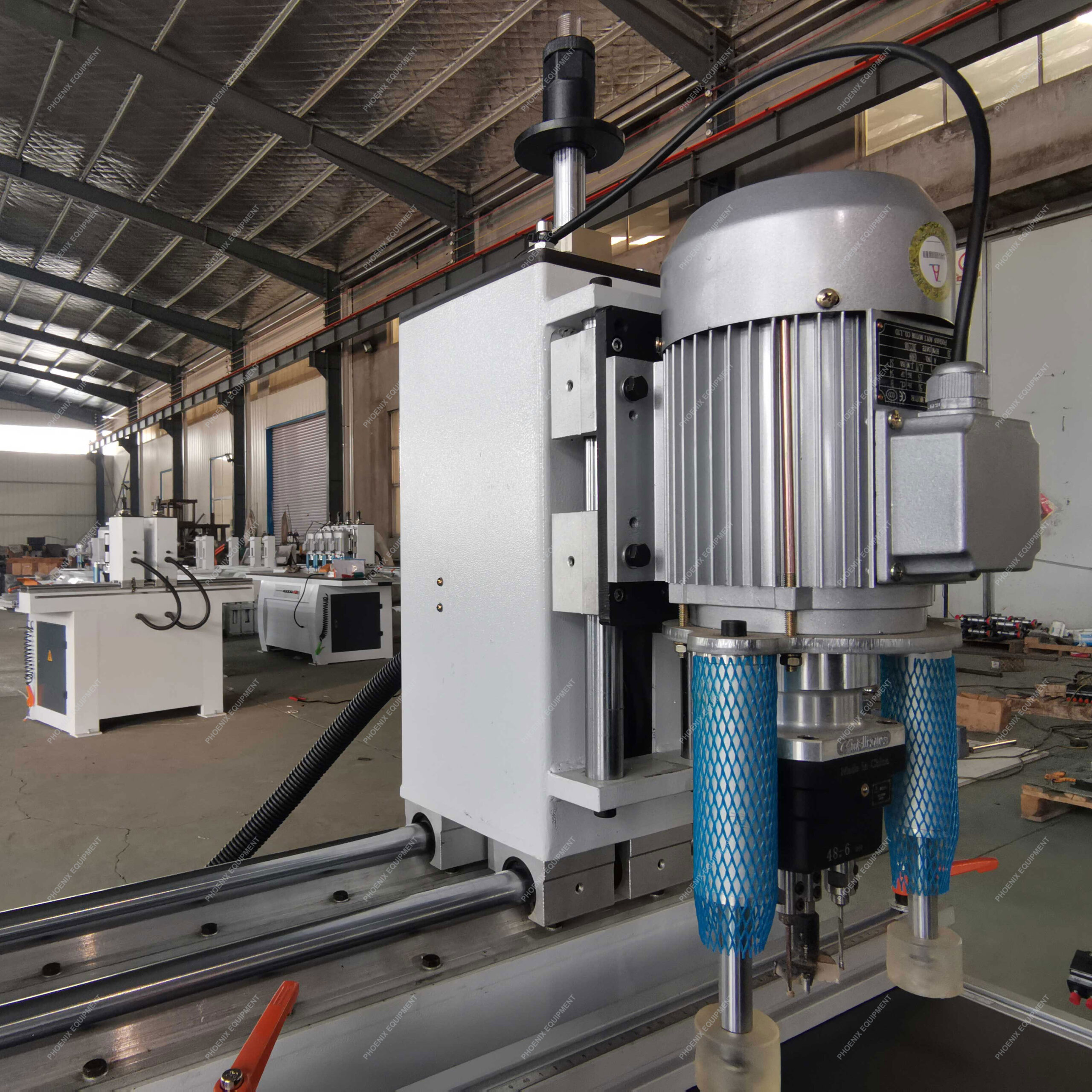

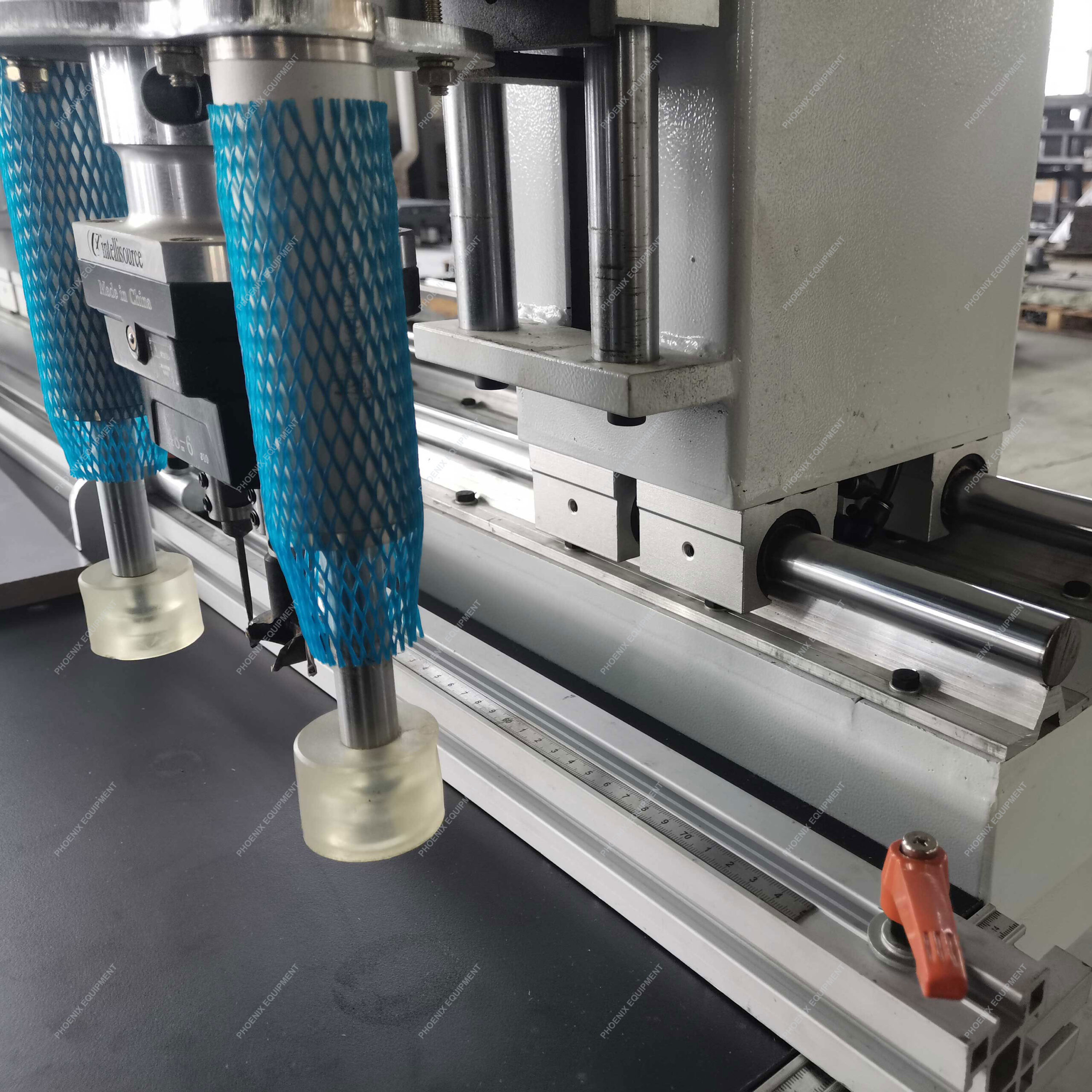

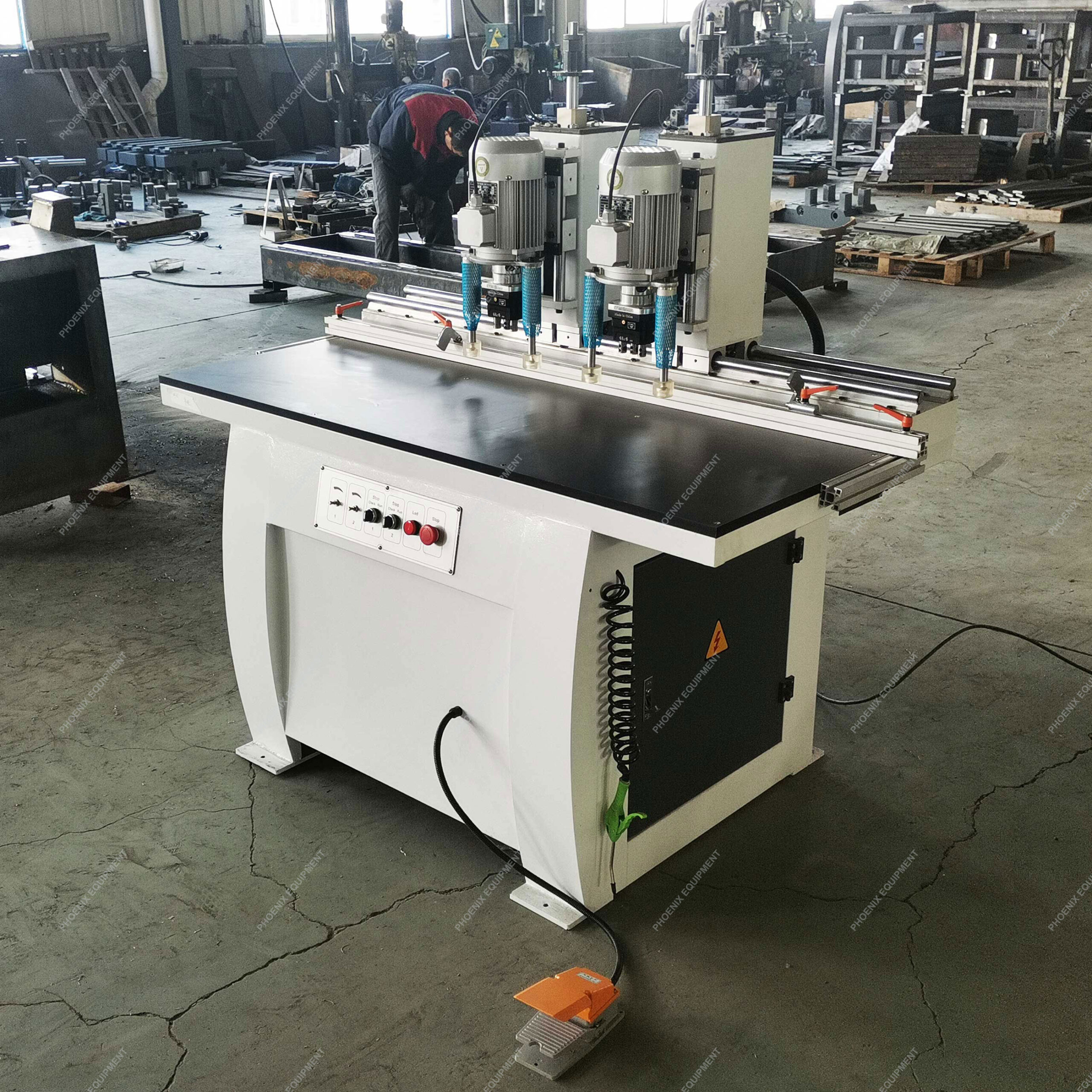

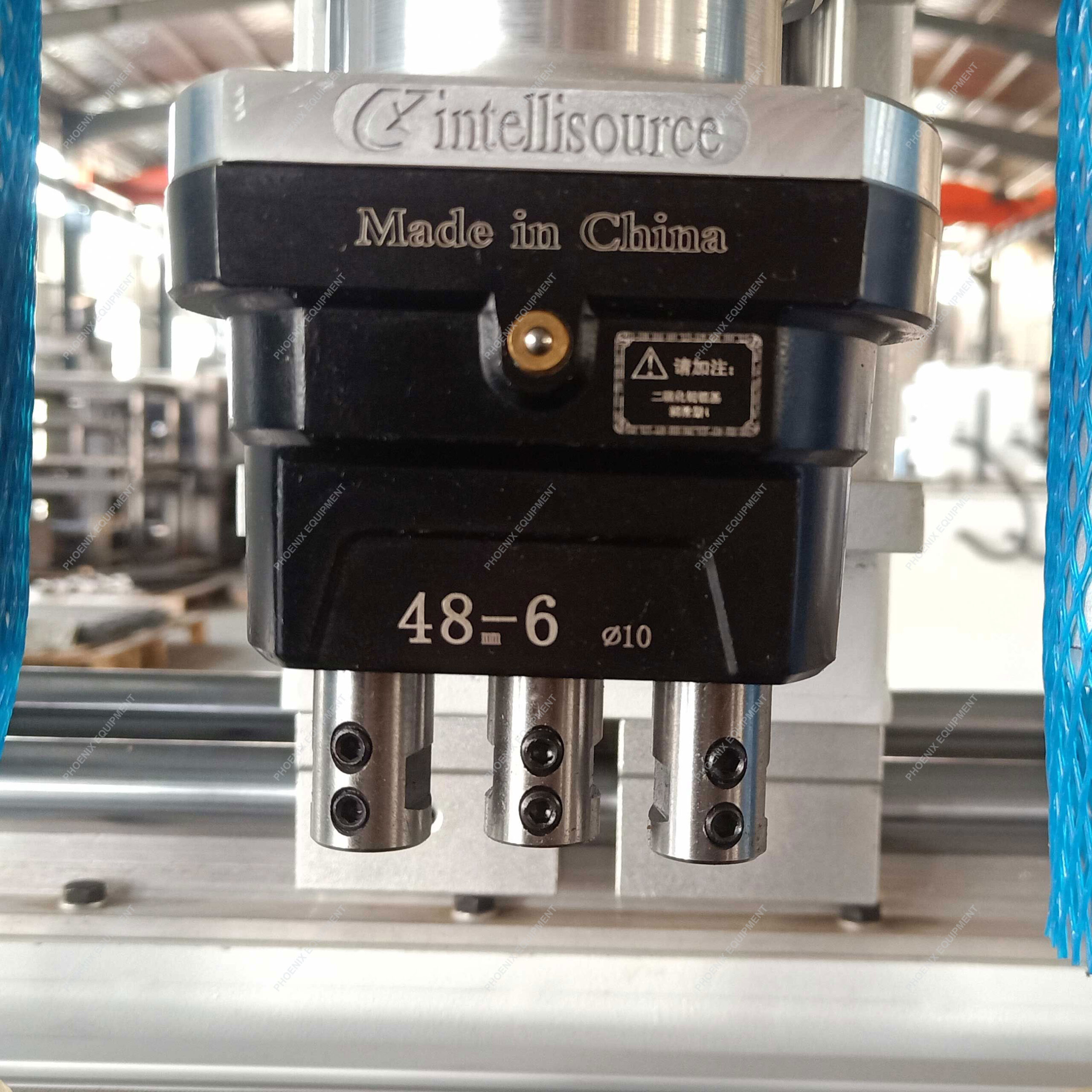

Wood Dowel Multi-boring Cabinet Door Double Head Hinge Hole Drilling Machine for Furniture

MZ73032

Hinge drilling machine is mainly for the hinge drilling of cabinets, wardrobes and other cabinet doors.It comes with a gas spring pressing device, which can be operated with one hand, which is convenient and fast.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

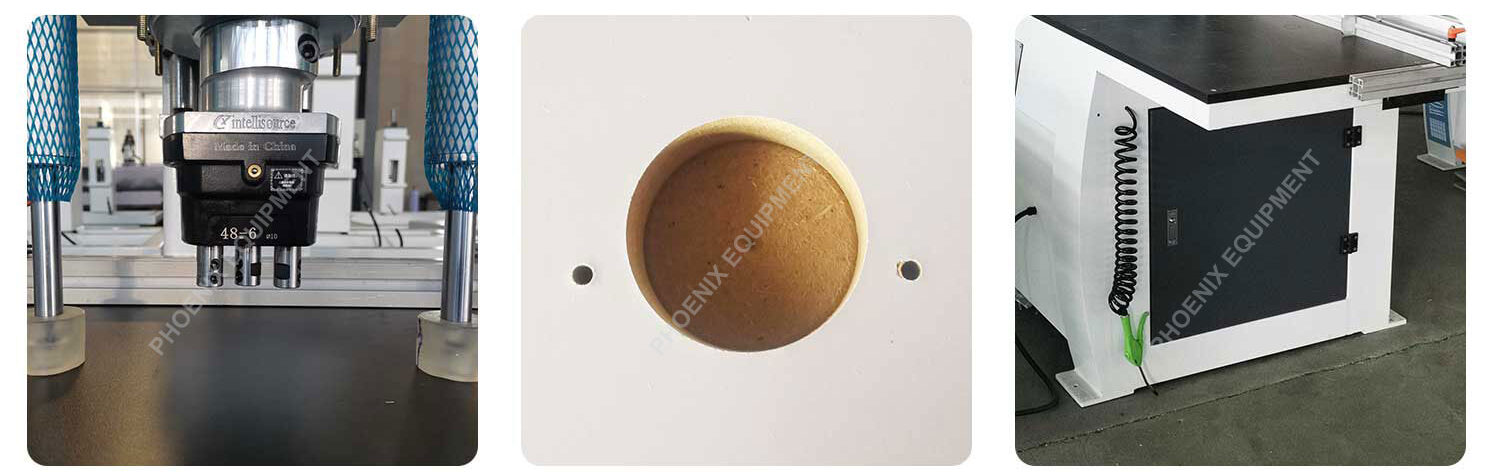

Cabinet Door Hinge Boring Machine Vertical Hole Wood Boring Machine Cabinet Doble Head Hinge Wood Boring MachinePhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

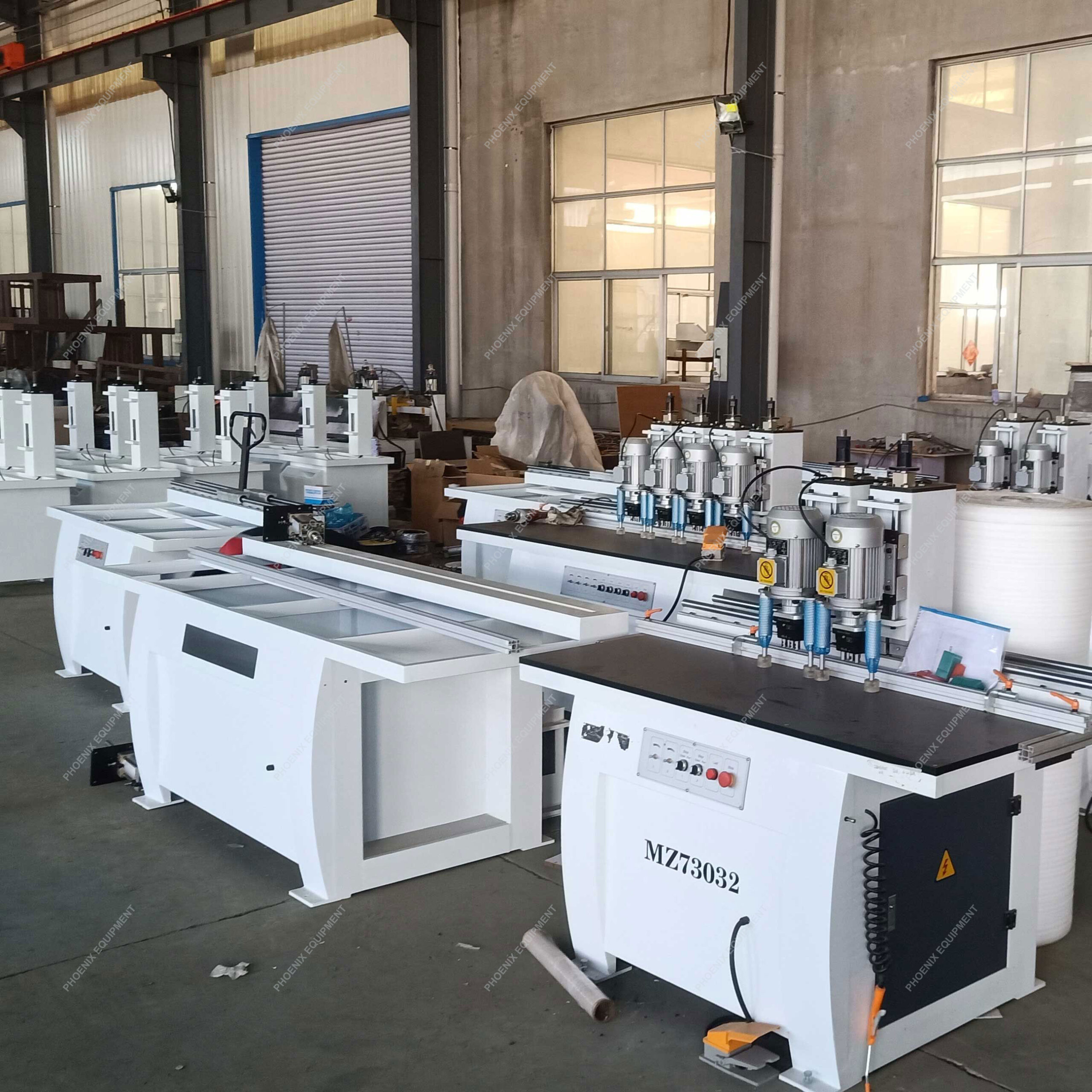

Model MZ73032
Max drill diameter 50mm
Max working depth 60mm
Vertical spindle heads 220-750mm
Number of spindle 3x2pcs
Spindle speed 2840r/min
Install power 1.5kw*2
Air pressure 0.6-0.8Mpa
Overall size 1700x850x1700mm
Packing size 1720x1050x1690mm
