woodworking rotary wood composer pneumatic clamp carrier hydraulic composer wood clamp carrier machine

MY2600A-8

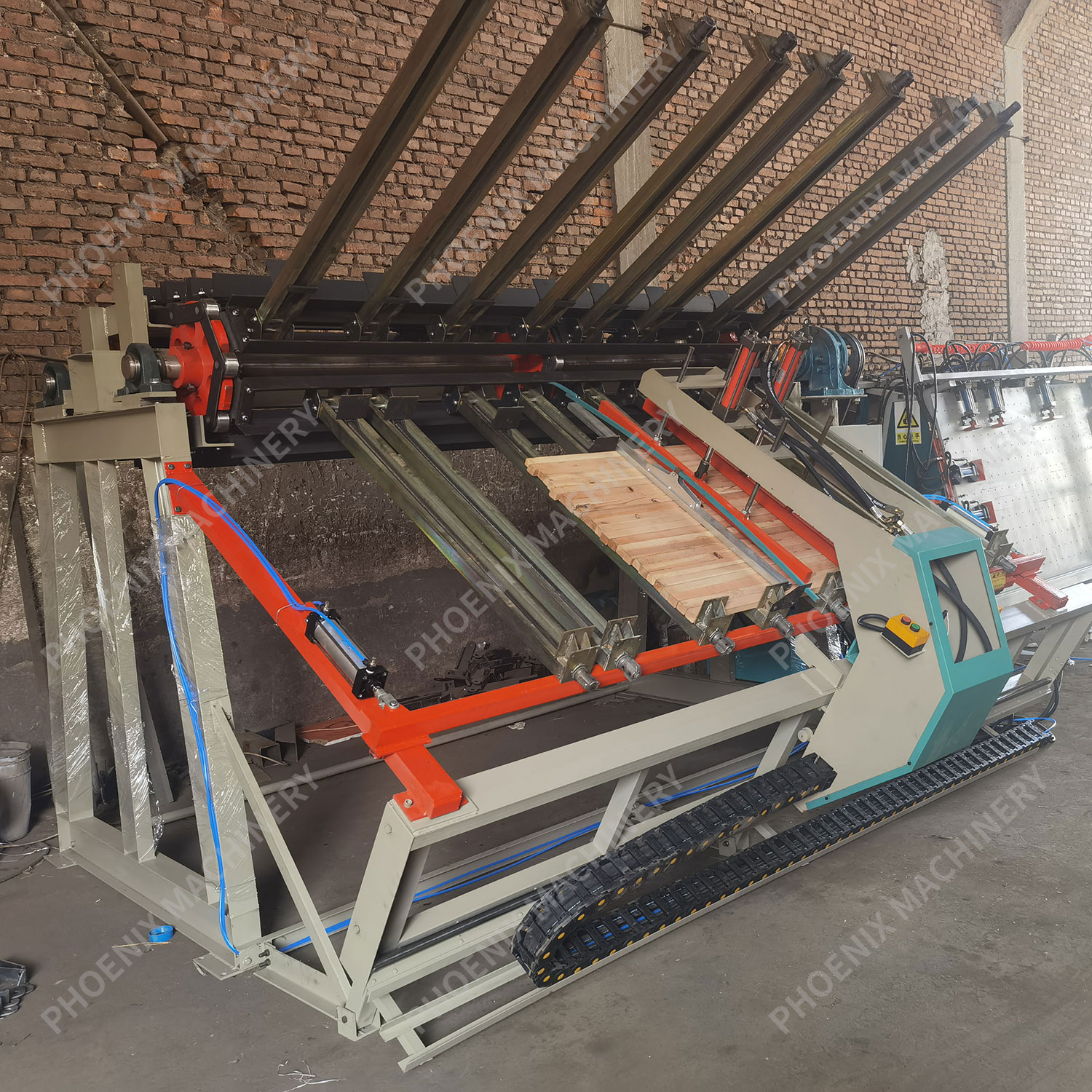

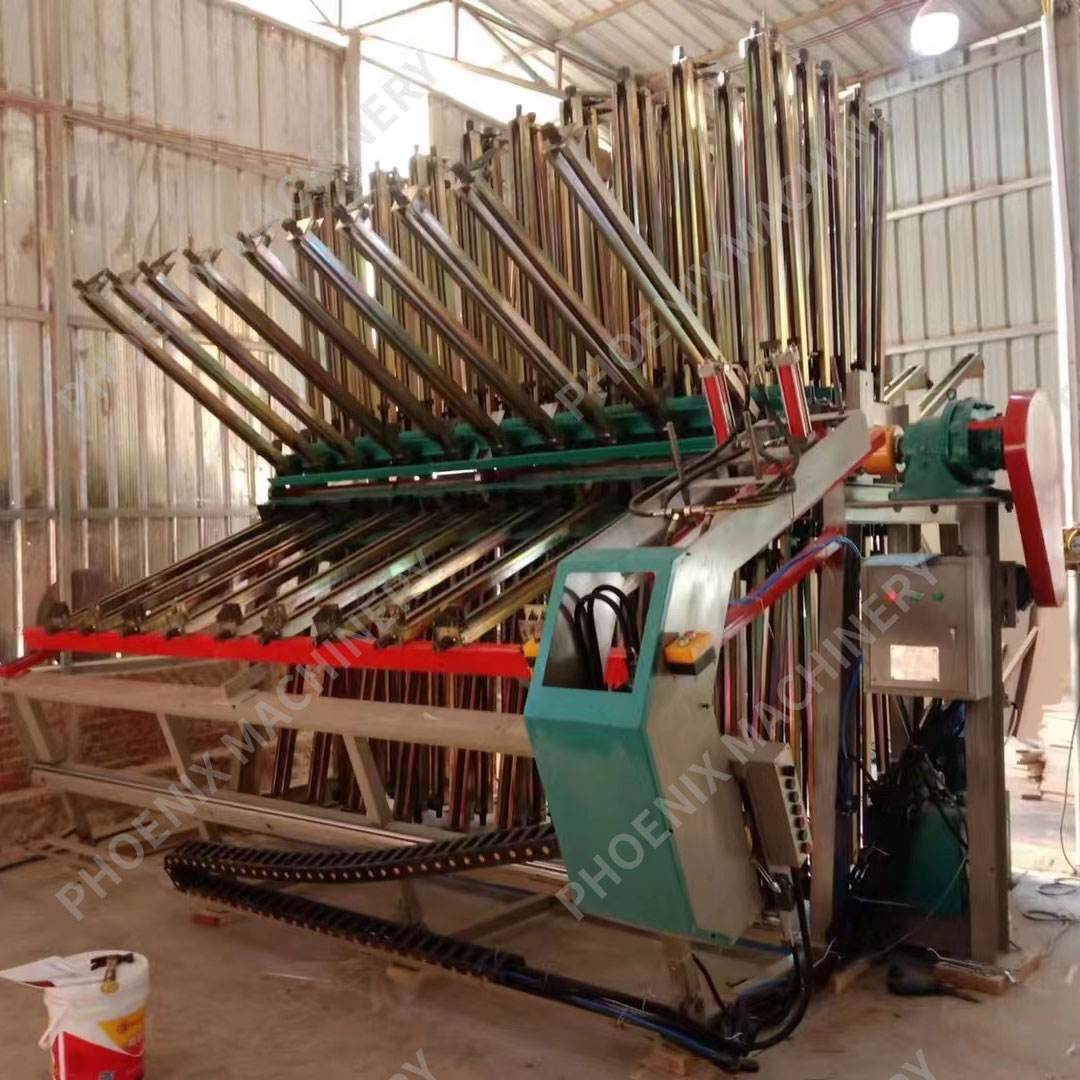

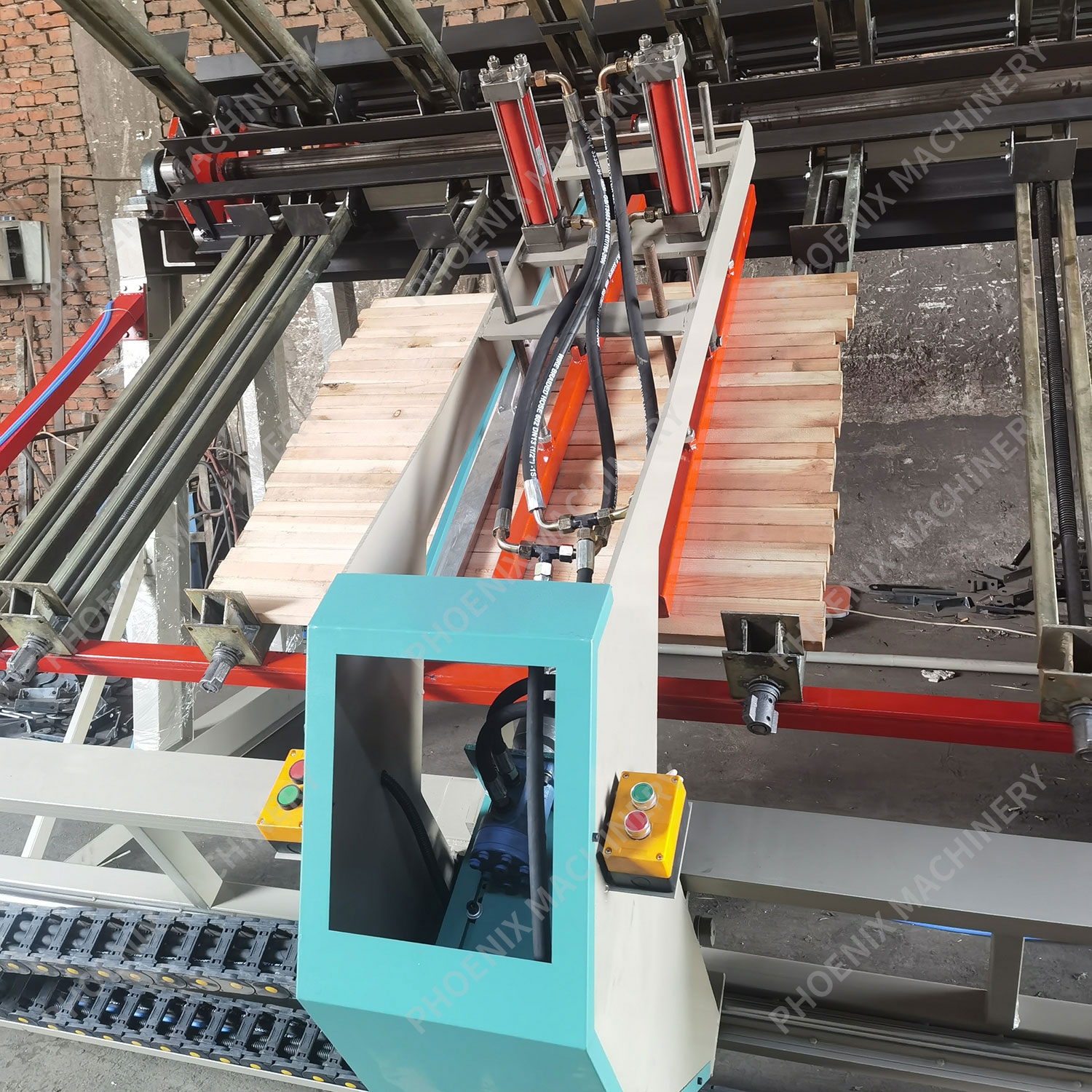

MY2600A-8 Rotary wood composer pneumatic clamp carrier hydraulic wood clamp carrier machine

Category: Tags: ,

Description

we can provide integrated woodworking machinery solutions for your project.

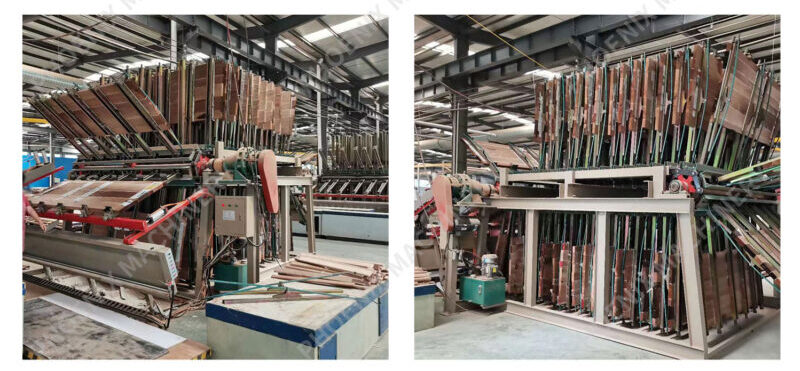

Woodworking solid wood block board timber door pneumatic hydraulic rotary clamp carrier carriers composer press pressing machine Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MY2600A-8 MY2600A-10 MY2600A-14 MY2600A-16 MY2600A-20
Max. Working Length 2600mm 2600mm 2600mm 2600mm 2600mm
Max. Working Width 1300mm 1300mm 1300mm 1300mm 1300mm
Max. Working Thickness 10-100mm 10-100mm 10-100mm 10-100mm 10-100mm
Section quantity 8 10 14 16 20
Clamps quantity per section 8 8 8 8 8
Oil station motor power 4kw 4kw 4kw 4kw 4kw
Rotating motor power 1.1kw 1.1kw 1.5kw 1.5kw 1.5kw
Pressure 0.6~0.8Mpa 0.6~0.8Mpa 0.6~0.8Mpa 0.6~0.8Mpa 0.6~0.8Mpa
