MXB3515-TA

Features:

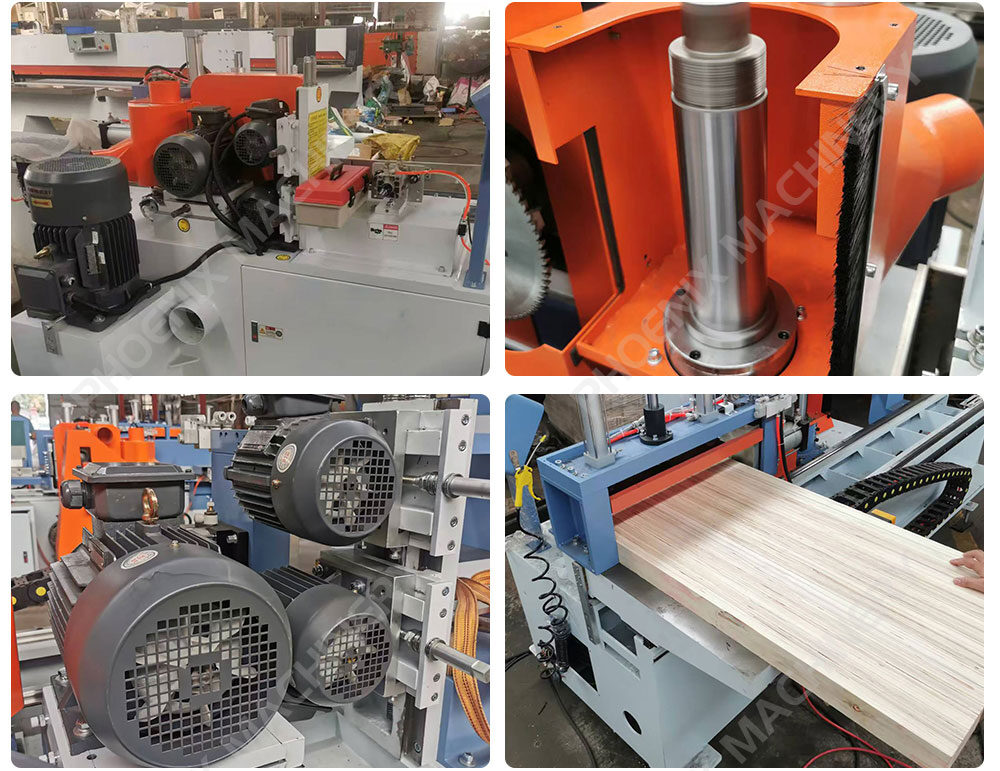

  1. Precision bearing is adopted in this machine for convenient operation.
  2. Large area workbenches can effectively process and operate more wood.
    3. The machine is equipped with pneumatic clamping device, which can effectively reduce the error caused by manual operation and make it safer and more efficient.
    4. The machine adopts automatic feeding and stop function.
    5. Automatic glue coating, the short wooden side of mortise and milling teeth, the long after glue application, the hydraulic pressure is tight, use this machine to connect the long square wood, the joint strength is greater than the strength of the wooden side itself.
    6. The machine is equipped with motor overheat automatic protector and emergency stop switch to effectively protect the safety of operators.
    7. Adopt imported PLC microcomputer control, simple operation, only one employee per set.

Description

we can provide integrated woodworking machinery solutions for your project.

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MXB3515A MXB3515TA
Table size 600*850mm 600*850mm
Max working width 600mm 600mm
Max.working thickness 150mm 150mm
Main saw spindle diameter Φ30mm Φ30mm
Shaper spindle diameter Φ70mm Φ70mm
Main saw spindle speed 2840r/min 2840r/min
Shaper spindle speed 6000rpm 6000rpm
Shaper spindle power 11kw 11kw
Main saw spindle power 4kw 4kw
butting saw power 0.75kw 0.75kw x2
Total power 15.57kw 16.5kw
Pressure of air system 0.6-0.8MPa 0.6-0.8MPa
Overall dimensions(LxWxH) 2700*1730*1550mm 2880x1730x1550mm
Weight 1800kg 2000kg
