MX5317

Wood shaper is applied to milling planes,grooves, teeth, threads and spline shafts, milling machines can also process more complex curved surfaces,trimming with high efficiency and widely used in the woodworking furniture industry.

– Suitable for wood processing plants, furniture manufacturers, handicraft factories.
– Strong motor, more than 8000r/min, Smoother cut.
– Low labor intensity, high efficiency, safe and reliable, one person can operate.
– High cutting precision, simple operation, high efficiency and wide application.
– Can be installed with automatic feeder to use.

Description

we can provide integrated woodworking machinery solutions for your project.

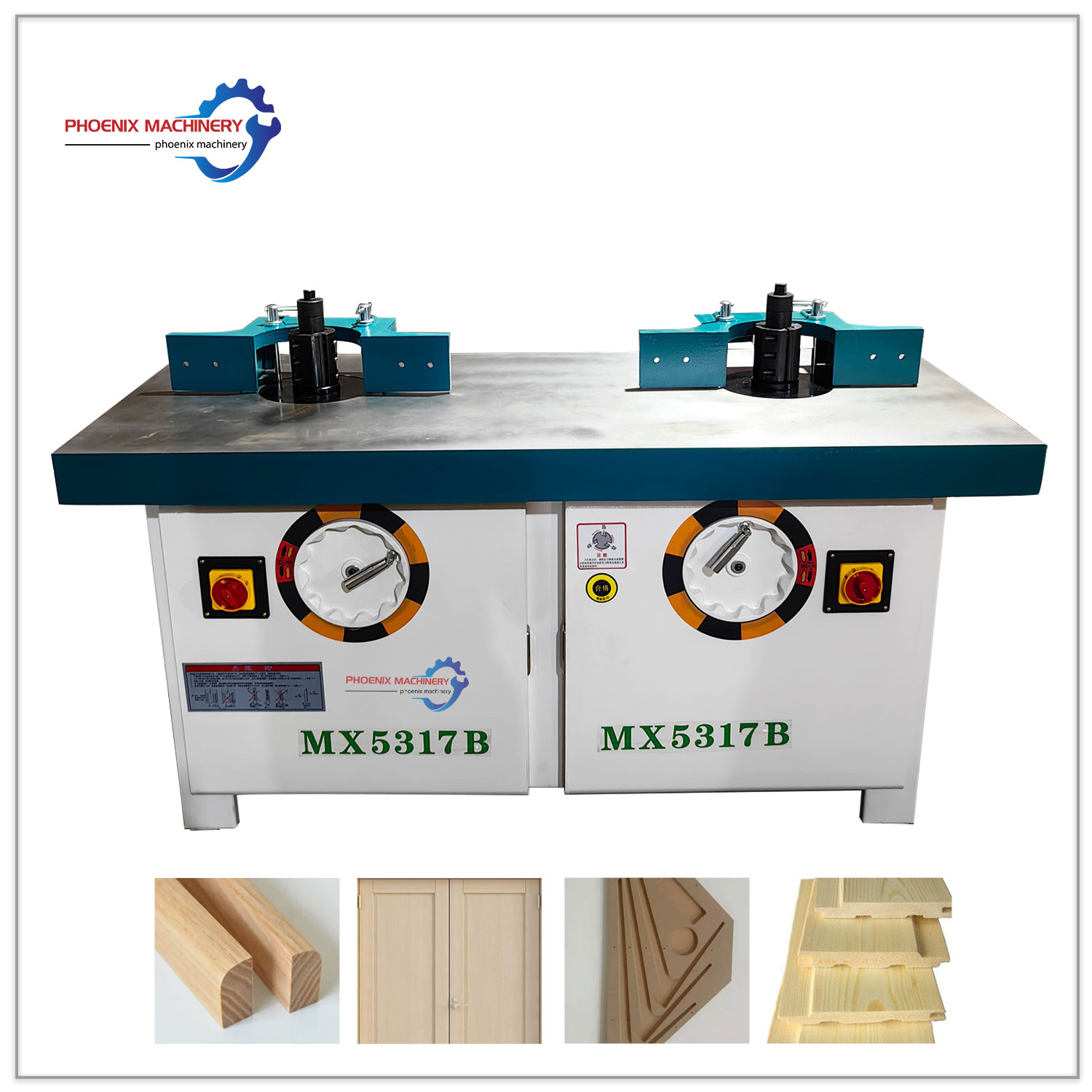

Woodworking Machinery MX5317 Double End Wood Spindle Moulder Double Axis Milling MachinePhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Double Spindles Shaper
Modle name MX5317
Cutting height 0-120mm
Spindle speed 6000/8000/10000 r/min
Spindle dia 35
Executive standard GB12557-2010
Install power 4kw*2 / 5.5kw*2
Working table size 1700*680mm
Note The standard motor power:4kw
If processing mahogany products, it is recommended to equip at least 5.5kw motor.
