professional wood milling moulding tilting shaft table tilt woodworking spindle moulder

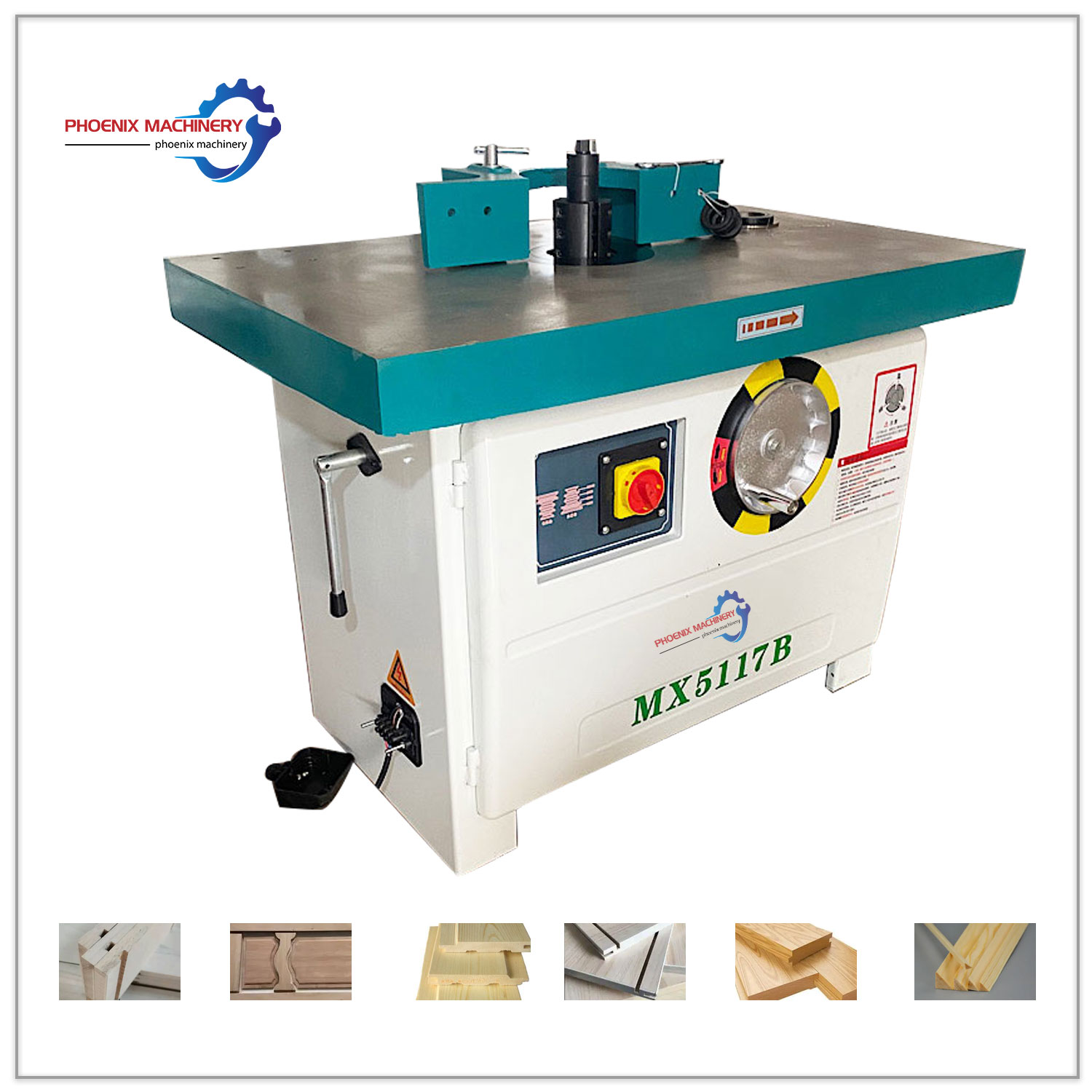

MX5117B

  1. Simple structural design, easy to wear and easy to maintain.
  2. The structure is more stable and ensures the milling effect.
  3.  High quality, low price, simple woodworking. Any craftsman who demands absolute precision and quality will be impressed.
  4. It is applied for re-processing camber side and the special shape side.It also can do beeling and bevel edge process,make different shapes of wood line with template.It is widely used in woodworking funiture and construction industry.
Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

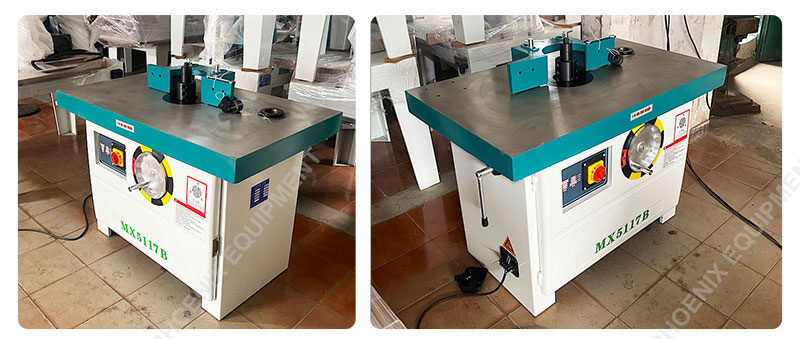

Woodworking machinery Vertical push table single axis milling machine slotting machinePhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MX5117B MX5317
Spindle speed 6000/10000r/min 6000/10000r/min
Cutter head diameter Φ90mm Φ90mm
Cutter spindle diameter Φ35mm/customize Φ35mm/customize
Max processing thickness 120mm 120mm
Install power 4kw 4kw*2
Worktable size(L*W) 1050*670mm 1550*670mm
Weight 325kg 550kg
Overall size(L*W*H) 1130*670*1050mm 1600*700*1050mm
