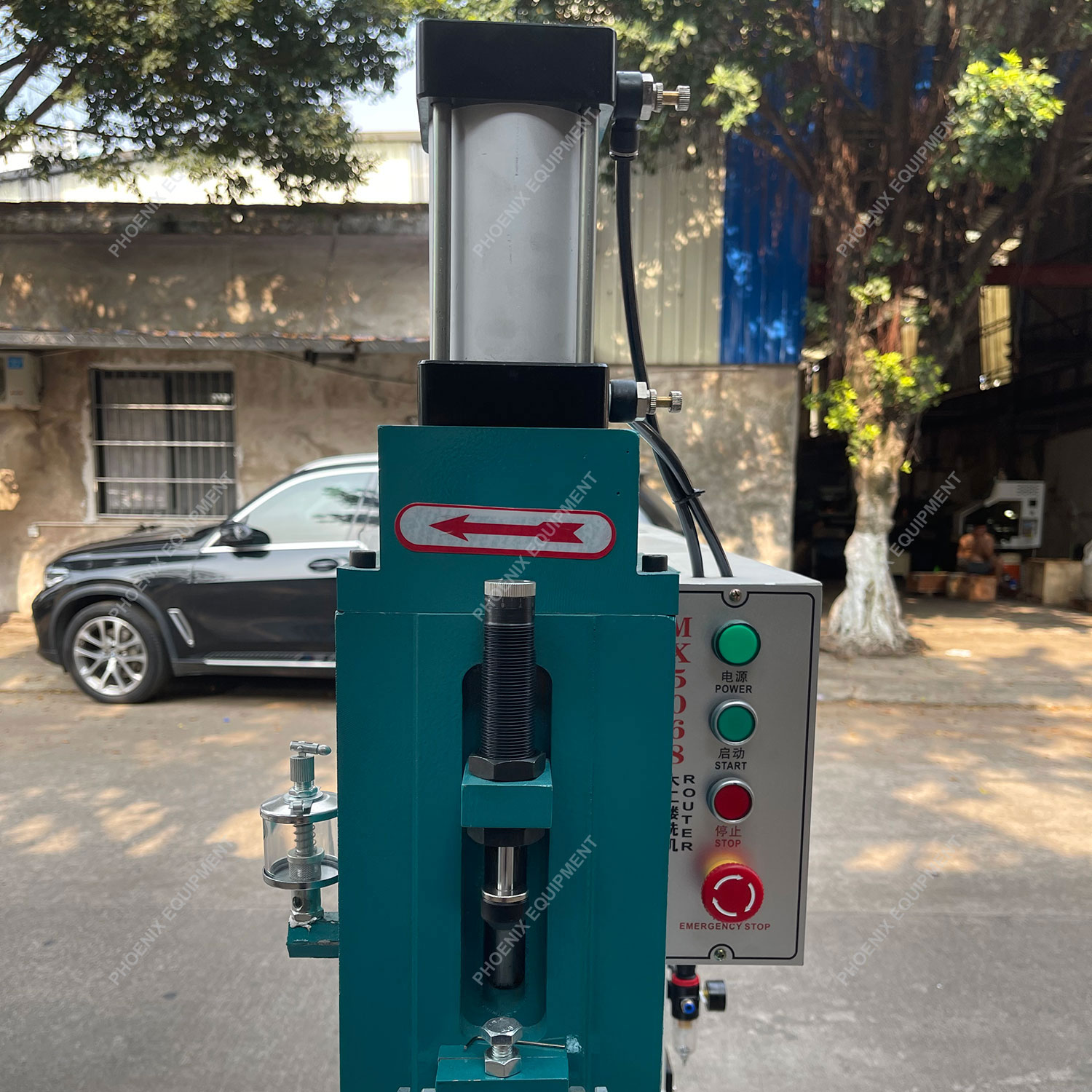

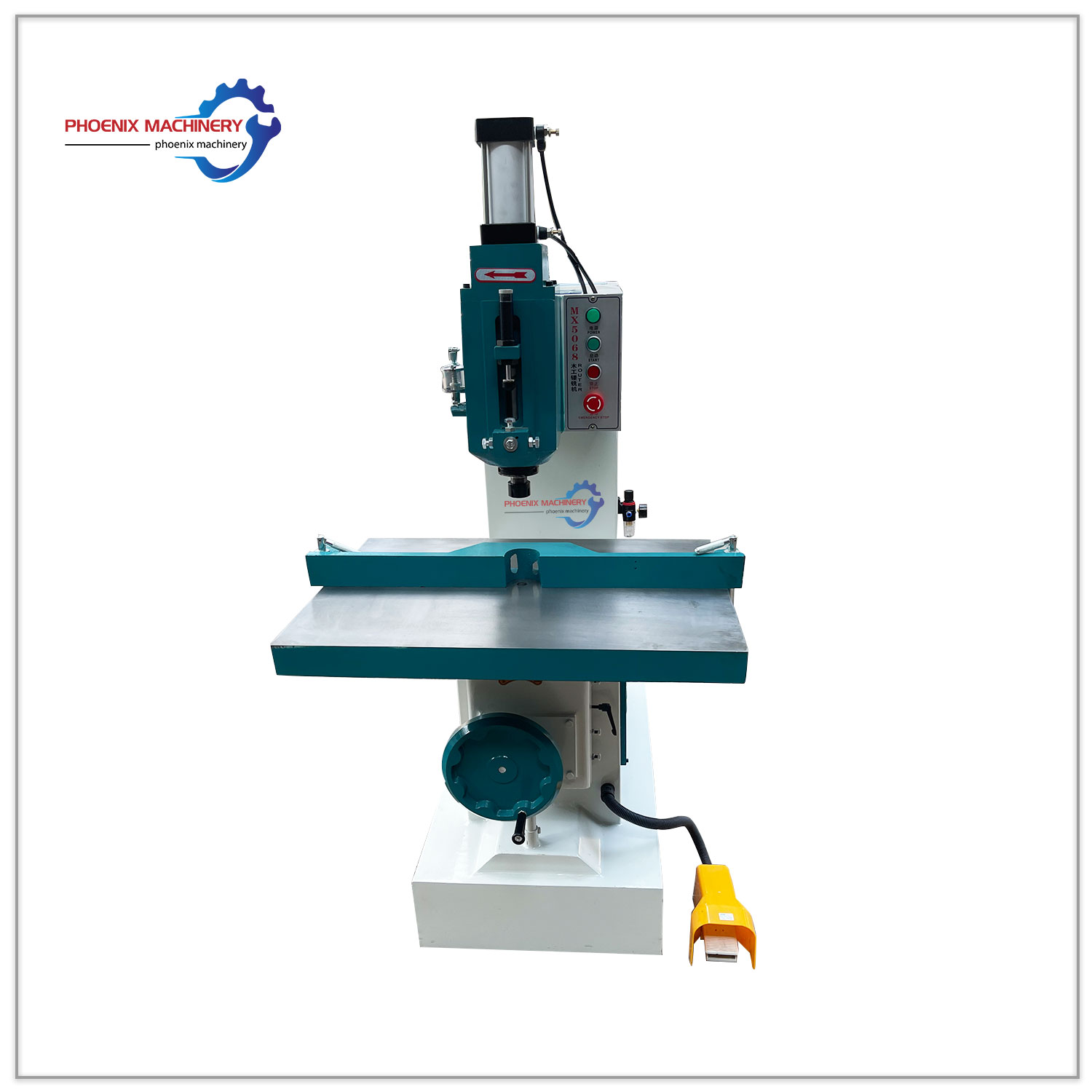

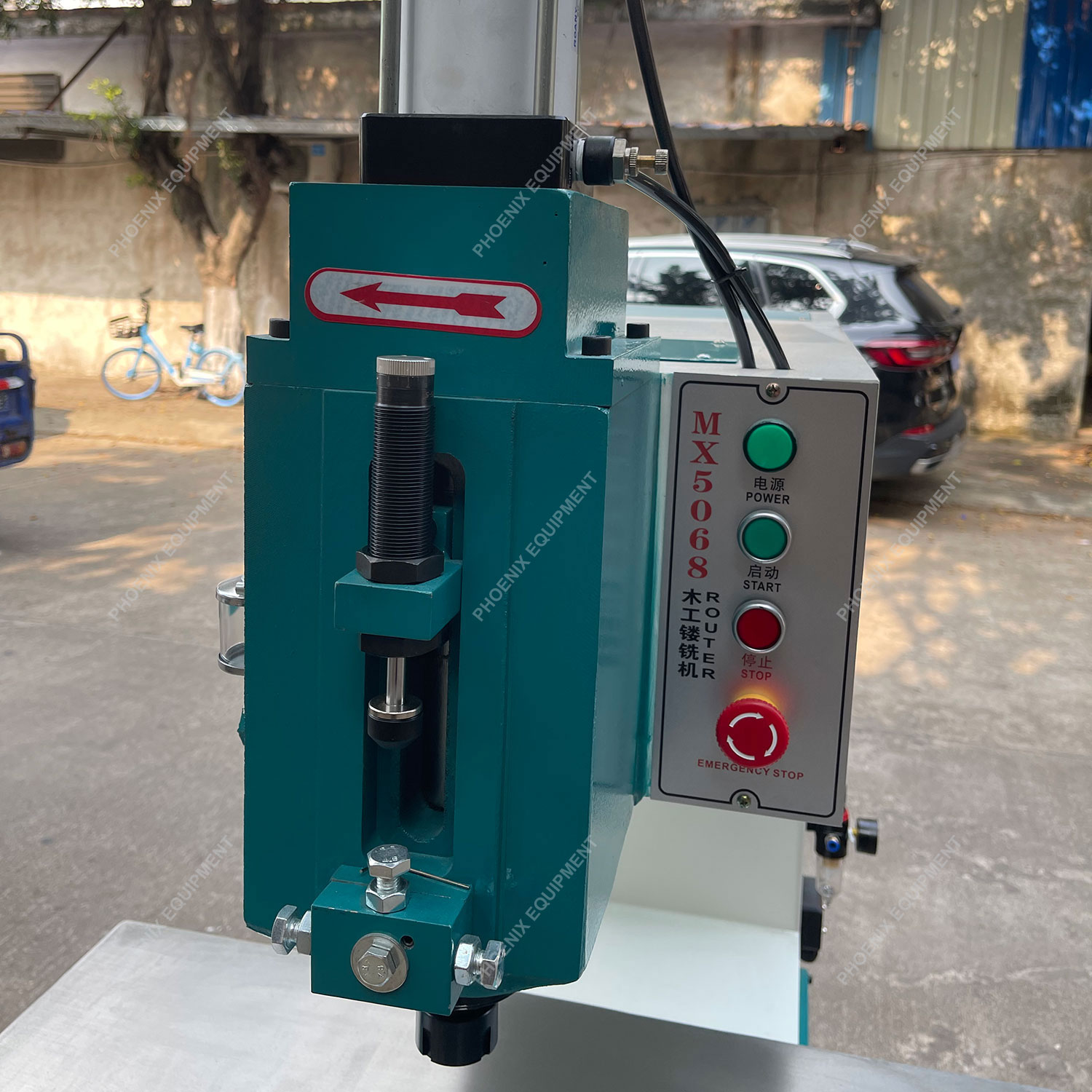

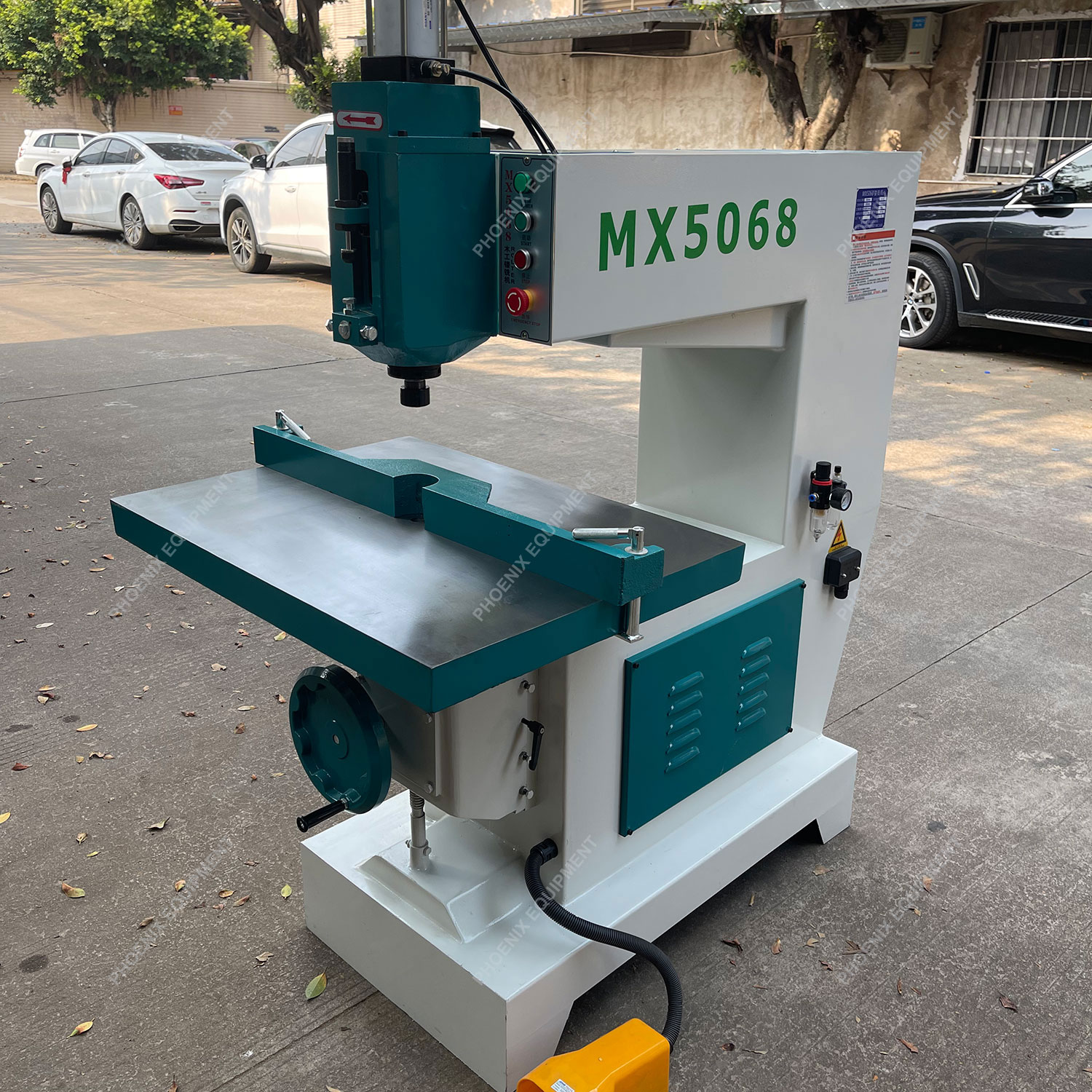

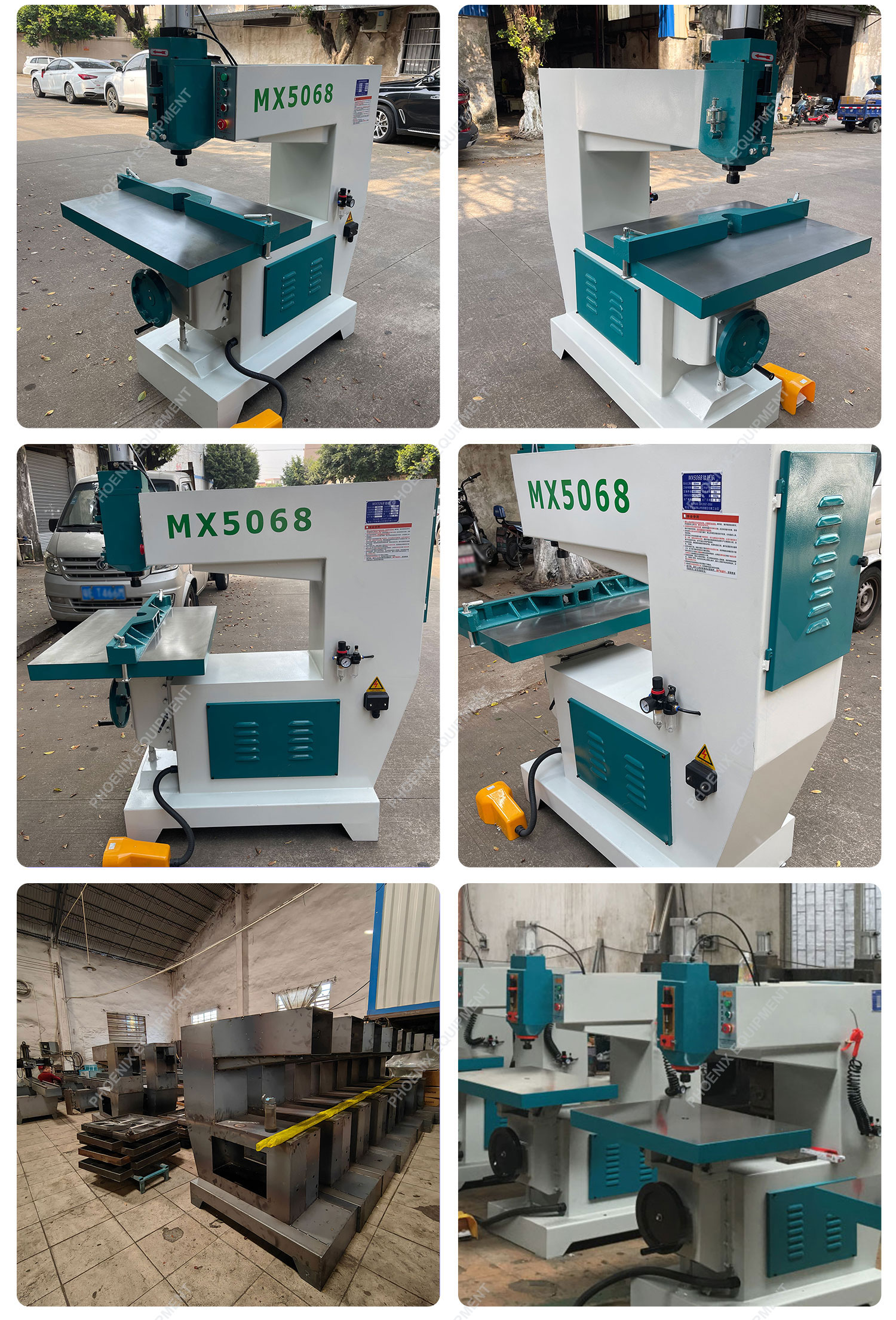

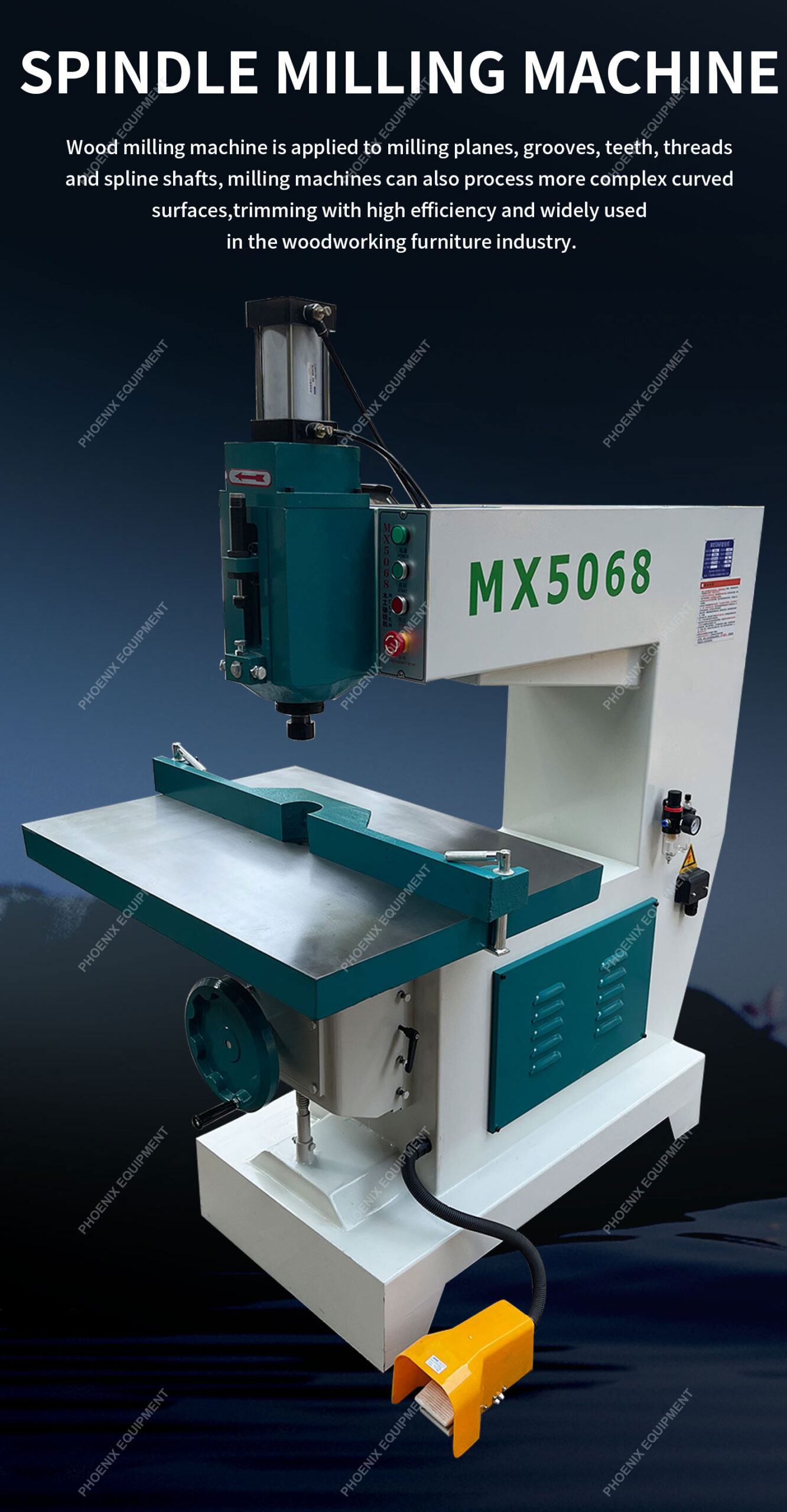

MX5068

The woodworking router is used for Woodworking profiling round holes, irregular holes and profiling simple reliefs, etc. Full-pass or half-pass profiling of patterns, suitable for mahogany, white wood, wooden handicrafts, milling of aluminum products, various decorative wood lines T-slots, dovetail grooves, straight grooves, etc. Template to complete planing, chamfering, drilling, trimming, profiling (opening round holes, elliptical holes, invisible holes and profiling simple relief, etc.) of wood products parts, suitable for medium and heavy cutting processing

Description

we can provide integrated woodworking machinery solutions for your project.

Wood Router Machine 3kw High Speed Spindle Milling Shaper Spindle Moulder Machine Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MX5068
Workbench size 700x650mm
Max working depth 50mm

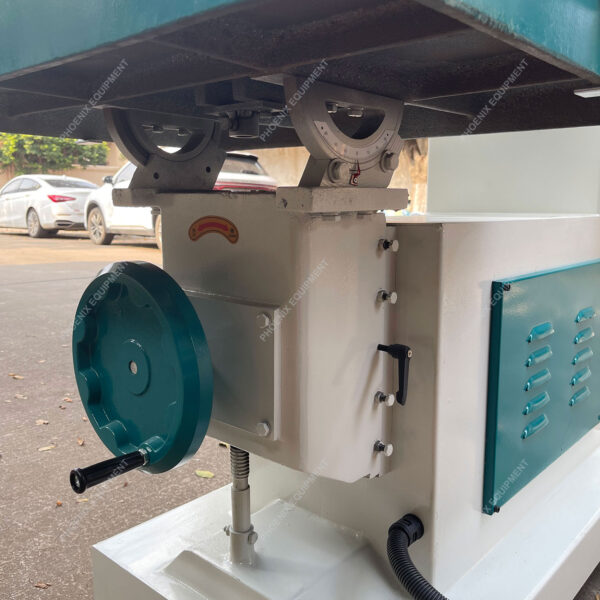

Workbench lifting stroke 180 mm
Max.workpiece thickness 150mm
Lifting method Spindle lifting
Spindle speed 18000r/min
Tool shank diameter Φ12.7mm
Installation power 3kw/4kw
Spindle lifting stroke 65mm
weight 500kg
Overall dimension 1470*800*1700mm
