MSJ700

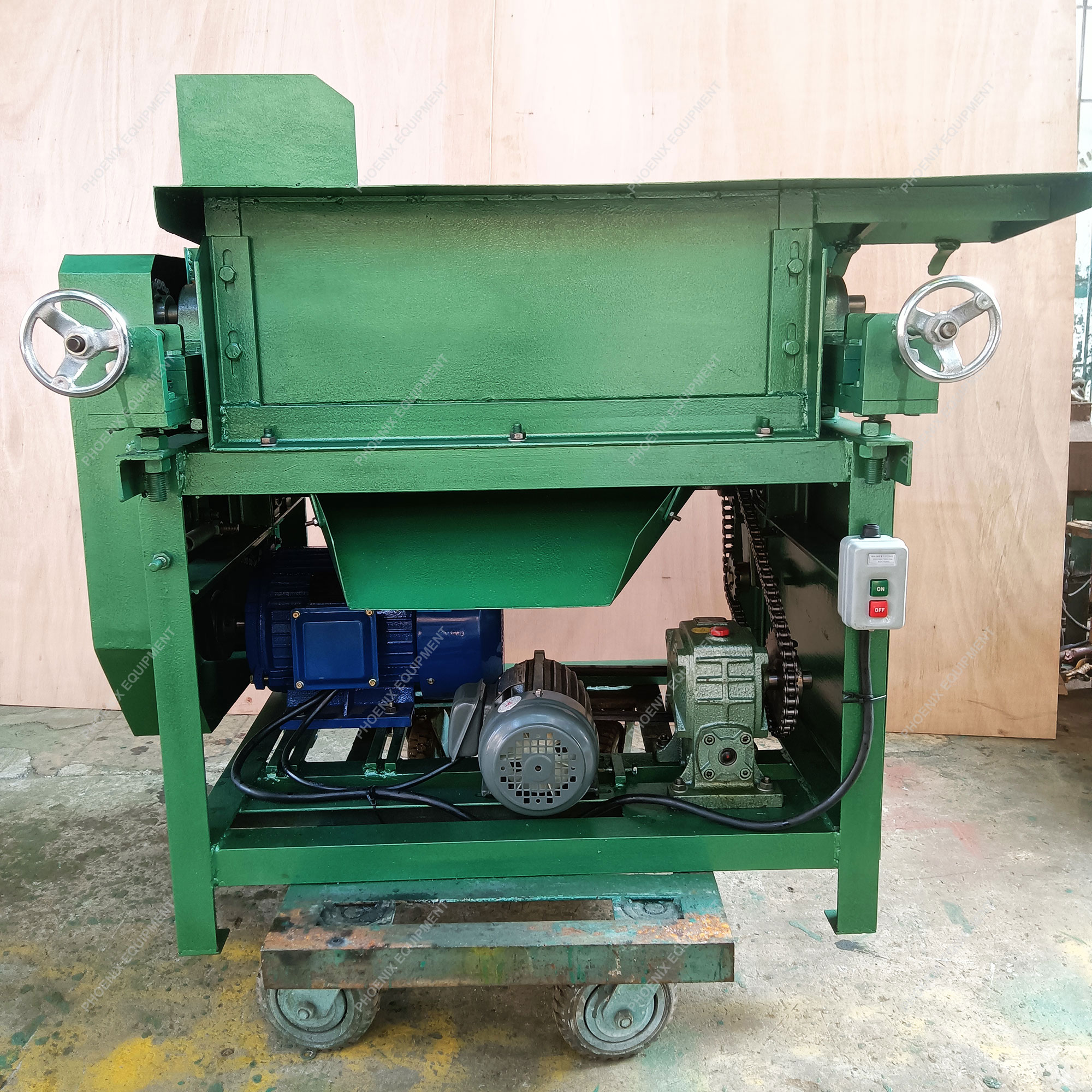

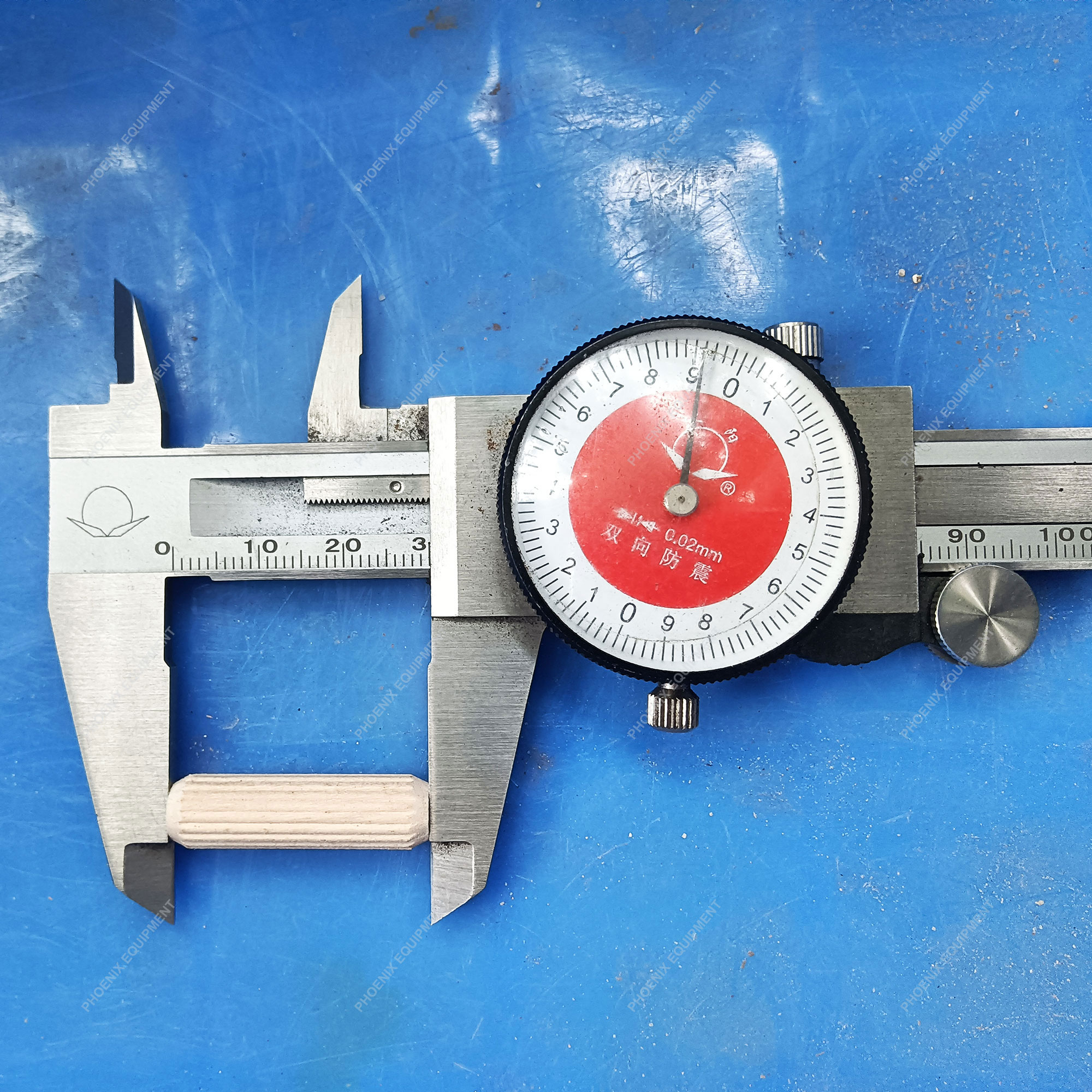

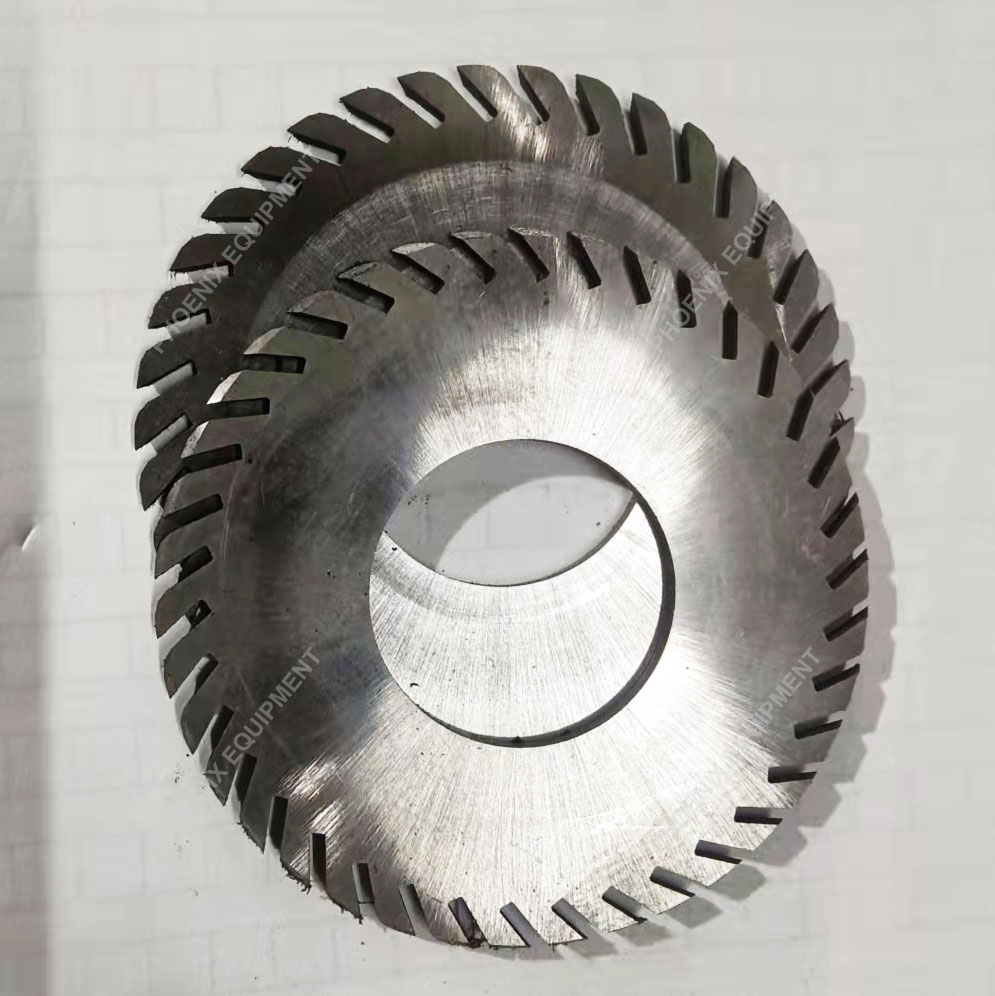

The round wooden tenon rotary cutting and chamfering machine is suitable for cutting and chamfering without lines, straight lines, oblique lines, and round wooden rods. Changing the specifications of the baffle can process wooden tenons with different lengths, and changing the saw blade can process wooden tenons with different diameters. Its performance is stable, debugging is convenient, and the length error of the processed product is very small.

Description

we can provide integrated woodworking machinery solutions for your project.

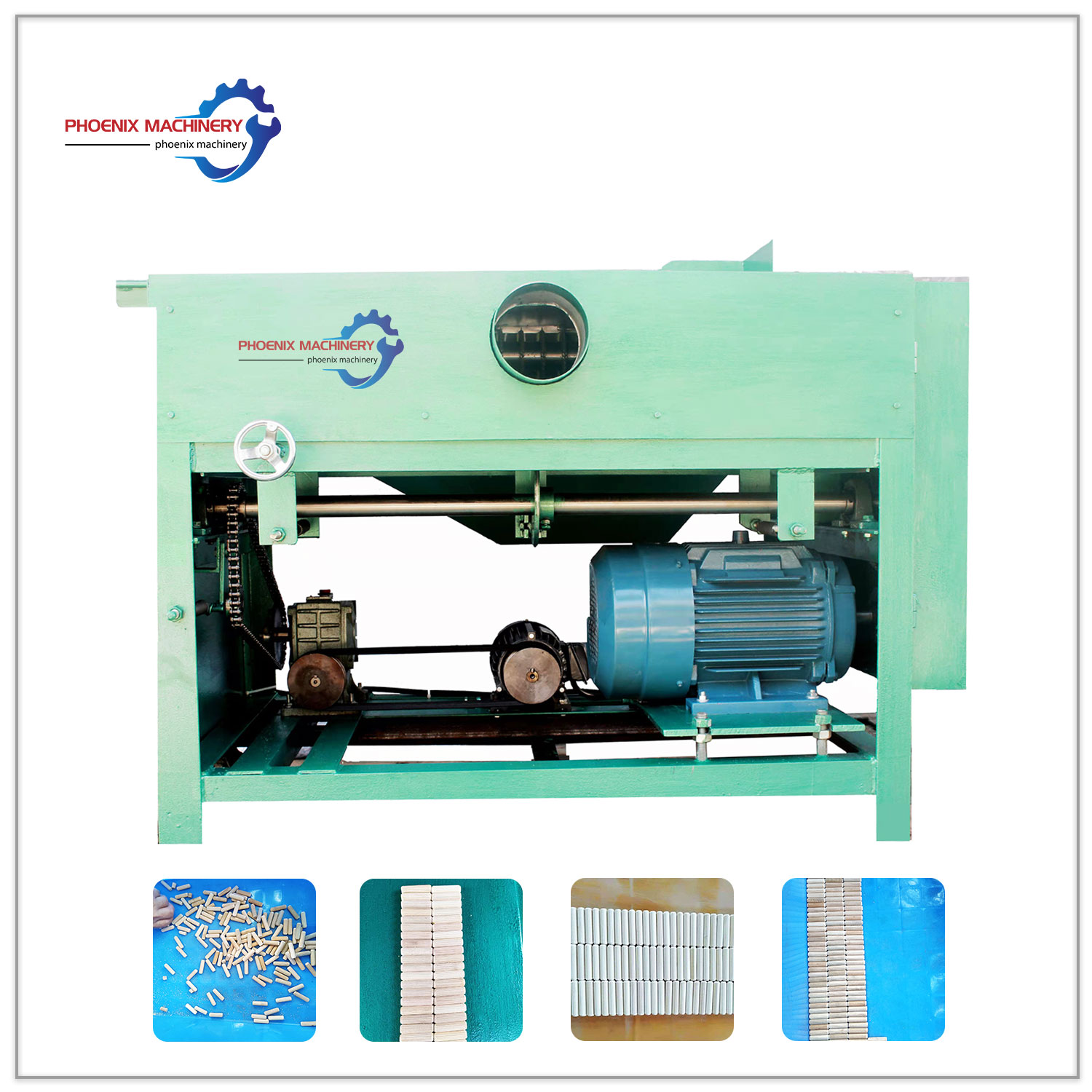

Round wood tenon rotary cutting machine multipurpose Wood Round Rod Milling Machine Cutters

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MSJ700
Capacity about 30000-40000pcs/8 Hours
Main motor 5.5kw
Feeding motor power 0.75kw
Speed of Main shaft 3200r/min
Processing diameter 6-16mm
Processing length 20-120mm
Voltage 380v
Dimension 1250*1000*1100mm
Weight 400kg
