MS3112

1.This machine is used for mortise processing of doors, tables, chairs and other products

  1. The working width can be manually adjusted through the tenon width parameters of the digital display, making it easier to adjust the processing size and more accurate.
  2. The spindle assembly slides along the cylindrical guide rail, and the weighing frequency is high to ensure the processing quality and efficiency.
  3. Double worktops can be used for processing both sides at the same time, with double efficiency. At the same time, the worktops can be tilted at 30 degrees for processing inclined mortises.
Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

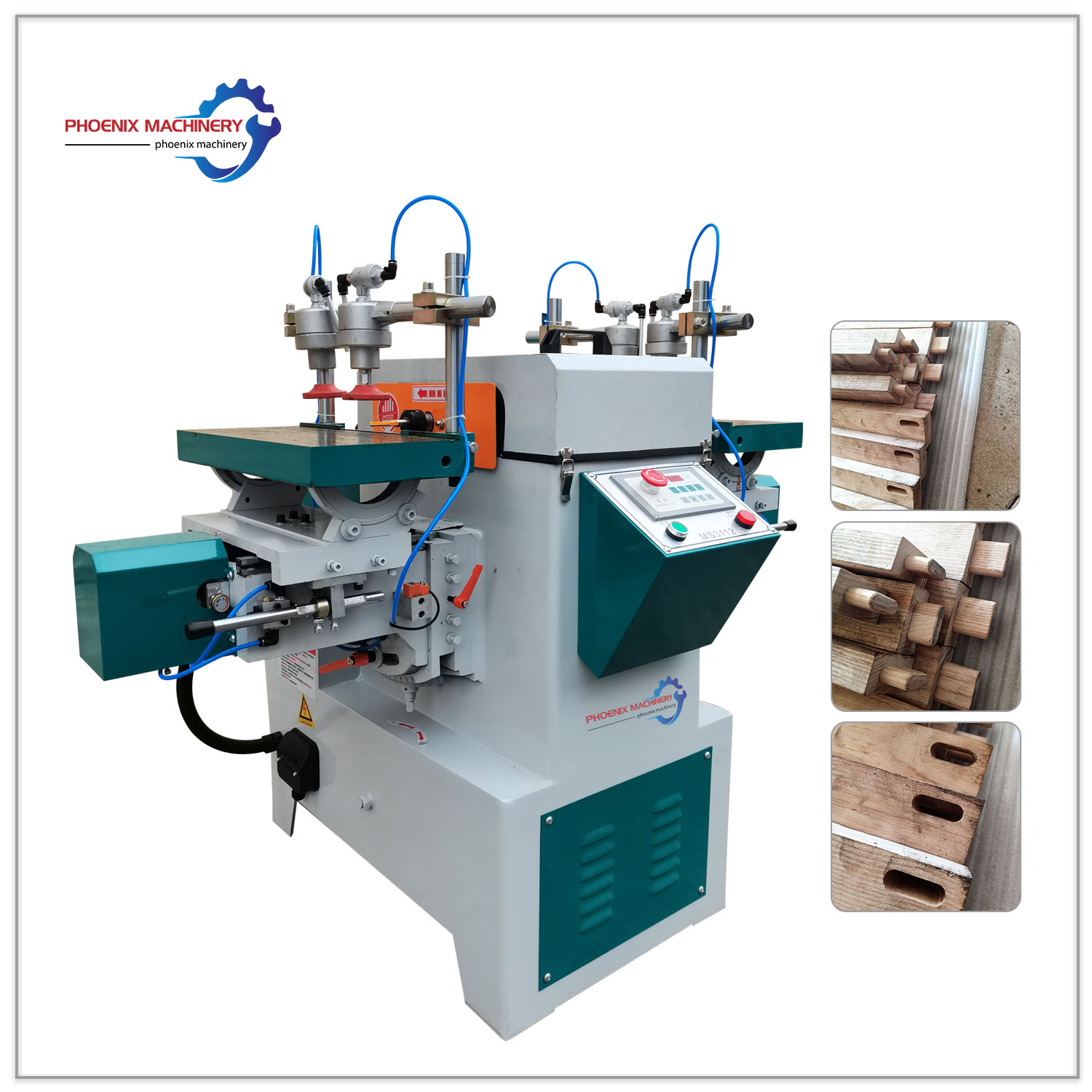

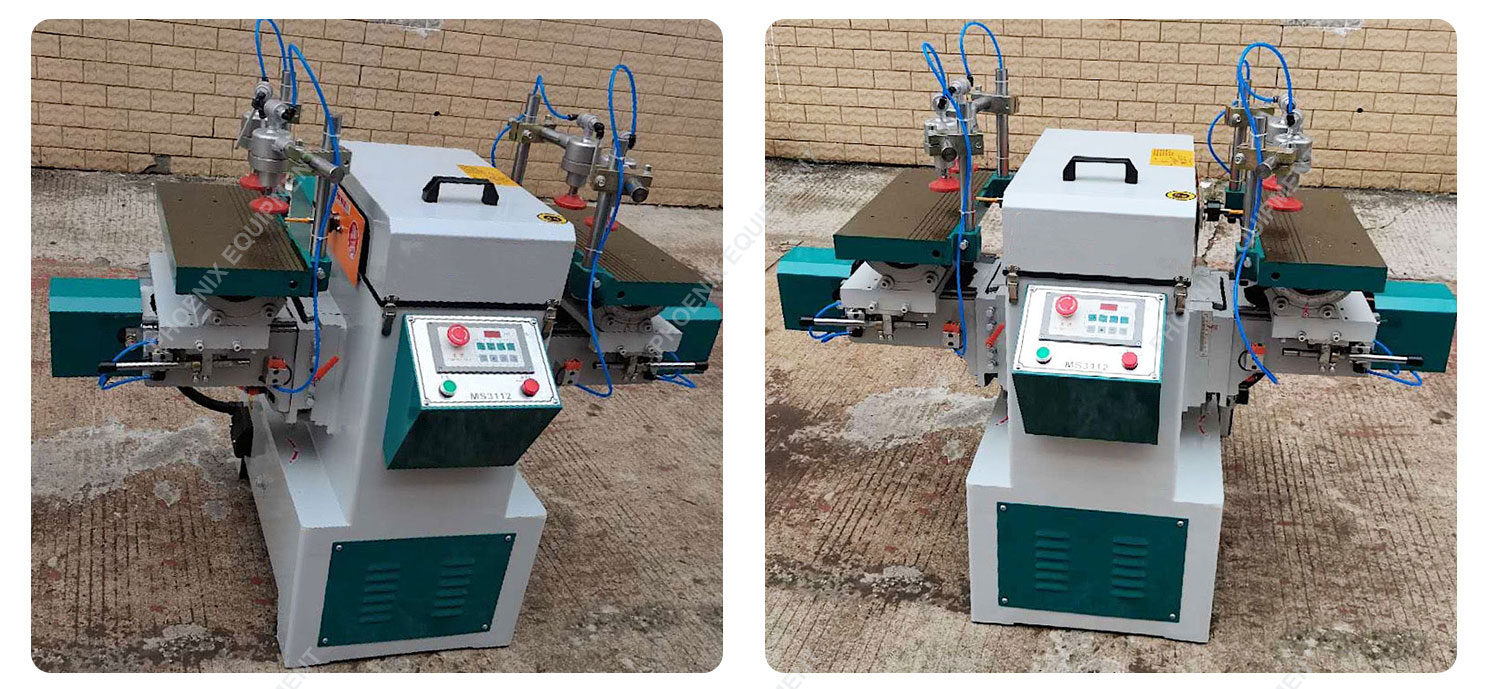

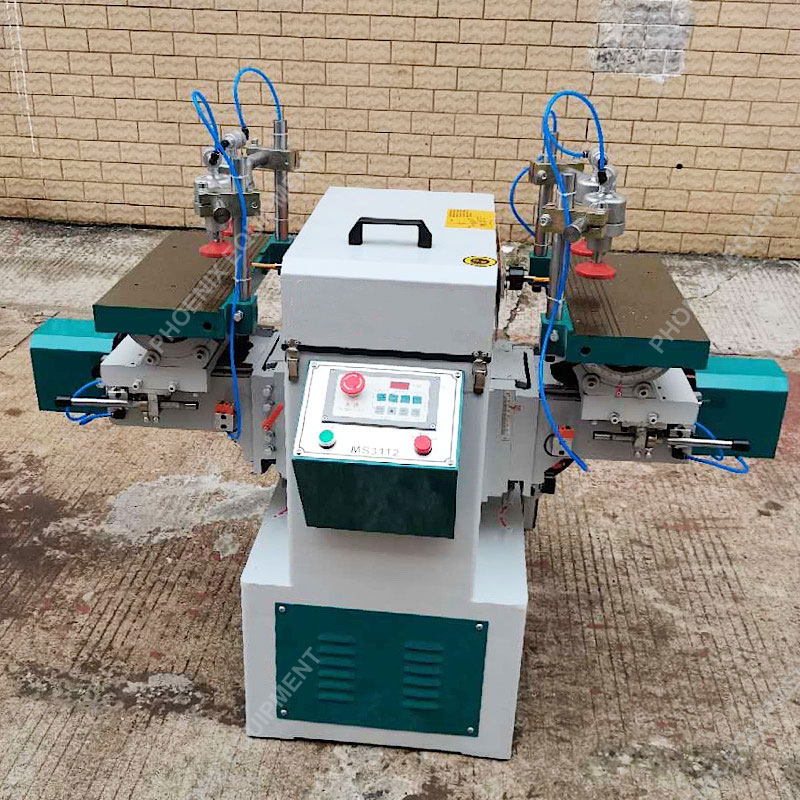

Horizontal double end tenon and groove machine MS3112 CNC tenon and groove machinePhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Wortable lifting distance ±80mm
Worktable tilt angel 20°
Max mortising width 120+2Rmm
Max mortising depth 60mm
Spindle speed 9500r/min
Total power 3kw
Air pressure 0.6mpa
Weight of machine 480kg
Overall size(L×W×H) 1500×1060×1150mm
