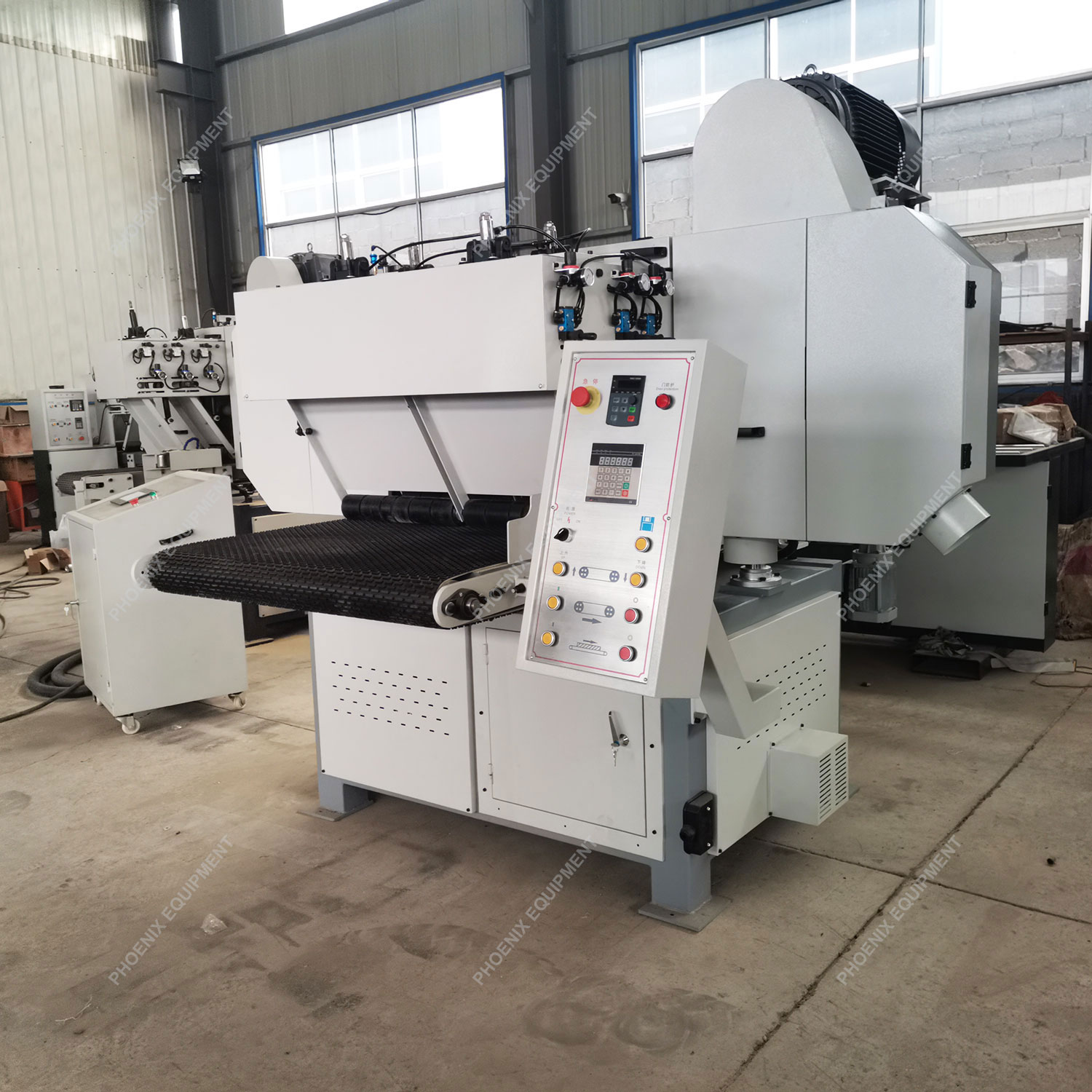

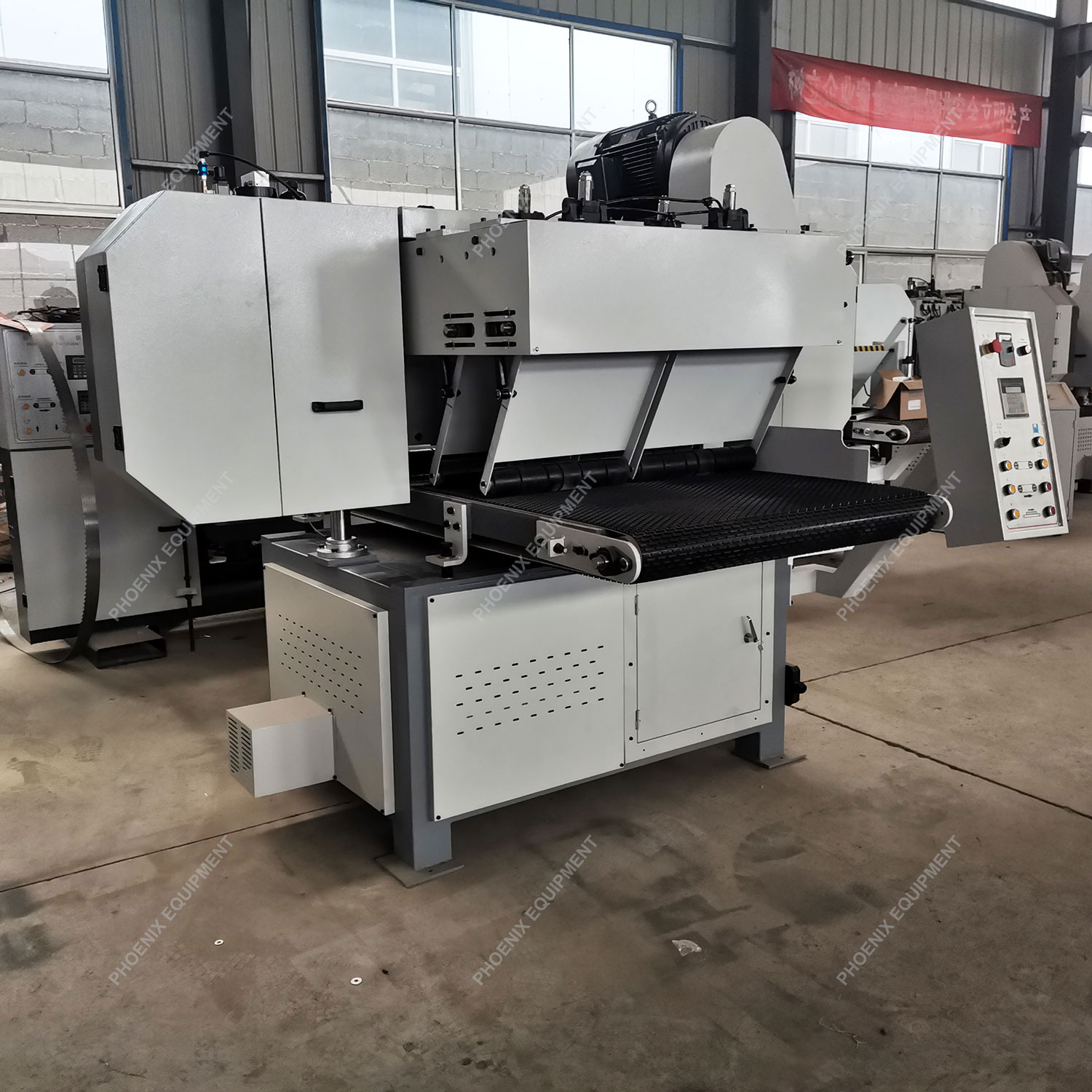

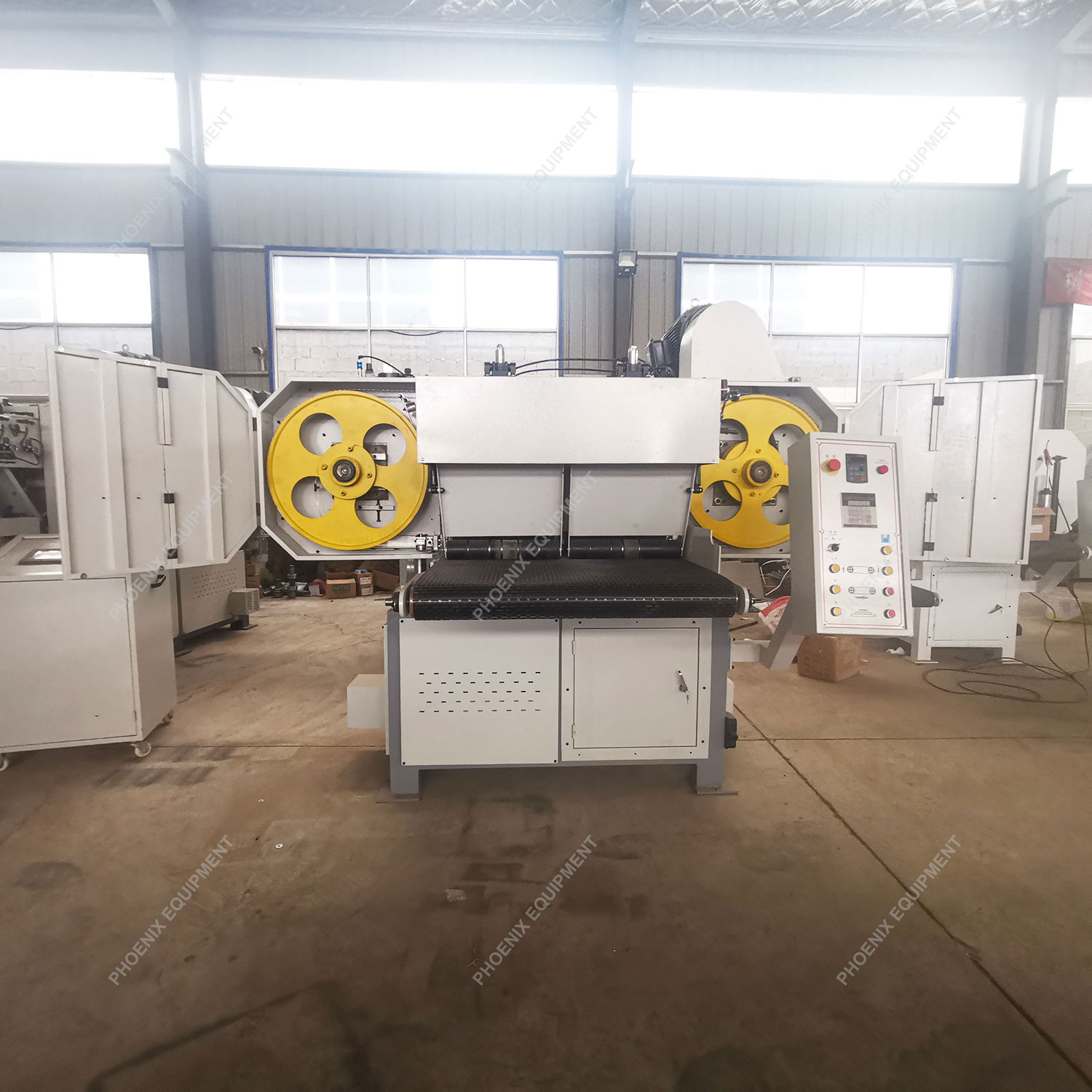

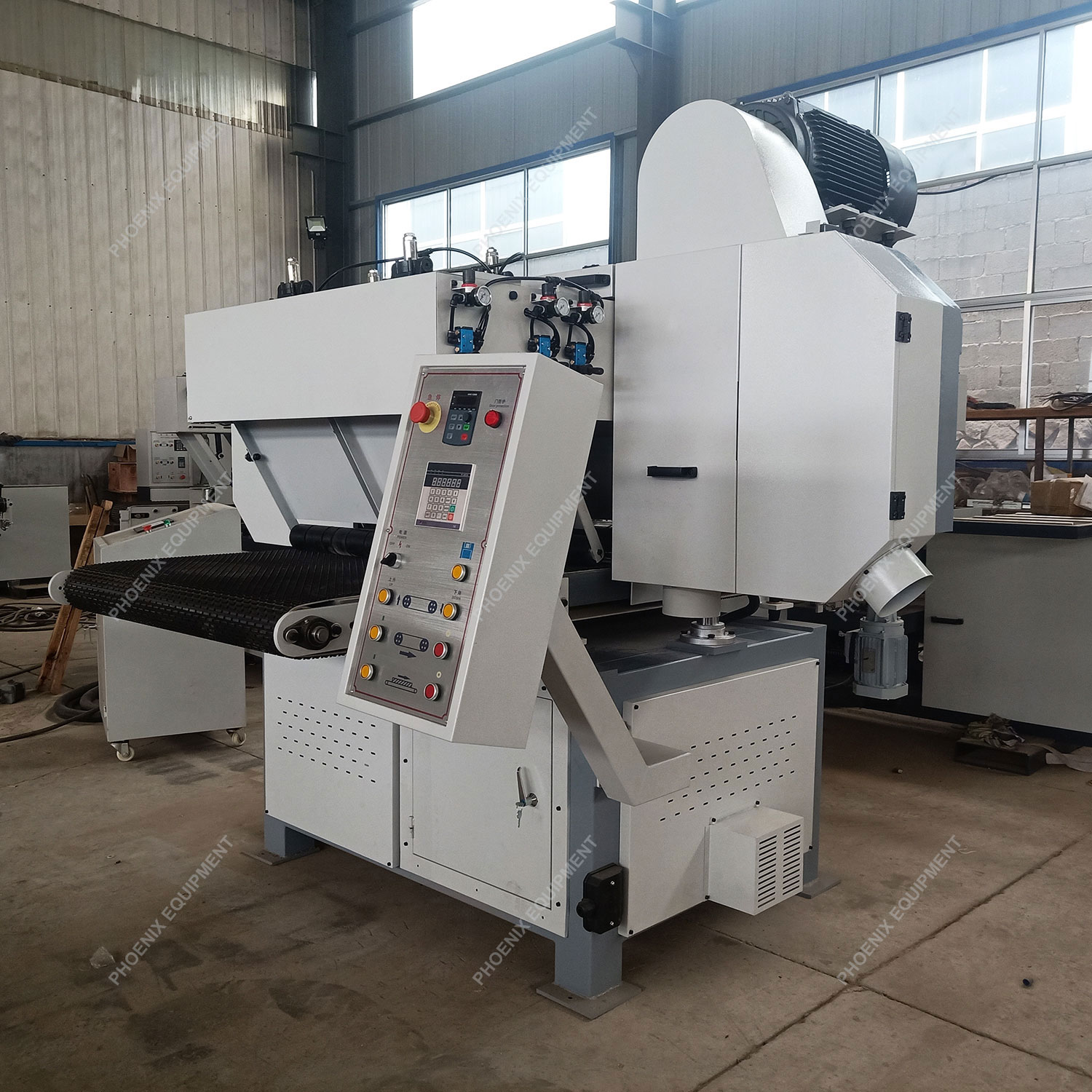

MJ650

This machine has the characteristics of high precision, fast speed, and ultra-thin cutting. Suitable for cutting wood blocks, including solid wood flooring, rosewood furniture, keels, joinery, paneling, stairs, and decorative veneers. Adopting a liquid conveyor belt for uninterrupted feeding, the high-efficiency assembly line can also assist in the material return system, saving time and labor. It is a good choice for modern chemical plants, greatly reducing costs

Description

we can provide integrated woodworking machinery solutions for your project.

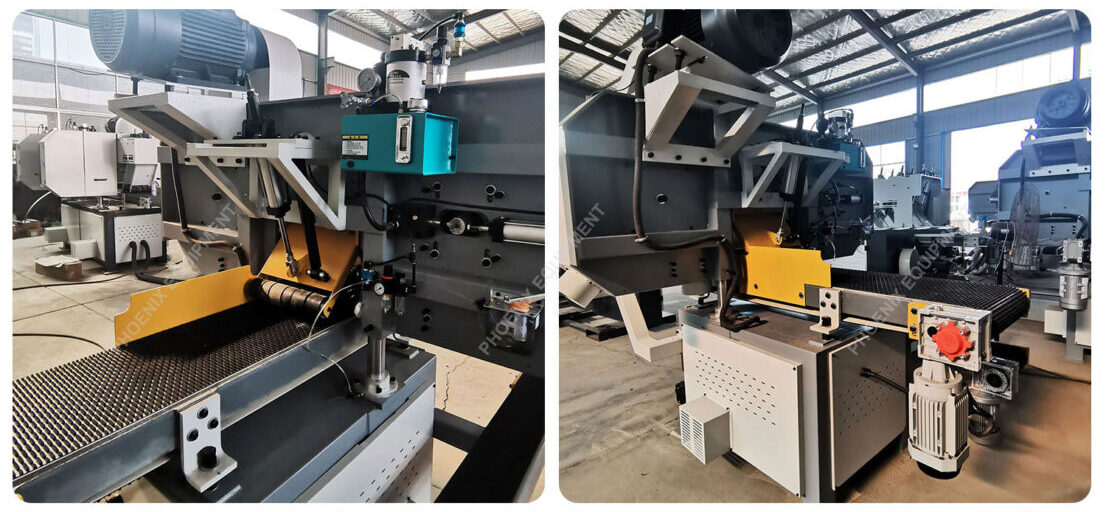

Industrial wood cutting band saw fast heavy duty 650mm width horizontal band saw machinePhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Product type MJ300 MJ400 MJ500 MJ650
Maximum machining width 300mm 400mm 500mm 650mm
Saw blade to table distance 3-200m 3-200m 3-200m 3-200m
Conveyor belt width 285mm 380mm 485mm 650mm
Saw wheel diameter 710mm 710mm 710mm 710mm
Feed speed(Frequency Control) 0-18m/min 0-18m/min 0-18m/min 0-18m/min
Conveyor motor 1.1kw 1.1kw 1.5kw 1.5kw
Return motor 0.75kw 0.75kw 0.75kw 0.75kw
Lifting motor 0.37kw 0.37kw 0.37kw 0.37kw
Saw wheel motor power: 15kw 15kw 18.5kw 18.5kw
Total power 17.22kw 17.22kw 21.12kw 21.12kw
Machine size(mm) 2450*2000*1850 2450*2100*1900 2450*2200*1920 2450*2200*1950
Machine weight 1700kg 1800kg 1900kg 2100kg
