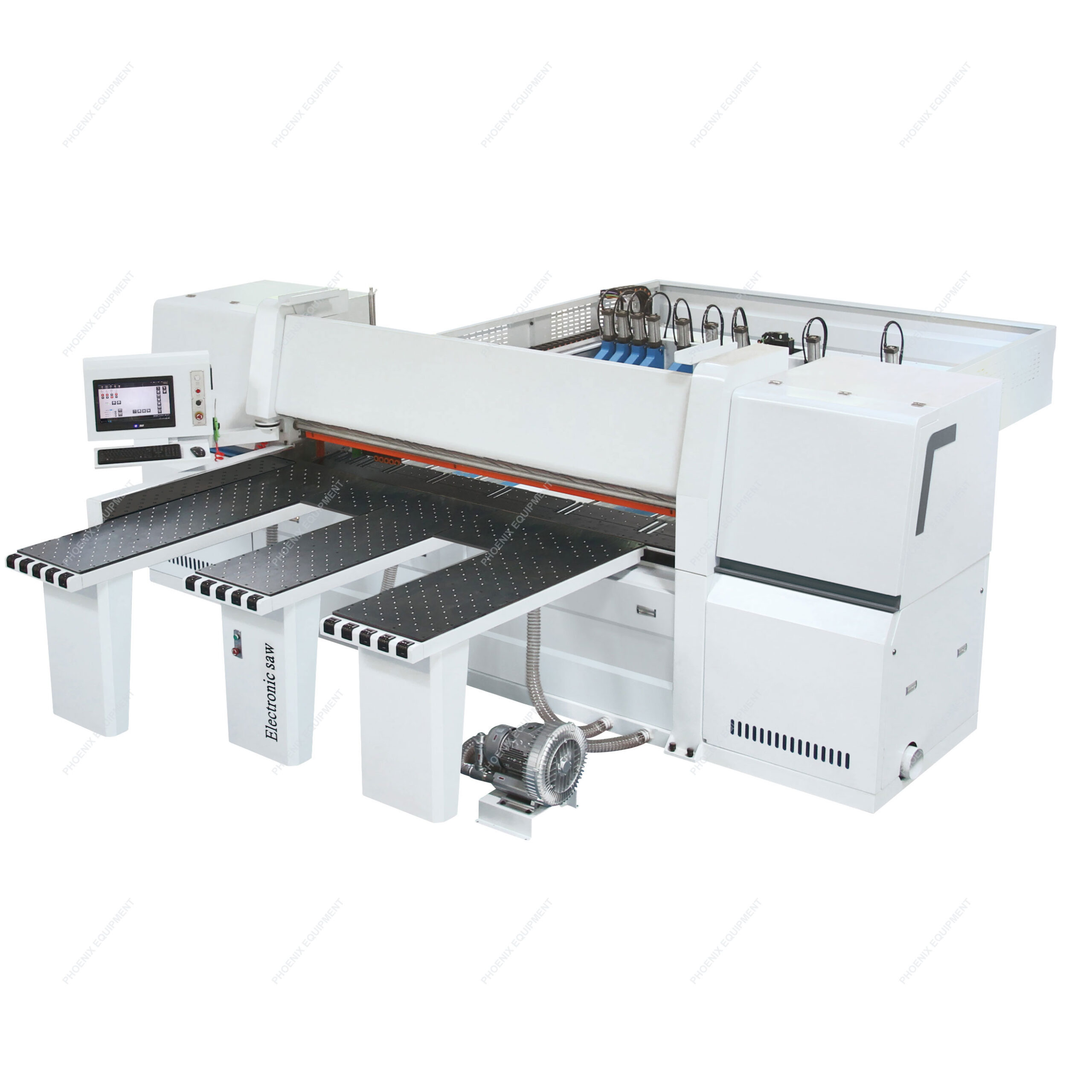

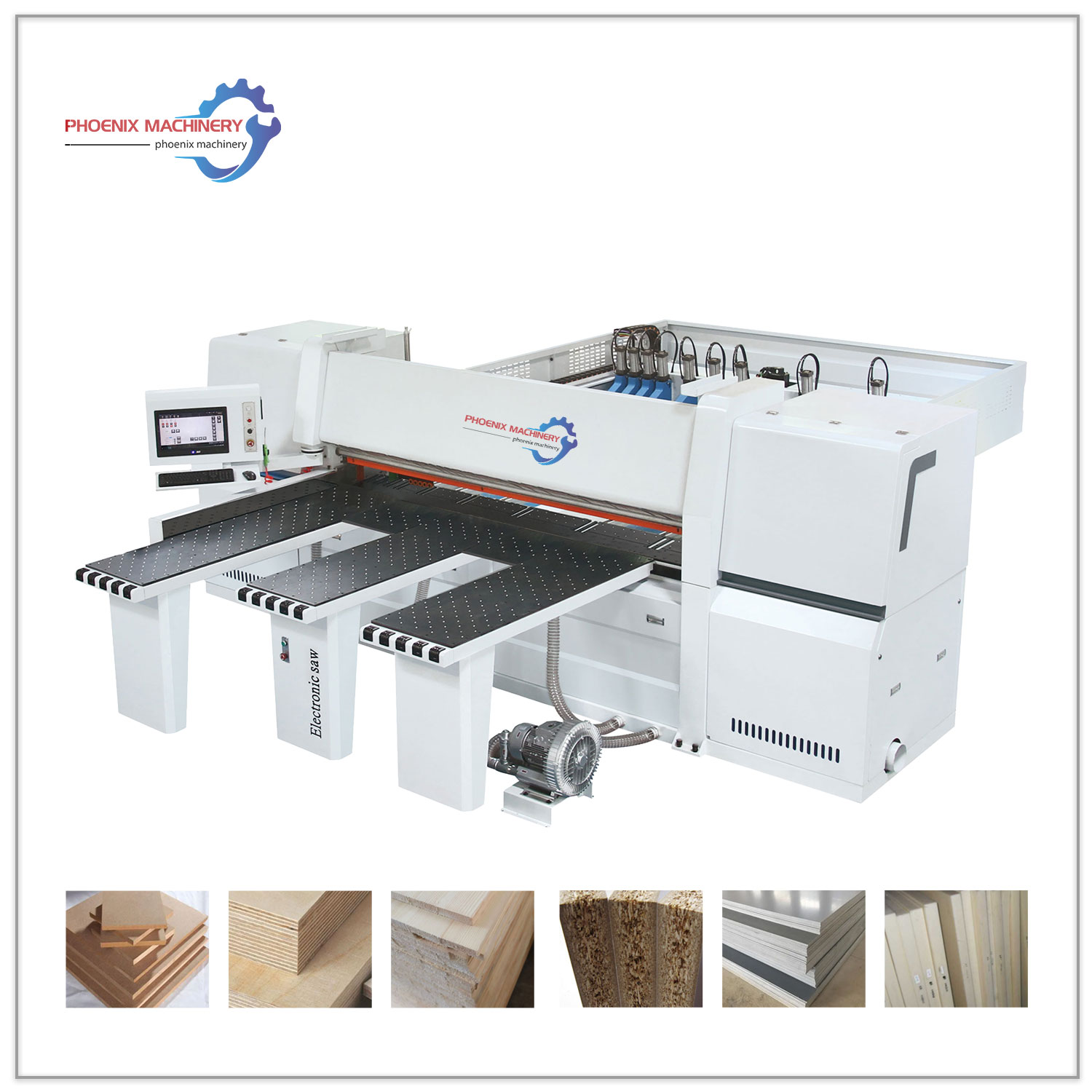

Fully automatic CNC computer saw heavy-duty high-speed wood cutting saw beam saw

MJ6233A

  • High precision machining equipment can ensure the high quality and fast&stable delivery time.

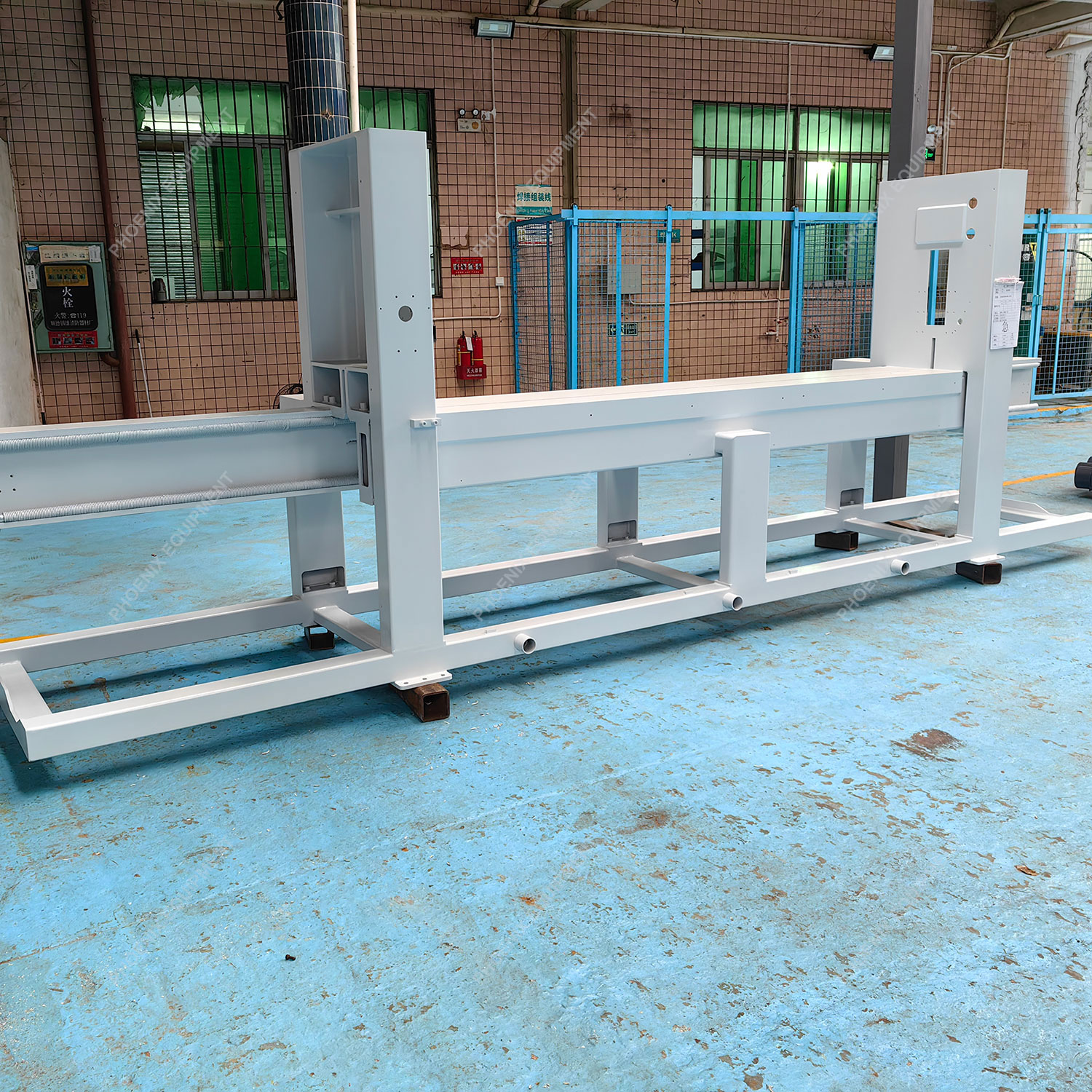

  • Using our own laser machine to
    cutting machine body,so the machine is more beautiful and with high precision.
    ● The saw shaft are all precision-machined by CNC lathes and CNC grinders. The error is almost 0.
    ● All the working area and specifications can be customized according to your requests.
Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

Automatic Furniture Panel Saw Machinery Cnc Industrial Precision Machine Wood Cutting MachinePhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MJ6228A MJ6233A MJ6238A
Max. cutting length 2800mm 3300mm 3800mm
Max. cutting thickness 120mm 120mm 120mm
Main saw blade diameter Φ450mm Φ450mm Φ450mm
Main saw shaft diameter Φ75mm Φ75mm Φ75mm
Main saw rotating speed 4100rpm 4100rpm 4100rpm
Scoring saw blade diameter Φ210mm Φ210mm Φ210mm
Scoring saw blade inner diameter Φ50mm Φ50mm Φ50mm
Scoring saw rotating speed 6100rpm 6100rpm 6100rpm
Saw carriage forward speed adjustable 0-100m/min 0-100m/min 0-100m/min
Saw carriage backward speed adjustable 0-120m/min 0-120m/min 0-120m/min
Main saw motor 18.5kw 18.5kw 18.5kw
Scoring saw  motor 2.2kw 2.2kw 2.2kw
Saw carriage driving motor 1.8kw (AC Servo motor) 1.8kw (AC Servo motor) 1.8kw (AC Servo motor)
Automatic feeding motor 1.8kw (AC Servo motor) 1.8kw (AC Servo motor) 1.8kw (AC Servo motor)
High pressure fan motor (*2) 4kw、2.2kw 4kw、2.2kw 4kw、2.2kw
Total power 30.5kw 30.5kw 30.5kw
Automatic feeding speed 100m/min 100m/min 100m/min
Air pressure 5-8kg/cm² 5-8kg/cm² 5-8kg/cm²

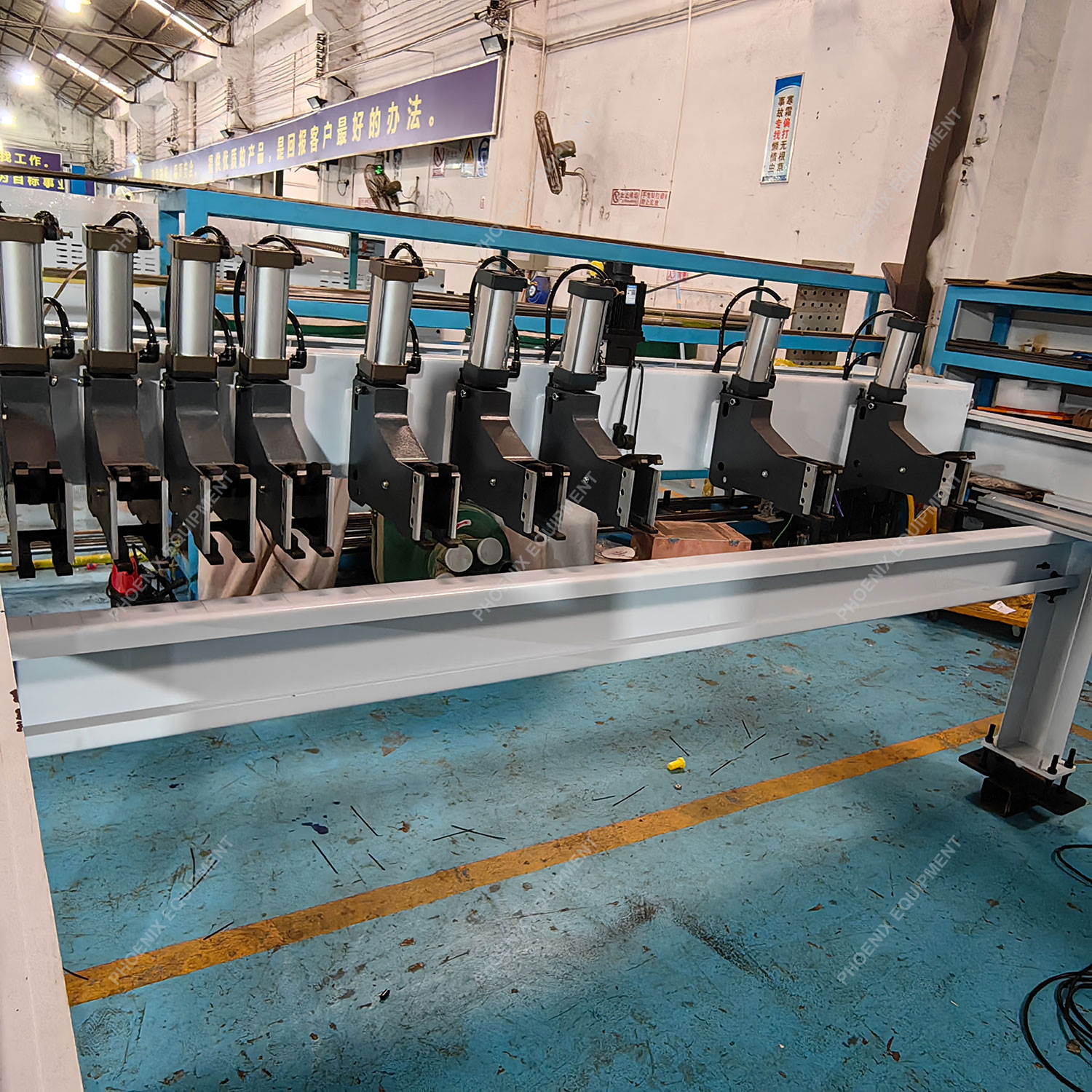

Mechanical gripper 9 9 10
Working table height from ground level 960mm 960mm 960mm
Overall dimension 5100x6300x1900mm 5600x6800x1900mm 6300x7500x1900mm
