MJ6230B

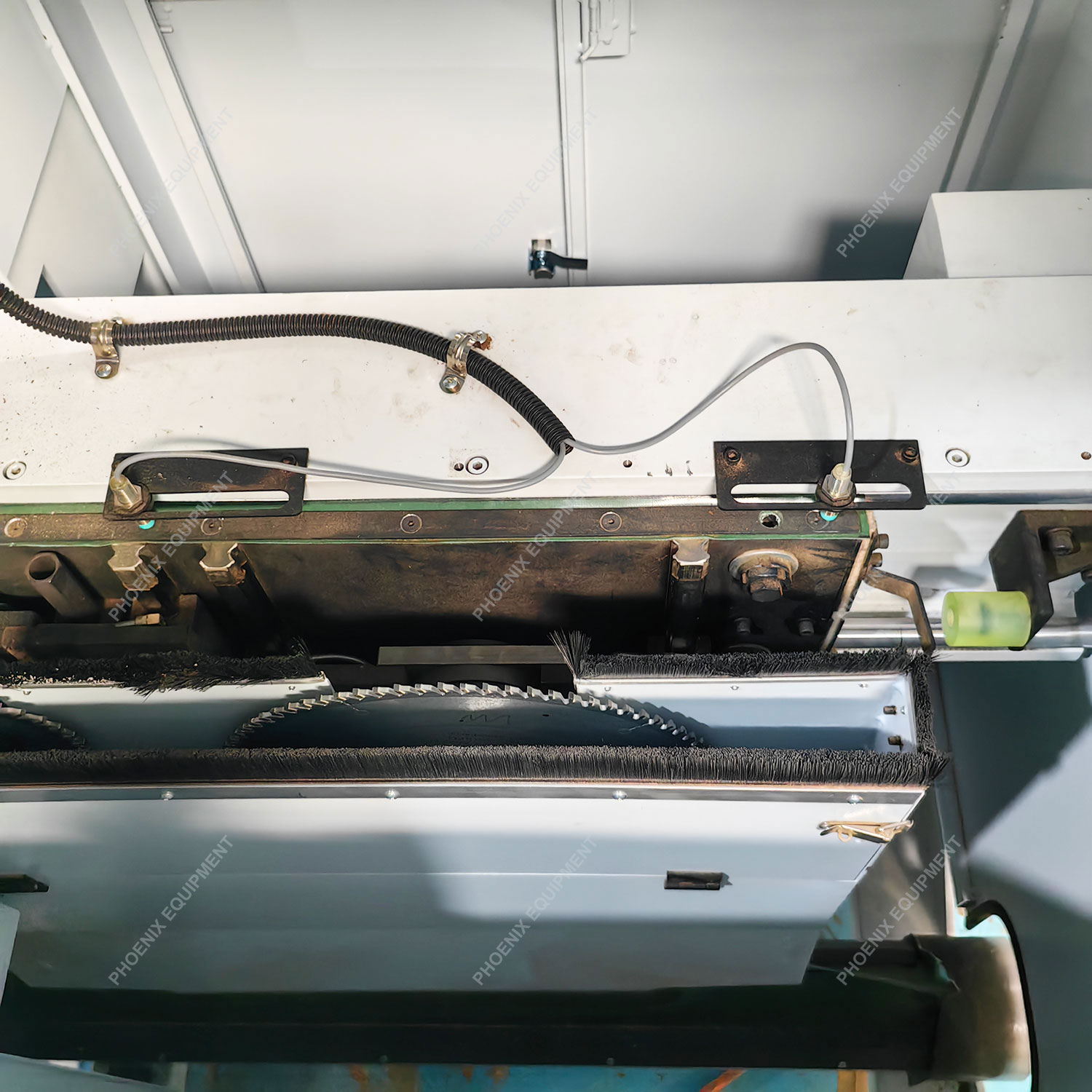

The upper pressure beam presses the plate, and the saw blade works back and forth. Multiple plates can be placed at a time, which is more efficient than ordinary precision sliding table saws, and safe to operate. In terms of mass production, the efficiency is several times higher than that of ordinary machinery, and it saves time, electricity and manpower.

It is suitable for processing all kinds of density board, particle board, ABS board, PVC board, plexiglass board and solid wood plate and other structures with similar hardness.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

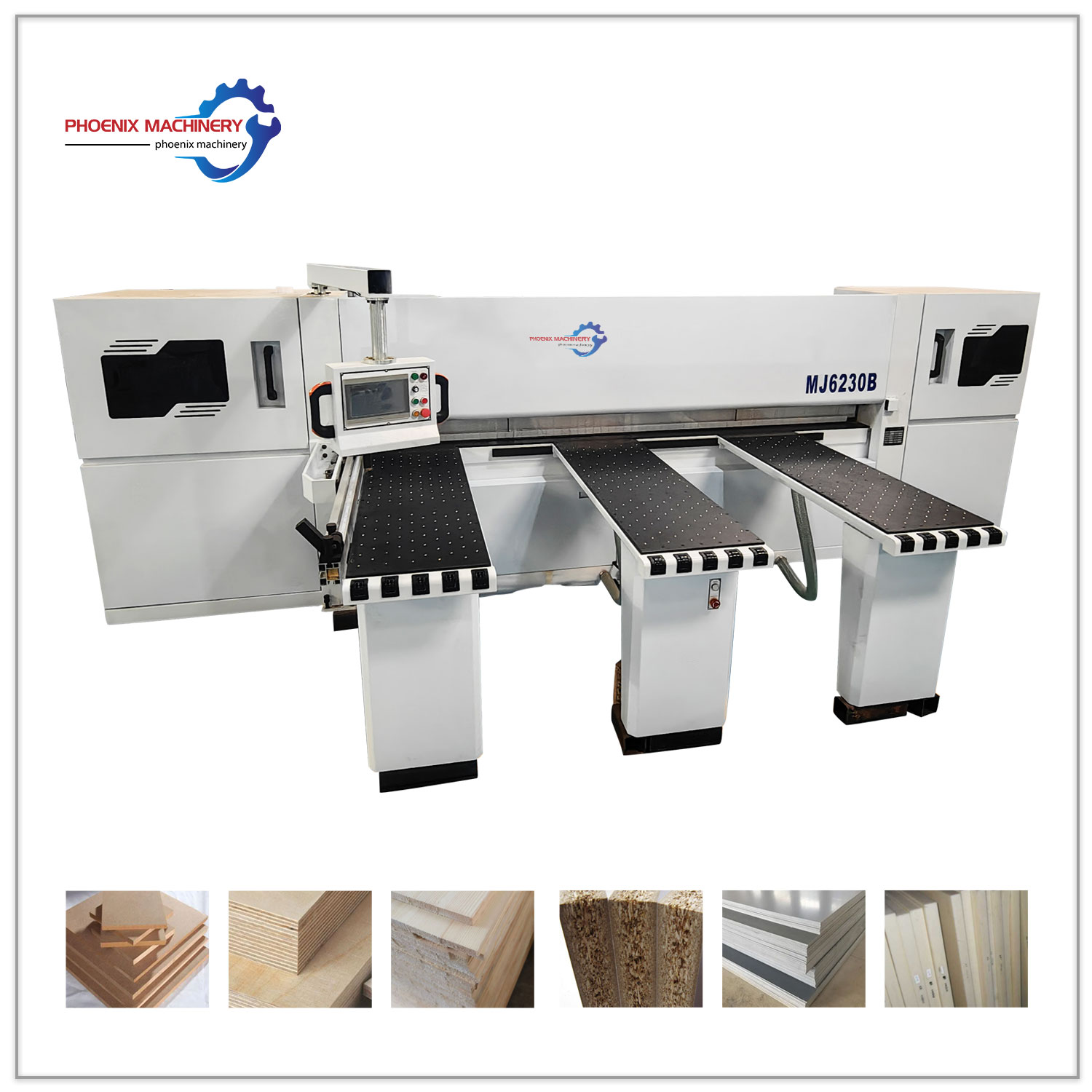

CNC Horizontal Automatic type MJ6230B Circular Saw Machine Woodworking Usage Beam SawPhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MJ6230B
Length of saw cut 3000mm
Height of saw cut 100mm
Width of saw cut 2850mm
Main saw speed 48000r/min

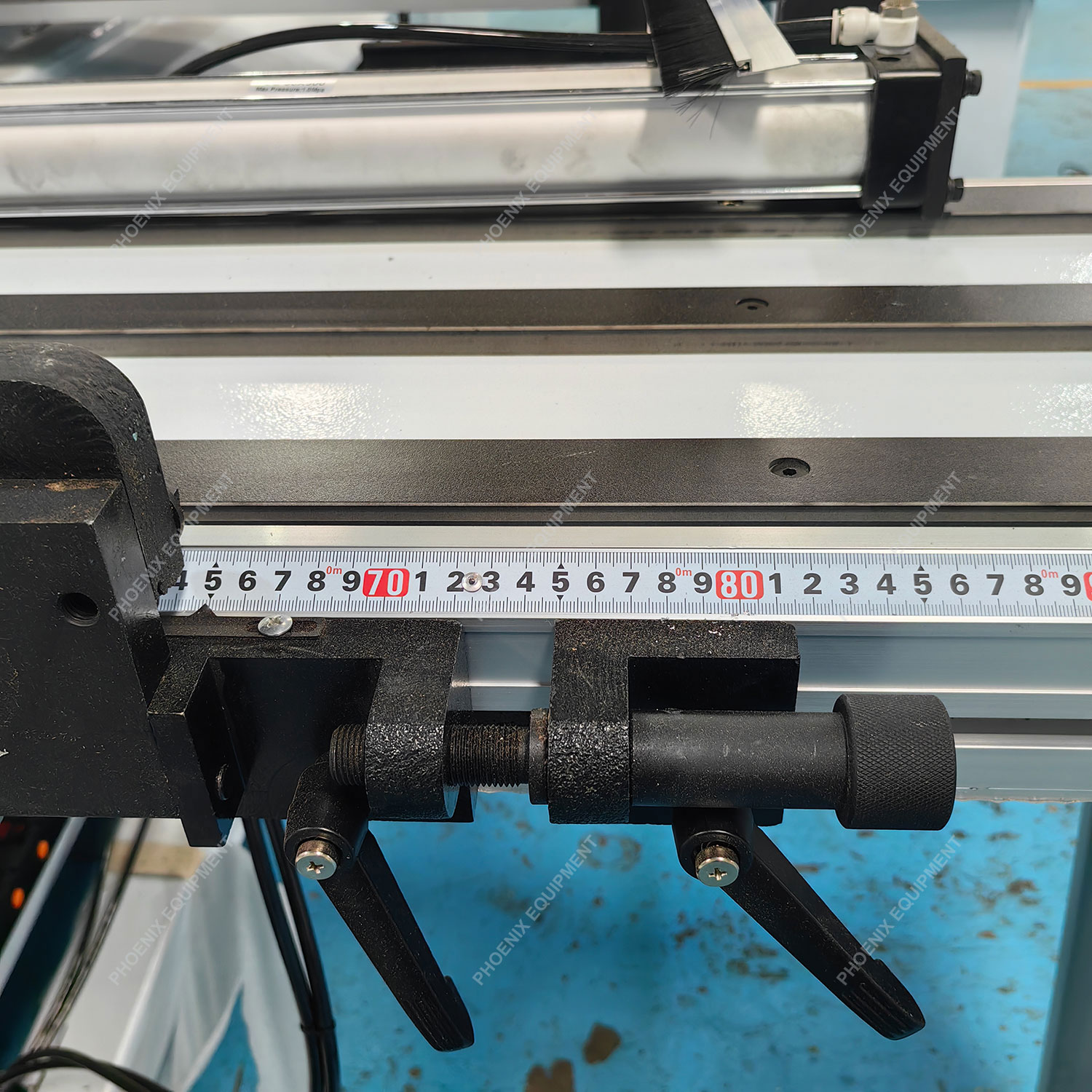

Positioning method Manual
Sawing precision ± 0.1mm
Main saw motor power 11kw
Main blade outer diameter 355mm
Main saw balde inner diameter 80mm
Traction motor power (rack drive) 1.5kw
Small saw motor power 2.2kw
Vice saw blade outer diameter 180mm
Secondary saw blade inner diameter 55mm
Sawing speed 0-100M/min,Frequency
Air pressure 0.6-0.7Mpa
Weight About 3800kg
Machine size (L*W*H) 5900*3500*1800mm
