MJ6228B

The upper pressure beam presses the plate, and the saw blade works back and forth. Multiple plates can be placed at a time, which is more efficient than ordinary precision sliding table saws, and safe to operate. In terms of mass production, the efficiency is several times higher than that of ordinary machinery, and it saves time, electricity and manpower.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.Wood Cutting Sliding Table Saw Multifunctional Automatic CNC Computer Beam Panel Saw MachinePhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MJ6238B

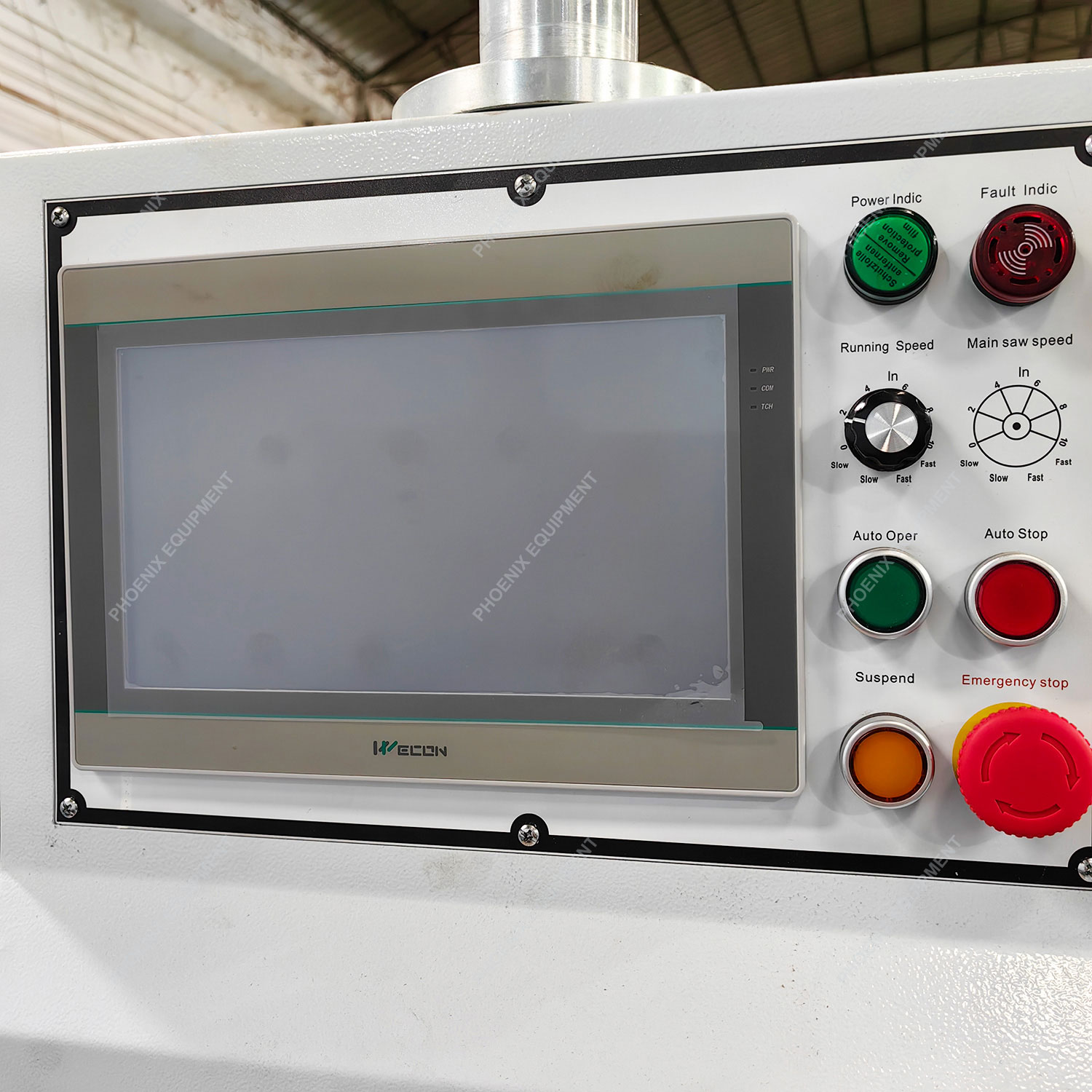

IPC Touch Screen
Width of saw cut 3800mm
Height of saw cut 100mm
Main saw blade diameter Ф360mm
Main saw shaft diameter Ф80mm
Main saw shaft speed 4800rpm
Scoring saw blade diameter Ф180mm
Scoring saw shaft diameter Ф55mm
Scoring saw shaft speed 6900rpm
Saw carriage forward speed adjustable 100m/min
Saw carriage backward speed adjustable 150m/min
Main saw motor 16.5kw
Scoring saw  motor 2.2kw
High pressure fan motor 4kw
Traction motor power (rack drive) 1.8kw
Total power 24.5kw
Air pressure 5-7kg/cm²
Workbench height 950mm
Machine size (L*W*H) 6300*7500*1900mm
