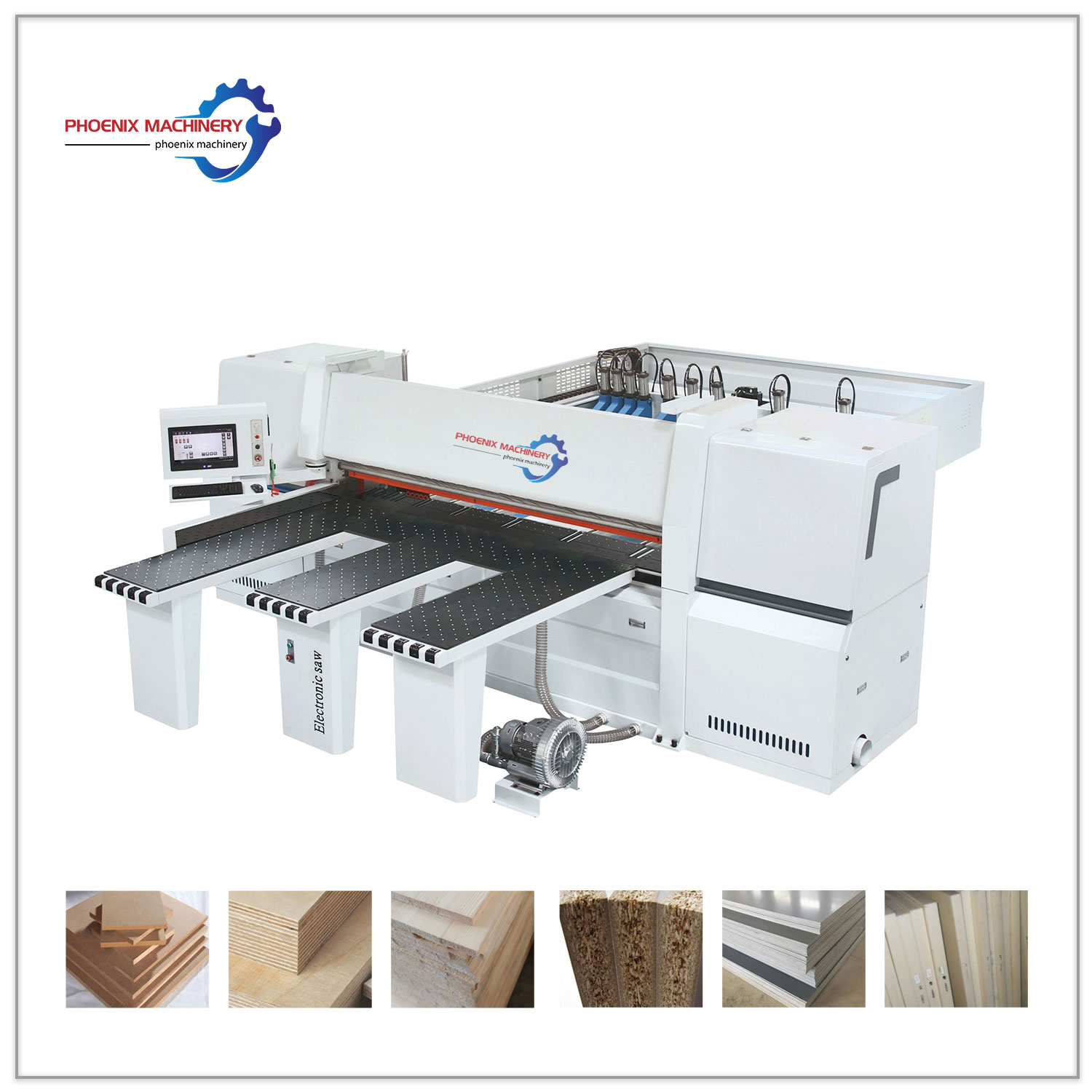

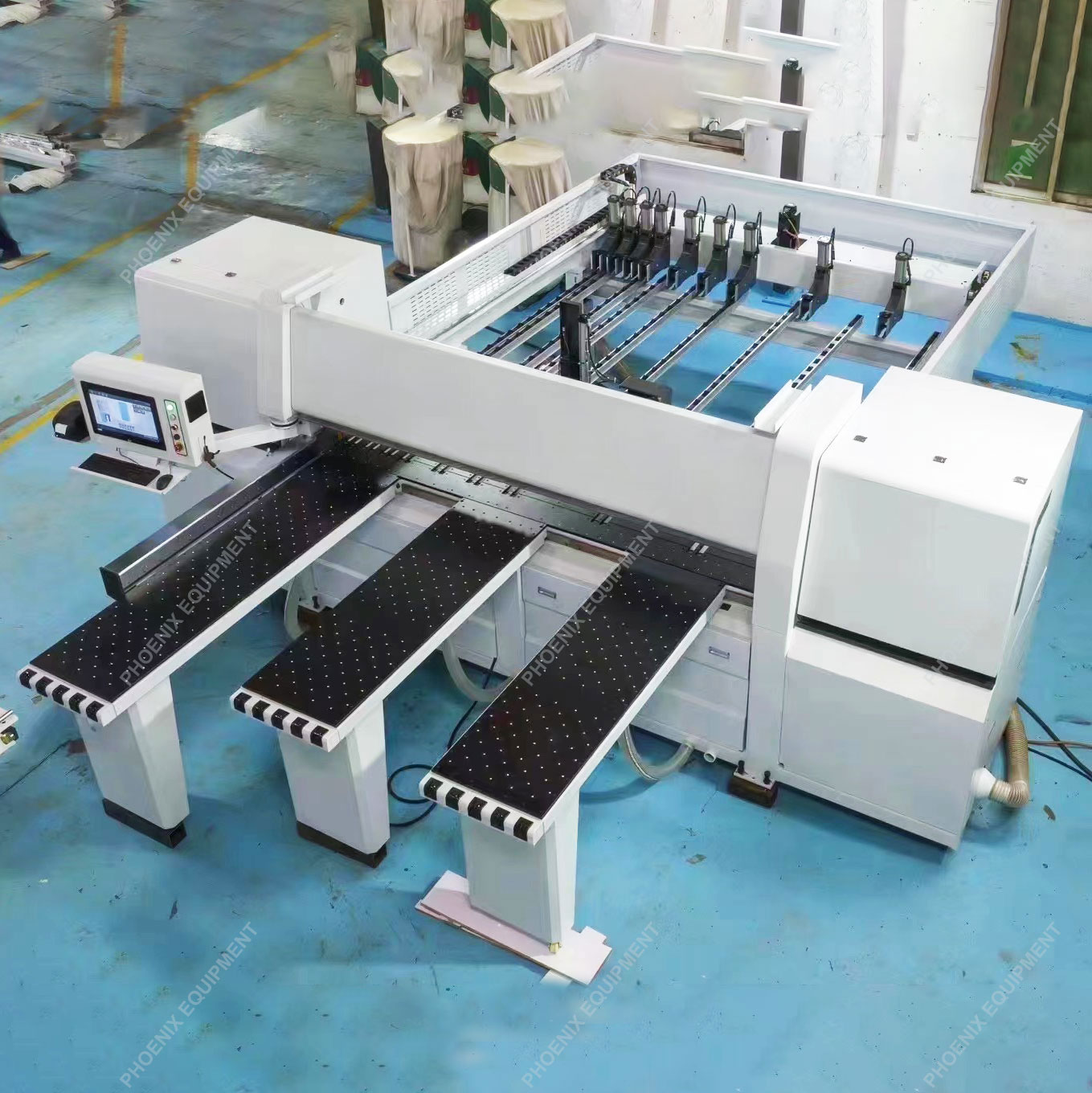

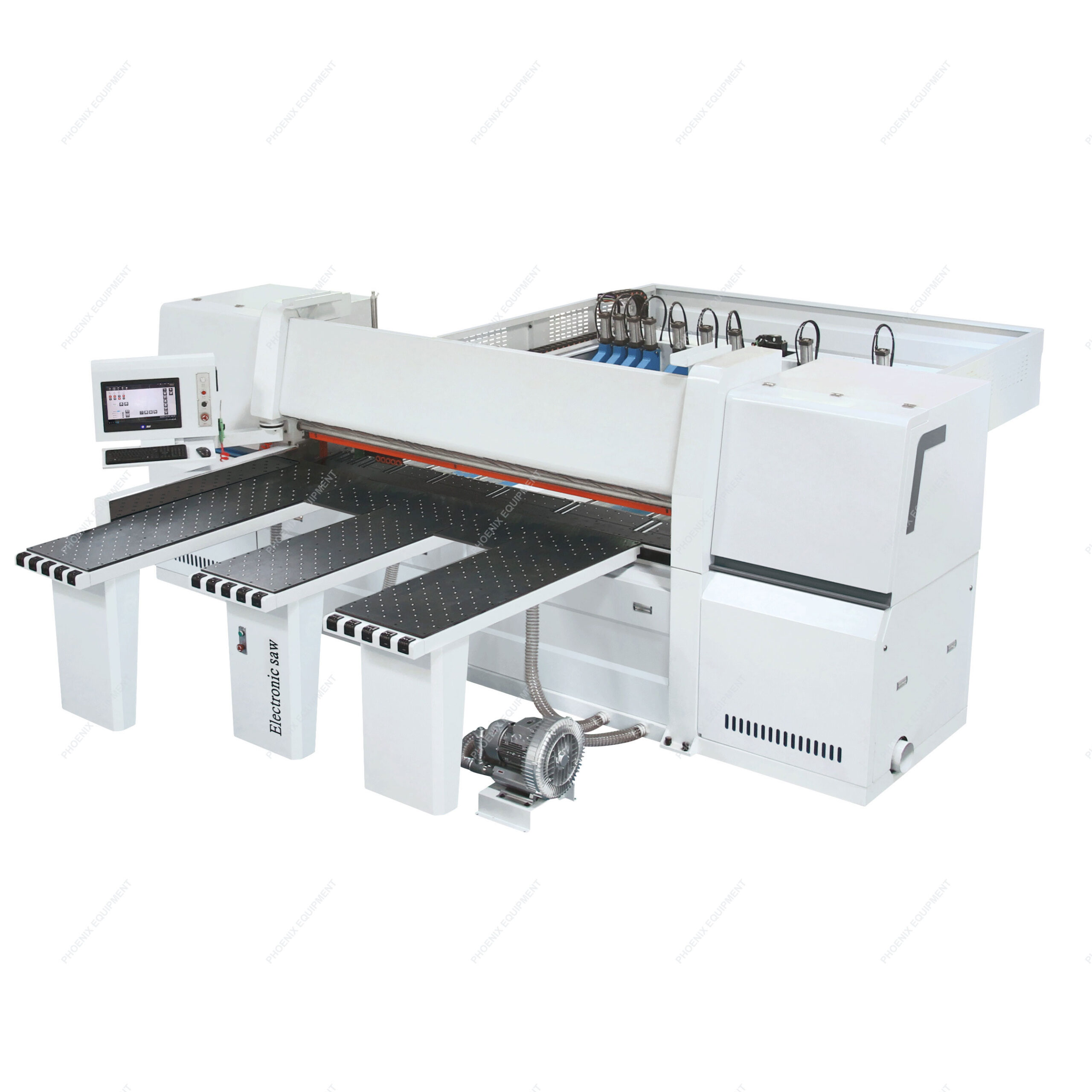

Woodworking machine cnc beam saw automatic electronic cutting panel saw for solid wood board

MJ6228A

Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

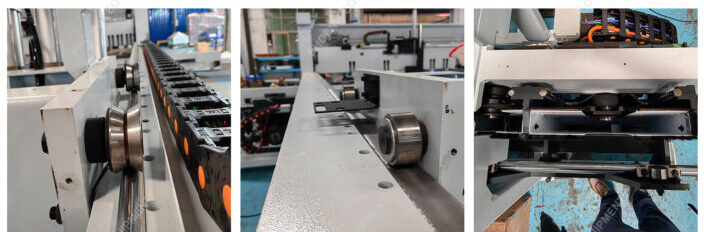

High Performance Wood MDF Board Cutting Machine Full Automatic Computer Wood Saw MachinePhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MJ6228A MJ6233A MJ6238A
Max. cutting length 2800mm 3300mm 3800mm
Max. cutting thickness 120mm 120mm 120mm
Main saw blade diameter Φ450mm Φ450mm Φ450mm
Main saw shaft diameter Φ75mm Φ75mm Φ75mm
Main saw rotating speed 4100rpm 4100rpm 4100rpm
Scoring saw blade diameter Φ210mm Φ210mm Φ210mm
Scoring saw blade inner diameter Φ50mm Φ50mm Φ50mm
Scoring saw rotating speed 6100rpm 6100rpm 6100rpm
Saw carriage forward speed adjustable 0-100m/min 0-100m/min 0-100m/min
Saw carriage backward speed adjustable 0-120m/min 0-120m/min 0-120m/min
Main saw motor 18.5kw 18.5kw 18.5kw
Scoring saw  motor 2.2kw 2.2kw 2.2kw

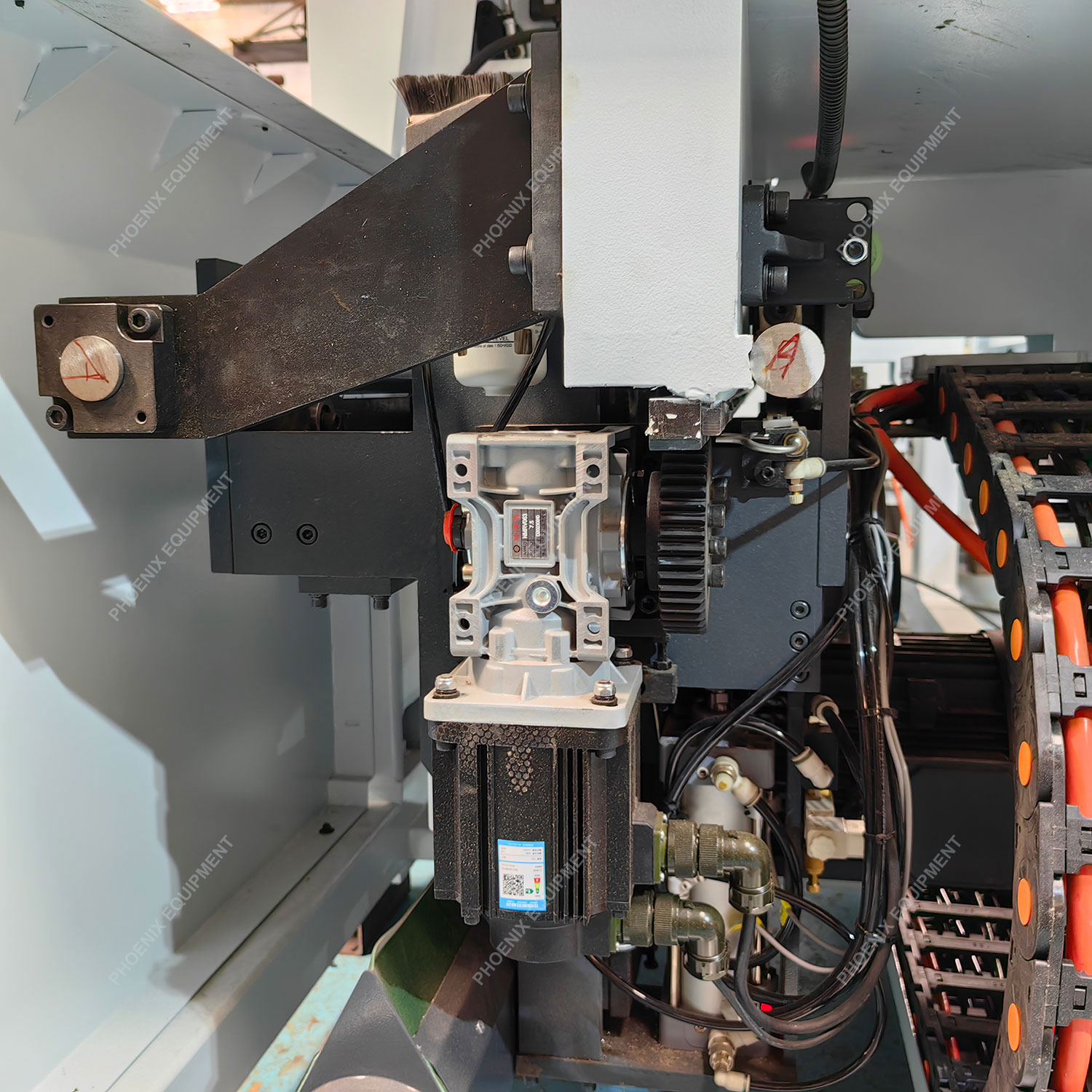

Saw carriage driving motor 1.8kw (AC Servo motor) 1.8kw (AC Servo motor) 1.8kw (AC Servo motor)
Automatic feeding motor 1.8kw (AC Servo motor) 1.8kw (AC Servo motor) 1.8kw (AC Servo motor)
High pressure fan motor (*2) 4kw、2.2kw 4kw、2.2kw 4kw、2.2kw
Total power 30.5kw 30.5kw 30.5kw
Automatic feeding speed 100m/min 100m/min 100m/min
Air pressure 5-8kg/cm² 5-8kg/cm² 5-8kg/cm²
Mechanical gripper 9 9 10
Working table height from ground level 960mm 960mm 960mm
Overall dimension 5100x6300x1900mm 5600x6800x1900mm 6300x7500x1900mm
