Factory Price Woodworking 3200mm Sliding Panel Saw Machine With Manual lifting 45 degree tilt
Professional 45 Degree Manual Adjustment for Cutting Wood Sliding Table Saw for Furniture Factory
Horizontal Woodworking Machine Furniture Making Wood Cutting Sliding Table with 45 Degrees Panel Saw Machine
High Precision 45 Degree Woodworking Sliding Table Panel Saw Machine for Wood MDF PVC

MJ500

Apply to processing all kinds of MDF, particleboard, plywood, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

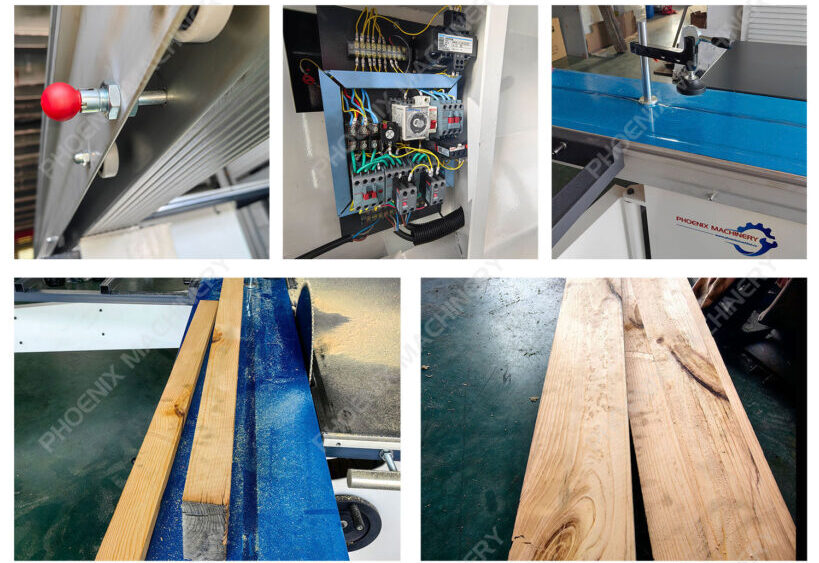

Woodworking Machine Precision Wooden Sliding Table Panel Saw Wood Cutting Saw Machine

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

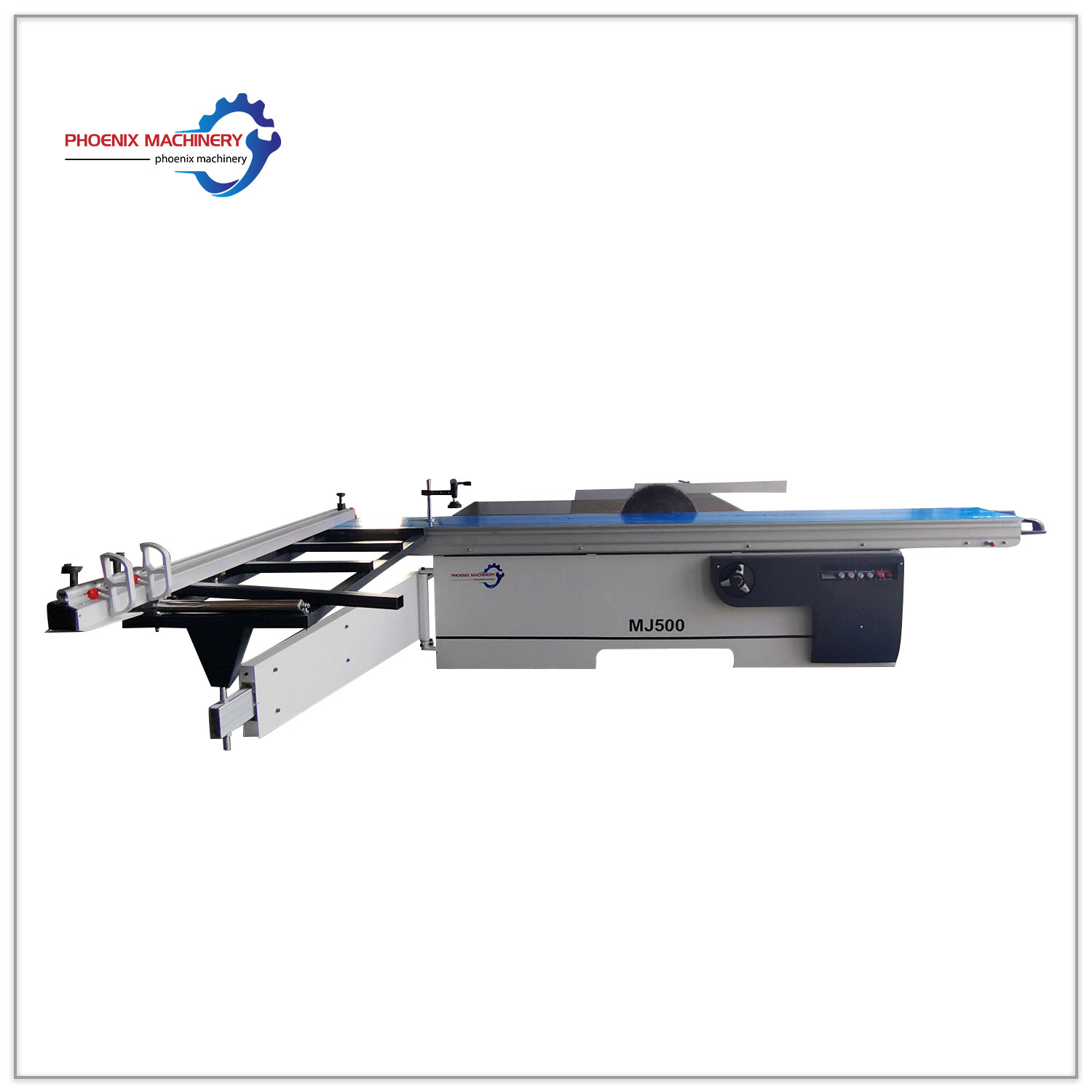

PANEL SAW MODEL MJ500
Max cutting length 3200mm
Max cutting width 3200mm
Sliding table length 3200mm
Sliding table width 375mm
Main saw blade diameter 500mm
Main saw spindle speed 4500-6000rpm
Main spindle diameter 30mm
Tilting saw blade 45°-90°
Height of cut at 45° 120mm
Height of cut at 90° 175mm
Main motor 7.5KW
Angle digital display Including
Package size Sliding table: 3300*450*270mm
Body: 2820*1130*1140mm
Gross weight 780kg
