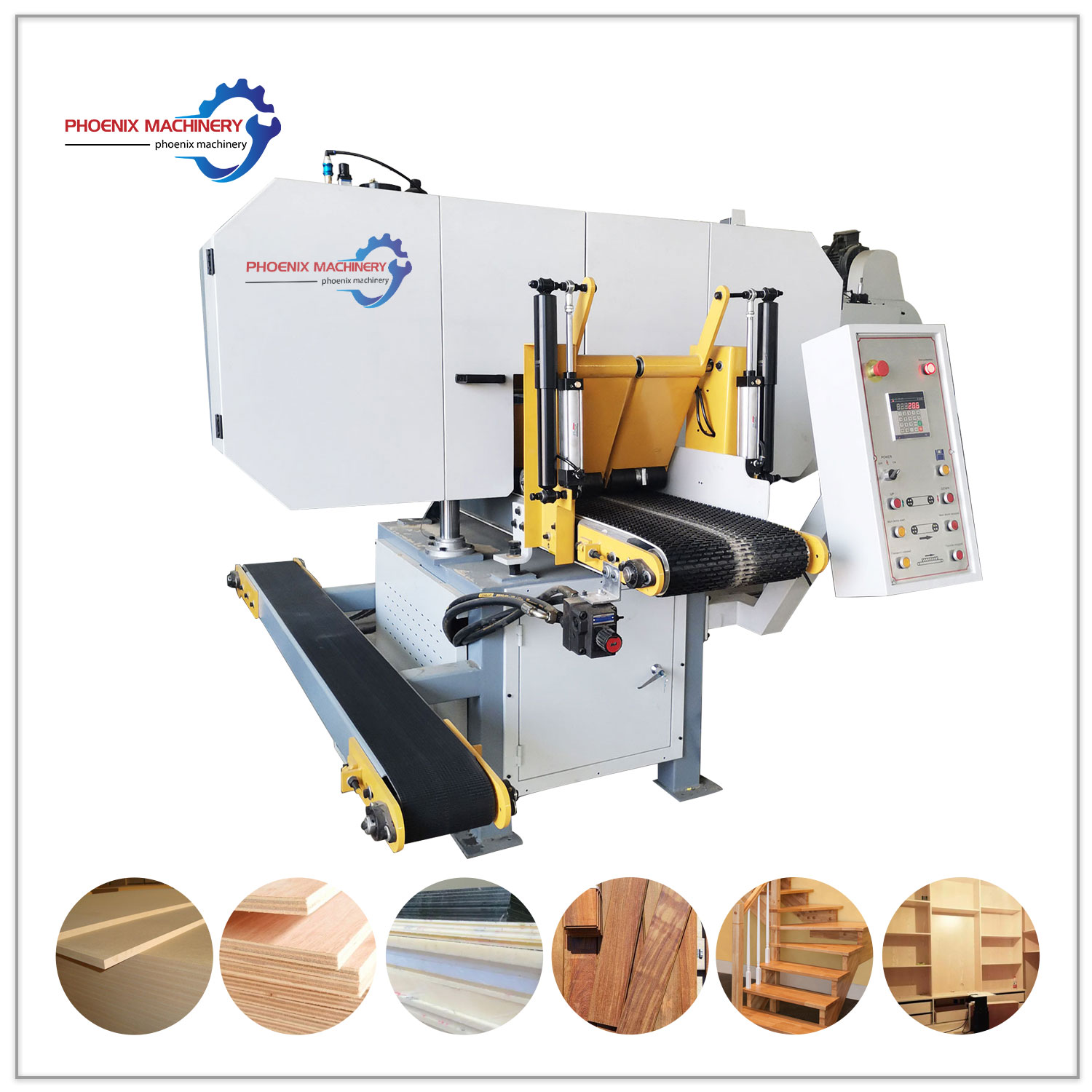

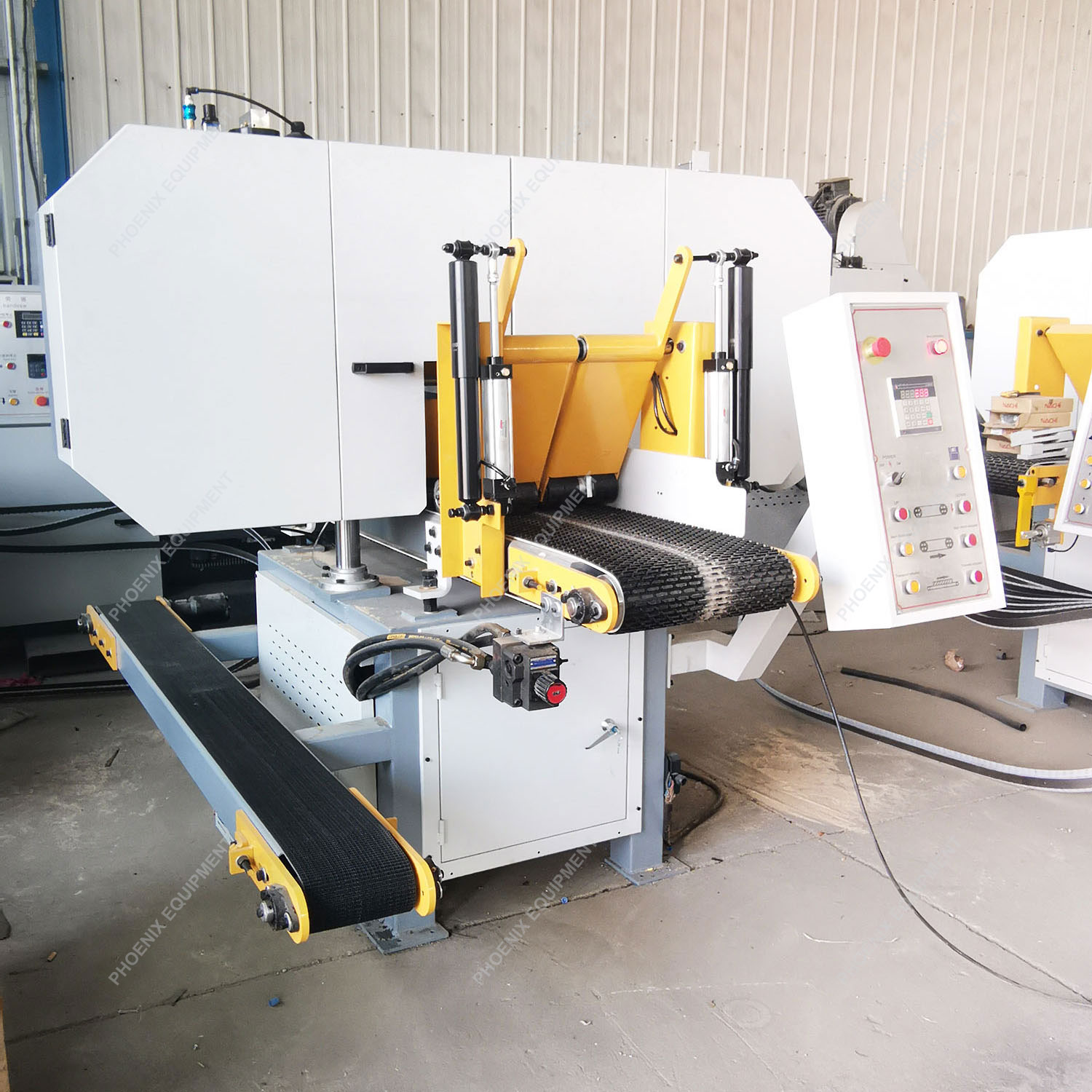

Timber cutting machine 400mm wood automatic Band sawmill Horizontal band saw machine

MJ400

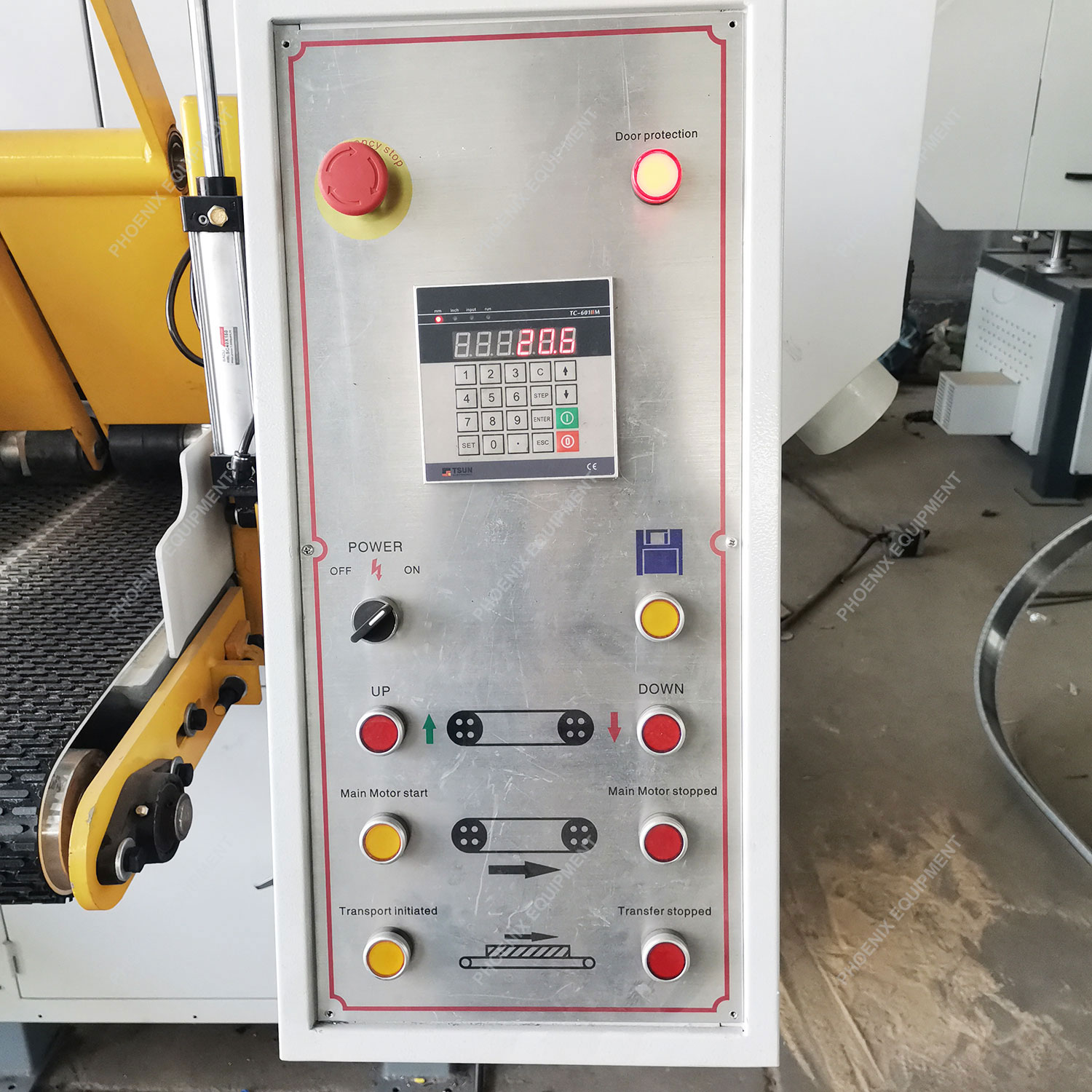

Digital height control for accurate blade positioning (enter the thickness you want and press a button)

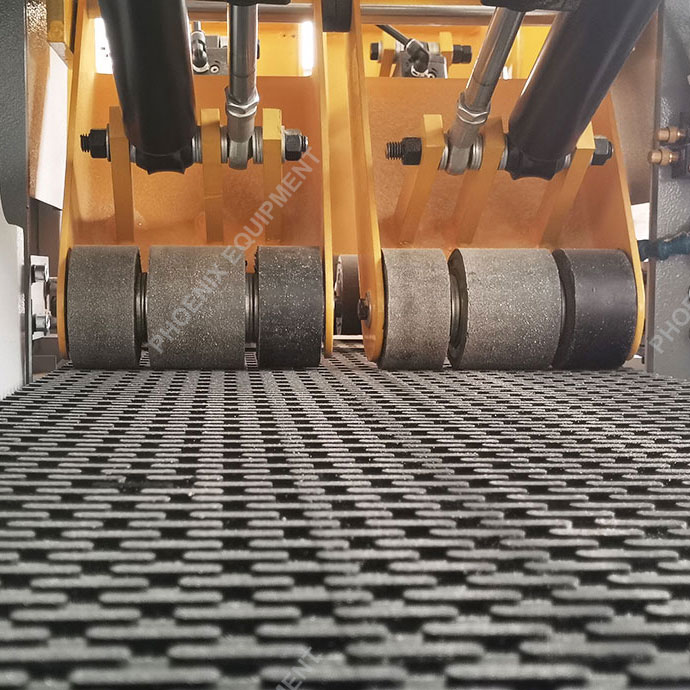

Variable-speed driven feed and return conveyor

Powered saw elevation Dual 4″ dust port

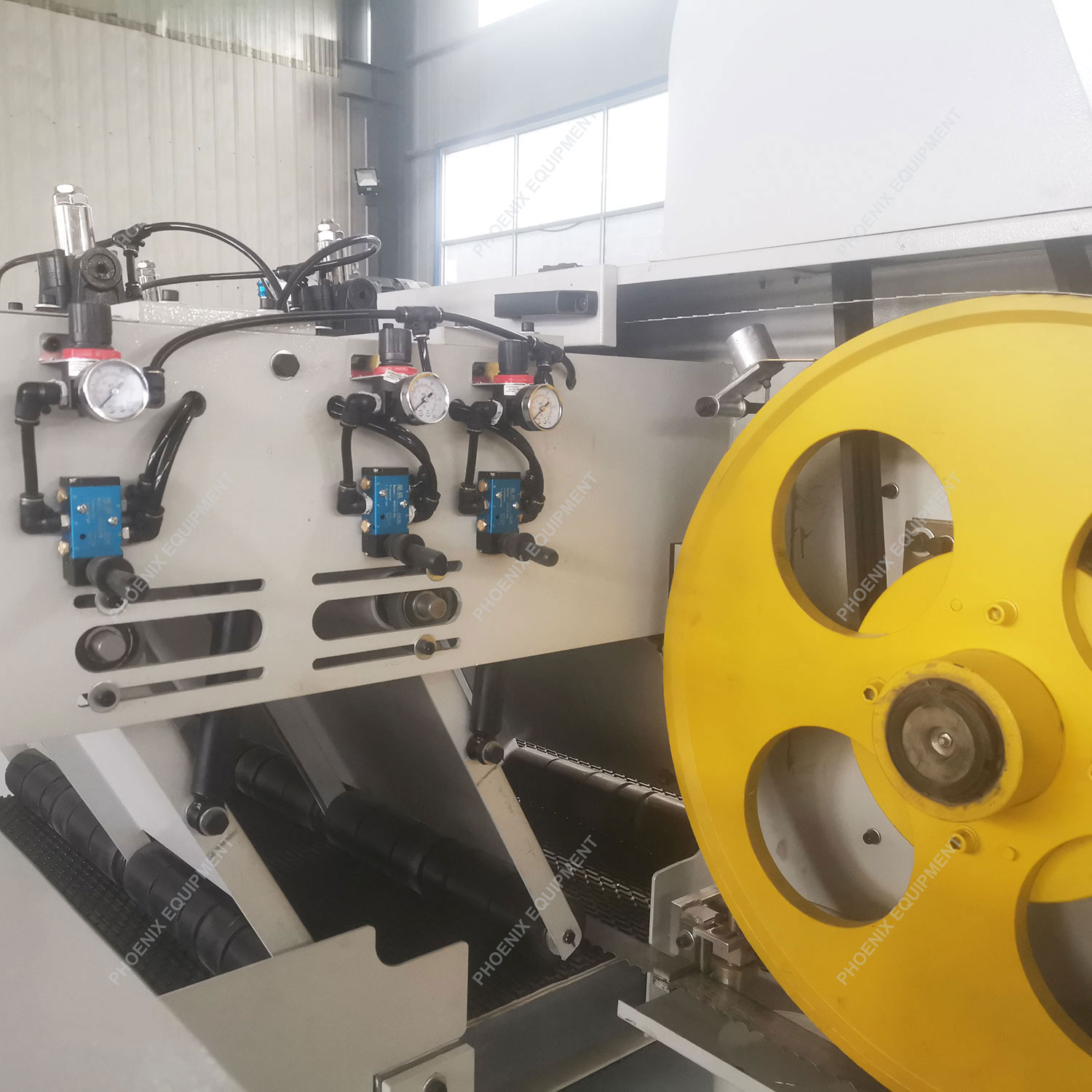

Adjustable ceramic blade guides Massive steel frame construction

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Product type MJ300 MJ400 MJ500 MJ650
Maximum machining width 300mm 400mm 500mm 650mm
Saw blade to table distance 3-200m 3-200m 3-200m 3-200m
Conveyor belt width 285mm 380mm 485mm 650mm
Saw wheel diameter 710mm 710mm 710mm 710mm
Feed speed(Frequency Control) 0-18m/min 0-18m/min 0-18m/min 0-18m/min
Conveyor motor 1.1kw 1.1kw 1.5kw 1.5kw
Return motor 0.75kw 0.75kw 0.75kw 0.75kw
Lifting motor 0.37kw 0.37kw 0.37kw 0.37kw
Saw wheel motor power: 15kw 15kw 18.5kw 18.5kw
Total power 17.22kw 17.22kw 21.12kw 21.12kw
Machine size(mm) 2450*2000*1850 2450*2100*1900 2450*2200*1920 2450*2200*1950
Machine weight 1700kg 1800kg 1900kg 2100kg
