panel saw / circle saw all in one

MJ3200

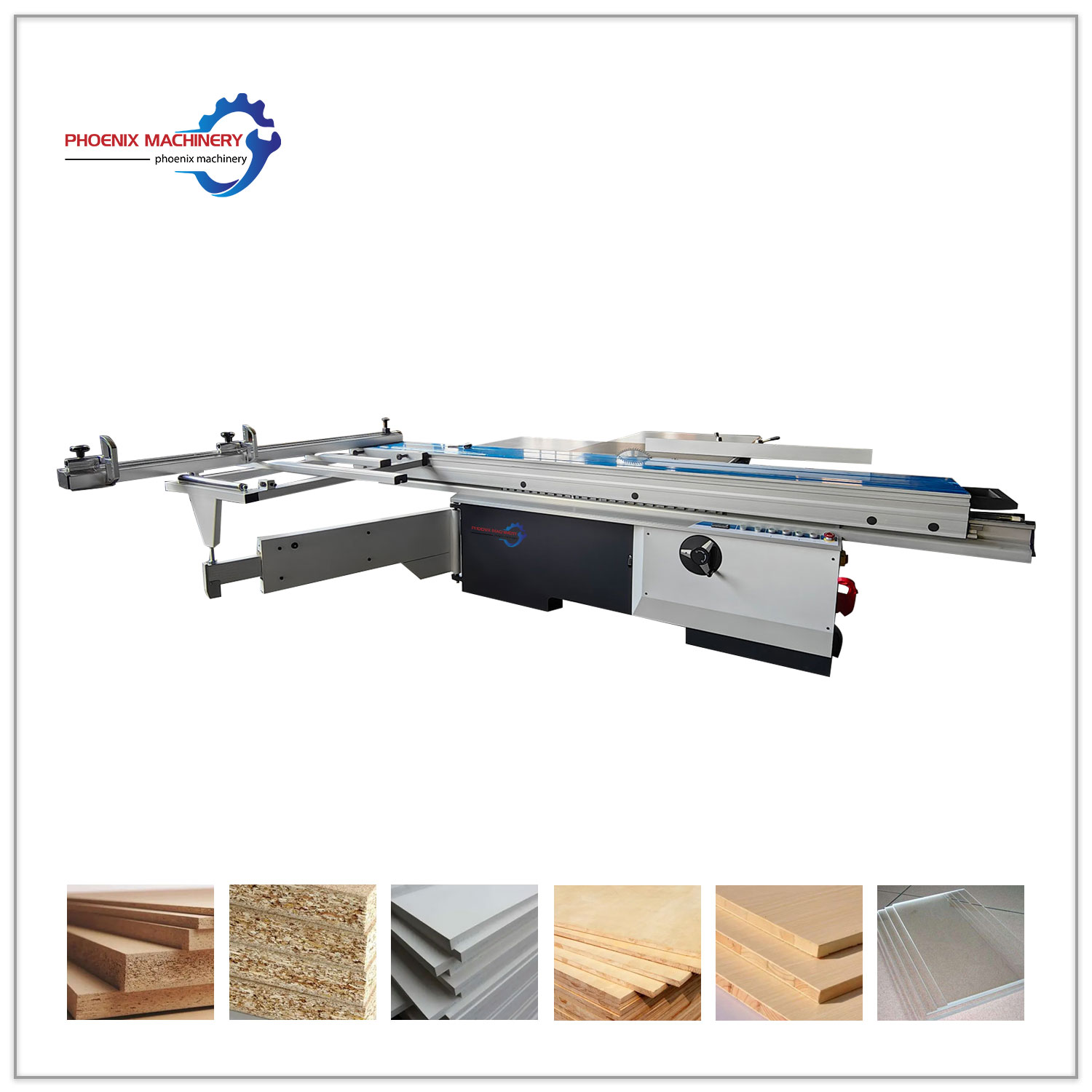

MJ3200 Woodworking 45 90 degree precision sliding table saw wood panel saw cutting saw

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

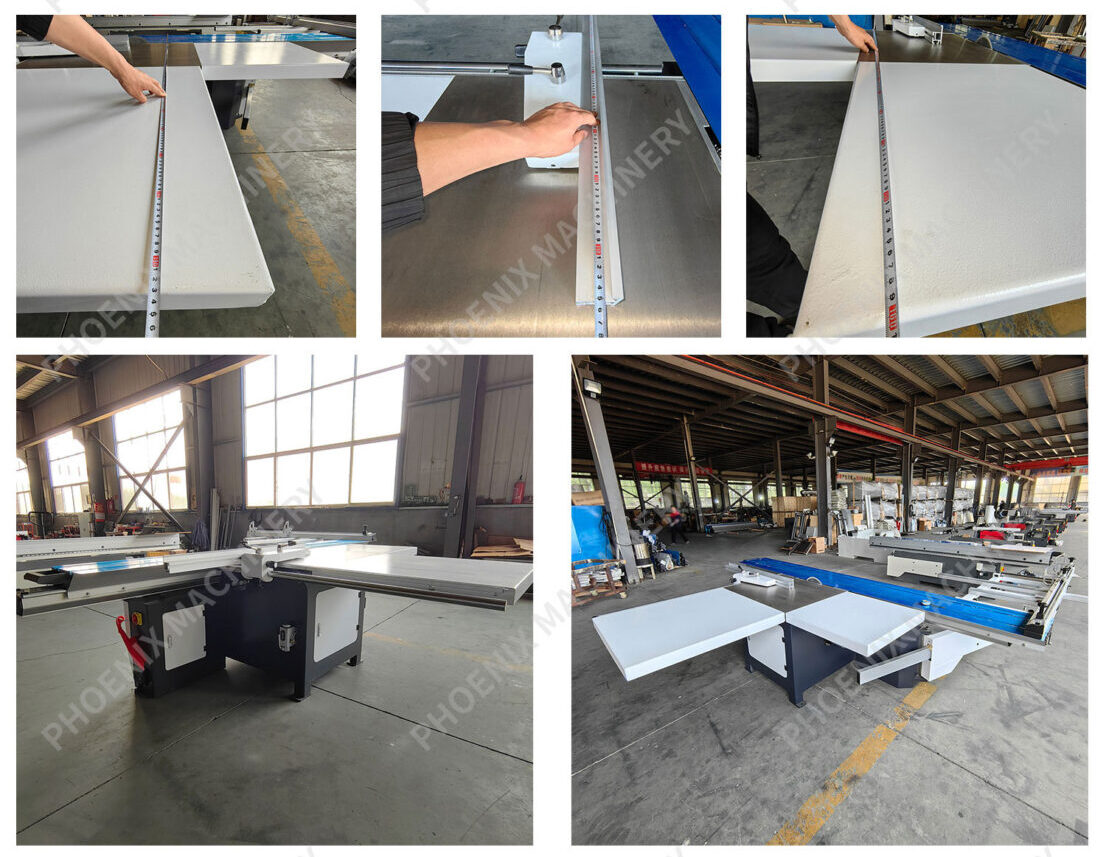

plywood cutter panel saw

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

PANEL SAW MODEL Automatic panel saw MJ3200
Max cutting length 3200mm
Max cutting width 3200mm
Sliding table length 3200mm
Sliding table width 375mm
Main saw blade diameter 300mm
Scoring saw blade diameter 120mm
Main saw spindle speed 4500-6000rpm
Scoring saw spindle speed 9000rpm
Main spindle diameter 30mm
Scoring spindel diameter 20mm
Tilting saw blade 45°-90°
Height of cut at 45° 65mm
Height of cut at 90° 100mm
Main motor 5.5KW
Scoring motor 1.1KW
Main saw blade lifting motor 0.12KW
Angle digital display Contain
Gross weight 800kg
