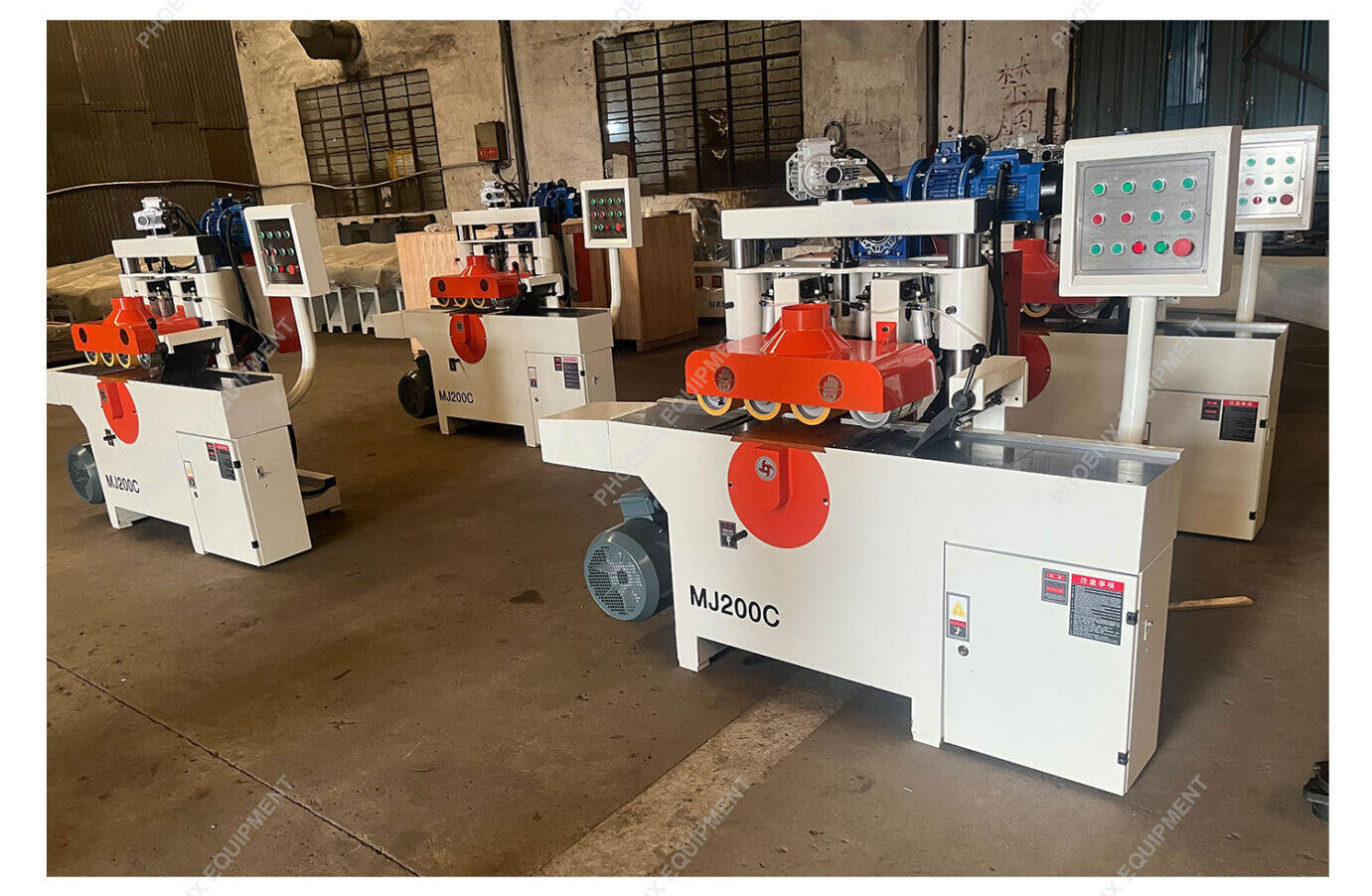

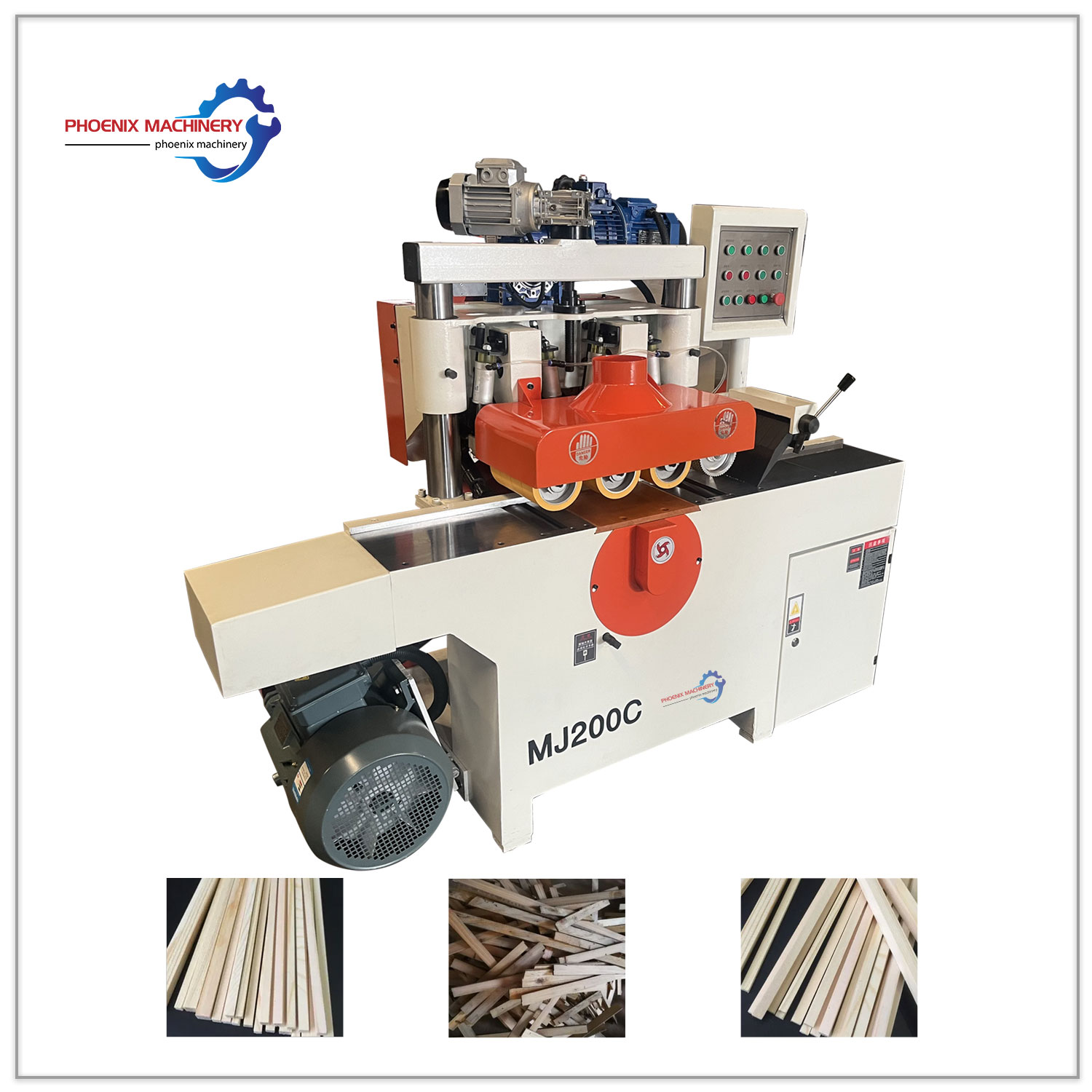

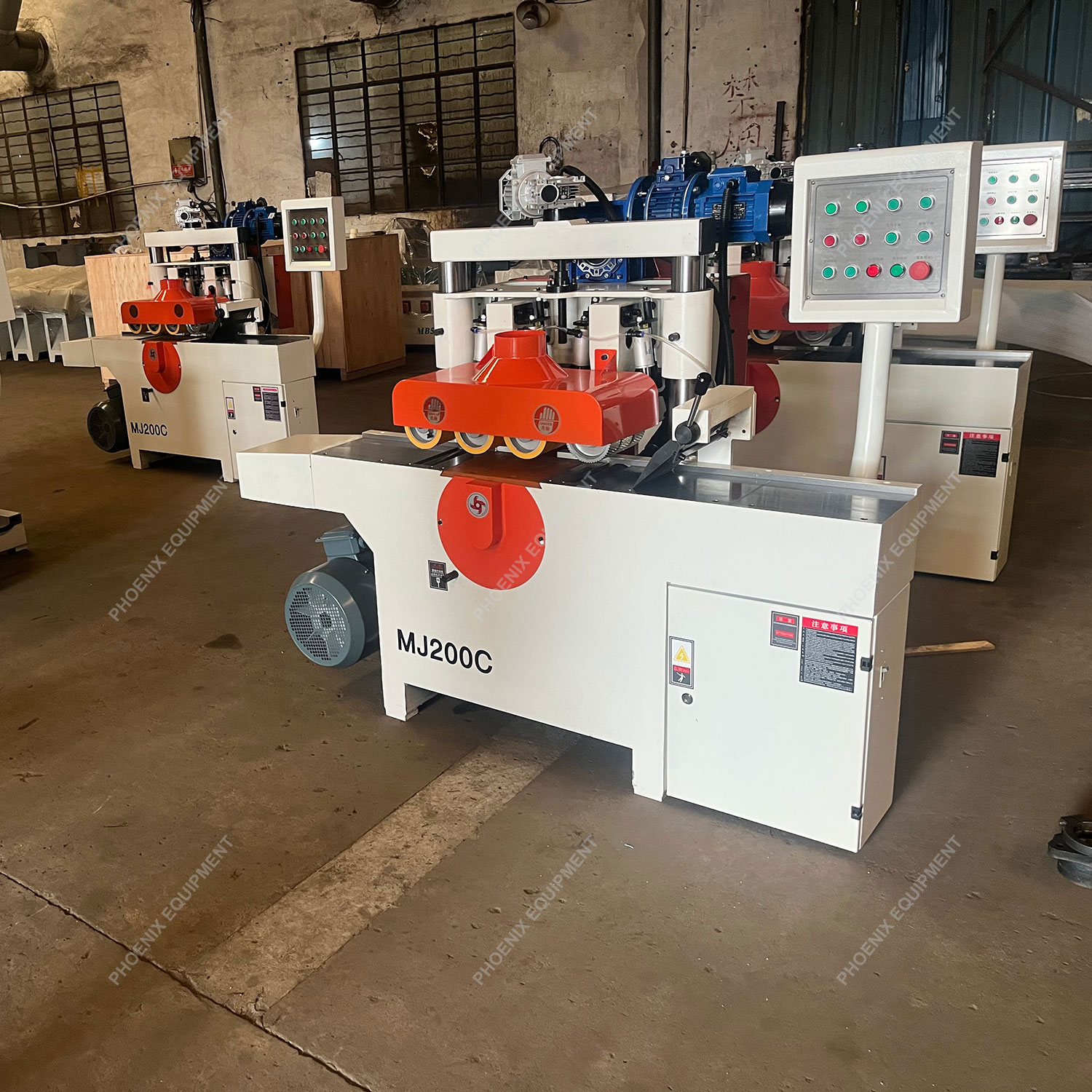

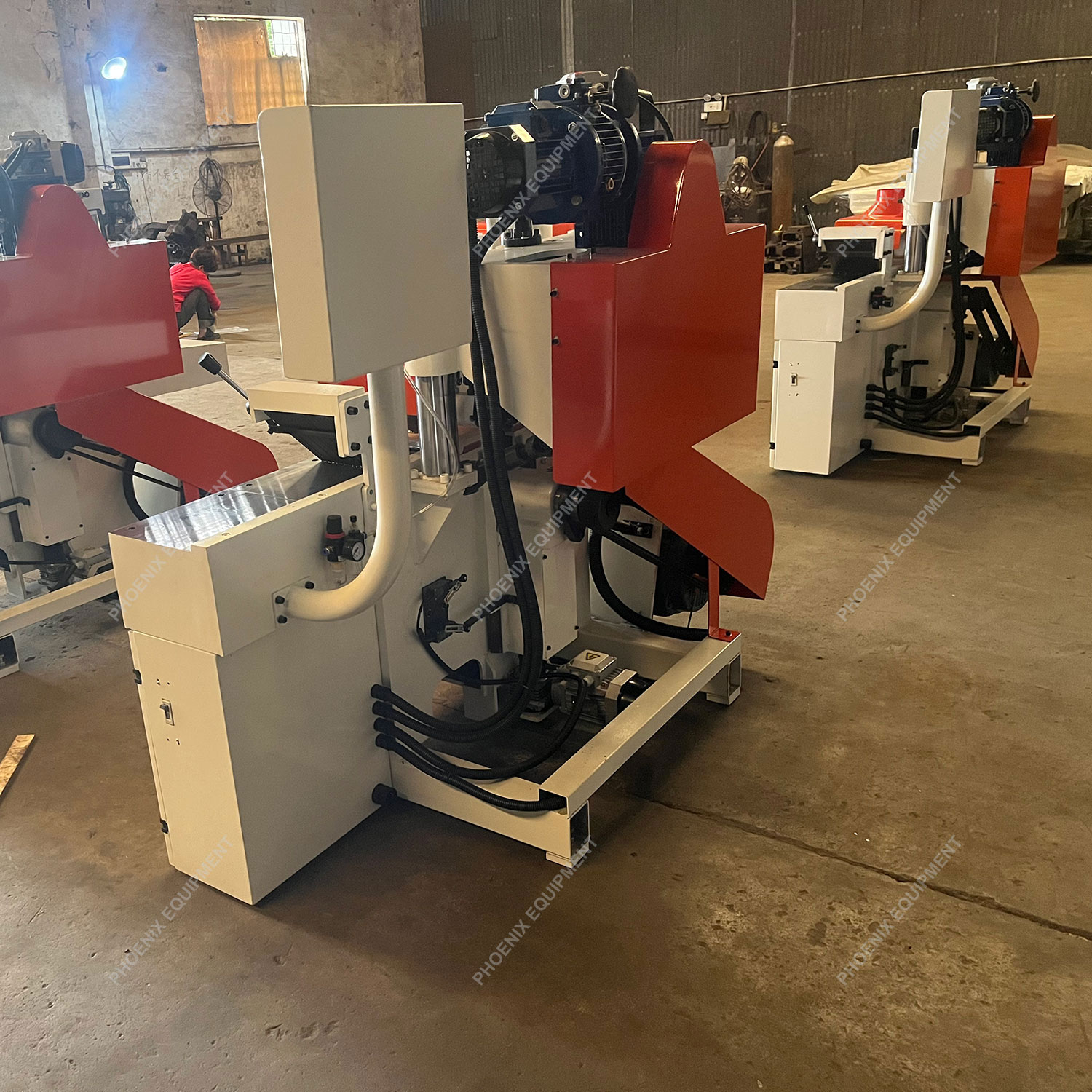

Multi-Blade Circular Sawing Machine Automatic Conveying Short Material Multi-Blade Saw

MJ200C

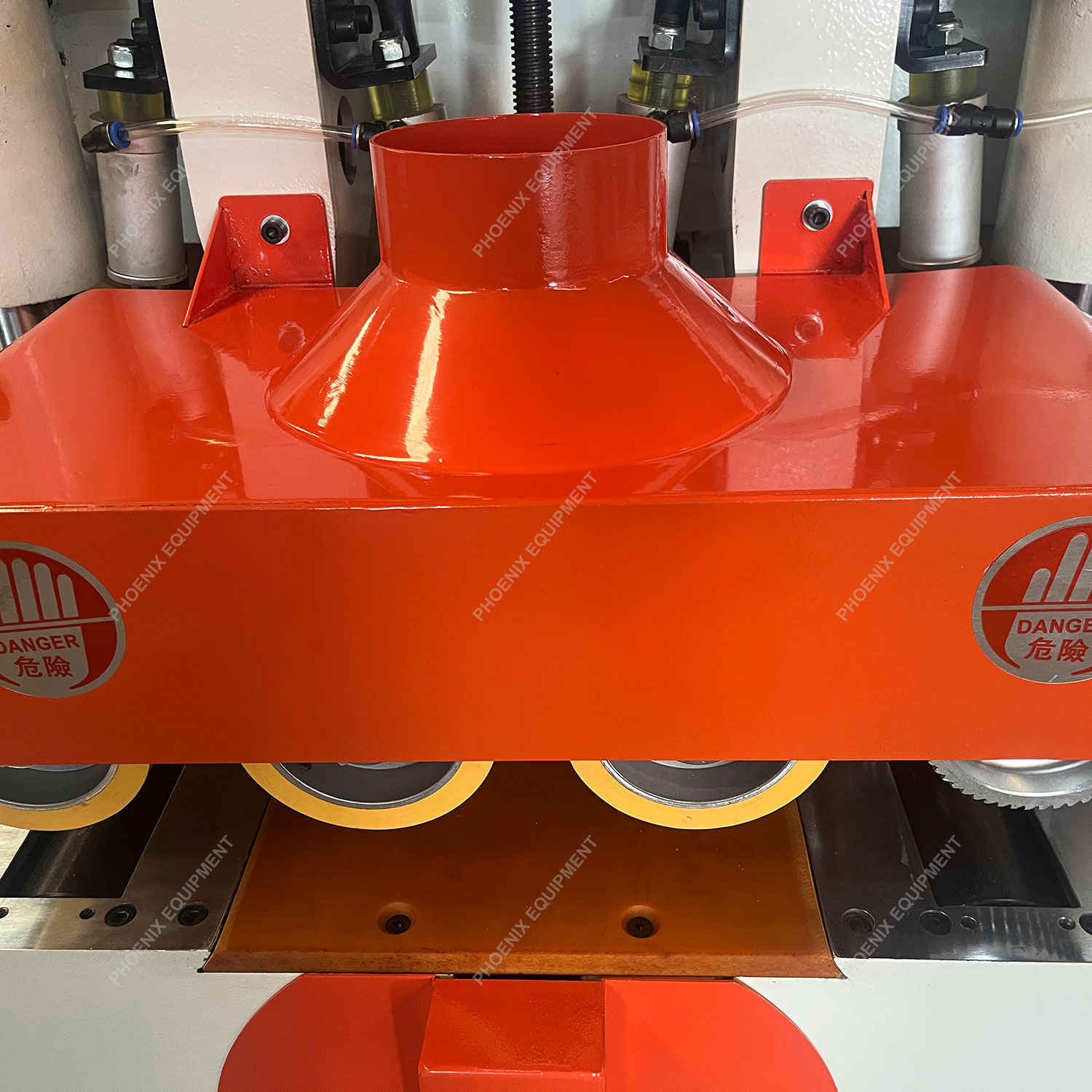

1.Multiple precision feed rollers and closed cutting tools to prevent material running, which is safe and efficient.

2.Max cutting width to 200mm, suitable for most lines timber cutting. feeding material parts designed with prevent springback.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

Model MJ200C MJ200D Working length 200-4000mm 80-4000mm Working width 10-200mm 5-200mm Working thickness 10-80mm 5-60mm Feed motor power 1.1kW (stepless) 1.1kw(stepless) Feed speed 4-20m/min 4-20m/min Spindle motor power 11kW 11kW Spindle speed 3600r/min 3600r/min Max blade diameter Φ230mm Φ230mm Extraction outlet size Φ125mm Φ125mm Spindle diameter Φ35mm Φ35mm Lifting motor power 0.37kW 0.37kW Beam lift motor power 0.37kW 0.37kW Total Power 12.84kW 12.84kW Air Pressure 0.6Mpa 0.6mpa Overall size 1750*850*1550mm 1750*850*1550mm Weight 900kg 900kg Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MJ200C MJ200D
Working length 200-4000mm 80-4000mm
Working width 10-200mm 5-200mm
Working thickness 10-80mm 5-60mm
Feed motor power 1.1kW (stepless) 1.1kw(stepless)
Feed speed 4-20m/min 4-20m/min
Spindle motor power 11kW 11kW
Spindle speed 3600r/min 3600r/min
Max blade diameter Φ230mm Φ230mm
Extraction outlet size Φ125mm Φ125mm
Spindle diameter Φ35mm Φ35mm
Lifting motor power 0.37kW 0.37kW
Beam lift motor power 0.37kW 0.37kW
Total Power 12.84kW 12.84kW
Air Pressure 0.6Mpa 0.6mpa
Overall size 1750*850*1550mm 1750*850*1550mm
Weight 900kg 900kg
