high speed centrifugal suction machine access pipeline
Industrial Vacuum Cleaner Dust Collector Dust Collector Machine Wood Dust Collector for Engraving Machine
7.5/11/15kw Multi-bag Industrial Dust Extractor Dust Collector Wood Saw Vacuum Cleaner for Woodwork Machine
Woodworking High Power Industrial Dust Collector Fan Large Suction Central Bag Vacuum Cleaner

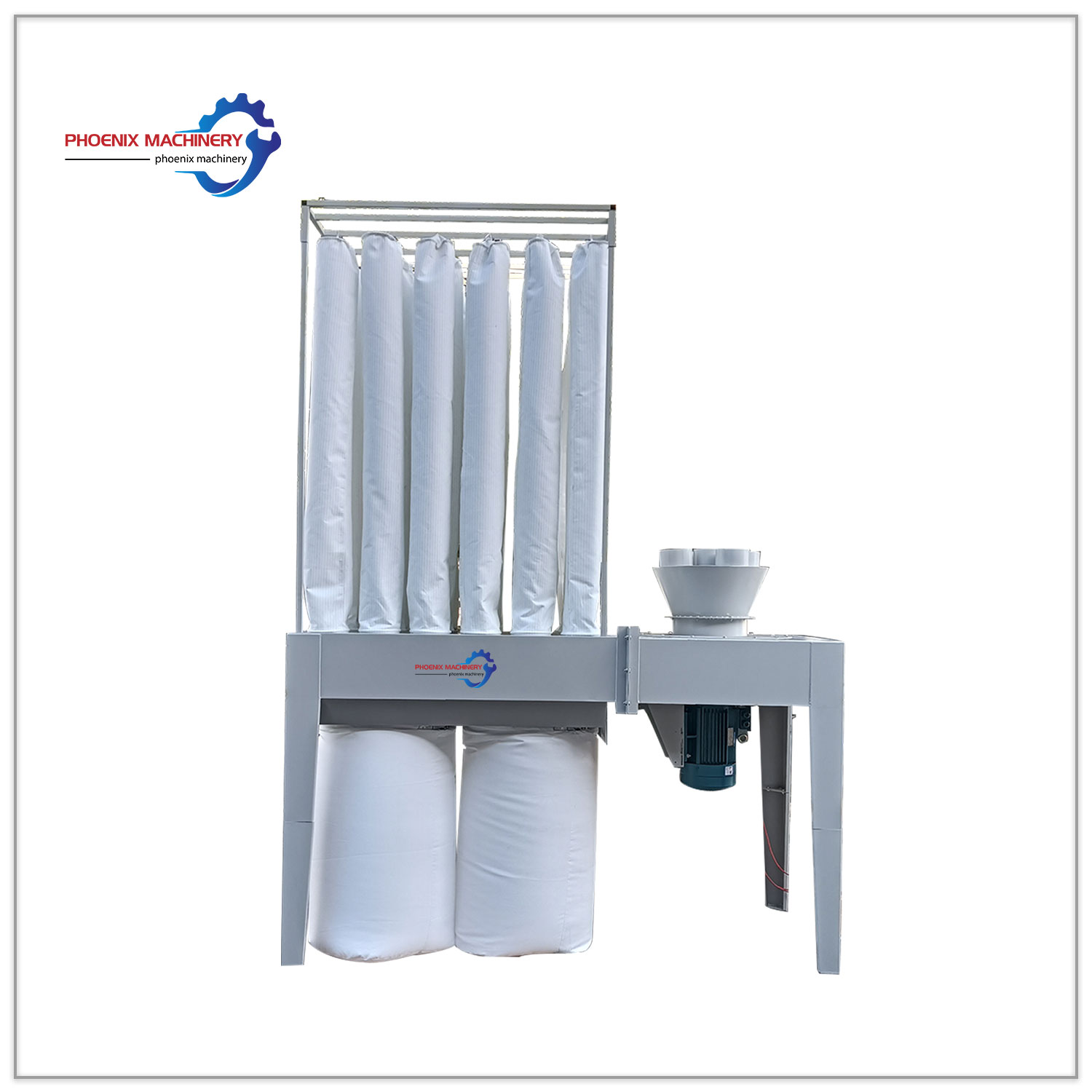

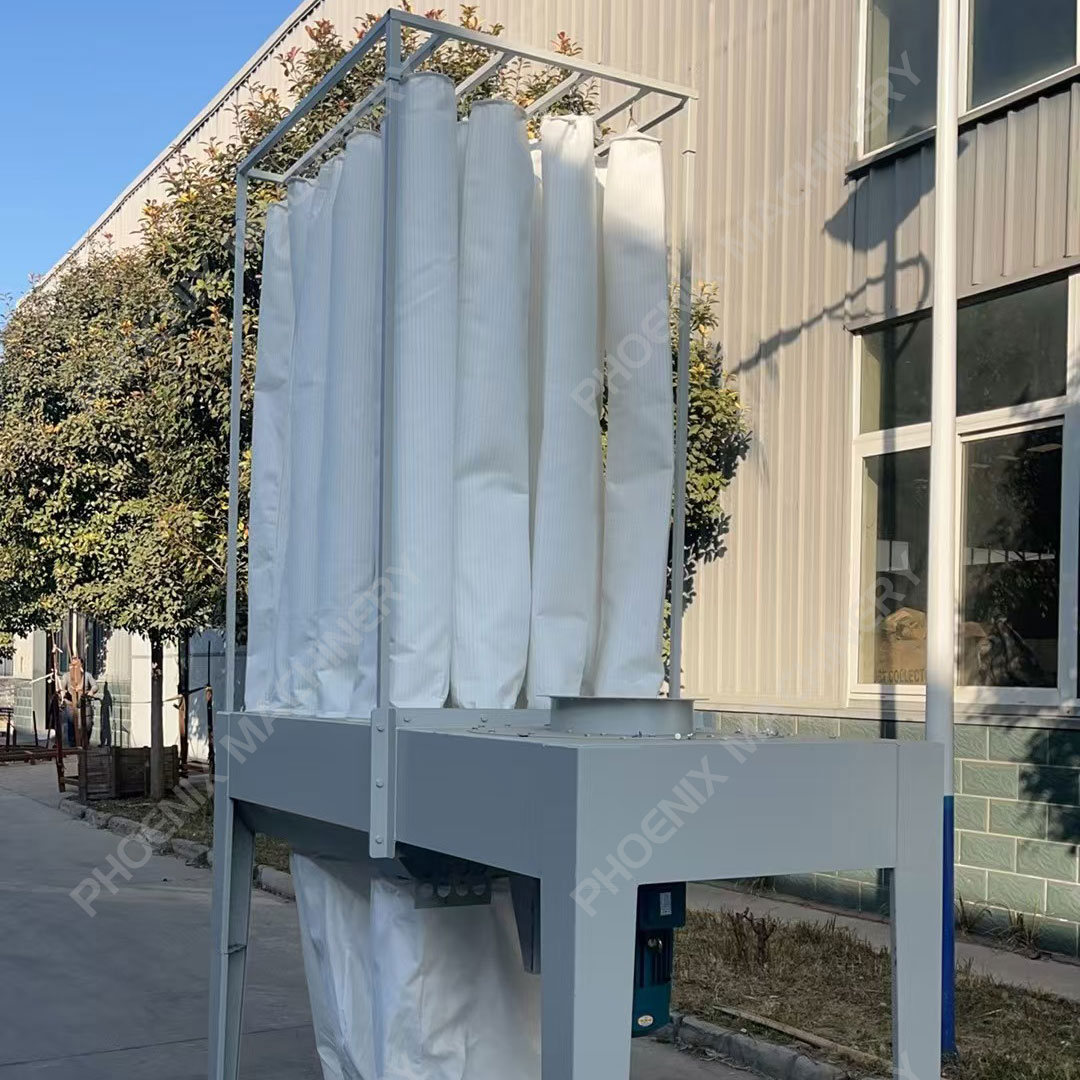

MF9011

The bag is made of special filter cloth, which can be disassembled and washed for many times. It is quiet, low power, low power consumption, effective dust filter and good cleaning effect.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

Customized Dust Collector for Woodworking Bag Filter Housing Woodworking Dust Collector for Art Furniture Works

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

MODEL FM9011(24) FM9011(36) FM9011(48)
Motor（kw) 11KW 11kw 11KW
Fan diameter(mm) 600 660 710
Inlet diameter(mm) 5*150 5*150 5*150
Air flow 11000 13000 18000
Filter bag dia-upper（mm) 175*1950*24 175*1950*36 175*1950*48
Collecting bag dia-lower(mm) 630*1000*2 630*1000*3 630*1000*4
Overall dimension(mm) 2250*1040*1000 2920*1040*1000 3650*1040*1000
Packing size(mm) 2350*1150*1150 3050*1150*1150 3750*1150*1150
Net weigjht（KG） 390 460 660
Gross weight（KG） 460 530 720
