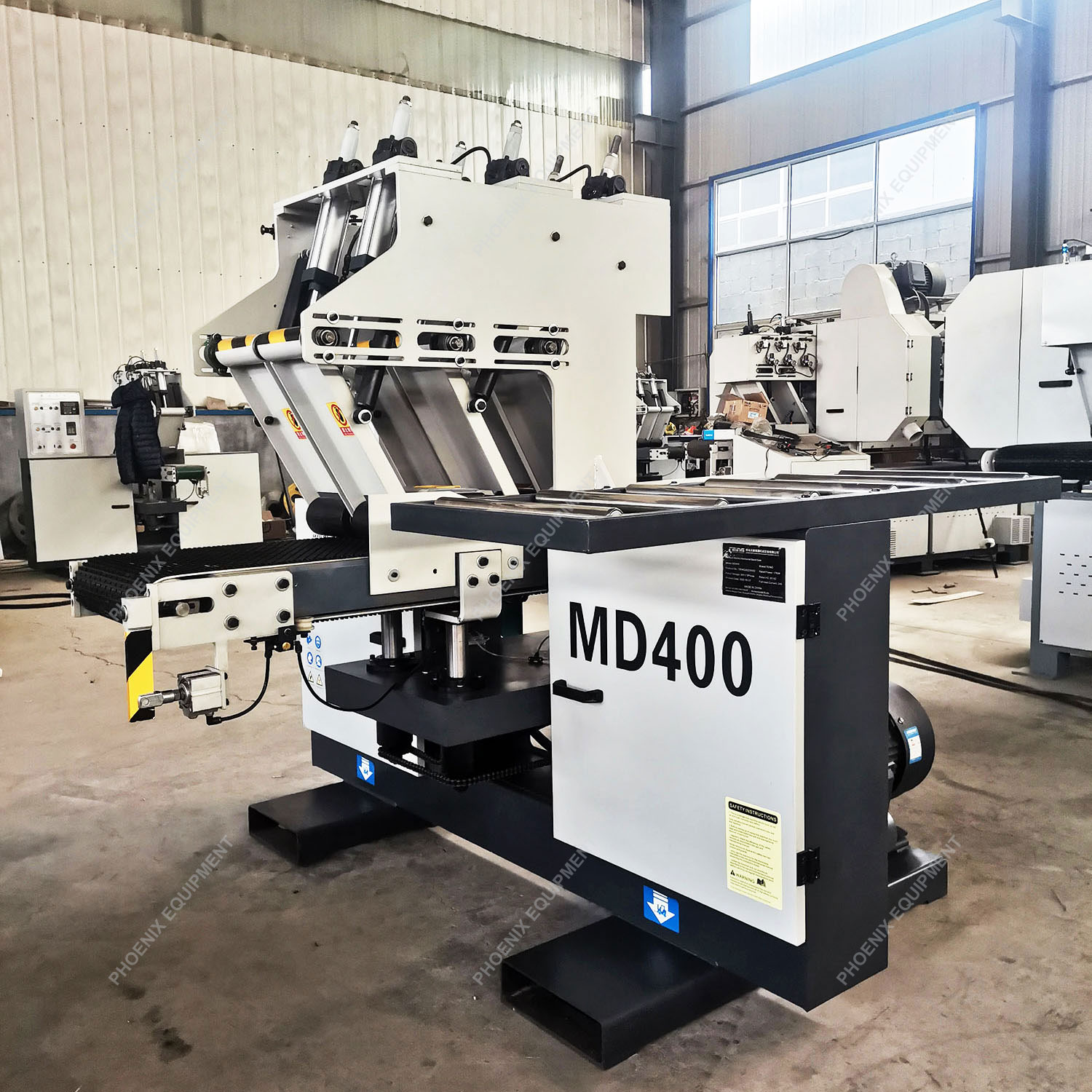

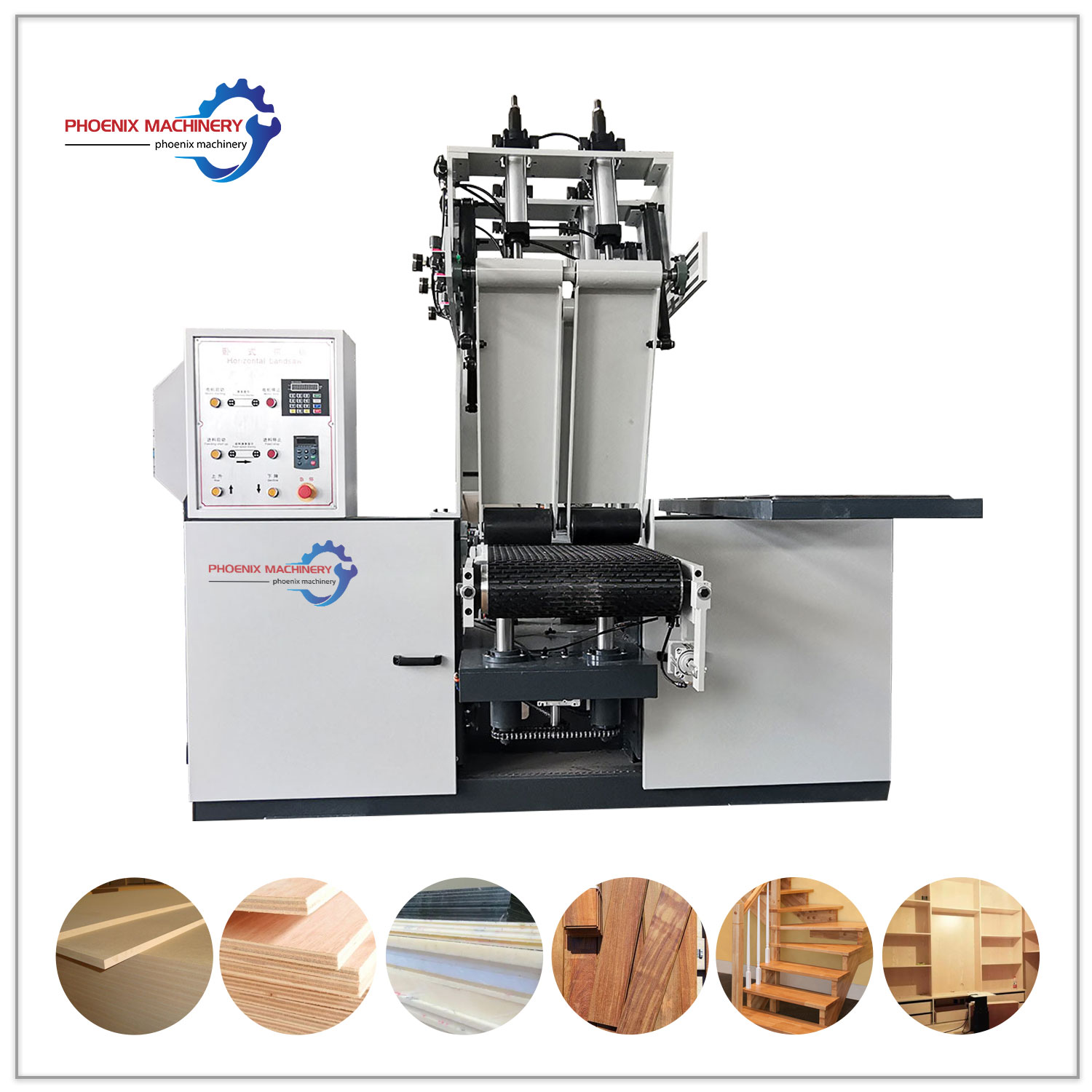

High precision woodworking press roller horizontal band saw for cutting thin logs

MD400

Non deformation, high durability, precision processing, dynamic balance inspection to ensure the stability of the entire cutting machine.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

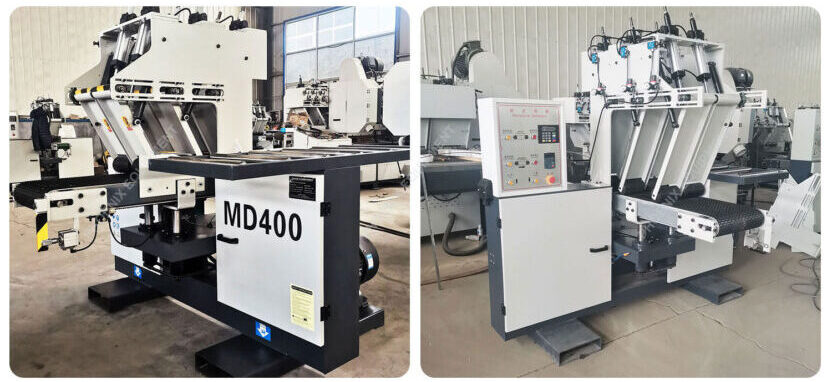

Fully automatic woodworking machinery horizontal band saw machine for cutting logs and boardsPhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Product type MD400 MD500 MD650 MD800 MD1000 MD1300
Maximum machining width 400mm 500mm 650mm 800mm 1000mm 1300mm
Saw blade to table distance 3-220m 3-220m 3-200m 3-200m 3-200m 3-120m
Saw wheel diameter 700mm 700mm 700mm 700mm 700mm 700mm
Feed speed(Frequency Control) 0-18m/min 0-18m/min 0-18m/min 0-18m/min 0-18m/min 0-18m/min

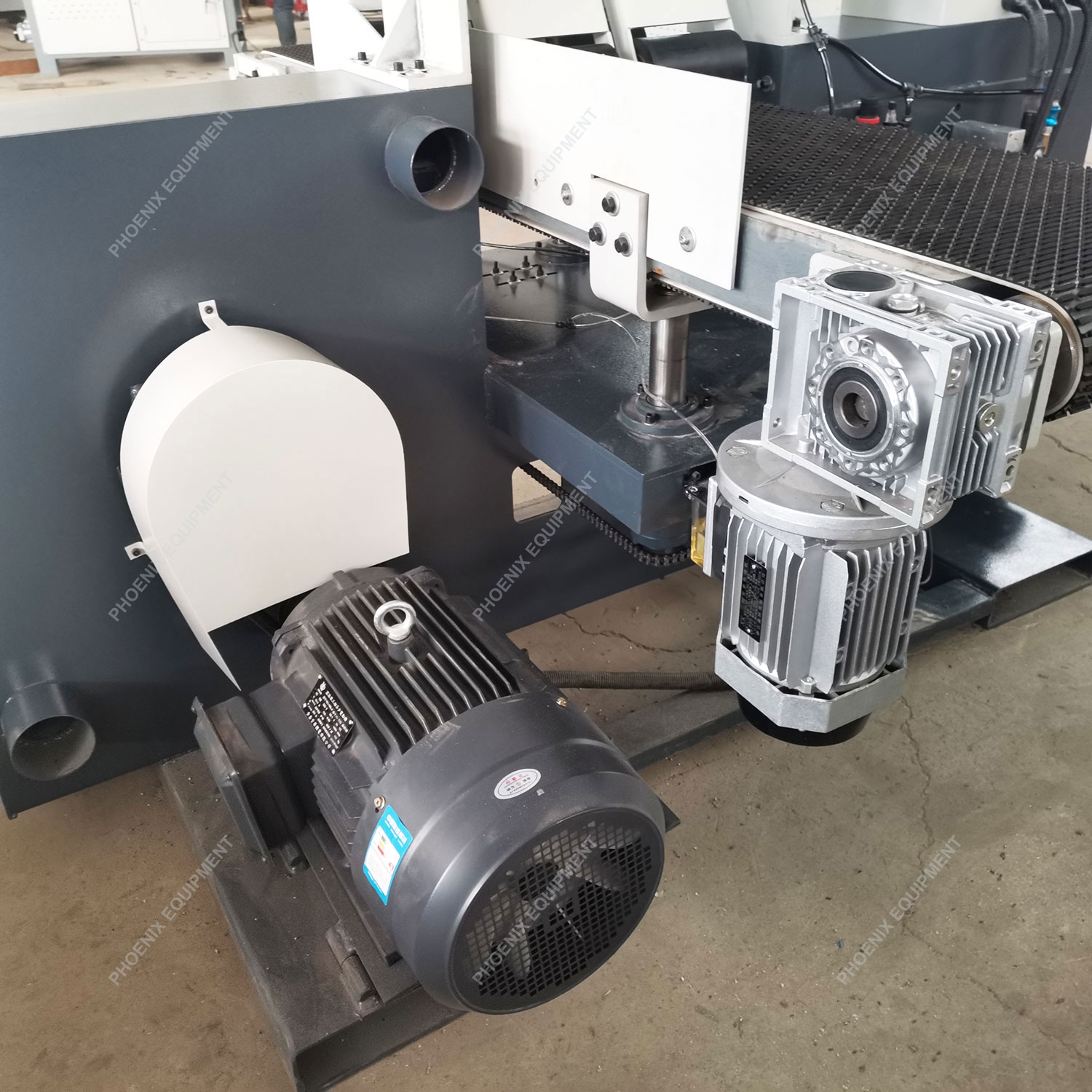

Conveyor motor 1.1kw 1.1kw 1.1kw 1.1kw 1.5kw 1.5kw
Lifting motor 0.37kw 0.37kw 0.37kw 0.37kw 0.37kw 0.37kw

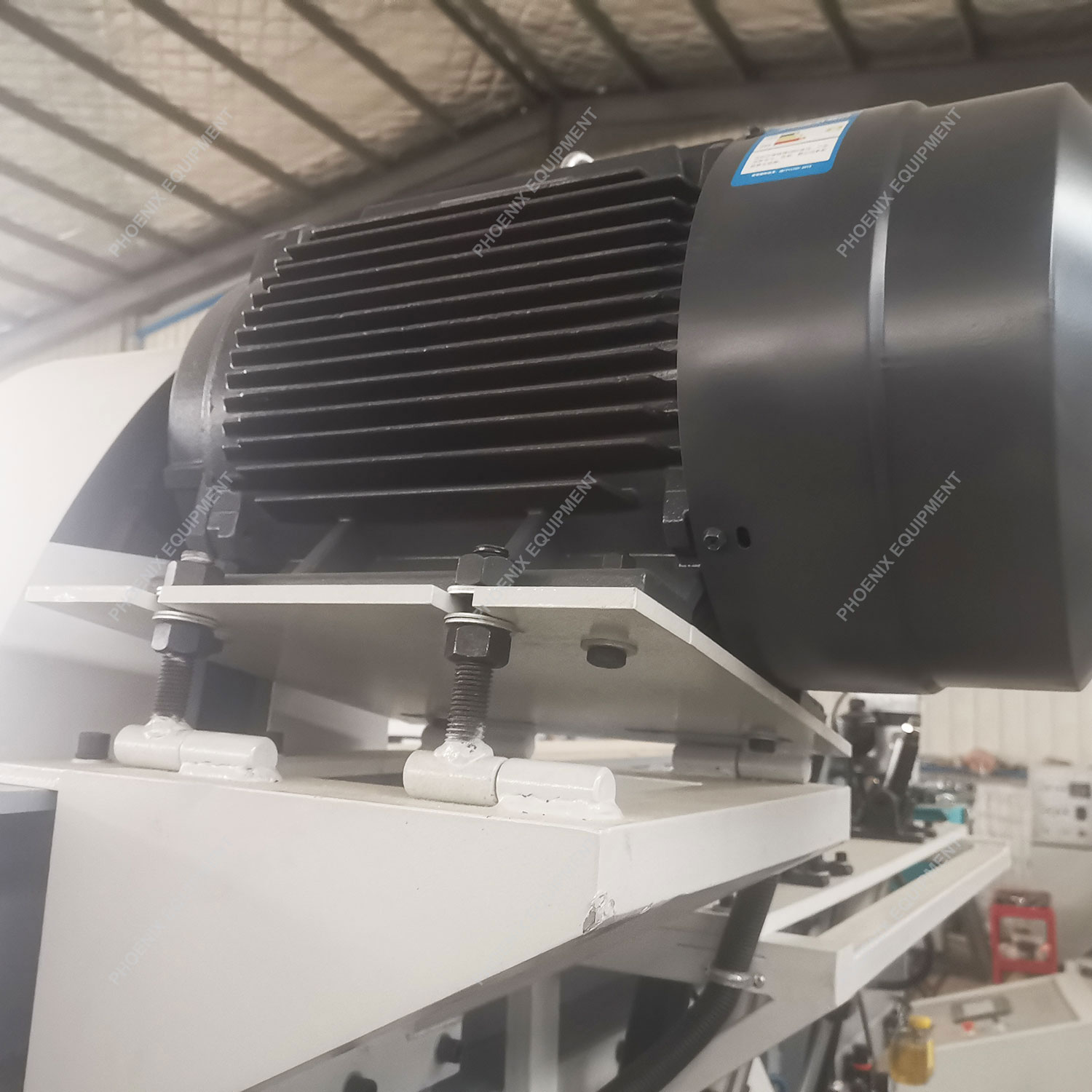

Saw wheel motor power: 15kw 18.5kw 18.5kw 22kw 22kw 30kw
Total power 17.22kw 21.12kw 21.12kw 21.12kw 21.12kw 21.12kw
Machine size(mm) 2150*2150*1850 2250*2300*1850 2450*2300*1950 2600*2300*1950 3000*2300*1950 3300*2300*1950
Machine weight 1800kg 1900kg 2100kg 2300kg 2500kg 2750kg
