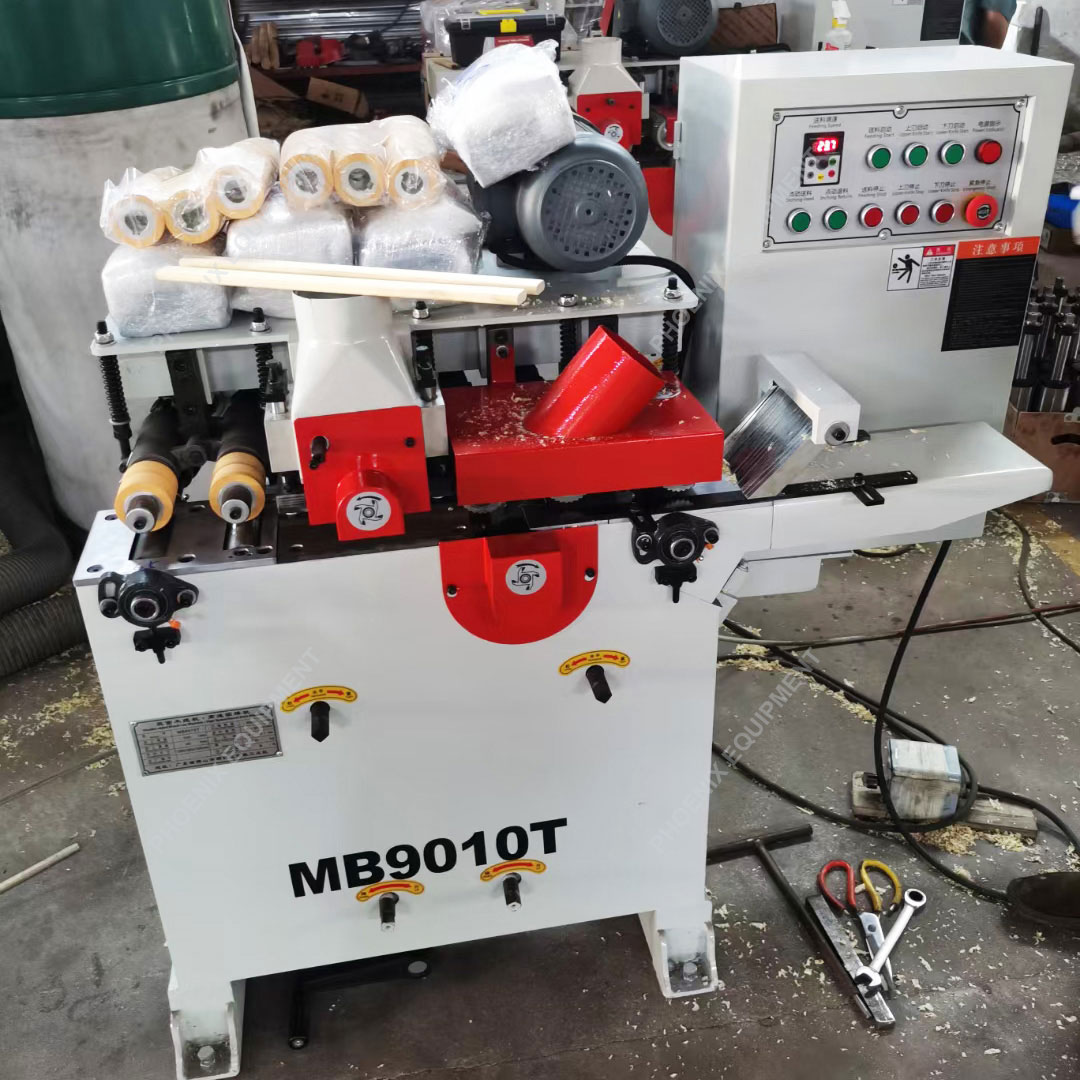

MB9010T

The machine is a wood processing round stick machine, which adopts two functions of automatic feeding and automatic return. It can be used to process wooden uneven bars, martial arts sticks and other sports equipment, rolling pins, mine pillars, stair handrails and other round wooden sticks. The amount of cutting on both sides can be adjusted, and multiple wooden sticks can be processed at one time.

The raw materials can be square or round. It can be used to process wooden uneven bars, martial arts sticks and other sports equipment, rolling pins, mine pillars, ancient building rafters, purlins, and stairs. Round wooden bars such as armrests.

Description

we can provide integrated woodworking machinery solutions for your project.

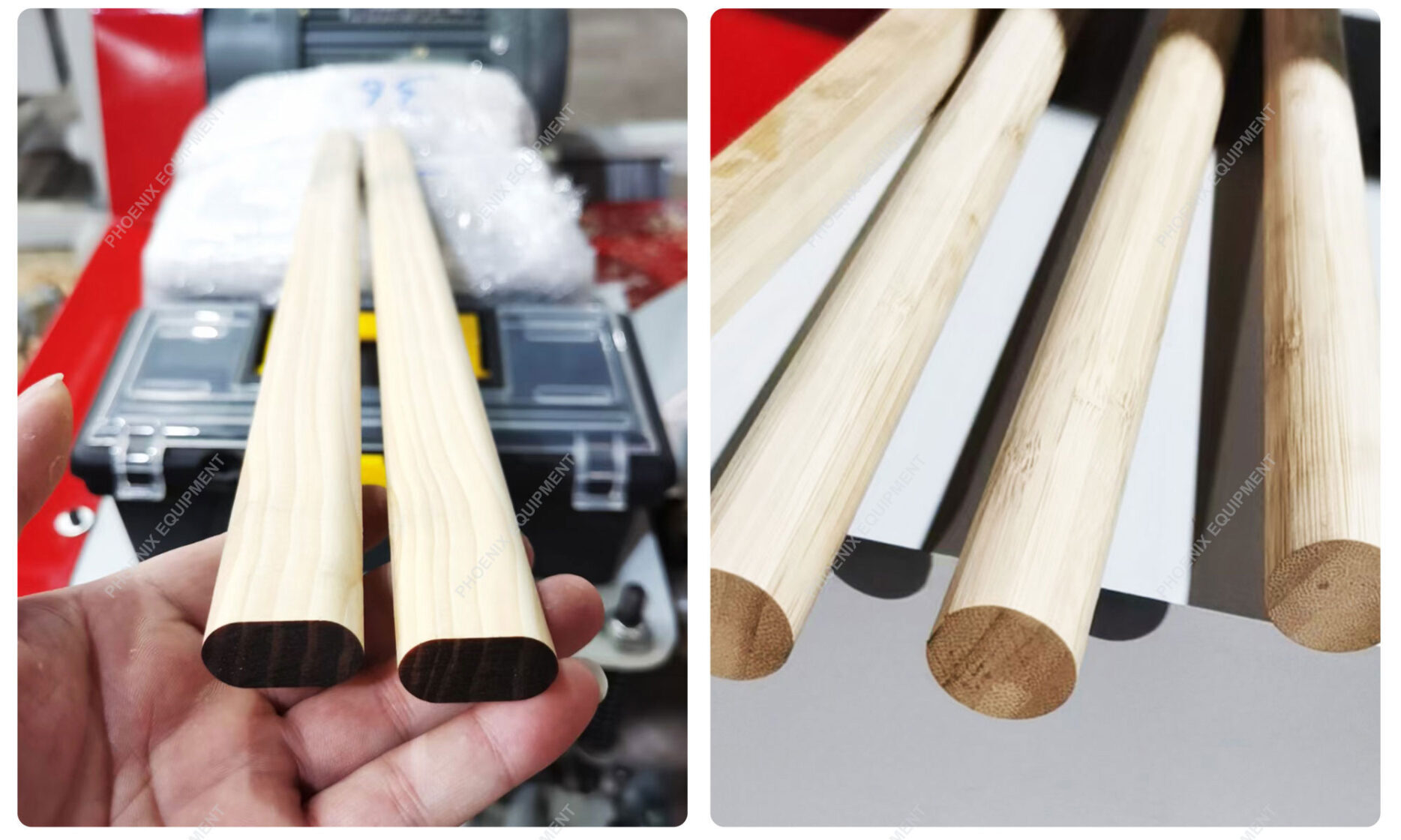

Mop rod rounding machinery wood round bar processing broom stick making machine Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Equipment name Multiple Round Rod Machine Multiple Round Rod Machine Multiple Round Rod Machine
Model MB9010T MB9012 MB9015
Round rod diameter 3mm-50mm 5mm-70mm 6mm-80mm
Material length ≥250mm ≥ 250mm ≥ 250mm
Processing width 10-100mm 10-120mm 10-150mm
Maximum processing thickness 50 100 100
Knife shaft speed 8500 rpm 8500 rpm 8500 rpm
Knife shaft diameter 30mm 30mm 35mm
Knife shaft motor 5.5kw*2 7.5KW * 2 11KW * 2
Feeding motor 1.1kw 1.1KW 1.5KW
Lifting motor No lifting motor 0.75KW 0.75KW
weight 500kg 750KG 980KG
Overall dimensions 1390*920*1380mm 1500*1050*1380mm 1800*1050*1380mm
Additional remarks Including a set of cutting tools/guide plate pressing plate Including a set of cutting tools/guide plate pressing plate Including a set of cutting tools/guide plate pressing plate
