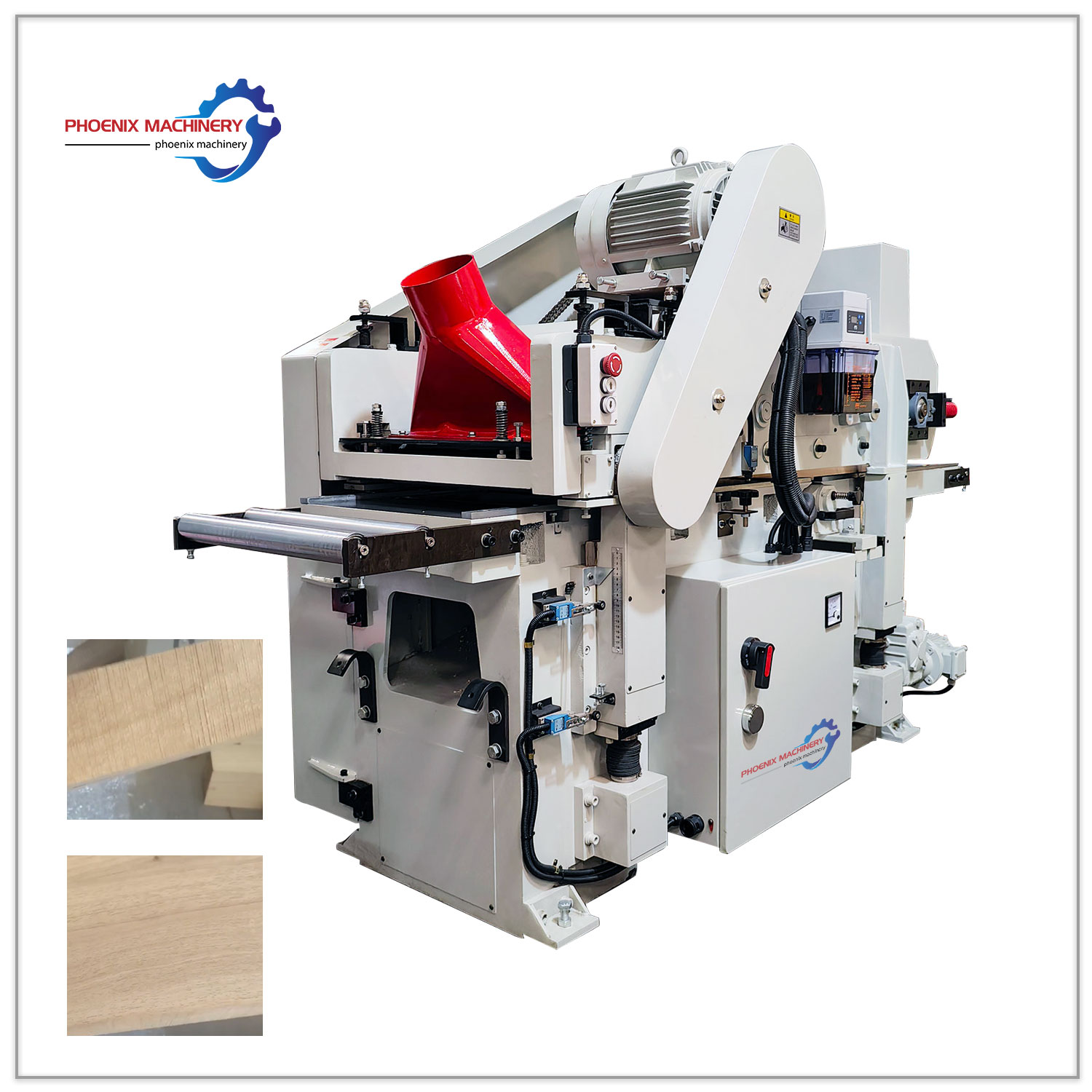

Heavy duty high speed precision automatic double sided planer solid wood processing equipment

MB450B

Processing of single-side, double sides for sets of furniture, all kinds of woodiness material and laminated wood.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

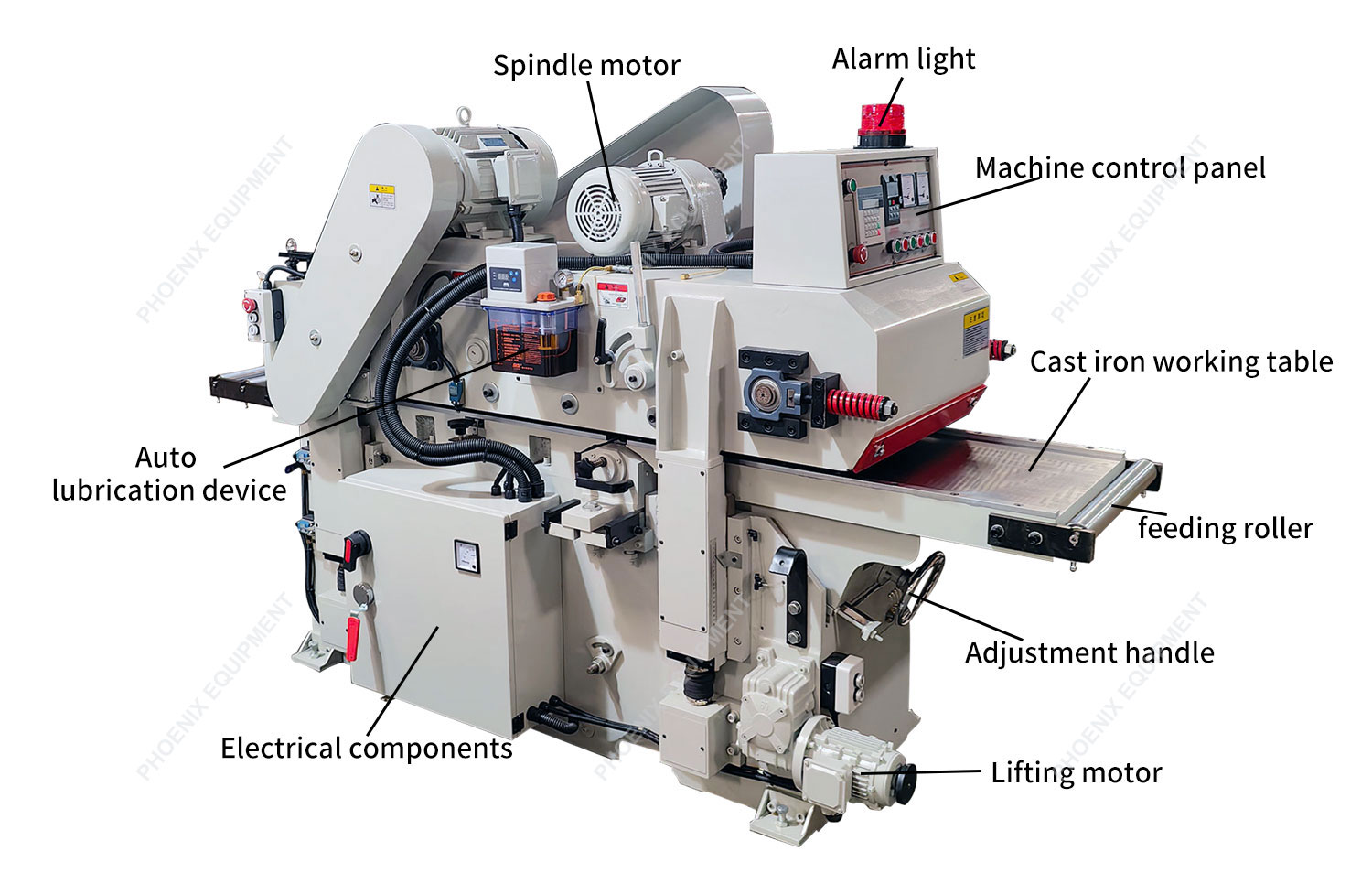

Heavy Duty Double Sided timber planing and rolling machine planer thicknesser spiral cutterPhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Woodworking double-sided planer
Specification parameter   MB450B   MB630B
Max.Workng width   450mm   630mm
Max.Working thickness   180mm   180mm
Min.Working thickness   10mm   10mm
Min working length   280mm   280mm
Cutter knife   54pcs   66pcs
Spindle rotation rate   6800r/min   6800r/min
Feeding speed   7-16m/min   7-16m/min
Top spindle power   7.5kw   11kw
Bottom spindle power   5.5kw   7.5kw
Feeding motor power   2.2kw   3.7kw
Eleating motor power   0.37kw   0.75kw
Total power   15.57kw   22.95kw
Overall dimensions   2350x1268x1680mm   2350x1450x1680mm
Total Weight   2300kg   2500kg
