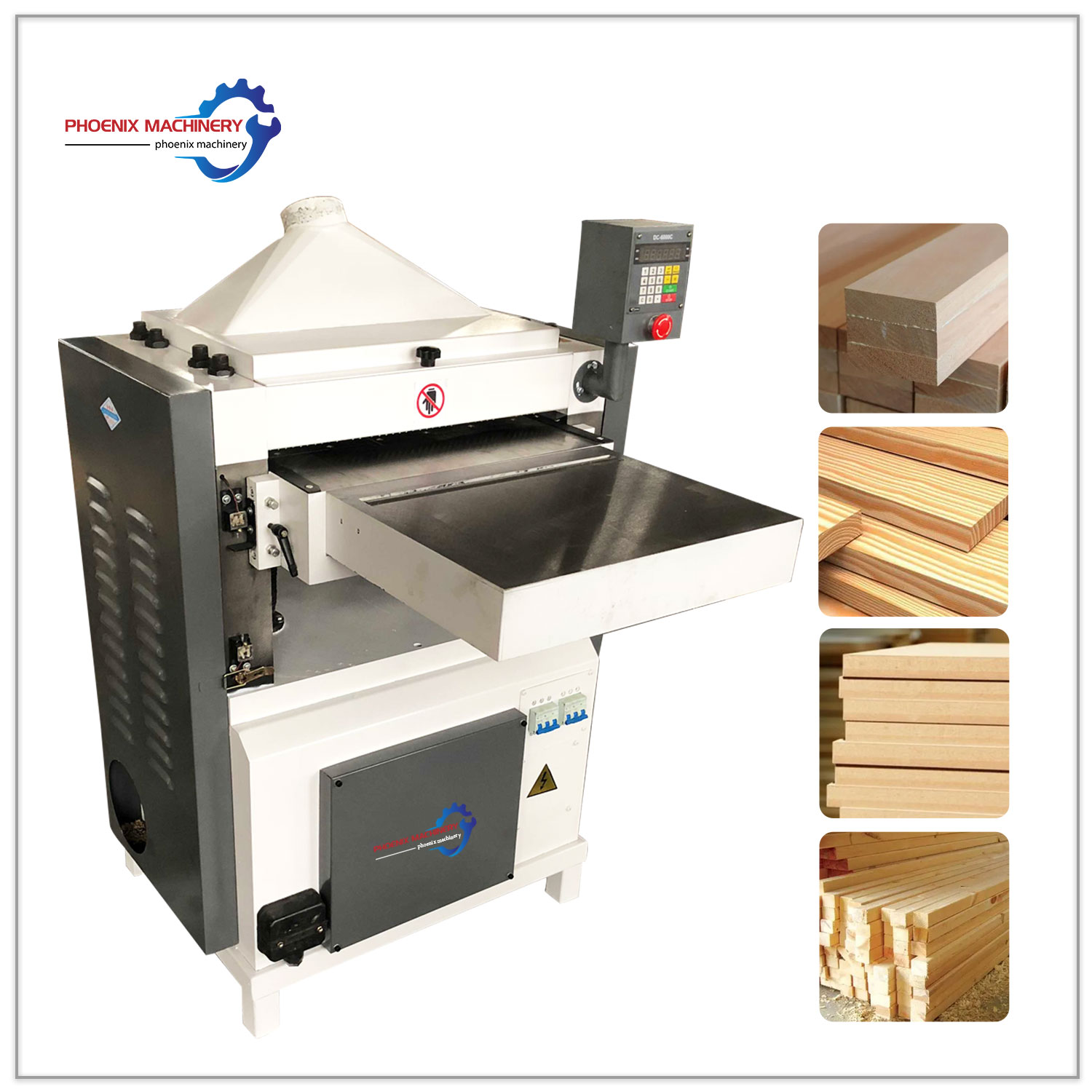

Multifunction Wood Working Machine Planer Machine 2 Sides Work Working Small Planer

MB206E

two feeding speed,it is convenient for customers to adjust it.

the worktable is equiped two carrier rollers.

the high speed main spinle is equipped with SKF high speed bear,which make the running of main spindle more stable

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

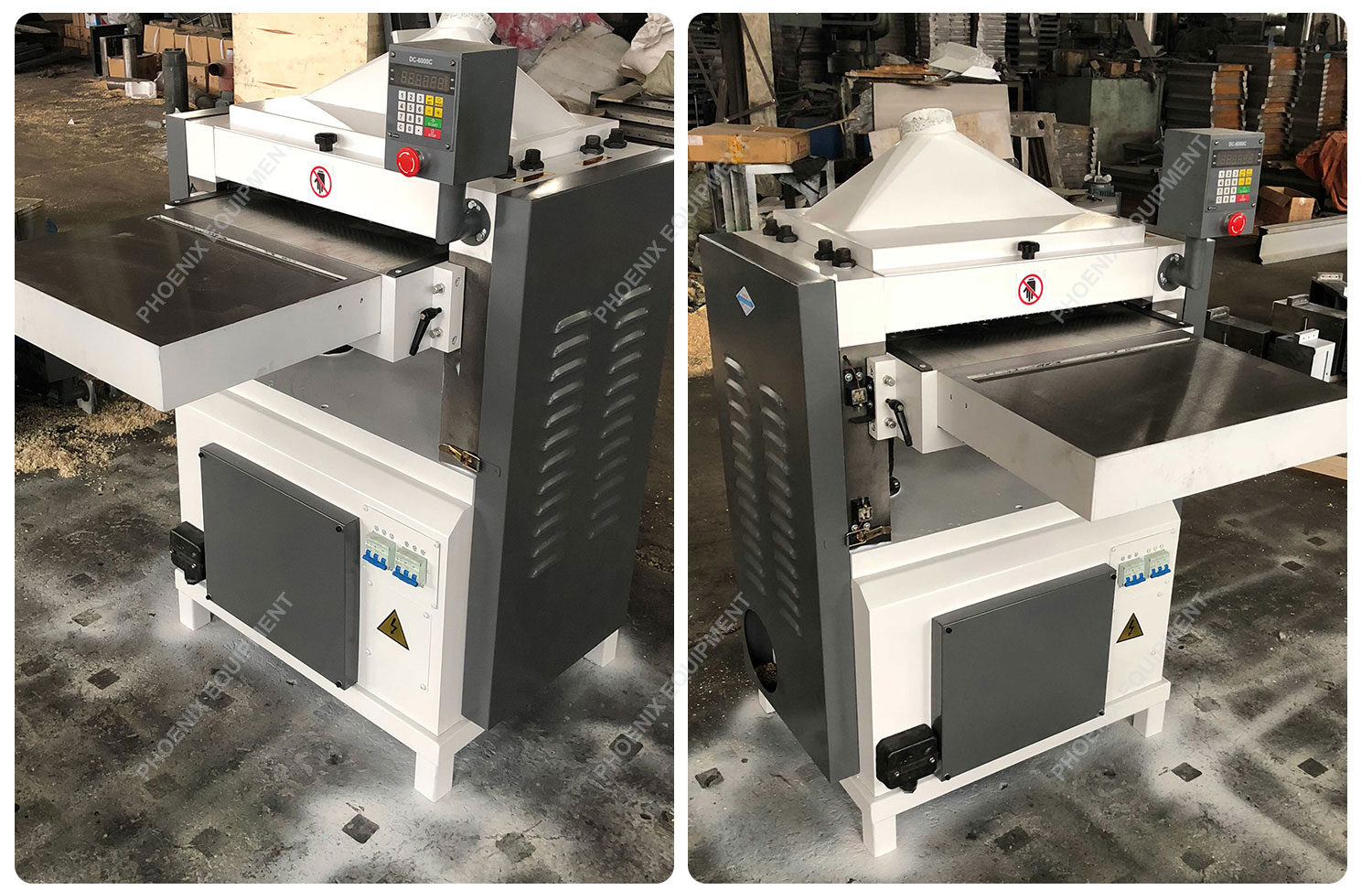

auto feeding 600mm Width solid Wood double-sided high-speed Thicknesser Planer machinePhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Specification MB202E MB203E MB204E MB205E MB206E
Max.working width 200MM 300MM 400MM 500MM 600MM
Max.working thickness 150MM 150MM 150MM 150MM 150MM
Max.planing depth Upper blade 3mm
Lower blade 2mm		 Upper blade 3mm
Lower blade 2mm		 Upper blade 3mm
Lower blade 2mm		 Upper blade 3mm
Lower blade 2mm		 Upper blade 3mm
Lower blade 2mm
Minimum.working length 170MM 170MM 170MM 170MM 170MM
Spindle speed 7800r/min 7800r/min 7800r/min 7800r/min 7800r/min
Main spindle power 3KW Upper motor 3KW
Lower motor 2.2KW		 Upper motor 3KW
Lower motor 3KW		 Upper motor 4KW
Lower motor 3KW		 Upper motor 4KW
Lower motor 4KW
Dianeter of spindle 80MM 80MM 80MM 80MM 80MM
Feeding speed 7 or 9 m/min
Two speed switchable		 7 or 9 m/min
Two speed switchable		 7 or 9 m/min
Two speed switchable		 7 or 9 m/min
Two speed switchable		 7 or 9 m/min
Two speed switchable
Weight of Machine 280KG 340KG 370KG 480KG 550KG
Machine size 650*1400*1280MM 750*1400*1280MM 870*1400*1280MM 950*1400*1300MM 1050*1400*1300MM
