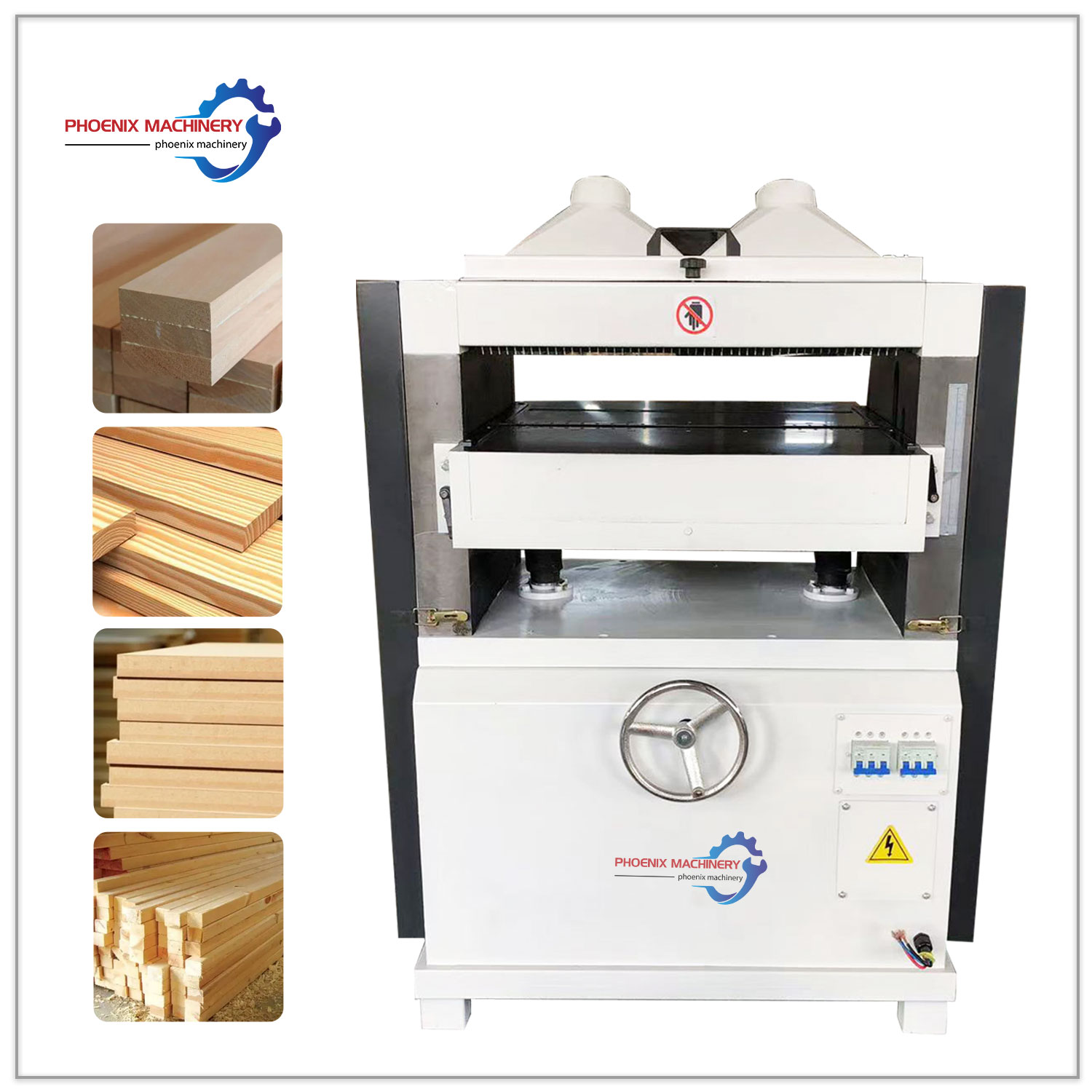

MB206B

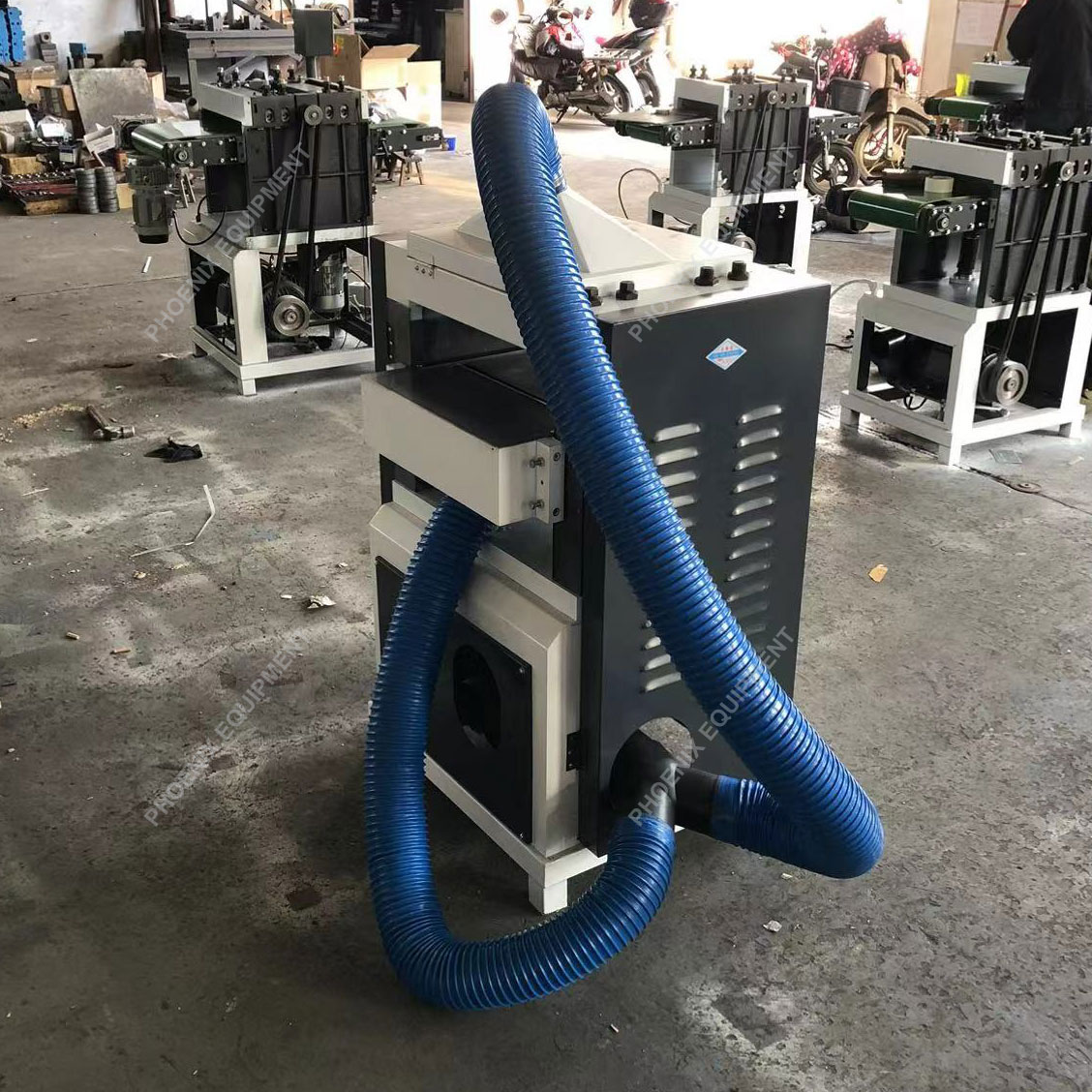

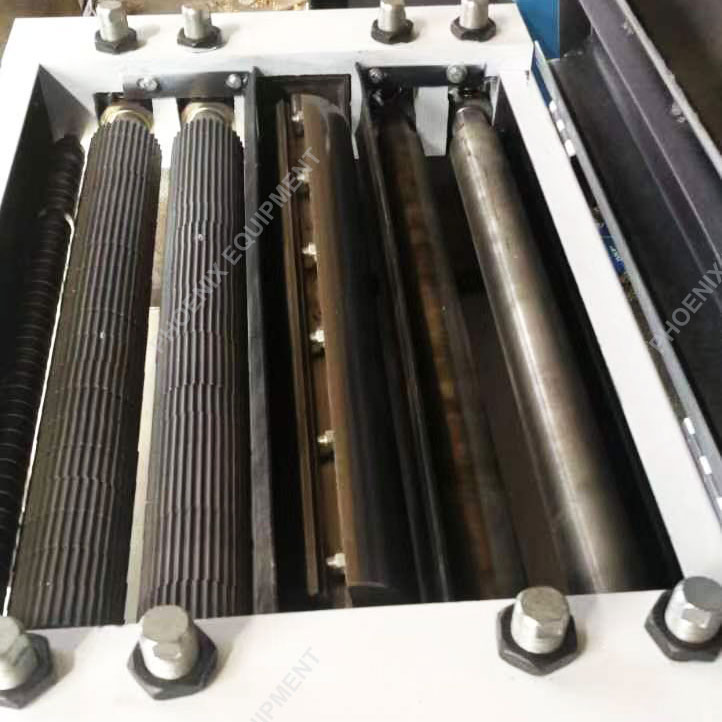

Three-in and two-out structure, three feeding sticks and two discharging sticks, which increase the grip on the wood and eliminate the gnawing of the head and tail; finely ground cast iron working table with good stability and extra-long table, up to 860mm; the table can be adjusted and has a lifting scale to control the amount of planing on the lower table; the machine is equipped with a dust extraction system, which makes the working environment cleaner.

Description

we can provide integrated woodworking machinery solutions for your project.

High Speed quality electric wood thickness planer price wood double side planer machinePhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Specification MB202B MB203B MB204B MB205B MB206B
Max.working width 200MM 300MM 400MM 500M 600MM
Max.working thickness 150MM 150MM 150MM 150MM 150MM
Max.planing depth Upper blade 3mm
Lower blade 2mm
Upper blade 3mm
Lower blade 2mm
Upper blade 3mm
Lower blade 2mm
Upper blade 3mm
Lower blade 2mm
Upper blade 3mm
Lower blade 2mm
Minimum.working length 170MM 170MM 170M 170MM 170MM
Spindle speed 7800r/min 7800r/min 7800r/min 7800r/min 7800r/min
Main spindle power 3KW Upper motor 3KW
Lower motor 2.2KW
Upper motor 3KW
Lower motor 3KW
Upper motor 4KW
Lower motor 3KW
Upper motor 4KW
Lower motor 4KW
Dianeter of spindle 80MM 80MM 80MM 80MM 80MM
Feeding speed 7 or 9 m/min
Two speed switchable
7 or 9 m/min
Two speed switchable
7 or 9 m/min
Two speed switchable
7 or 9 m/min
Two speed switchable
7 or 9 m/min
Two speed switchable
Weight of Machine 280KG 340KG 370KG 480KG 550KG
Machine size 650*720*1280M 750*720*1280MM 870*720*1280MM 950*790*1300MM 1050*790*1300MM
