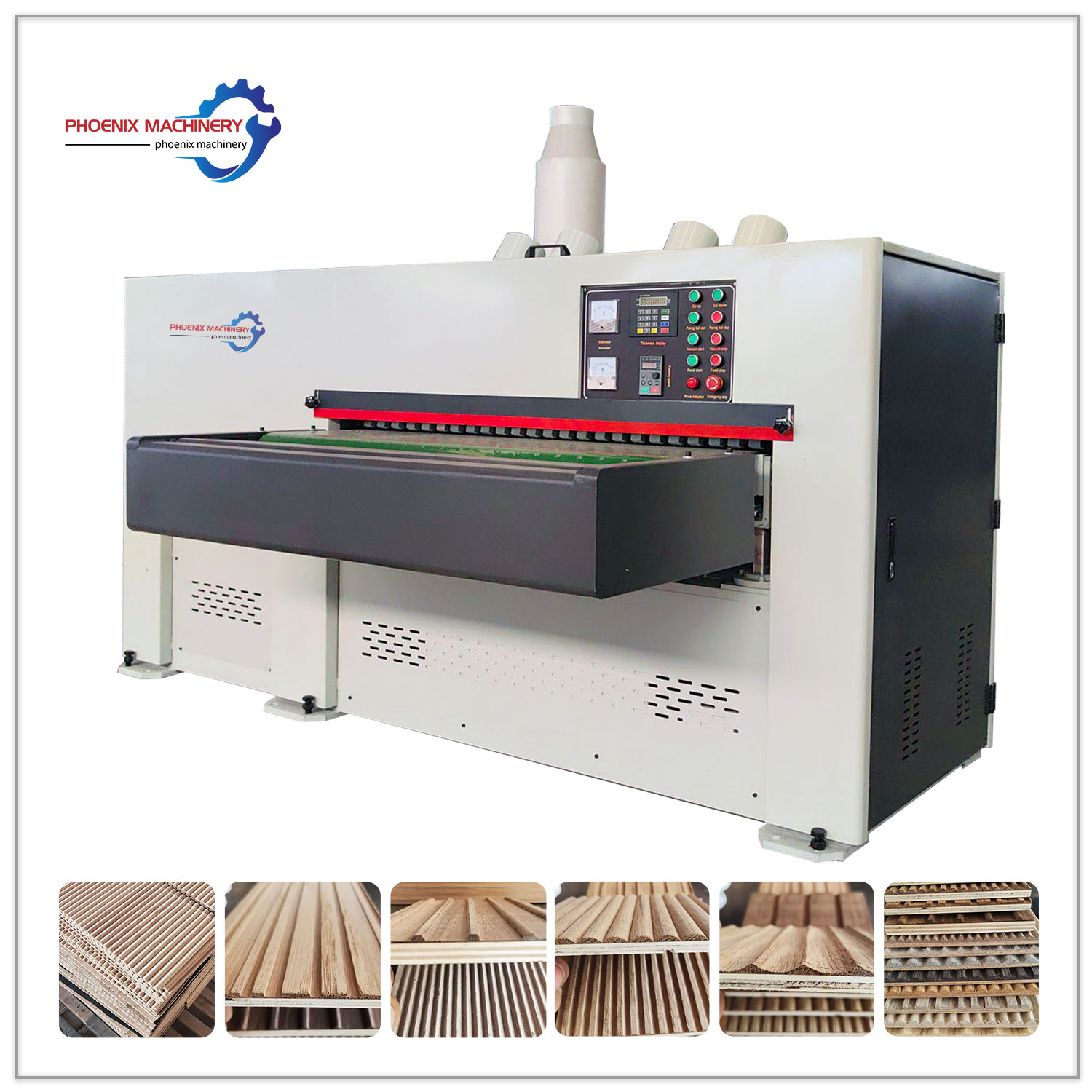

Woodworking heavy-duty Production of concave convex wall panels planer

MB1300S

The equipment make solid wood boards and MDF boards to be planed into concave and convex surfaces, Thus replacing the CNC Router, It’s higher efficiency.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

Heavy duty automatic feeding 1300mm wall panel planer wood forming thicknesserPhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MB1300S
Maximum cutting width 1300mm
Maximum workpiece thickness 100mm
Minimum workpiece thickness 3mm
Minimum workpiece length 300mm
Feeding speed 0-30m/min
Main motor power 22kw
Feeding motor power 3kw
Power of lifting motor power 0.55kw
Vacuum pump motor power 11kw
Planer shaft diameter 120mm
Equipment size 2750*2360*1500mm
Vacuum pump size 1080*920*930mm
Weight 2800kg
