High effectiveness Automatic 4kw power woodworking heavy duty planer thicknesser

MB106

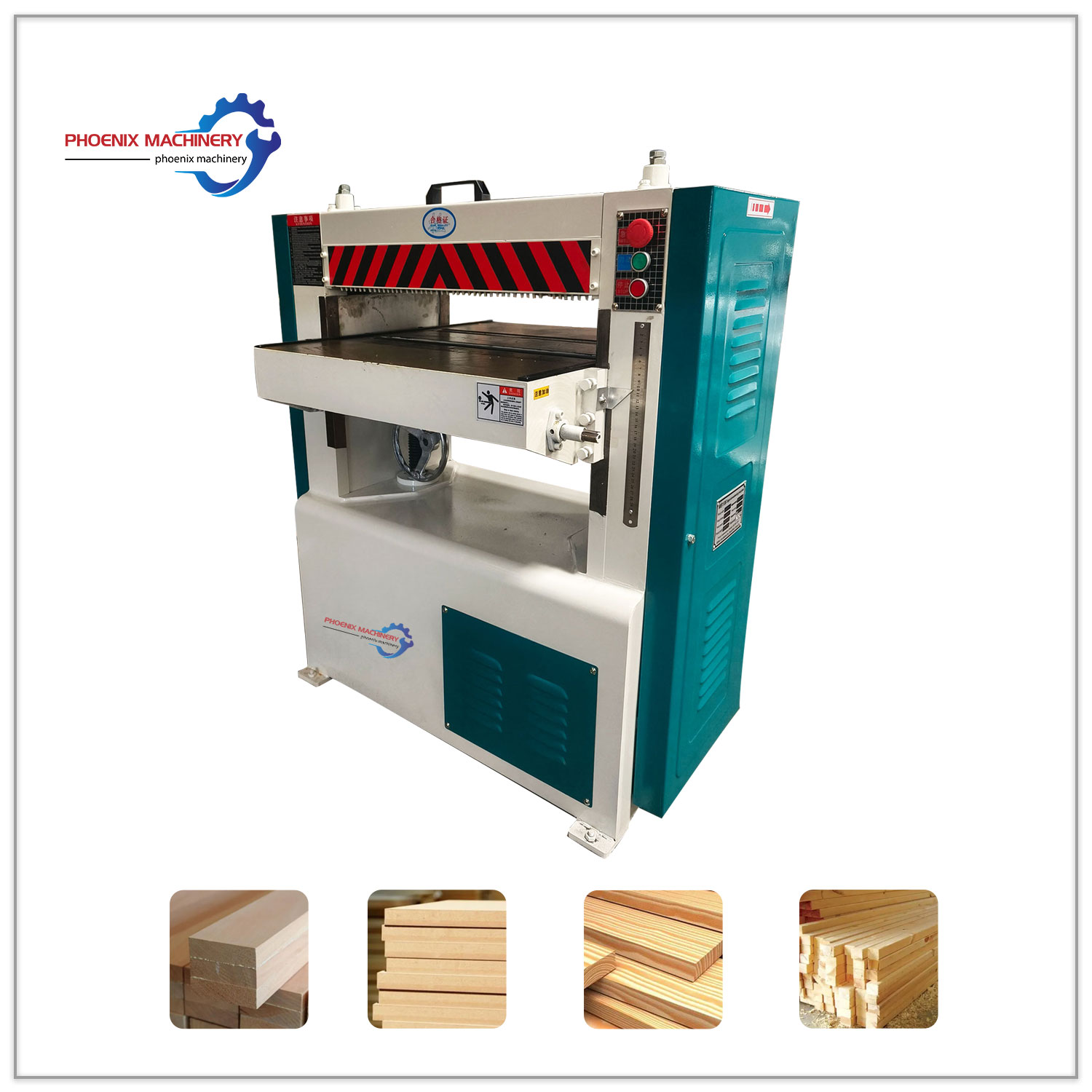

MB106 Heavy duty high speed single sided multifunctional Woodworking planer machine

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

Automation Multipurpose Woodworking 630mm Wood Thickness Thicknesser Planer MachinePhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Model MB104 MB105 MB106 MB108
Max. Planing Width 400mm 500mm 630mm 800mm
Max. Planing Thickness 180mm 180mm 180mm 180mm
Min. Planing Thickness 8mm 8mm 8mm 8mm
Max.cutting capacity 5mm 5mm 5mm 5mm
Min. Planing length 250mm 250mm 250mm 250mm
Feeding Speed 6.8m/min 6.8m/min 6.8m/min 6.8m/min
Spindle Speed 6500r/min 6500r/min 6500r/min 6500r/min
Main Motor Power 4kw 5.5kw 5.5kw 7.5kw
Overall Dimensions 800*780*1180mm 900*780*1180mm 1030*780*1180mm 1230*780*1180mm
Weight 380kgs 450kgs 550kgs 700kgs
Voltage 380V 50Hz 3 phases/Customized
