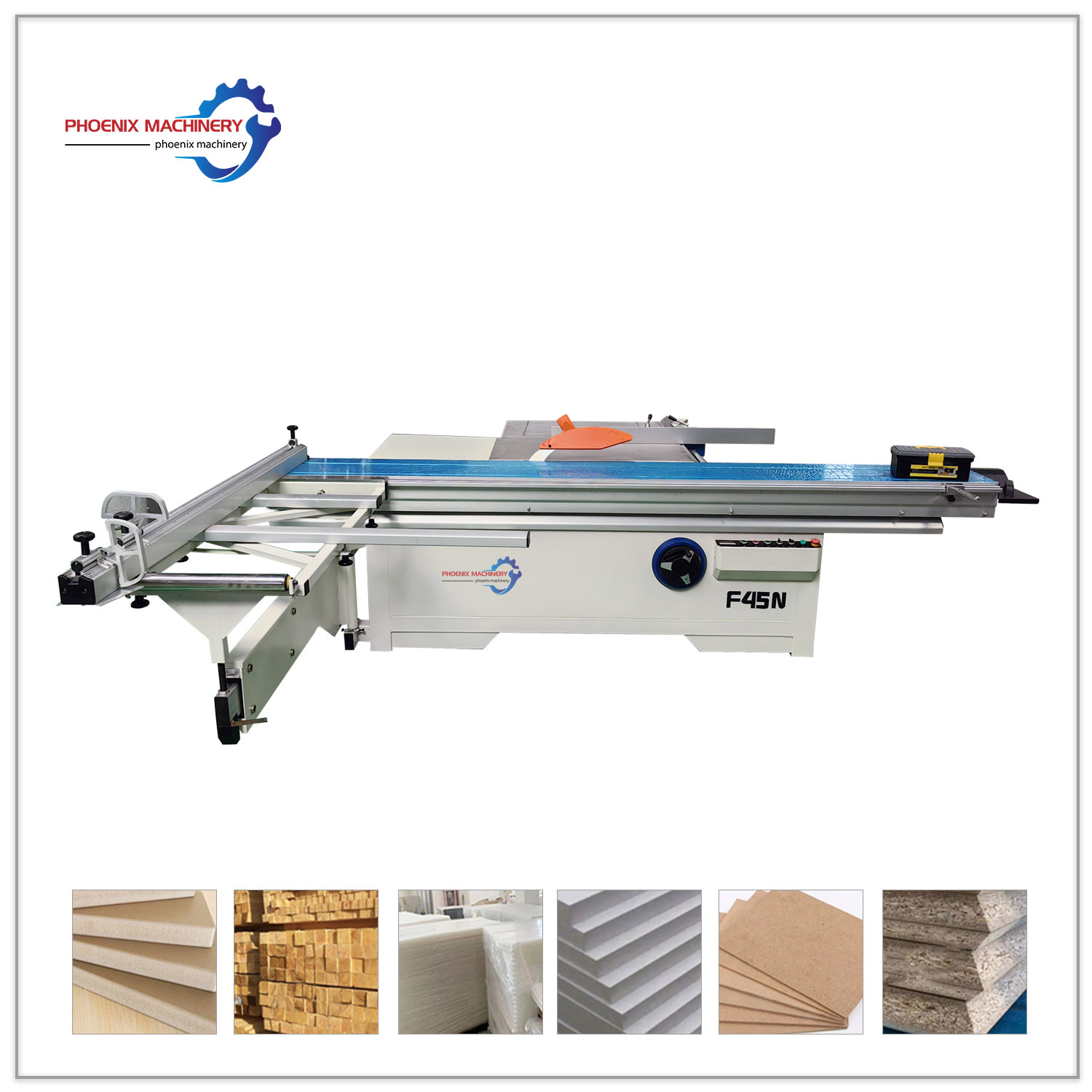

F45N

The precision panel saw are used for all kinds of MDF, Chipboard, Man-made board, ABS board, PVC board, Organic glass sheet, solid wood and wood with similar hardness.

* Made of high-strength extruded aluminum alloy, movable table is high in strength and won’t bend.
* Import columnar guide rail assembled with sliding table ,higher precision and longer service life.
* The working table surface is oxdation treated, beautiful and hardwearing.
* Best sliding table saw with 0-45 degree tilting.*Linear guide structure can let the cutting board in good precision .

Description

we can provide integrated woodworking machinery solutions for your project.

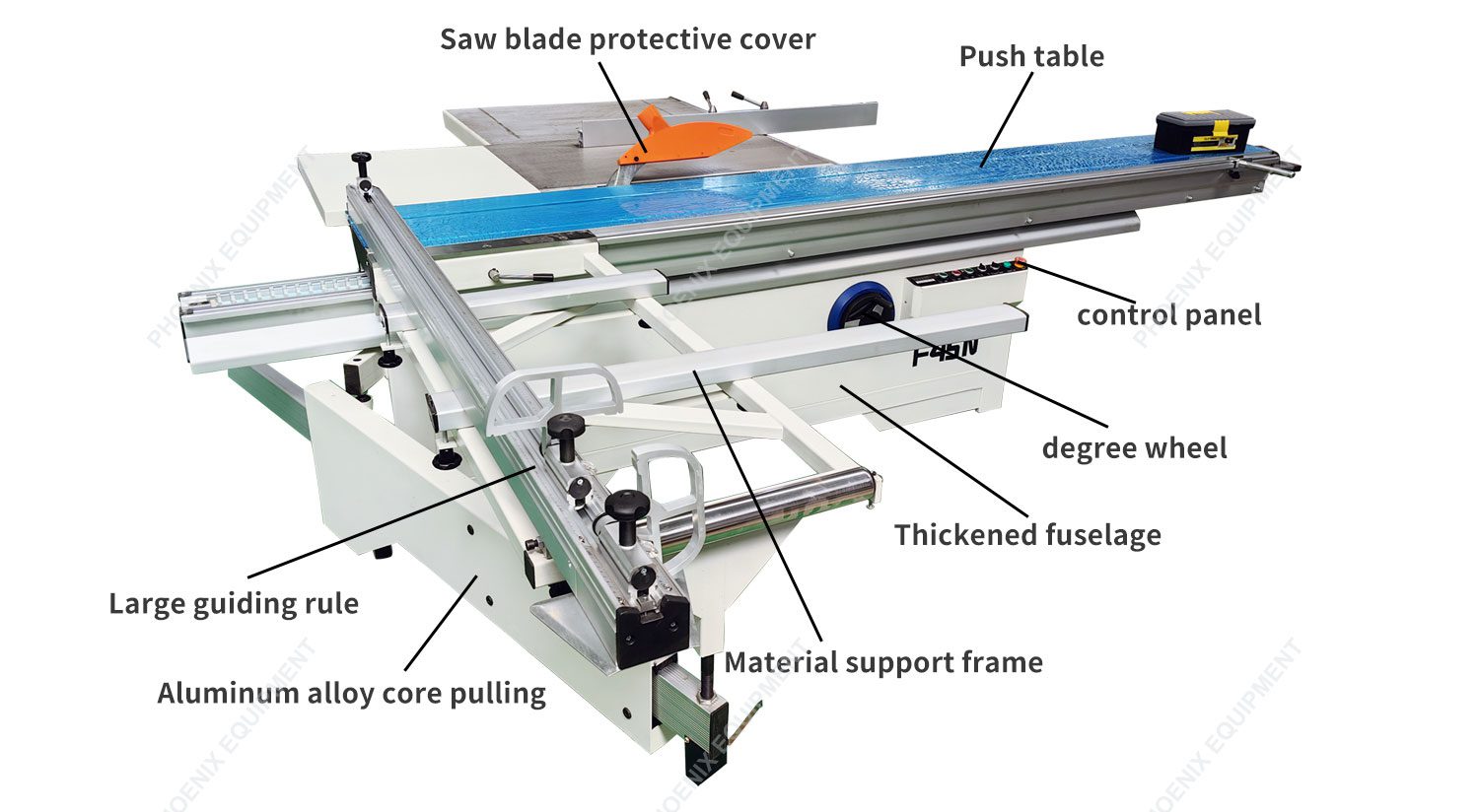

heavy duty table circular saw machine for wood

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Technical Parameter
Sliding table length * width 3200*425mm Tilting saw blade 45°-90°
Max cutting length 3200mm Main motor 5.5kw
Max cutting width 1300mm Scoring saw blade diameter 120mm
Main saw blade diameter 300mm (250-400mm) Scoring saw spindle speed 7000-8000rpm
Height of cut at 90° 75mm Scoring spindel diameter 20mm
Main saw spindle speed 4000-6000rpm Scoring motor 1.1kw
Main spindle diameter 30mm Overall dimensions 3200*3490*900mm
