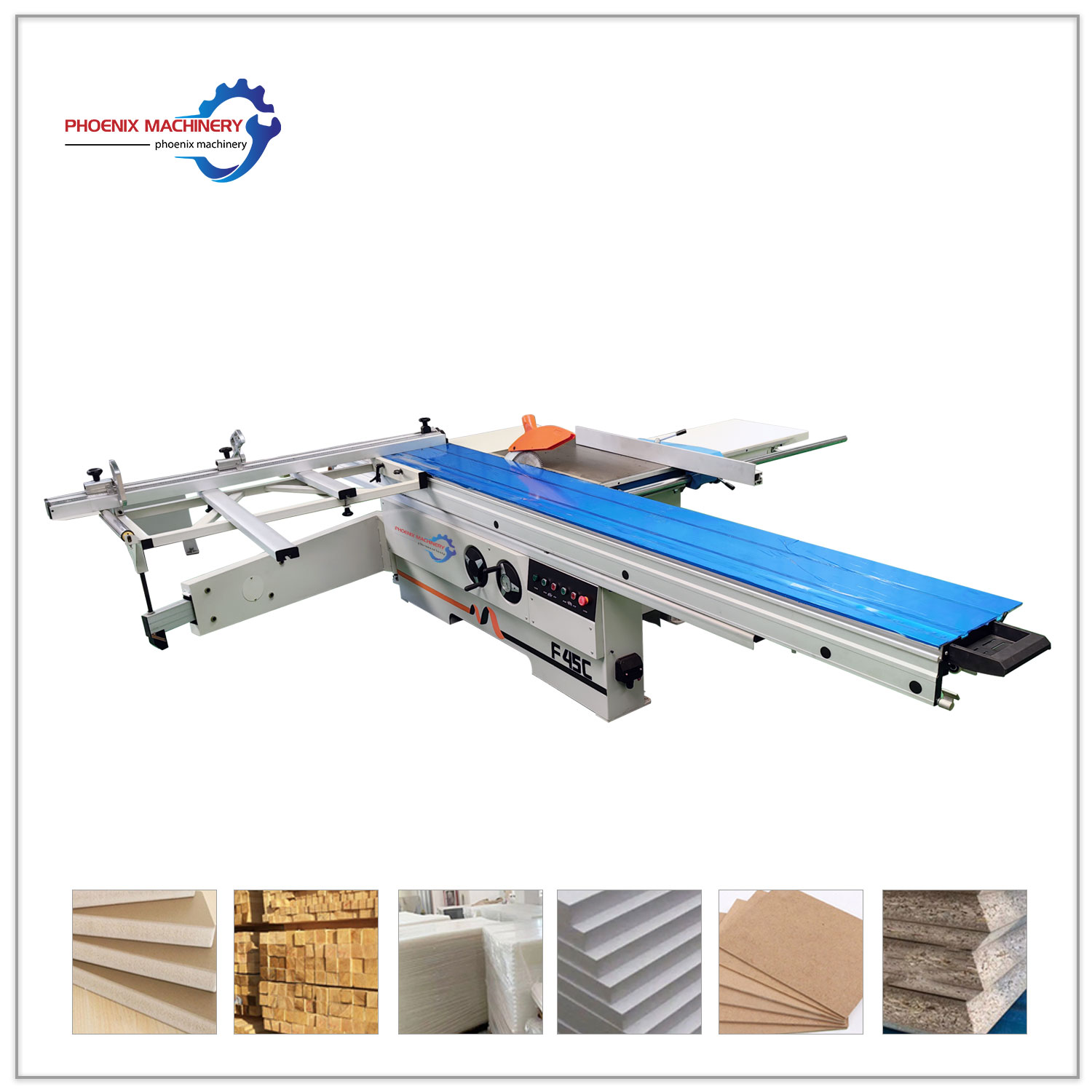

precision sliding table saw / sawmill

F45C

Made of high-strength extruded aluminum alloy , movable table is high in strength and won’t bend.
Import columnar guide rail assembled with sliding table higher precision and longer service life.
The working table surface is oxdation treated , beautiful and hardwearing.
Best sliding table saw with 45 90 degree tilting.
Linear guide structure can let the cutting board in good precision.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

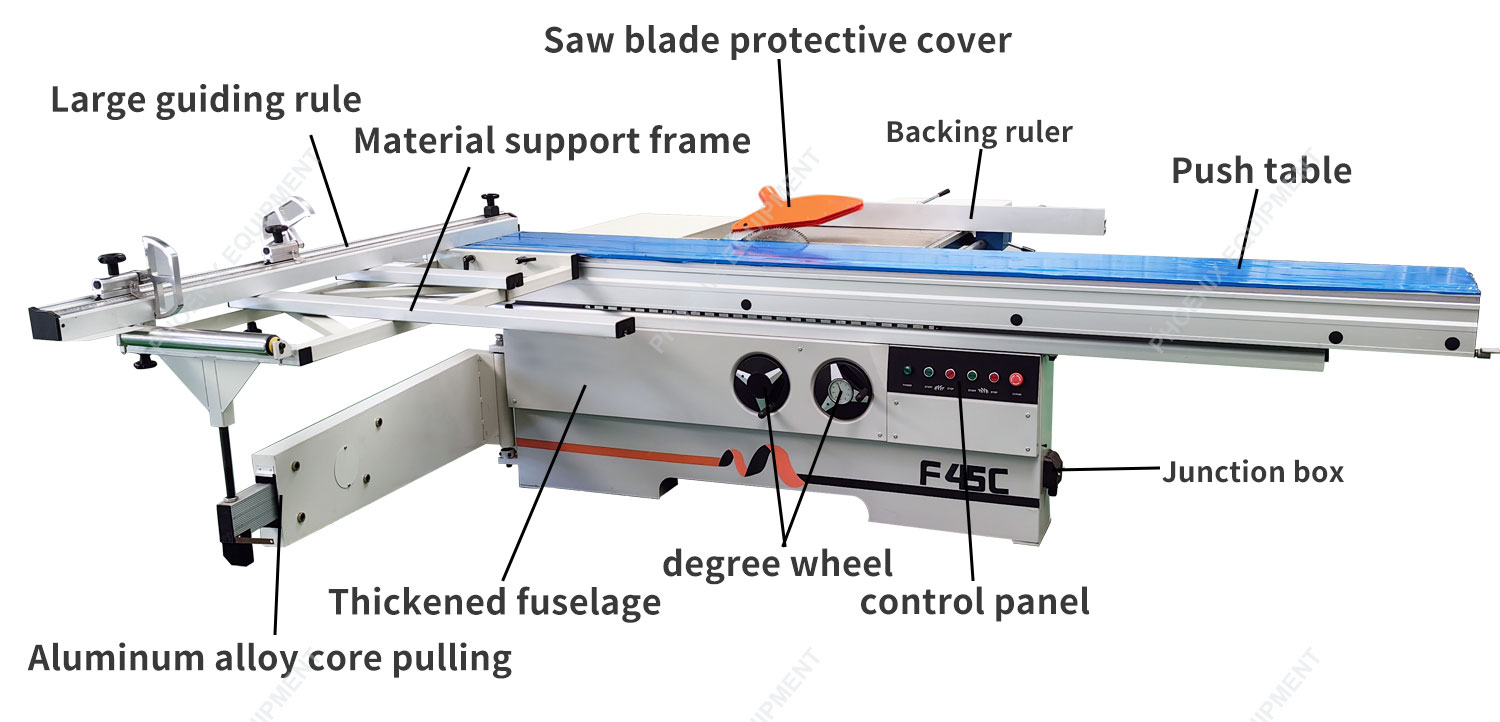

new automatic horizontal sliding table saw

Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Technical Parameter
Sliding table length * width 3200*390mm Tilting saw blade 45°-90°
Max cutting length 3200mm Main motor 5.5kw
Max cutting width 1300mm Scoring saw blade diameter 120mm
Main saw blade diameter 300mm (250-400mm) Scoring saw spindle speed 7000-8000rpm
Height of cut at 90° 75mm Scoring spindel diameter 20mm
Main saw spindle speed 4000-6000rpm Scoring motor 1.1kw
Main spindle diameter 30mm Overall dimensions 3200*3490*900mm
