CNC drilling machining center panel furniture invisible connector slotting integrated machine

PDM680

It supports the three-in-one hole processing mode of long material, short material, long groove and easy to learn.



Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

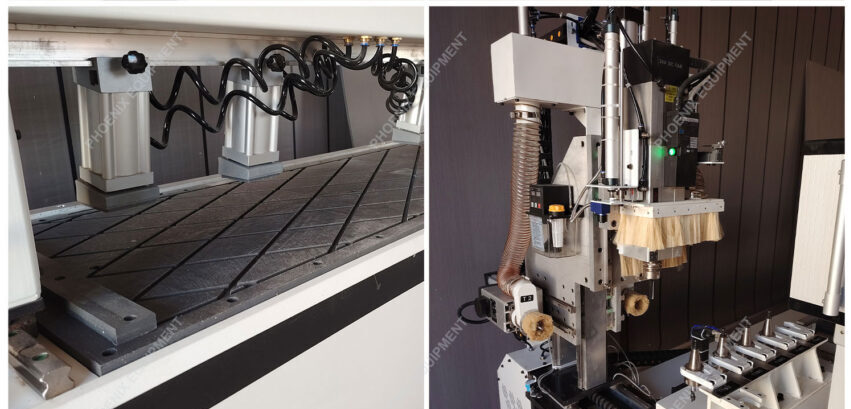

Three Axes Association CNC Door Lock Machine For Drilling And Slotting Of Wooden Doors WindowsPhoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

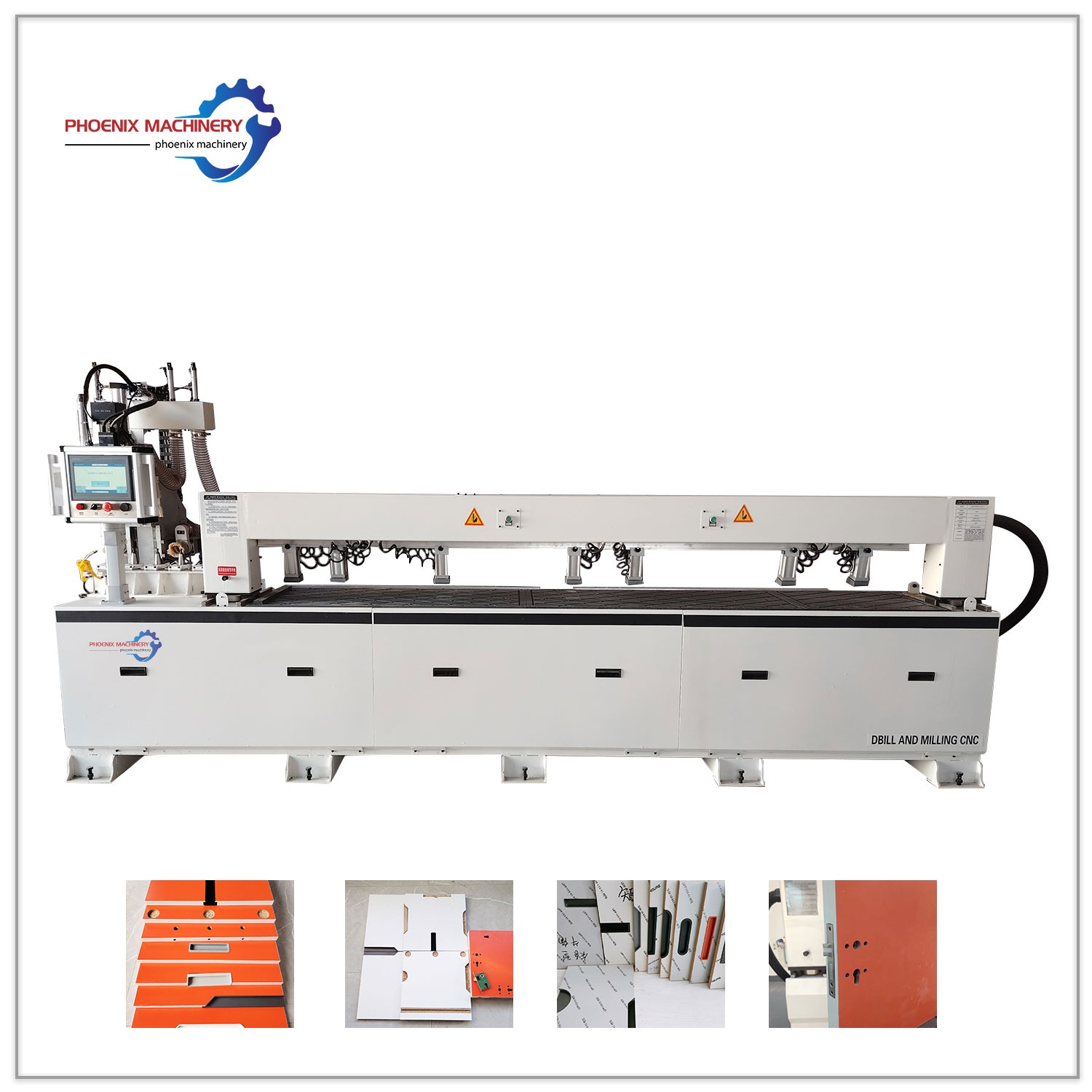

Product Name CNC Drilling & Milling Machining Center
Model PDM680
Air pressure 0.6Mpa
Automatic milling cutter main motor 6kw
Horizontal side main motor 1 2.2kw
Horizontal side main motor 2 3.5kw
Servomotor 0.75kw*3
Total power 13.95kw
Machining width 150mm
The maximum machining depth of the vertical cutter axis 70mm
The maximum machining depth of the horizontal cutter axis 70mm
Effective stroke of workbench 2900mm
Weight 1000kg
Size 4400*1450*1750mm
