Woodworking 400C multi functional combined universal machine for wood working machine

400C

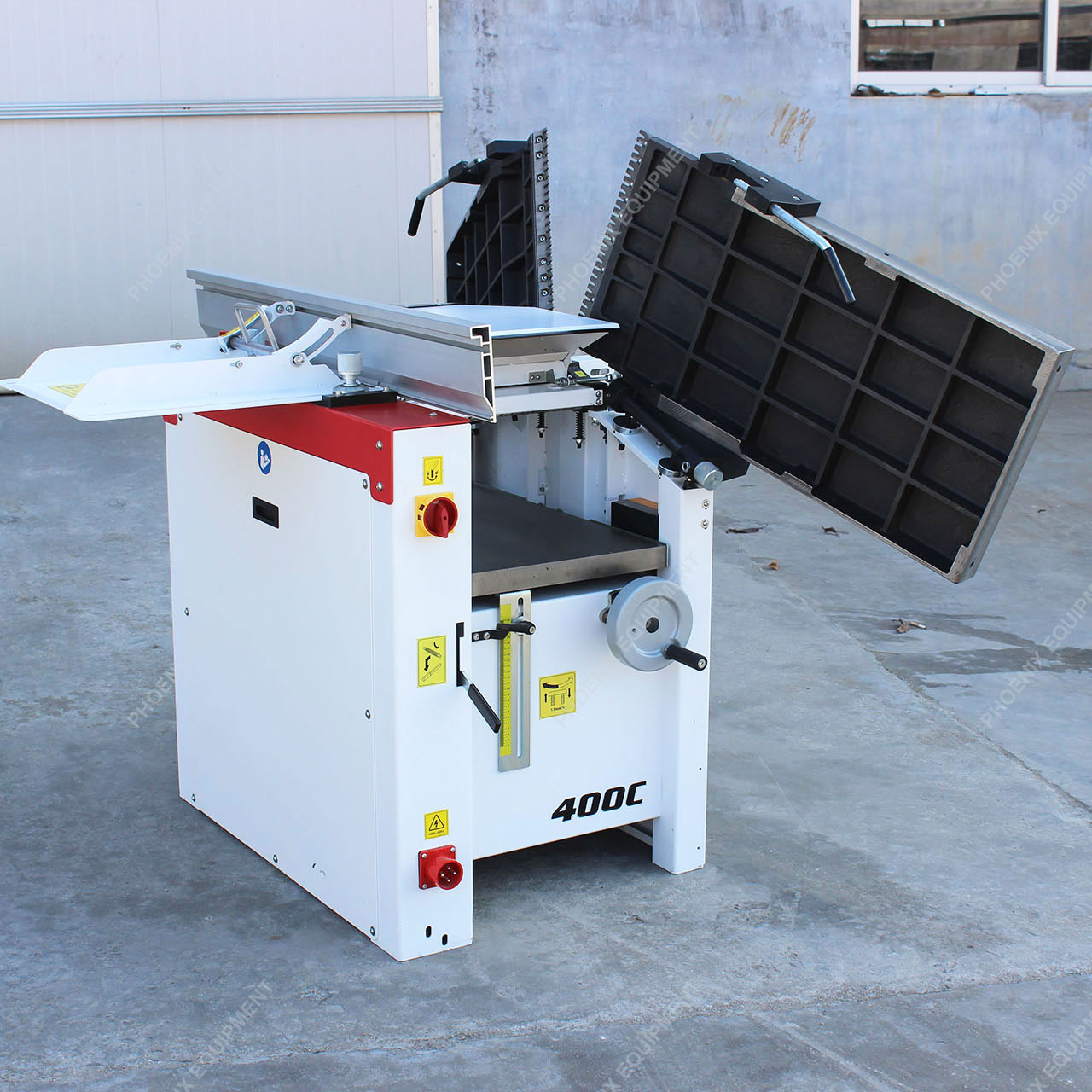

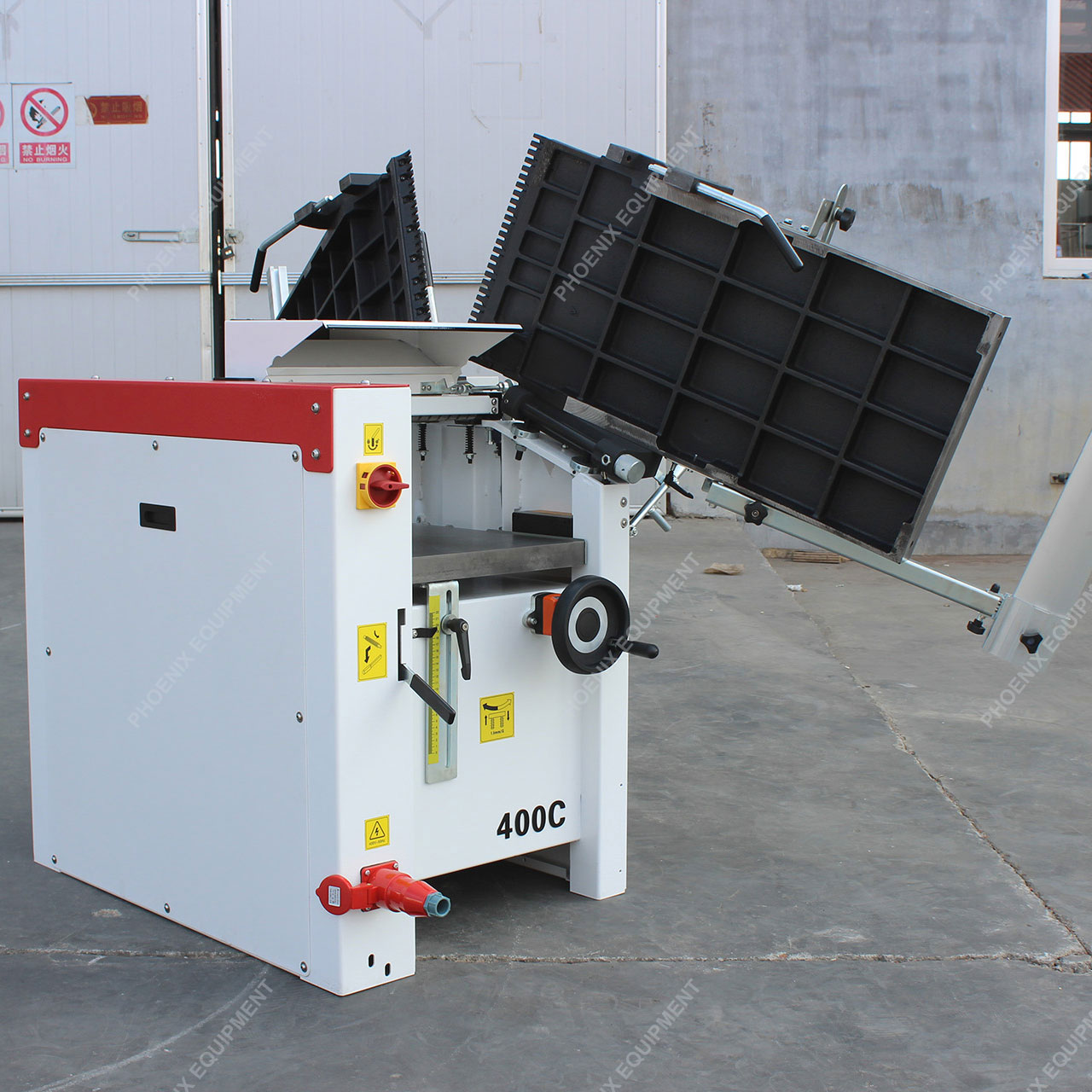

The 400C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.

Category: Tag:

Description

we can provide integrated woodworking machinery solutions for your project.

Woodworking 400C multi functional combined universal machine for wood working machine Phoenix Machinery offers a variety of structural and performance models suitable for wood and roll edge banding materials

Planer Unit 400C
Working tables mm 400×1800
Cutterblock diameter mm 70
Cutterblock rotation speed r.p.m 5700
N. of knives n° 3
knives dimensions mm 400x20x3
Max table adjustement mm 4
Thicknesser Unit 400C
Working table mm 400×760
Feed speed m/1′ 7
Max. working height mm 220

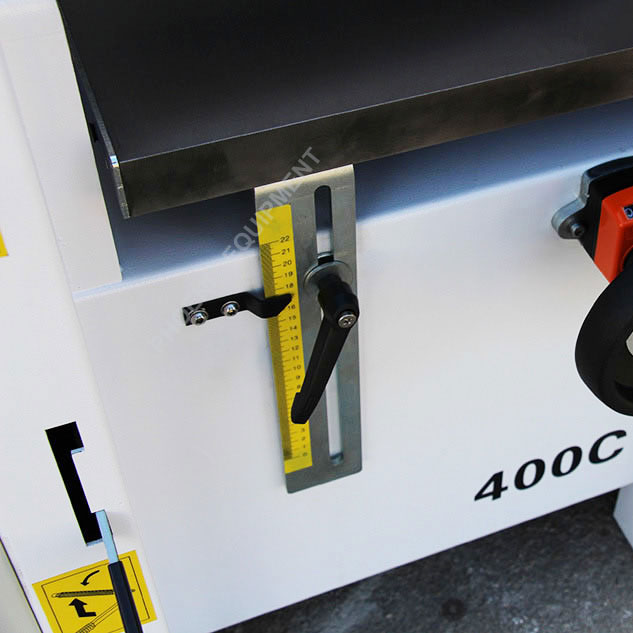

Min. working height mm 4
Cutterblock rotation speed r.p.m 5700
Max. cutting depth mm 4
Mortiser Unit 400C
Working table mm 250×500
Longitudinal stroke mm 205
Trasversal stroke mm 95
Vertical stroke mm 90
Churck mm 16
Churck rotation speed r.p.m 5700
Standard accessories Unit 400C
Service wrenches * *
Mortiser chuck * *
Guards on mortiseur chuck * *
3 pcs. planing knives * *

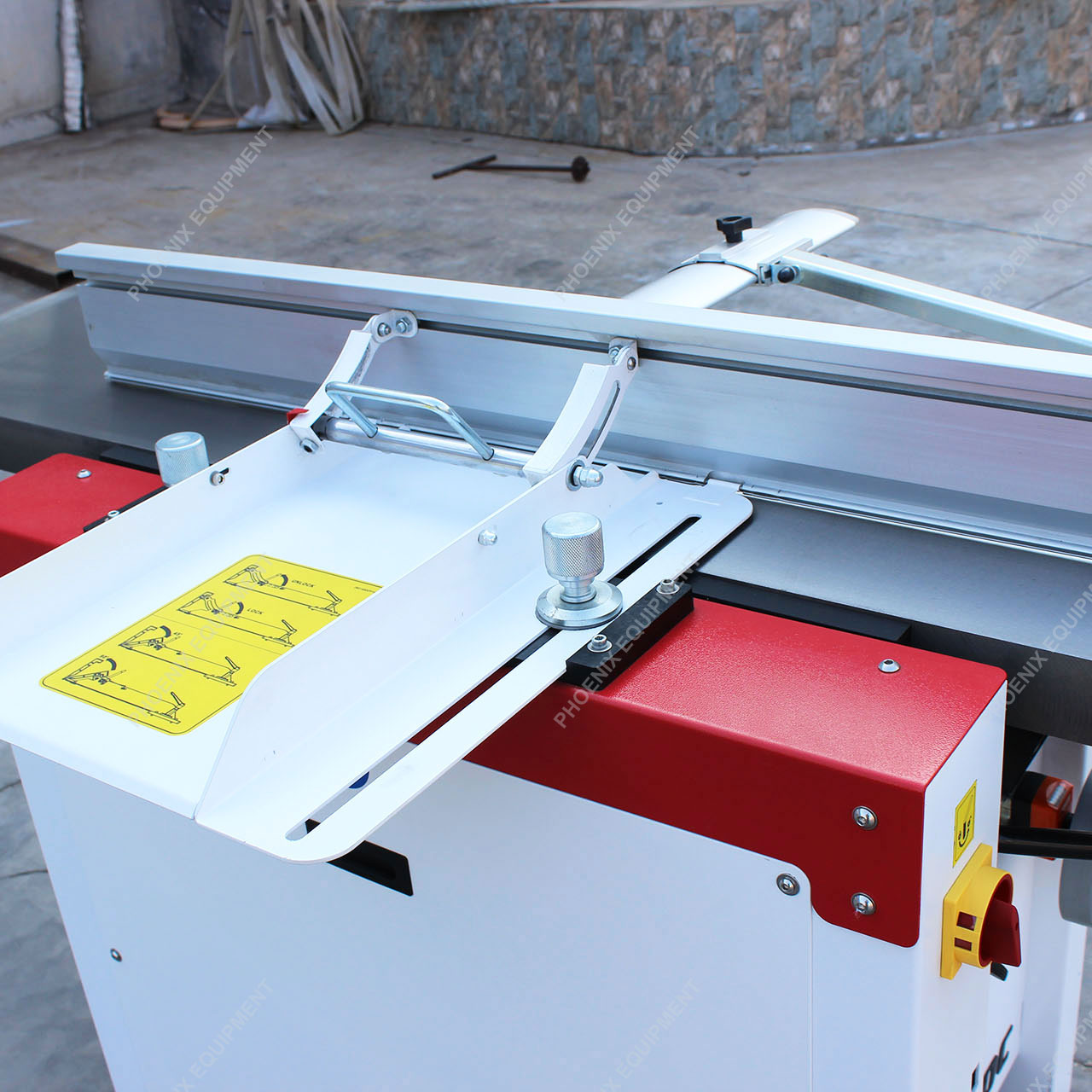

Planer guide * *
Bridge sefety hood on planer * *
3-phase motor power HP – KW 4,0 – 3,0
Weight Kg 385
Optional accessories Unit 400C
3-phase motor HP – KW 5,5 – 4,0
Increasing Single-phase motor HP – KW 4,0 – 3,0
Wescott(Chuck) mm 16
